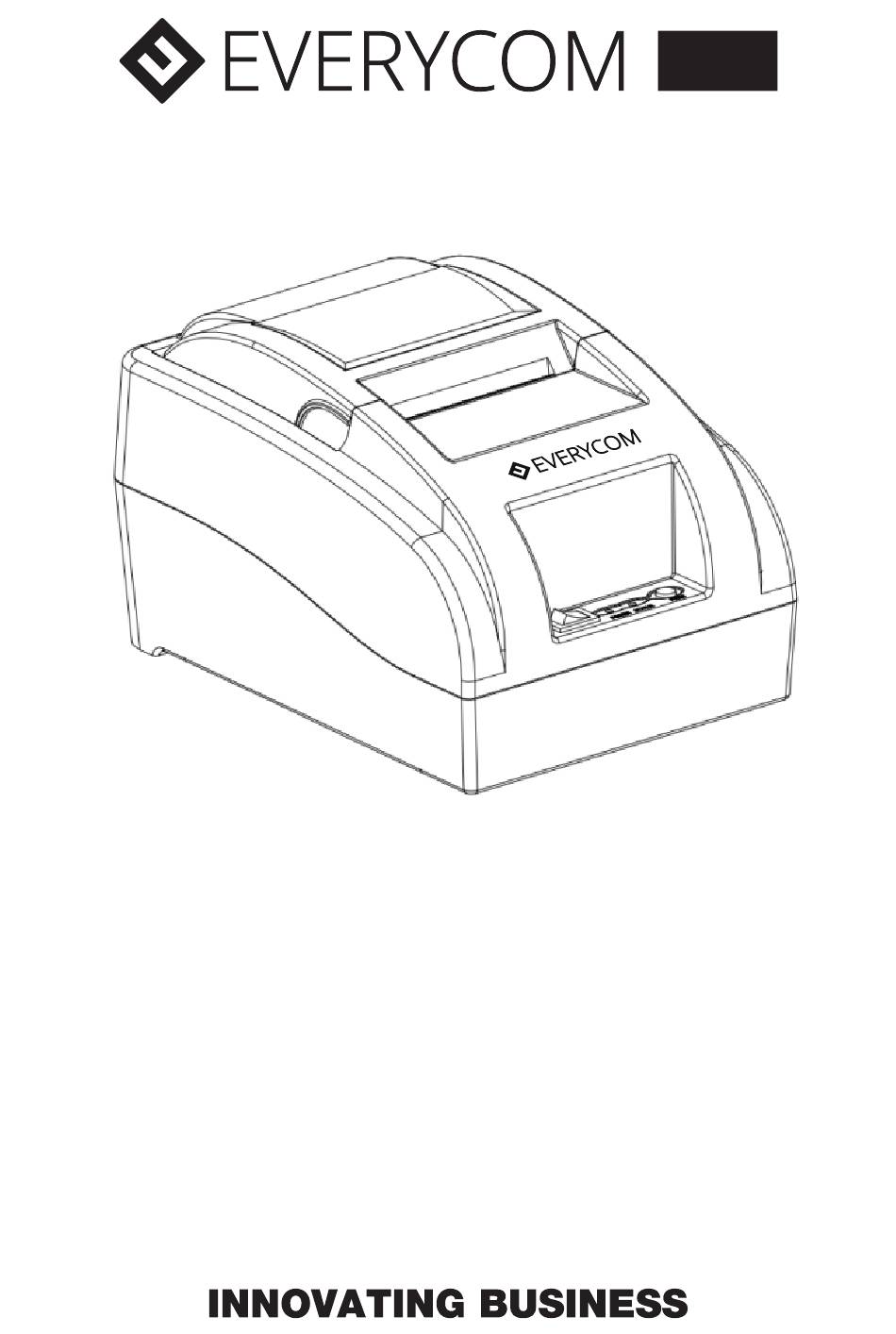

Page 1: User Manual

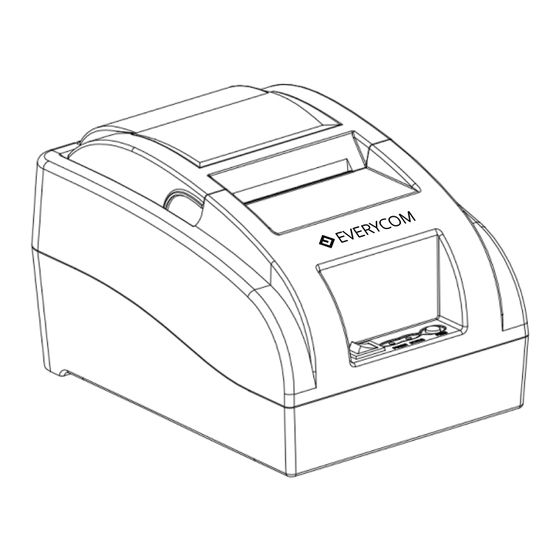

EC58 THERMAL RECEIPT PRINTER USER MANUAL Please read this manual carefully before using the printer, we recommend that you keep this user manual for future reference. - Page 2 ABOUT THIS USER MANUAL We thank you for your purchase of Everycom EC58 Thermal receipt printer. This user manual will guide you through on how to use this printer. Please red this user manual carefully before using the printer. We also strongly recommend that you keep this user manual for future reference and do not throw it away.
- Page 3 With USB Interface, ( Optional USB+Bluetooth interface available ) Ÿ Support Windows, Linux, Android and iOS operating systems WHAT’S IN THE BOX Ÿ 1 X Everycom EC58 Thermal Receipt Printer Ÿ 1 X Power Cable Ÿ 1 X USB Data Cable Ÿ...
- Page 4 PRODUCT FEATURES Items Parameters Thermal Line Printing 48MM Area Resolution 384dots/Line（8dots/mm，203dpi） Printing 70mm/Second Speed Interface USB /USB+Bluetooth Type Print Line parameters 3.75 mm（Can adjust line spacing by command） Spacing Font A:32 character /Line Line No. Font B:42 character/Line Simple/traditional Chinese-16 lines Character Standard GB18030 simplified/traditional Chinese Fonts ANK character，Font A：1.5×3.0mm（12×24 点）...
- Page 5 4. Load paper roll using below paper loading guideline. HOW TO : LOAD PAPER EC58 Thermal receipt printer uses 58mm thermal paper roll, please make sure you have the correct paper roll for the printer. 1. Firmly hold the top flip cover of the printer with your forefingers and pull the cover upward direction to open the flip cover.
- Page 6 SWITCH, KEY NAME, INDICATOR & FUNCTIONS 1. (POWER) SWITCH Use this switch to turn on or off the printer. 2. (POWER) LIGHT Power light on indicates printer is connected to power supply and is powered on, if this light is off that indicates printer is powered off. 3.
- Page 7 C. Click search/refresh under Bluetooth setting of your mobile phone/PDA and it will automatically search for all available printer names. D. Click on “ Everycom EC58” and input pair code ( Factory default : 1234 ) E. Go to corresponding APP to do printer setting and start printing.
- Page 8 HOW TO : REPAIR & MAINTENANCE 1. Printer casing & paper holder cleaning : Use a wet cloth gently wipe the outer surface and paper holder of the printer. 2. Print core cleaning : Printer core should be cleaned time to time especially if the printing quality is declining, cleaning method is as follows.
