Summary of Contents for Kogan KAMSBSF532A

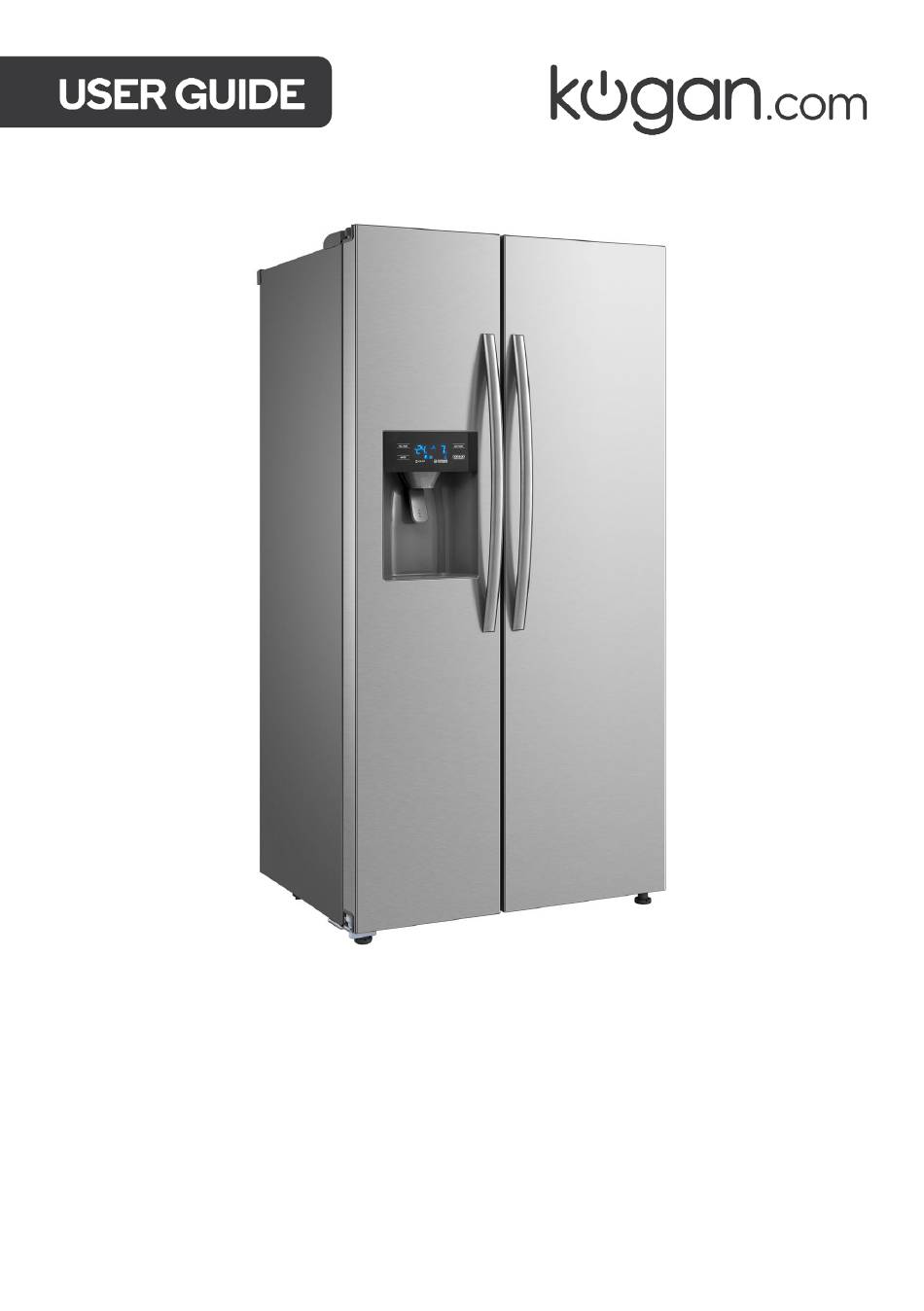

- Page 1 535L SIDE BY SIDE STAINLESS STEEL FRIDGE WITH WATER DISPENSER KAMSBSF532A...
-
Page 2: Table Of Contents
Safety & Warnings Overview Before First Use Functions Operation Water dispenser Cleaning & Care Troubleshooting Notes... -
Page 3: Safety & Warnings
• If the supply cord is damaged, it must be replaced by Kogan.com or an authorised representative in order to avoid a hazard. •... - Page 4 Do not allow the power cable to become pinned by the refrigerator or trampled by people. Do not use damaged power cables or plugs; if you note any damage to the cable or plug, please contact Kogan support. • This appliance can be used by children aged from 8 years and above and persons with...
- Page 5 • Do not store bottled fluids (such as beer, soft drink, etc) or enclosed containers in the freezing chamber of the refrigerator; the bottles or enclosed containers may crack/shatter due to freezing and cause damages. • If gas leaks from the appliance, immediately close the gas valve and open nearby doors and windows.
- Page 6 If the refrigerating appliance is left empty for long periods; switch off, defrost, clean, dry and leave the door open to prevent mould developing within the appliance. Meaning of safety warning symbols: This is a prohibition symbol. Any incompliance with instructions marked with this symbol may result in damage to the product or endanger the personal safety of the user.
-
Page 7: Overview
OVERVIEW Freezer door rack Water dispenser Freezer compartment shelf Refrigerator compartment shelf Ice tray Refrigerator door rack Freezer compartment drawer Fruit and vegetable compartment Adjustable levelling foot... -
Page 8: Before First Use
BEFORE FIRST USE • Remove all packaging material before using the new refrigerator. This includes the foam base and all adhesive tape holding the refrigerator accessories inside and outside. • Clean both the inside and outside of the refrigerator with wet cloth. A small amount of neutral detergent can be added to warm water to wash the cloth and continue wiping the appliance with clean water. - Page 9 Door height adjustment Before adjusting the height of the door, rotate the downward adjusting nut clockwise (as shown below) with a wrench (not supplied) for two full rotations to loosen. Rotate the upward adjusting nut to adjust the height and then tighten the downward adjusting nut counter-clockwise.
-
Page 10: Functions
FUNCTIONS Display Button Operation Freezer temperature Freezer compartment temp adjustment Refrigerator temperature 2 Refrigerator compartment temp adjustment C Mode function / setting 3 Vacation mode D Lock/Unlock 4 Quick freezing icon 5 Quick cooling icon 6 Lock/Unlock icon... - Page 11 Lock/Unlock Press and hold the Lock/Unlock key (D) for 3 seconds and the refrigerator will lock, showing the locked icon (6). Repeat this process and the refrigerator will unlock, showing the open icon Vacation mode Click the Mode button (C) button to enter into the vacation mode. The icon will light up, the vacation mode will start after locking the control panel.
-
Page 12: Operation
OPERATION Changing the Light Any replacement or maintenance of the LED lamps must be made by kogan.com, an authorised service agent or similar qualified person. Do not repair or replace LED lamps yourself. Starting • Before initial start, keep the refrigerator still for two hours before connecting it to power supply. - Page 13 Note: Cancel any active functions (e.g. vacation mode or quick-freezer mode) before changing the freezer's set temperature. First Use • Affix the lower shelf inside the refrigerator as shown in "Cleaning & Care". Note: If the door is misaligned, refer to the adjustment instructions above (also located in the lower left comer of the refrigerator's right panel) to adjust.
-
Page 14: Water Dispenser
WATER DISPENSER • Only clean drinking water should be used in the water tank. It is strongly recommended not to use anything other than water in the tank (example, carbonated soft drinks, milk, juice, etc.). • Do not fill the water tank past the maximum point as indicated. •... - Page 15 Filling the Water Tank To fill the water tank, remove the water tank cover. Fill the water tank with clean drinking water. Using the Water Dispenser Using a drinking cup or glass, position it under the dispenser nozzle and push it up against the water dispenser lever (refer the image below).
-
Page 16: Cleaning & Care
CLEANING & CARE Defrosting freezer The freezer compartment will defrost automatically, with no need for manual intervention. Overall cleaning • Ensure dust behind the refrigerator and on the ground is cleaned regularly to improve the cooling effect and energy saving. •... - Page 17 Shelf adjustment After clearing the shelf of items; Pull the shelf outwards from the fridge Tilt the shelf upward towards 90° until it is perpendicular to the original position. Pull out the shelf by the direction. Rack adjustment and removal Lift the rack upwards Hold the rack by both sides and then pull it outwards.
- Page 18 Cleaning the Glass Shelf • The innermost part of the refrigerator contacts the shelves backstop. To remove the shelves, raise them upward. • Adjust or clean the shelves according to your requirement. Out of Operation Power failure: In case of power failure, even if it is in summer, foods inside the appliance can be kept for several hours.
- Page 19 Storage • The appliance should be in the coolest area of the room, away from heat producing appliances or heating ducts and out of direct sunlight. • Let hot foods cool to room temperature before placing them in the appliance. •...
-
Page 20: Troubleshooting
TROUBLESHOOTING • Ensure the unit is securely connected to the power socket Failed operation • Check whether the voltage is too low • Check for a power failure or if partial circuits have tripped • Ensure odorous foods are tightly wrapped before storage Odour •... - Page 21 • Heat dissipation of the built-in condenser occurs via the housing, which is normal Hothousing • Provide ample ventilation to allow for optimal heat displacement • Condensation on the exterior surface and door seals of the Surface refrigerator is normal when the ambient humidity is too high condensation Simply wipe the condensation with a clean towel.
-
Page 22: Notes
NOTES... - Page 24 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
