- Page 1 60cm Induction Cooktop I N S T R U C T I O N M A N U A L IM VERSION: V1.4 | MODEL: HBRCI604C | PRODUCT CODE: 706142 | ISSUE DATE: 09/2021 SUPPORT: 1300 11 4357 | WWW.HARBOUR-APPLIANCES.COM.AU...
-
Page 2: Welcome
Welcome Congratulations on purchasing your new Induction Cooktop. All products brought to you by Harbour are manufactured to the highest standards of performance and safety and, as part of our philosophy of customer service and satisfaction, are backed by our comprehensive 3 Year In Home Warranty. -
Page 3: Table Of Contents
Contents Welcome Warranty Details General Safety Instructions Installation Instructions 14 Product Overview 16 Operation Instructions 23 Cooking Advice 24 Maintenance and Cleaning 25 Troubleshooting 29 Specifications 30 Repair and Refurbished Goods or Parts Notice 31 Warranty Returns... - Page 4 60cm Induction Cooktop REGISTER YOUR PURCHASE AT www.aldi.com.au/en/about-aldi/product-registration/ TO KEEP UP-TO-DATE WITH IMPORTANT PRODUCT INFORMATION Congratulations! You have made an excellent choice of this quality product. Our commitment to quality also includes our service. Should you, contrary to expectations, experience defects due to manufacturing faults, ALDI will provide you with a warranty against defects as follows: Warranty The product is guaranteed to be free from defects in workmanship and parts for a period of 36 months from the date of purchase.
-
Page 5: General Safety Instructions
General Safety Instructions IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE Read this manual thoroughly before first use, even if you are familiar with this type of product. The safety precautions enclosed in here reduce the risk of electric shock and injury when correctly adhered to. Make sure you understand all instructions and warnings. - Page 6 GENERAL SAFETY INSTRUCTIONS CONT. WARNING: POTENTIAL ELECTRIC SHOCK • Failure to follow the advice below may result in electrical shock or death. • Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it. •...
- Page 7 GENERAL SAFETY INSTRUCTIONS CONT. WARNING: OPERATING THE APPLIANCE • The appliance and its accessible parts become hot during use. • Care should be taken to avoid touching heating elements. • Unattended cooking on a cooktop with fat or oil can be dangerous and may result in a fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g.
-
Page 8: Installation Instructions
Installation Instructions BEFORE INSTALLING THE COOKTOP ENSURE • The work surface is square and level, and no structural members interfere with space requirements. • The work surface is made of a heat-resistant and insulated material. • If the cooktop is installed above an oven, the oven has a built-in cooling fan. •... - Page 9 INSTALLATION INSTRUCTIONS CONT. Under all circumstances, make sure the induction cooktop is well ventilated and the air inlet and outlet are not blocked. Ensure the induction cooktop is in good working state (as shown below). Wall Min. 30mm A (mm) B (mm) C (mm) D (mm)
- Page 10 INSTALLATION INSTRUCTIONS CONT. AFTER INSTALLING THE COOKTOP • The power supply cable is not accessible through cupboard doors or drawers. • There is adequate flow of fresh air from outside the cabinetry to the base of the cooktop. • If the cooktop is installed above a drawer or cupboard space, a thermal protection barrier is installed below the base of the cooktop.
- Page 11 INSTALLATION INSTRUCTIONS CONT. CAUTIONS: • The induction cooktop must be installed by qualified personnel or technicians. We have professionals at your service. Never conduct the operation by yourself. Please contact our Service team on 1300 11 HELP (4357) to allocate you a qualified technician. •...
- Page 12 INSTALLATION INSTRUCTIONS CONT. CONNECTING THE COOKTOP TO THE MAINS POWER SUPPLY IMPORTANT: This cooktop must be connected to the mains power supply only by a suitably qualified person. Before connecting the cooktop to the mains power supply, check that: • The domestic wiring system is suitable for the power drawn by the cooktop. •...
- Page 13 INSTALLATION INSTRUCTIONS CONT. IMPORTANT: If the total number of heating unit of the appliance you choose is not less than 4, the appliance can be connected directly to the mains by single-phase electric connection, as shown below. • If the cable is damaged or to be replaced, the operation must be carried out the by after-sale agent with dedicated tools to avoid any accidents.
-
Page 14: Product Overview

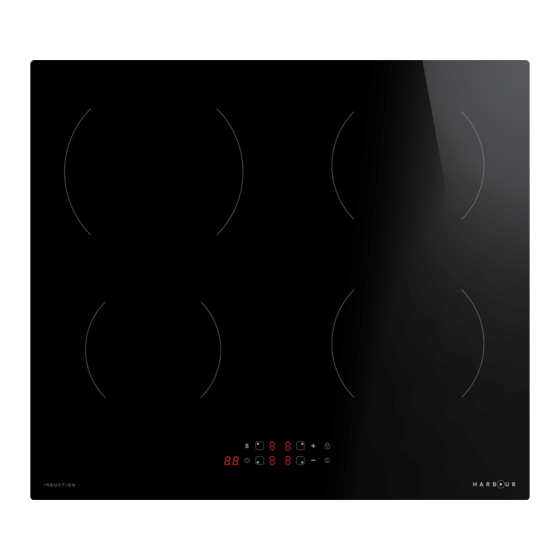

Product Overview THE INDUCTION COOKTOP 1. Max. 2300/2600W zone Key: Not shown but also included: 2. Max. 1300/1500W zone • 1 × Instruction manual • 1 × Quick start guide 3. Max. 1800/2000W zone • 1 × Warranty certificate 4. Max. 1800/2000W zone 5. - Page 15 PRODUCT OVERVIEW CONT. CONTROL PANEL 1. ON/Off control Key: 4. Zone selection controls 2. Timer 5. Power and Timer regulating controls 3. Power boost 6. Child lock PRODUCT INFORMATION Induction cooking is a safe, advanced, efficient, and economical cooking technology. It works by electromagnetic vibrations generating heat directly in the pan, rather than indirectly through heating the glass surface.
-
Page 16: Operation Instructions
Operation Instructions OPERATION OF YOUR INDUCTION COOKTOP TOUCH CONTROLS • The controls respond to touch, so you don’t need to apply any pressure. • Use the ball of your finger, not just the tip. • You will hear a beep each time a touch is registered. •... - Page 17 OPERATION INSTRUCTIONS CONT. USING YOUR INDUCTION COOKTOP 1. Touch the ON/OFF power control for three 2. Place a suitable pan on the cooking zone seconds. After the power is on, the buzzer that you wish to use. will beep once and all the displays show Make sure the bottom of the pan and either “–”...
- Page 18 OPERATION INSTRUCTIONS CONT. WHEN YOU FINISH COOKING 1. Select the cooking zone that 2. Turn the cooking zone off by scrolling you wish to switch off down to “0” or simultaneously touching ‘–’ and ‘+’ buttons together 3. Turn the whole cooktop 4.
- Page 19 OPERATION INSTRUCTIONS CONT. POWER BOOST FUNCTION 1. To activate the power boost function, 2. Touching the power boost control, touch the zone using the zone selection the zone indicator show “P” and the control. power reach to Max. To cancel the power boost function, touch the ‘B’ boost control button or ‘–’ button. The cooking zone will then revert back to it’s original setting.
- Page 20 OPERATION INSTRUCTIONS CONT. USING THE TIMER AS A MINUTE MINDER Make sure the cooktop is turned on. Note: You must use at least one active zone to be able to use the minute minder function. 1. Touch the controls of the timer. 2.
- Page 21 OPERATION INSTRUCTIONS CONT. SETTING THE TIMER TO TURN ONE OR MORE COOKING ZONES OFF Setting one cooking zone: 1. Touching the heating zone 2. Quickly touch the timer 3. Set the time by touching selection control that you want control button and the minder the ‘–’...
- Page 22 OPERATION INSTRUCTIONS CONT. DEFAULT WORKING TIMES Auto shut down is a safety protection function for your induction cooktop. It shuts down automatically if ever you forget to turn off your cooking. The default working times for various power levels are shown in the below table: Power level Default working...
-
Page 23: Cooking Advice
Cooking Advice IMPORTANT: Take care when frying as oil and fat heat up very quickly. At extremely high temperatures, oils and fat will ignite spontaneously and this presents a serious risk of fire. COOKING TIPS • When food comes to the boil, reduce the temperature setting. •... -
Page 24: Maintenance And Cleaning
Maintenance and Cleaning EVERYDAY MARKS AND SPILLS To remove everyday marks, fingerprints, food stains and non-sugary spillovers on the glass: 1. Switch the power to the cooktop off. 2. Apply a cooktop cleaner while the glass is still warm (but not hot!) 3. -
Page 25: Troubleshooting
Troubleshooting OPERATION IN CASE OF EMERGENCY In the event of an emergency you should: • Turn the cooktop off by pressing the “On/Off” button. • Switch off the appliance at the power outlet and remove the plug. • Call the Residentia Group support team on 1300 11 HELP (4357). Some minor faults can be fixed by referring to the instructions given in the Troubleshooting section below. - Page 26 TROUBLESHOOTING CONT. Issue Possible Cause Resolution Fan noise coming from A cooling fan built into your This is normal and needs no action. Do the induction cooktop. induction cooktop has come on not switch the power to the induction to prevent the electronics from cooktop off at the wall while the fan is overheating.
- Page 27 TROUBLESHOOTING CONT. FAULT CODES AND POSSIBLE SOLUTIONS The induction cooktop is equipped with a self diagnostic function. With this test the technician is able to check the function of several components without disassembling or dismounting the cooktop from the working surface. WARNING Never dismantle the cooktop yourself.
- Page 28 TROUBLESHOOTING CONT. SPECIFIC FAILURES AND POSSIBLE SOLUTIONS Failure Possible Cause Resolution The LED does not • No power supplied. • Check to see if plug is secured tightly • The accessorial power board and the come on when in outlet and that outlet is working. unit is plugged •...
-
Page 29: Specifications
Specifications Model: HBRCI604C Cooking Zones: 4 Zones Total Power: 7200W Rated Voltage: 220-240V~ Rated Frequency: 50Hz or 60Hz Product Dimensions (W × D × H): 590mm × 520mm × 62mm Built-in Dimensions (A × B): 560mm × 490mm Other Features:... -
Page 30: Repair And Refurbished Goods Or Parts Notice
60cm/90cm Canopy Rangehood 60cm Induction Cooktop Repair and Refurbished 7kg Clothes Dryer Repair and Refurbished Goods or Parts Notice Goods or Parts Notice Unfortunately, from time to time, faulty products are manufactured which need to be returned to the Supplier for repair. Please be aware that if your product is capable of retaining user-generated data (such as files Unfortunately, from time to time, faulty products are manufactured which need to stored on a computer hard drive, telephone numbers stored on a mobile telephone, songs... - Page 31 For an electronic copy of this manual, go to www.harbour-appliances.com.au and download a copy.
