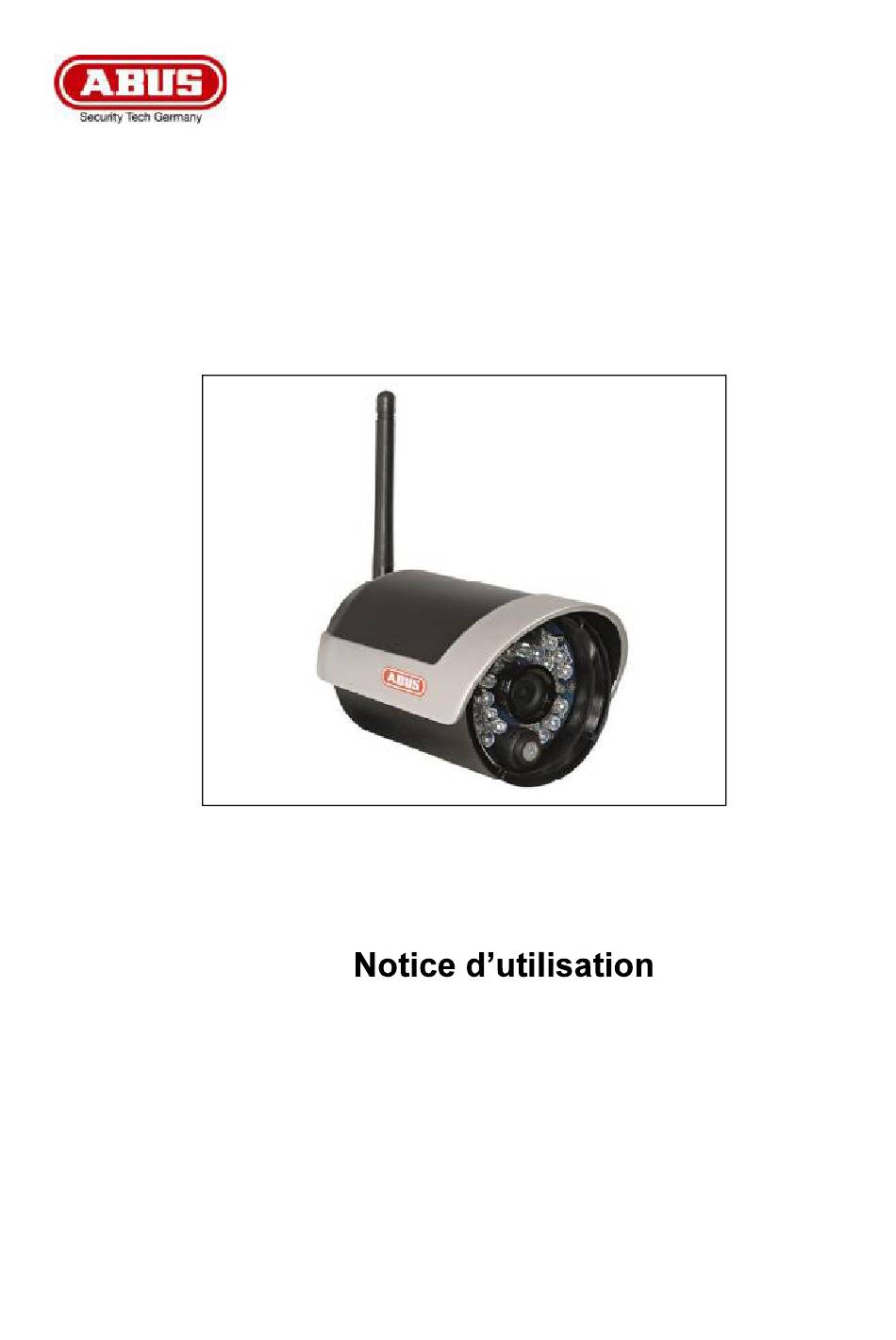

- Page 1 TVAC15010C User guide Manual de instruções Manual de instrucciones Version 04/2014...
- Page 2 English This user manual contains important information for the installation and operation of the TVAC15010C Home Surveillance Camera. Please take special care to store this manual for future reference. A list of contents with the corresponding page number can be found in the index on page 9.
- Page 3 TVAC15010C Wireless Outdoor IR camera (2.4GHz) User manual Version 04/2014 Original user guide in English. Retain for future reference.
- Page 4 ABUS USA, LLC surveillance products are not manufactured and/or sold with the intent to be used for illegal and federal law. For further information on video and audio recording legal requirements, please consult your local, state and federal law.
- Page 5 Important safety advice All warranty claims are invalid in the event of damage caused by operating the system in non-compliance with this user guide. ABUS USA LLC cannot be held liable for resulting damages. In the event of material or personal damage caused by improper operation or non- compliance with the safety information, we cannot be held liable.
- Page 6 Disclaimer ABUS USA LLC. products are not manufactured and/or sold with the intent to be used for of these products to be in compliance with all local, state and federal law. For further information on video surveillance and audio recording legal requirements, please consult your local, state and federal law.
- Page 7 All declarations and certificates of conformity can be ordered from: ABUS USA LLC 23910 N. 19 Ave. Unit #56 Phoenix, AZ 85085-1850 Ph.: 1-623-516-9933...
- Page 8 English ELEMENTS OF WARRANTY: ABUS USA LLC warrants, for one year, to the original retail owner, this ABUS Product to be free from defects in materials & craftsmanship with only the limitations or exclusions set out below. WARRANTY DURATION: This warranty to the original user shall terminate & be of no further effect 12 months after the date of original retail sale.
-
Page 9: Table Of Contents
English Table of contents Intended Use ............................10 Scope of delivery ..........................10 Features and functions ........................10 Description of device ........................... 10 4.1 Overview ............................10 4.2 Camera description ........................11 Installation ............................. 11 5.1 Pairing the camera and monitor ....................11 5.2 Installing the camera ........................ -
Page 10: Intended Use
Integrated digital 2.4 GHz transmitter for encrypted wireless video data transmission IR digital wireless outdoor camera for integrating in TVAC15000C wireless monitor 400 TVL resolution, 3.6 mm fixed lens 4. Description of device 4.1 Overview Item number TVAC15010C Resolution 400 TVL IR cut filter (ICR) Operating voltage 5VDC... -
Page 11: Camera Description
English 4.2 Camera description Antenna Light sensor Fixed lens Power LED LINK LED IR LED PIR sensor Camera mount Pairing button Power supply connection 5 V DC/1 A 5. Installation 5.1 Pairing the camera and monitor To connect a camera with the monitor, proceed as follows: Connect the power supply to the cameras and monitor. -
Page 12: Installing The Camera
English 5.2 Installing the camera Select a suitable place for installing the camera using the camera mount. Mark the drill holes on the base and pre-drill them. Insert the wall plugs provided and attach the mount with the screws. Warning: Before you start with the installation, make sure that the wireless transmission range reaches your desired installation location. -
Page 13: Maintenance And Cleaning
Consult your local waste management authority or a recycling organization like Earth911.com to find an electronics recycling facility in your area. If you are unable to locate proper recycling facilities in your area, please contact ABUS USA and we will assist you in locating a recycling facility in your area. -
Page 14: Technical Data
English 8. Technical data Model number TVAC15010C 2402-2480MHz Frequency Modulation GFSK Sensitivity -82 dBm TV lines 400 TVL Image sensor 1/4" CMOS 640 × 480 pixel (VGA) Resolution No. of IR LEDs 27 IR LEDs Lens 3.6 mm Angle of view 56°...
