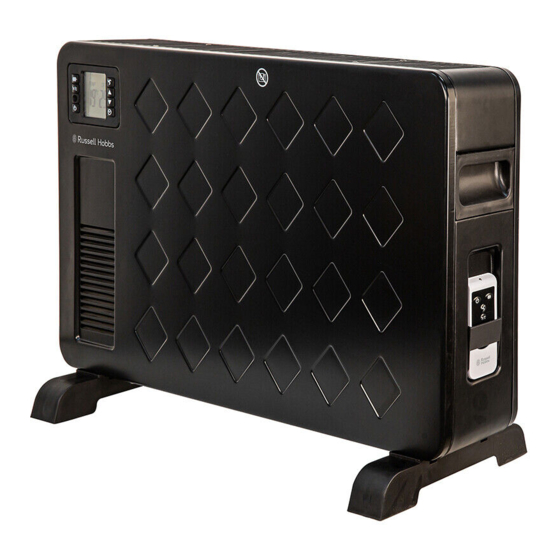

- Page 1 Convection Heater Model Number: RHCVH4003 220-240V AC, 50Hz, 2000-2300W This product is only suitable for well insulated spaces or occasional use 0345 209 7461 For Customer Services & Spare Parts please call https://mda.russellhobbs.com Or visit us at PLEASE RETAIN FOR FUTURE REFERENCE...
-
Page 2: Table Of Contents
CONTENTS Page(s) Safety Instructions and Electrical Safety 3 – 6 Feature Diagram Base Assembly Using your Convection Heater 9-13 Cleaning and Care Problem Solving Guarantee and Customer Services Spare Parts Connection to the Mains Supply Specification Disposable Information... -
Page 3: Safety Instructions And Electrical Safety
SAFETY INSTRUCTIONS When using electrical appliances, basic safety precautions should always be observed, including the following: • Read all instructions. • Check that the your mains voltage corresponds with the rating on the appliance. • This appliance must be positioned upright on the floor away from curtains, furniture or wall coverings and other flammable items. - Page 4 SAFETY INSTRUCTIONS • Never remove parts from the appliance, such as the feet, screws and so on. • Never use the appliance near a bath, shower or a swimming pool. • Never place flammable objects or clothing on top of the appliance.
- Page 5 SAFETY INSTRUCTIONS • Do not operate this appliance for any thing other than its intended use. • This appliance is not intended for commercial use • This product is intended for household use only. Do not use outdoors. • This product is only intended for heating. •...
- Page 6 SAFETY INSTRUCTIONS Electrical Safety THIS APPLIANCE MUST BE PLUGGED INTO AN EARTHED SOCKET • Before switching on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. This product is designed to operate on 220 - 240V AC; 50Hz. Connection to any other power source may damage the unit.
-
Page 7: Feature Diagram
FEATURE DIAGRAM 1. Air outlet 5. Remote control holder 2. Control panel, buttons & 6. Feet LCD display 7. Remote control 3. Handles 4. Power switch For Customer Services & Spare Parts please call 0345 209 7461 Or visit us at https://mda.russellhobbs.com... -
Page 8: Base Assembly
BASE ASSEMBLY Before using the heater, the feet must be fitted to the unit. These are to be attached to the base of the heater using the 4 screws provided. Carefully lie the heater on its side and insert the screws, taking care to ensure that they are located correctly in the bottom ends of the plastic mouldings. -
Page 9: Using Your Convection Heater
USING YOUR CONVECTION HEATER Display & controls 1. LCD Display 6. Fan button 2. Heat setting button 7. Up control button 3. ⁰F/⁰C temperature setting 8. Down control button button 9. Timer button 4. Remote control infrared sensor 5. Power button... - Page 10 USING YOUR CONVECTION HEATER Remote control 1. Power button 2. Fan button 3. ⁰F/⁰C temperature setting button 4. Up temperature control button 5. Timer button 6. Heat setting button 7. Down temperature button...
- Page 11 USING YOUR CONVECTION HEATER MANUAL OPERATION 1. Before connecting your appliance to the mains socket, position the appliance upright on the floor, at least 100cm away from the wall, away from curtains, furniture or wall coverings. 2. Insert the mains plug into a suitable 13 amp mains socket. 3.
- Page 12 USING YOUR CONVECTION HEATER 8. If the room temperature falls below the desired temperature, the heating elements will turn on again until the room temperature reaches the desired temperature. Note: this heater will cool down slowly after the power is shut off.
- Page 13 USING YOUR CONVECTION HEATER ⁰F/⁰C TEMPERATURE SETTING 1. The temperature of the heater can be shown in ⁰F or ⁰C. Press the ⁰F / ⁰C button to change the temperature on the display to either ⁰F or ⁰C. The default setting is ⁰C. LCD DISPLAY 1.
-
Page 14: Cleaning And Care
CLEANING AND CARE WARNING: Electrical Shock Hazard. Before you clean the appliance, disconnect the mains plug from the wall socket. • Allow the appliance to cool down completely before cleaning. • Do not immerse cord, plug or appliance in any liquid or allow moisture to come into contact with electrical parts. -
Page 15: Problem Solving
PROBLEM SOLVING My appliance does not work when I turn it on: 1. Check that your appliance is plugged in and the power is turned on at the mains socket. 2. Try another mains socket. 3. Check the appliance is in an upright position. 4. -
Page 16: Guarantee And Customer Services
GUARANTEE AND CUSTOMER SERVICES At Russell Hobbs, we take all our customer feedback seriously. Feel free to contact our Customer Service Team, on 0345 209 7461, who will be more than happy to assist you. This product is guaranteed for 12 months from the date of the original purchase. -
Page 17: Spare Parts
SPARE PARTS To check the availability of the following spare parts, simply contact our friendly Customer Services team using the details provided at the bottom of this page. Feet and screws Remote control For Customer Services & Spare Parts please call 0345 209 7461 Or visit us at https://mda.russellhobbs.com... -
Page 18: Connection To The Mains Supply
CONNECTION TO THE MAINS SUPPLY This appliance is designed to operate from a mains supply of 220-240V~50Hz. Check that the voltage marked on the product corresponds with your supply voltage. How to change the fuse 1. Slot the end of a screwdriver into the recess in the fuse holder of the plug. -
Page 19: Specification
SPECIFICATION Model number RHCVH4003 Rated voltage 220V - 240V ~ 50Hz Power consumption 2300W Product dimensions (CMS) (H)43 x (W)69 x (D)20 Model number RHCVH4003 Item Symbol Value Unit Item Unit Heat output Type of heat input, for electric storage local space heaters only... -
Page 20: Disposable Information
Or visit us at https://mda.russellhobbs.com Revision 1.4 Model: RHCVH4003 This symbol is known as the 'Crossed-out wheelie bin Symbol'. When this symbol is marked on a product/batteries, it means that the product/batteries should not be disposed of with your general household waste.
