Wiring; Compatible Transmitters; End Limits Adjustment - Simu T5 Hz.02 Installation Instructions

3

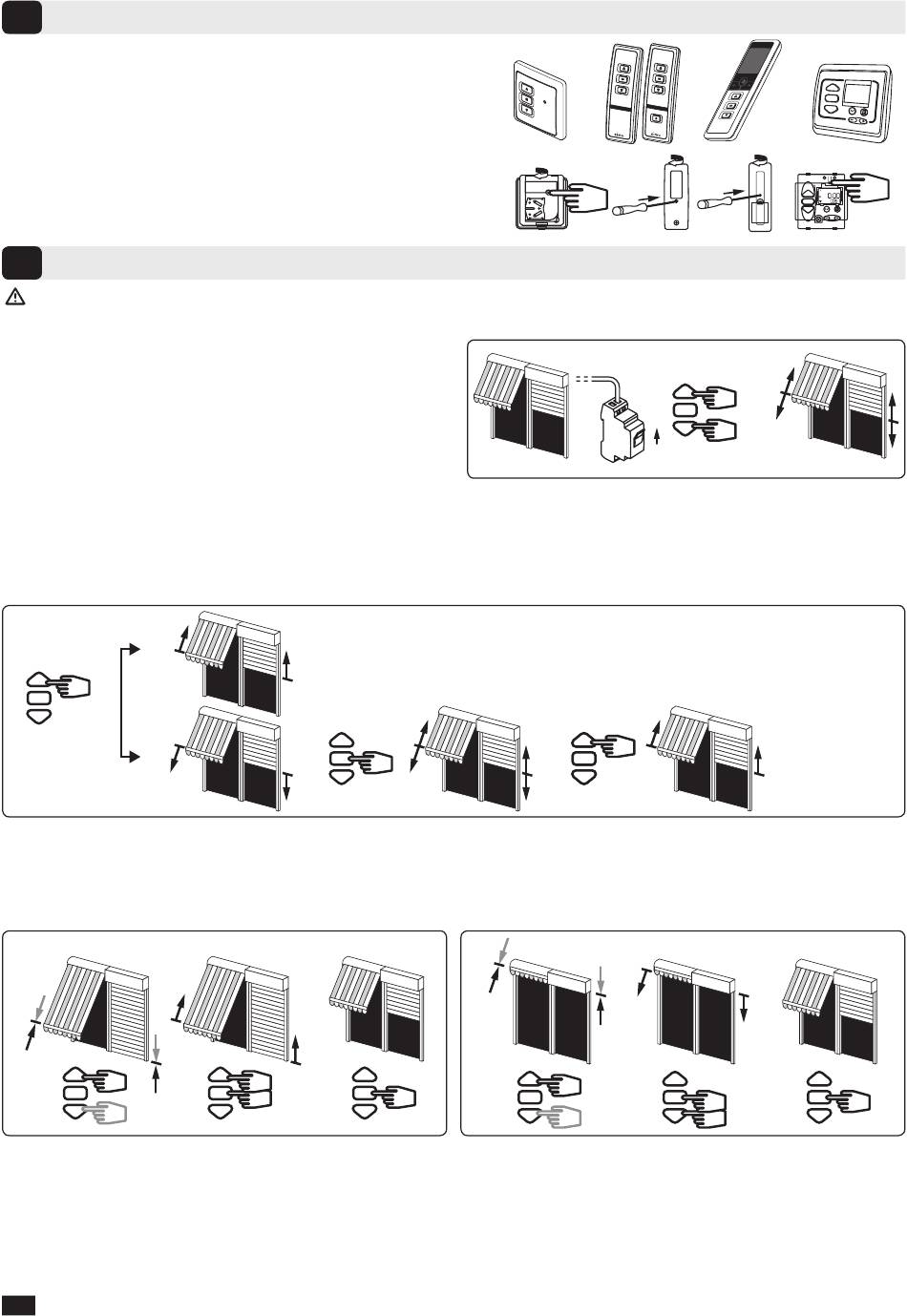

Compatible transmitters

1 : Wall Hz transmitter
2 : 1/5 channels Hz transmitter
3 : Color Multi 16 channels transmitter
4 : Hz timer
Transmitters range: 20 m through 2 concrete walls.
12 transmitters max. for one motor.
Do not position the transmitter near metal in order to avoid
range losses.
Location of the "PROG" key on Hz transmitters:
4

End limits adjustment

If the installation includes several motors, only one motor is to be powered during this programming procedure.
It will eliminate interferences with the other motor during the procedure.
4.1
- Switch the motor ON.
- Simultaneously press the UP and DOWN keys of a Hz transmitter. The
motor will run for 0,5 second in one direction, then in the other. The
transmitter now controls the motor in unstable mode, move to
stage 4.2.
4.2- Checking the rotation direction:
Press the UP key of the transmitter:
a- If the motorized tube runs in the UP direction , move to next stage (4.3).
b- If the motorized tube runs in the DOWN direction, reverse the rotation direction by pressing the STOP key for at least 3 seconds. The motor will
confirm the reversal of the rotation direction by running for 0,5 second in one direction, then in the other direction. Move to the stage 4.3.
a
>>
b
4.3- Adjustement of the end-limits : memorizing the end points:
The end-limit adjustement can be done in two ways:
- First you can memorize the DOWN position (a) and then the UP position (b).
- First you can memorize the UP position (b) and then the DOWN position (a).
a
1
1- Position the motor on the DOWN end limit using the "DOWN" and
"UP" keys.
2- To memorize the DOWN end limit position, press simultaneously the
"STOP" and "UP" keys. The motor will run automatically in the "UP"
direction.
3- Before the motor reaches the UP end limit, press the"STOP" key.
2/4
>> OK >> 4.3
>>
3s
2 3
1 2
1
>>
b
1
1- Position the motor on the UP end limit using the "UP" and "DOWN"
keys.
2- To memorize the UP end limit position, press simultaneously the
"STOP" and "DOWN" keys. The motor will run automatically in the
"DOWN" direction.
3- Before the motor reaches the DOWN end limit, press the "STOP" key.
3 4
2
3 4
>>
ON
>> OK >> 4.3
2 3
