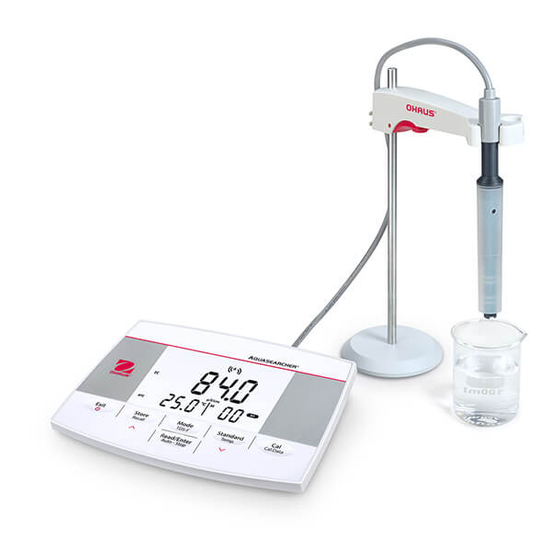

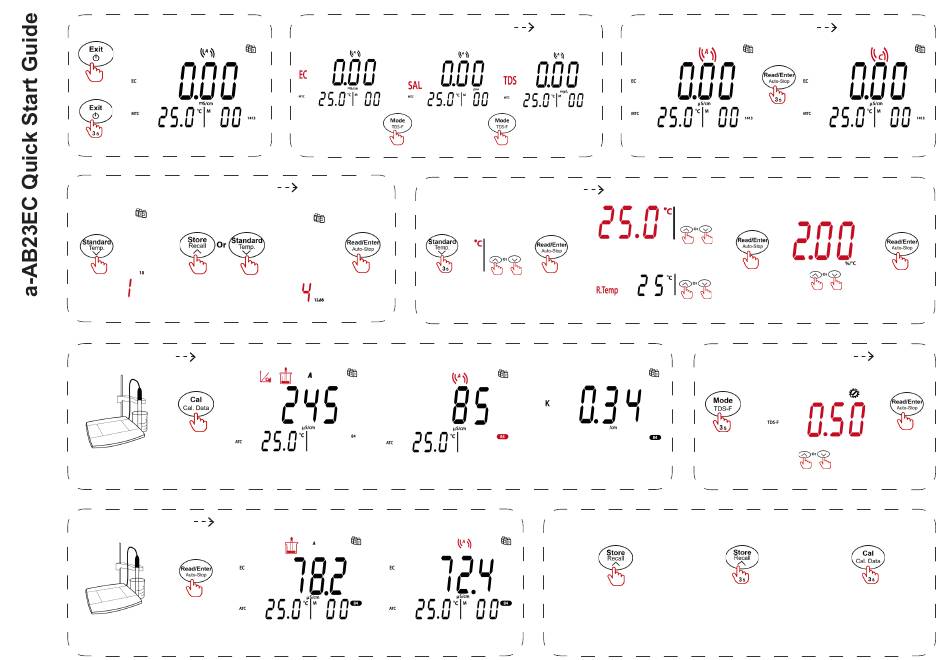

OHAUS a-AB23EC Quick Start Manual

Switch On/Off
On
Main screen
Off
Standard Solution Setup
Select the solution group
Note: Predefined standard solution: 10 μS/cm, 84 μS/cm, 1413 μS/cm,12.88 μS/cm
Calibration
Insert a probe into the
standard solution.
Measurement
Insert the probe into a sample.
Switch EC/TDS/SAL Mode
EC
SAL
Temperature Setup
Confirm
Calibrating
Completed
Completed
Measuring
Switch Endpoint Mode
TDS
Auto end point mode
Setup MTC temperature
( / Confirm
°C °F)
Setup reference temperature
Calibration result
(shown for 3 seconds)
Store/Recall Data
Store measurement data:
After the measurement is
completed, press the Store
button.
Continuous reading mode
Confirm
Setup temperature compensation
TDS Factor Setup
Recall measurement data: Recall calibration data:
press and hold the Store After the calibration is
button to recall. completed, press and hold
the Cal button to recall.
Confirm
Confirm
