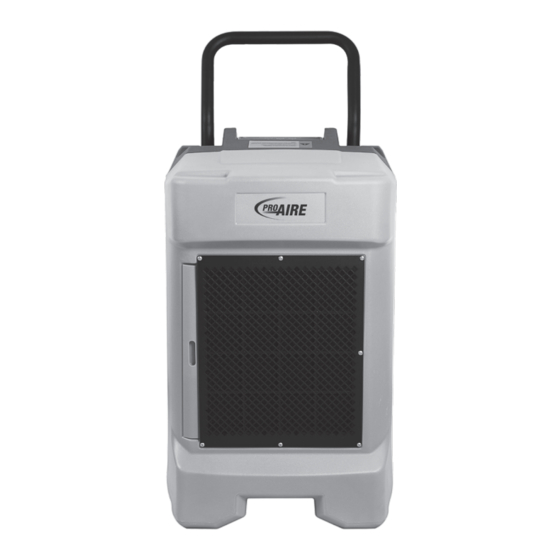

200 pint commercial dehumidifier

Advertisement

Quick Links

200 PINT
COMMERCIAL
DEHUMIDIFIER
USER MANUAL
FOR MODEL:
PROCD200
Before using your
commercial dehumidifier,
please read this manual
carefully and keep it
for future reference,
along with your receipt.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PROAIRE PROCD200 and is the answer not in the manual?

Questions and answers

Summary of Contents for Perfect Aire PROAIRE PROCD200

  • Page 1 200 PINT COMMERCIAL DEHUMIDIFIER USER MANUAL FOR MODEL: PROCD200 Before using your commercial dehumidifier, please read this manual carefully and keep it for future reference, along with your receipt.
  • Page 2: Table Of Contents

    TABLE OF CONTENTS General Information .................. 1 Important Safety Instructions ..............2 Structure Diagram ..................3 Setup Instructions ................4 – 5 Control Panel ..................6 – 7 Operating Instructions ................8 Maintenance ..................9 – 10 Troubleshooting ..................11 Error Codes ....................
  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS WARNING - to reduce the risk of fire, electrical shock or injury to persons or property: 1. Always operate the product from a power source of the same voltage, frequency and rating as indicated on the product identification plate.
  • Page 4: Structure Diagram

    STRUCTURE DIAGRAM 6 Bolts for securing the handle r securing the handle NOTE: You will need to install the handle. Six bolts are included for the installation. WARNING DO NOT OBSTRUCT THE AIR INLET OR OUTLET.
  • Page 5: Setup Instructions

    SETUP INSTRUCTIONS IMPORTANT Place dehumidifier in the upright position. When transporting a dehumidifier to site, allow the dehumidifier to stand upright for 30 minutes before switching ON. This is necessary to allow the refrigerant system to stabilize and avoid system damage. SETTING UP THE DEHUMIDIFIER: Operate the dehumidifier in an enclosed area as this creates a drying chamber.
  • Page 6 SETUP INSTRUCTIONS (continued) DRAINAGE: The dehumidifier pump connects to a plastic drainage hose. The hose is stored on the back of the appliance. Uncoil the entire hose, ensuring there are no kinks or restrictions, and place the unattached end into a drain or run outdoors.
  • Page 7: Control Panel

    CONTROL PANEL 1. ON/OFF Key 5. PURGE Key 2. UP and DOWN Keys 6. HUMIDITY and TIME Display 3. Purging Indicator 7. TIME Key 4. Defrosting Indicator 8. Operating Indicator ON/OFF: Press the key to turn the unit ON or OFF. PURGE: Press the key to empty water from the pump reservoir.
  • Page 8 CONTROL PANEL (continued) TIME: Press this to display working hours and total working time. • After starting operation, the display will show the humidity setting (left) and current humidity (right). Humidity setting can be changed by pressing “Up” or “Down.” •...
  • Page 9: Operating Instructions

    OPERATING INSTRUCTIONS General Use: Press the ON/OFF key to turn the unit on. It will begin working automatically. After use, press ON/OFF key to turn the unit off. Water pump will turn on automatically for 40 seconds to drain the remaining water in the unit, then turn off automatically.
  • Page 10: Maintenance

    MAINTENANCE To clean the air filter: Ensure the dehumidifier is turned OFF and the plug is removed from the power outlet before performing maintenance. The working performance of the dehumidifier will be greatly reduced if the filter becomes blocked. 1. Remove the filter as shown in the diagram below. 2.
  • Page 11 MAINTENANCE (continued) Changing the battery: The battery allows the user to check the total working time of the unit even when the unit is powered off. (Press the “T” button to check this.) 1. Remove the screws in the four corners of the control panel.
  • Page 12: Troubleshooting

    TROUBLESHOOTING Please check the following troubleshooting tips before calling for assistance. PROBLEM CAUSE SOLUTION Dehumidifier No power to appliance. Connect plug to power does not operate outlet. Power not turned on. Switch power on. E4 error is displayed. Check drainage flow. Dehumidifier Insufficient working time Allow more working time collects little/no...
  • Page 13: Error Codes

    ERROR CODES WARNING: DO NOT attempt to rectify errors using unqualified personnel. To remedy the following errors, a qualified professional is required. NOTE: With any error code, it is suggested to turn the unit off, wait five minutes, and then turn the unit on again. If the error code is still present, a qualified professional is required to fix the problem.
  • Page 14: Purchase/Maintenance Records

    PURCHASE RECORD Purchase Date: Serial Number: Distributor: Tel. MAINTENANCE RECORD DATE SERVICE PERFORMED PERFORMED BY -13-...
  • Page 15 Distributed by: Perfect Aire, LLC 5401 Dansher Rd. Countryside, IL 60525 844-4PA-AIRE | 844-472-2473 www.perfectaire.us Specification and performance data is subject to change without notice. Printed in China PA/PROCD200Manual/06082018...
  • Page 16 70 LITRES / 95 LITRES DESHUMIDIFICATEUR D'AIR MOBIL PROFESSIONNEL MANUEL D'INSTALLATION & D'UTILISATION PROCD150 MODÈLE: PROCD150 PROCD200 PROCD200...
  • Page 17 INFORMATIONS GENERALES Ne pas jeter les emballages avant d'avoir verifie que l'appareil est bien operationnel. Apres avoir enleve l'emballage, s'assurer que le contenu est intact et complet. Dans le cas contraire contacter votre revendeur. NE PAS laisser les enfants sans surveillance avec l'un des emballages, c'est une source potentielle de danger.
  • Page 18 INSTRUCTIONS IMPORTANTES AVERTISSEMENT - Pour reduire les risques d'incendie, de choc electrique ou blessures aux personnes ou biens 1. Toujours faire fonctionner le produit a partir d'une source d'alimentation de meme tension, frequence et calibre que ceux indiques sur la plaque d'identification du produit.
  • Page 20 DY-65L DY-85L...
  • Page 21 ≥30cm ≥30cm...
  • Page 23 3 - PANNEAU DE COMMANDE 尸 尸 了 了 痄胃郓 尸 产] 了 丁 丿 1. Marche / Arr创 2. Reglage + 3. Reglage 4. Indication«en purge d'eau» 5. Indication«en degivrage» 6. Purge d'eau Manuelle 7. Indication consigne humidite 8. Indication humidite ambiante 9.
  • Page 25 (Gaine de ventilation (En option)
  • Page 26 DY-65L Filtre à air Sens démontage du filtre DY-85L Sens démontage du filtre Filtre à air...
  • Page 27 9V 6F22 battery...
  • Page 28 7 - DEPANNAGE PROBLEME CAUSE SOLUTION Pas d'alimentation l'appa Connecter la prise elect ique 「 「 Le deshumidificateur ne Bouton marche non enclenche Appuyer sur marche fonctionne pas E4 est affiche ifier le tuyau de vidange 「 Temps fonctionnement insuffisant Laisser l'appareil en fonctionnement Filtres obstrues Le deshumidificateur produit...
  • Page 29 Distributed by: Perfect Aire, LLC 5401 Dansher Rd. Countryside, IL 60525 844-4PA-AIRE | 844-472-2473 www.perfectaire.us Specification and performance data is subject to change without notice. Printed in China PA/PROCD150_PROCD200_FR/05292018...
