- Page 1 Eryone Thinker SE User Manual Shenzhen Eryone Technology Co .,Ltd. Marketing info: marketing@eryone.com Technical service: technical@eryone.com WhatsApp: +86 13670143392...
-
Page 2: Notices
50%; Operating outside those limits may result in low quality models. Legal Eryone makes no warranty of any kind with regard to this material, including, but not limited to, the implied warrants of merchantability and fitness for a particular purpose. Eryone should not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material. -
Page 3: Table Of Contents
4.2.2 Levelling the heated bed ------------------------------------------------------------ 5. Printing --------------------------------------------------------------------------------------------- 5.1 Install the driver------------------------------------------------------------------------------- 5.2 Setting your 3d printer--------------------------------------------------------------------- 5.3 Load printing model------------------------------------------------------------------------ 5.4 Slice the model------------------------------------------------------------------------------ 5.5 Printing via SD card------------------------------------------------------------------------ 6. LCD layout---------------------------------------------------------------------------------------- 7. Special function of Eryone Thinker SE ---------------------------------------------------... - Page 4 8. FAQ-Common assembly issues ------------------------------------------------------------ 8.1 X carriage loose -------------------------------------------------------------------------- 8.2 Z axis stuck---------------------------------------------------------------------------------- 9. FAQ-Print problem------------------------------------------------------------------------------ 9.1 Filament doesn't stick to the heated bed-------------------------------------------- 9.2 Extruder under extrusion---------------------------------------------------------------- 10.FAQ-Error messages-------------------------------------------------------------------------- 10.1 Mintemp error ----------------------------------------------------------------------------- 10.2 Maxtemp error---------------------------------------------------------------------------- 10.3 Thermal runaway------------------------------------------------------------------------- *Add the auto level sensor-----------------------------------------------------------------------...
-
Page 5: Overview Of Eryone Thinker Se

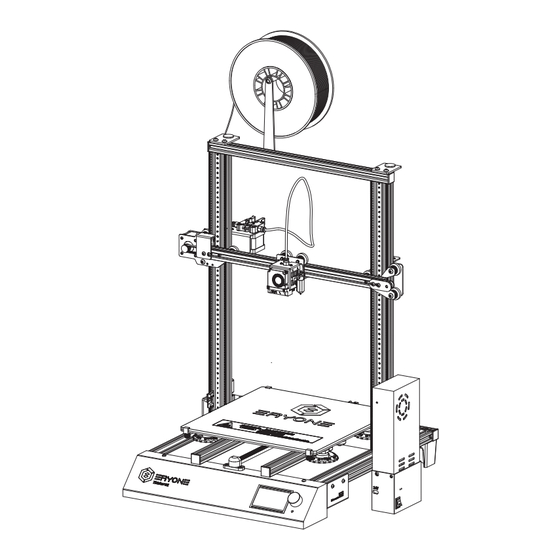

1. Overview of Eryone Thinker SE Please carefully read and understand the contents of this user manual before you use Eryone Thinker SE. Failure to read the manual may lead to personal injury, damage to Thinker SE. Learn everything about Using your Eryone Thinker SE by following the instructions in this user manual, you will find that using 3D printer is such an easy thing. -
Page 6: Specifications
2. Specifications Printer and printing properties Print technology Fused Filament Fabrication(FDM) Build volume 300mm x 300mm x 400mm Print precision 0.05mm X, Y, Z accuracy 12.5 μm / 12.5μm / 2.5μm Filament diameter 1.75mm Default nozzle diameter 0.4mm Print speed 30mm/s~145mm/s Filament support PLA, PETG, ABS,TPU,etc... -
Page 7: Printer Assembly
3. Printer Assembly For the Eryone Thinker SE 3d printer, we suggest you following the “Eryone Thinker SE Quick Starter Guide” After a successful completion, continue to the next step. Assembly guide video: https://www.youtube.com/c/Eryone3D 4. First steps 4.1Test before print About the LCD layout, you can refer chapter 6. -
Page 8: Load The Filament
-Load the filament Note: The extruder will not work until the temperature is higher than 170 ℃ . (Temperature protection feature) Preheat your hotend at first. Click your LCD button→Prepare→Preheat PLA End. Insert filament into the Teflon tube. When the filament goes though extruder block, with one hand press the handle, make sure the filament can go though the slot of the gear, then guide filament in by hand till filament starts to string from the hotend. -
Page 9: Manual Levelling
4.2 Manual levelling To make 3d printer have better printing result, levelling bed before printing.You can refer to these steps to levelling the 3d printer. 4.2.1 Levelling gantry frame Before you levelling the heated bed, please make sure gantry frame is perpen- dicular to Z axis aluminum extrusions, you can calibrate the couplers to make the frame same scale on both Z axis aluminum extrusions. -
Page 10: Printing
Recommended temperature: Lower than 40°C 5.1 Install the driver Connect Eryone Thinker SE to your PC/laptop via USB cable. Normally the driver will be installed automatically, the same way as you use your keyboard. If your PC can’t get the driver automatically, please insert the SD card to your PC with SD card reader(Package included it). -
Page 11: Setting Your 3D Printer
5.2 Setting your 3D printer 1.Open the Cura then add the new printer : Click “Custom” →“Custom FFF printer” then input your printer name Eryone thinker SE 2.Set the correct values on machine settings Copy these code to your Start-Gcode area: G28 ;Home... - Page 12 3.Set the correct nozzle size and filament diameter 4.Import the printer profile The printer profile and filament profile is on your SD card. :Profiles\Cura 4.0\ Or this link: http://dwz1.cc/a2BtbPv 5.Import the filament profile to Cura:...
-
Page 13: Load Printing Model
5.3 Load printing model Click this icon to import the stl file Eryone thinker SE 5.4 Slice the model When you import the stl file finished, you need to adjust your model. Move your model: Left click the model→Click the arrow to adjust your model... -
Page 14: Printing Via Sd Card
Rotation If you find that the model is not placed well. Then you can click rotation icon to adjust it. After that, you can click the slice icon and you can save it to SD card 5.5 Printing via SD card Power on your 3d printer at first. -
Page 15: Lcd Layout
6. LCD layout This section is for LCD layout. Items not mentioned below are not used for the common print setup-you should not change any of the unmentioned items unless you are absolutely sure what you are doing. (The LCD layout based on the latest firmware) Please click the link below to get the latest firmware: http://dwz1.cc/1obP362 □... -
Page 16: Special Function Of Eryone Thinker Se
□ Restore failsafe □ Initialize EEPROM □ Print from SD 7. Special Function of Eryone Thinker SE Super quiet We choose TMC2208 as stepper motor driver and quite fans but powerful which dramatically decreases the noise and improve the printing quality as well. The av- erage operational noise is 49dBA, working aside the 3D printer is not only a dream. - Page 17 Compatible with auto-leveling sensors(Not included sensor) With pre-designed interface for BLtouch and proximity switch, update Eryone Thinker SE firmware to enable the auto-leveling function is easily. 8. FAQ-Common Assembly issues Refer to our forum to get more info if the problem is not listed or the solutions doesn’t work : https://eryone.com/forum...
- Page 18 9. FAQ-Print problem 9.1 Filament doesn’t stick to the heated bed It is a common issue for newcomer. Check your filament type at first.Then re-level your heated bed (Refer to the chapter 4.2), you can also use the “Z babystep fea- ture”.When it is printing, double click LCD button→tune the distance between the nozzle and heated bed 9.2 Extruder under extrusion...
- Page 19 You can feel free to contact us via Email: technical@eryone.com Facebook: https://www.facebook.com/groups/247271792709370 Youtube: https://www.youtube.com/c/Eryone3D Shenzhen Eryone Technology Co., Ltd. 2F, building B, Hongwan Technology Park, Gushu community Bao`an District, Shenzhen city, Guangdong Province, China...
