INTEROPERABILITY NOW
Quick Start Guide
TM

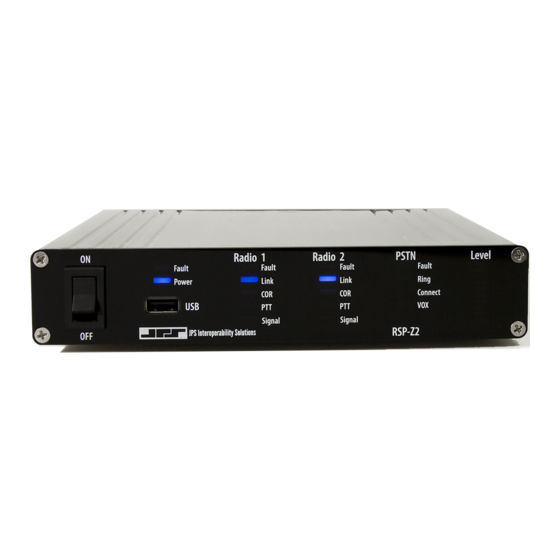

RSP-Z2
Dual Channel Interoperability Gateway
Designed and Manufactured by:
JPS Interoperability Solutions
5800 Departure Drive
Raleigh, NC 27616
919-790-1011
sales@jpsinterop.com
/
support@jpsinterop.com
www.jpsinterop.com
Guide is JPS P/N 2740-516060
Revision 1.5
©March 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RSP-Z2 and is the answer not in the manual?

Questions and answers

Related Manuals for JPS RSP-Z2

Summary of Contents for JPS RSP-Z2

  • Page 1 INTEROPERABILITY NOW Quick Start Guide RSP-Z2 Dual Channel Interoperability Gateway Designed and Manufactured by: JPS Interoperability Solutions 5800 Departure Drive Raleigh, NC 27616 919-790-1011 sales@jpsinterop.com support@jpsinterop.com www.jpsinterop.com Guide is JPS P/N 2740-516060 Revision 1.5 ©March 2021...
  • Page 2 RSP-Z2 Quick Start Guide Page intentionally left blank. RSP-Z2 Quick Start Guide Page 2 of 8 Interoperability Now...
  • Page 3 The RSP-Z2 incorporates all this experience, in the form of a suite of sophisticated DSP algorithms that operate at its interfaces with any connected communications devices, as well as many custom radio interface cables, covering well over 300 different radio makes and models.
  • Page 4 Whenever any user from either system transmits on the designated channel/talkgroup, all other users on both channels can hear. Because donor radios are used to interface the system, identically to all other radios in each system, the RSP-Z2 installation has minimal impact. Cross-Connected with Backhaul This is a combination of the Independent Passthrough and the Cross-Connected configurations.
  • Page 5 192.168.1.200, with a default subnet mask of 255.255.255.0. To reset to an address and subnet mask that work on your LAN, connect the RSP-Z2 via Ethernet cable (need not be a cross-over cable, though a cross-over cable will work) directly to the Ethernet port of the computer that will be used to access and configure it.
  • Page 6 Choose an RSP-Z2 Configuration If a configuration has not been selected, choose one from the RSP-Z2 Home page by either clicking on one of the three configuration options or choosing one from the dropdown list at the top of the page. This will apply that configuration of channels to the RSP-Z2.
  • Page 7 2.3.2 Front Panel Level Indicator The RSP-Z2 has a set of audio level indicating LEDs on the front panel. The indicator can be applied to any one of the unit’s channels. The level shown is the selected channel’s external RX input after the channel's Receive (Input) Level audio adjustment has been applied.
  • Page 8 RSP-Z2 Quick Start Guide 2.4 Accessing Help • The RSP-Z2’s Help Documents, in PDF format, can be viewed or downloaded from this unit. Click the Help pull-down menu to display a list of available documents. The RSP- Z2 Manual and Quick Start Manual are also available on the JPS website.
