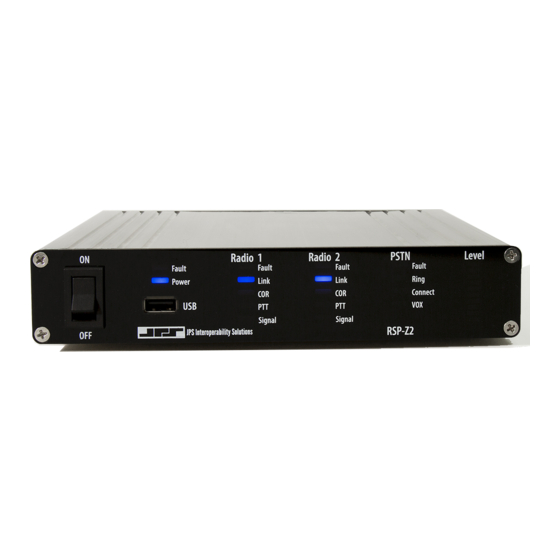

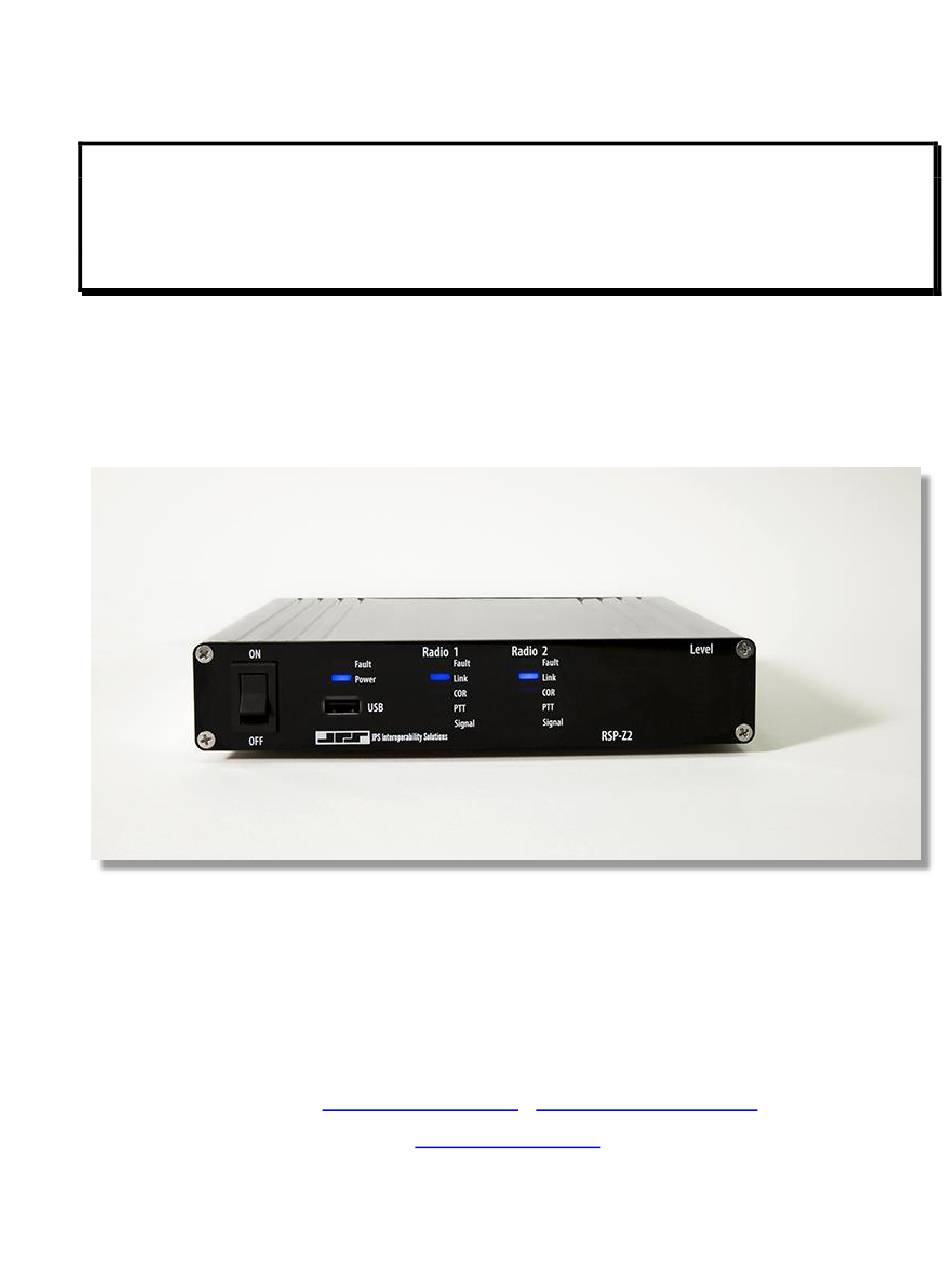

    INTEROPERABILITY NOW Quick Start Guide RSP-Z2 Dual Channel Analog-IP Interface Designed and Manufactured by: JPS Interoperability Solutions 5800 Departure Drive Raleigh, NC 27616 919-790-1011 Email: sales@jpsinterop.com support@jpsinterop.com www.jpsinterop.com Guide is JPS P/N 2740-516060 Revision Prelim A-1 © December 2017...
  • Page 2 255.255.255.0. To reset to an address and subnet mask that work on your LAN, connect the RSP-Z2 via CAT-5 cable (need not be a cross-over cable, though a cross-over cable will work) directly to the Ethernet Port of the computer that will be used to access and configure it.
  • Page 3 RSP-Z2 Quick Start Guide 1.2 Log In Upon browsing to the unit’s IP address, the login screen above will appear. Default name and password are both “su” for Super User with the Super User’s full-capability permission set. Further explanation, including instructions for changing these defaults, is provided in the Help Documents.

  • Page 4: Context-Sensitive Help

    RSP-Z2 Quick Start Guide 1.4 Context-Sensitive Help The RSP-Z2 also makes extensive use of context-sensitive help. On the upper right corner of each of the unit’s web pages, click on the circular question mark to bring up page-specific help text.

  • Page 5: Ip Address Determination

    RSP-Z2 Quick Start Guide 1.5 IP Address Determination If unable to access the RSP-Z2 because you’ve forgotten its IP address and other network settings, the front panel USB port can be used to retrieve the needed information. Plug a thumb drive into the port and cycle the power.

  • Page 6: Basic Information

    These definitions are essential in understanding the basic operation of an interoperability device, such as a JPS ACU Gateway or this RSP-Z2. That is: If multiple communications devices are engaged in an interoperability net, whenever one device detects active COR (valid audio input), that audio, along with a PTT signal, is sent to all other devices in the net to be transmitted.
  • Page 7 RSP-Z2 Quick Start Guide 2.3 Possible RSP-Z2 Configurations This RSP-Z2 provides a pair of analog-to-IP channels, along with a Headset Channel. The non- headset channels can be configured in multiple ways, best illustrated below by this partial screen shot from the Configuration Page of the unit’s browser-based Graphical User Interface. It shows the three basic configurations;...
  • Page 8 Note that, if desired, the analog channels can also be configured as either of the RoIP, RTP, or SIP channel types. Because the RSP-Z2 is a half-duplex device, the first channel with active COR is in control until its COR status goes back to inactive - unless another channel is configured to allow preemption.
  • Page 9 See block diagram below. RSP-Z2 Channel 01 is connected to a VHF repeater system for the State Highway Patrol, and Channel 02 to the local Fire Department’s 800 MHz trunked system. A channel/talkgroup on each system is set aside for emergencies when the two agencies need to talk to each other.
  • Page 10 2.4 Front Panel Level Indicator The RSP-Z2 has a set of audio level indicating LEDs on the front panel; the LEDs can be applied to any one of the unit’s channels. The level is measured after the channel's audio adjustment, that is, the measurement point includes the changes made by the channel’s “Receive Input”...

  • Page 11: Usb Headset

    2.5 USB Headset If a JPS-approved USB headset is plug in at power-up, an icon will appear in the upper right corner of CH1 and CH2. Click on one of these headset icons to select what audio source it will be connected to.
  • Page 12 To allow a lower price when only a single radio is needed, the RSP-Z2 may be purchased with a single active analog channel. If the second analog channel is desired later, it may be purchased from JPS Interoperability Solutions and activated via a firmware update.
