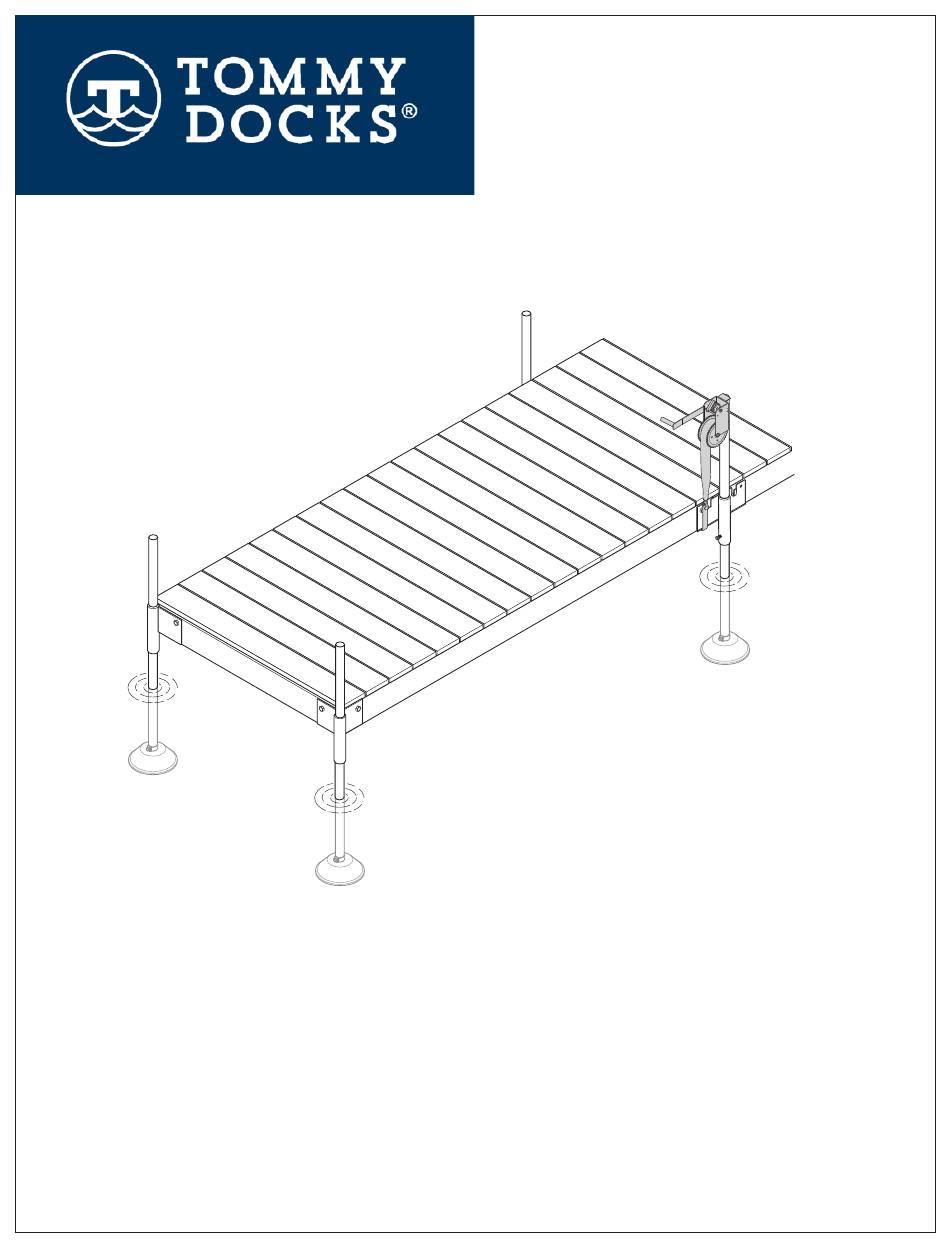

Winch Leveling
Assembly Instructions
Model # TD-10072
Thank you for choosing our Tommy Dock Interlocking system. The following instructions assume you
have chosen your Tommy Dock layout and examined the bill of materials. The bill of materials describes
all necessary hardware, post (refer to post length formula), and optional accessories to assemble and
install your Tommy Dock system. Ask your dealer for answers to any questions you may have.
Caution: Use only cordless power tools when near or on water.
www.tommydocks.com
Tommy Docks
4003 Dixie Ave, Wausau, WI 54401
Phone : 715-842-3804
Toll Free : 866-675-1880
Fax : 715-842-3420
Advertisement
Table of Contents
Related Manuals for Tommy Docks TD-10072
Summary of Contents for Tommy Docks TD-10072
- Page 1 Fax : 715-842-3420 Winch Leveling Assembly Instructions Model # TD-10072 Thank you for choosing our Tommy Dock Interlocking system. The following instructions assume you have chosen your Tommy Dock layout and examined the bill of materials. The bill of materials describes all necessary hardware, post (refer to post length formula), and optional accessories to assemble and install your Tommy Dock system.
- Page 2 Winch Leveling Components Tools 1/2” Box End Wrench Winch Lock Leveler Winch Leveling Setup. Attach Strap to Winch Assembly following the instructions provided by the Winch manufacturer. Attach the 1/2” x 3” Bolt and 1/2” Nylon Insert Hex Nut to the Upper Winch Tube.
- Page 3 Wind the Winch until the Winch Stap becomes Lift or lower the Dock to achieve a level taut (4a). Loosen the single 1/2” Dock position. Bracket Adjusting Bolt adjacent to the Leveling Hook (4b). Dock Bracket Water Line 1/2” Dock Bracket Adjusting Bolt Tighten the 1/2”...
