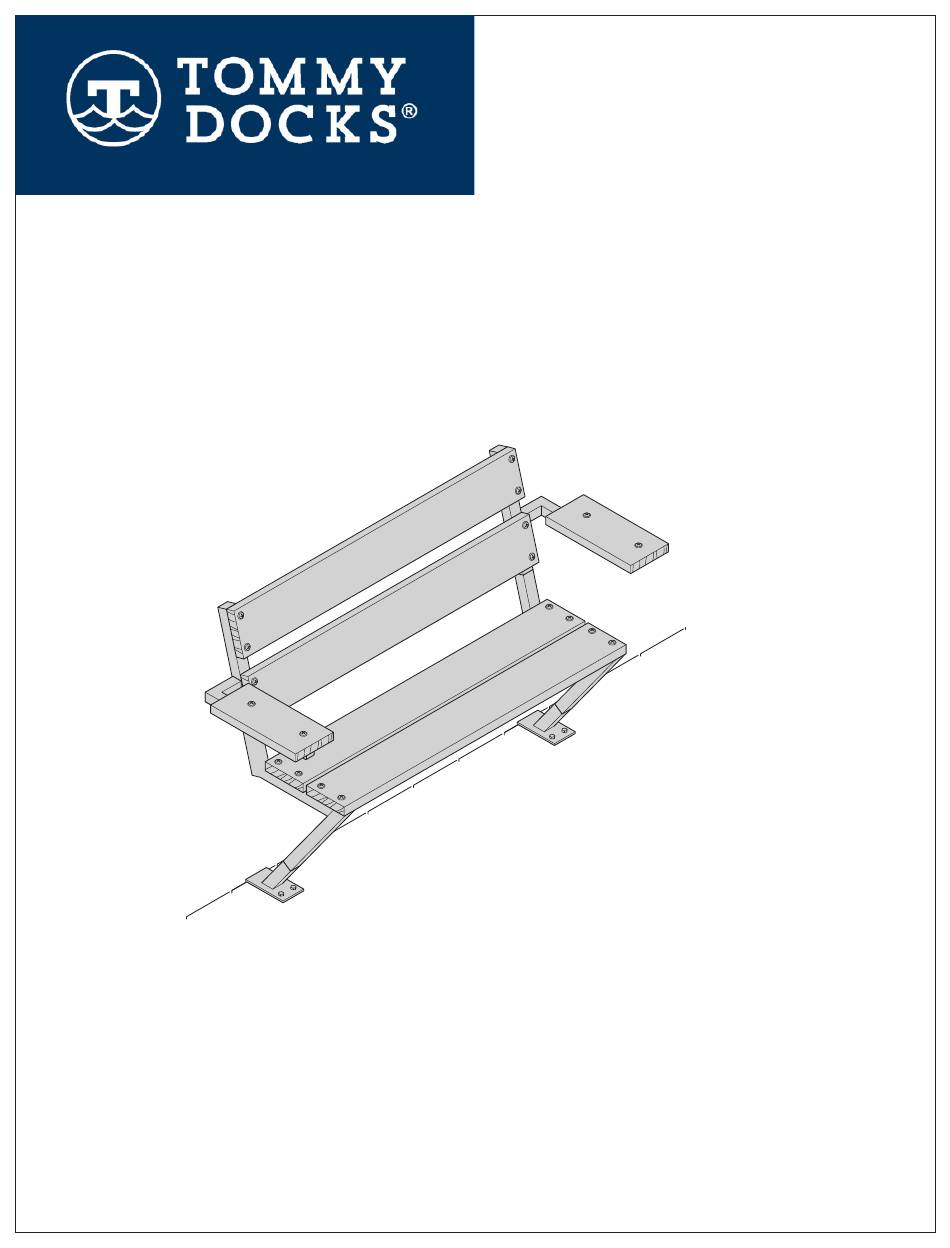

- Page 1 Tommy Docks 4003 Dixie Ave, Wausau, WI 54401 Phone : 715-842-3804 Toll Free : 866-675-1880 Fax : 715-842-3420 4’ Cedar Bench Assembly Instructions www.tommydocks.com...
- Page 2 4’ Cedar Bench Components 5/ 4 x 6” x 48” Deck Board Qty 4 5/ 4 x 6” x 16” Deck Board Qty 2 Mount Assembly Qty 2 Seat Assembly Qty 2 Backrest Assembly Qty 2...
- Page 3 Hardware 5/16” x 1 1/4” 5/16” x 1 1/4” Truss Head Screws Hex Head Lag Screws Qty 20 Qty 8 Tools 7/32” Drill Bit 5/16” Wrench Tape Measure Drill Pencil Qty 1 Qty 1 Lower the Seat Rear Board and the Seat Front Board onto Seat Assembly. The Seat Rear Board has holes spaced 4”...
- Page 4 Place Back Top Boards onto Backrest Assembly. The Back Top Boards have holes spaced 3” apart (2a). Secure boards to Back Top Boards to Backrest Assembly using four (4) Truss Head Screws per board (2b). Back Top Board Back Top Board 3”...
- Page 5 Place Back Assembly into Seat Assembly by inserting the Mount Assembly Dowel Shaft into the Seat Assembly Leg. Back Assembly Mount Assembly Dowel Shaft Seat Assembly Seat Assembly Leg...
- Page 6 Clamp each Mount Assembly to deck (5a). Space both Mount Assemblies so they are XX” apart on center and mark with pencil (5b). Clamp Mount Assembly Deck Surface Deck Frame Using the holes in the Mount Assemblies as a template, drill a 7/32” pilot holes into the dock at each corresponding hole location (6a and 6b).
- Page 7 Secure each Mount Assembly to the dock at each corresponding hole location using four (4) Lag Bolts per Mount Assembly (7a and 7b). Place Assembly into each Mount Assembly by inserting the Mount Assembly Dowel Shaft into the Mount Assembly Leg. Mount Assembly Dowel Shaft Mount...
