Moosoo X8 Instruction Manual

Moosoo X8 Instruction Manual

Cordless hand vacuum

Advertisement

Instruction Manual
Cordless Hand Vacuum
Model: X8
For any questions and malfunctions of the appliance during use, please
contact our customer service email: usa@imoosoo.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X8 and is the answer not in the manual?

Questions and answers

Summary of Contents for Moosoo X8

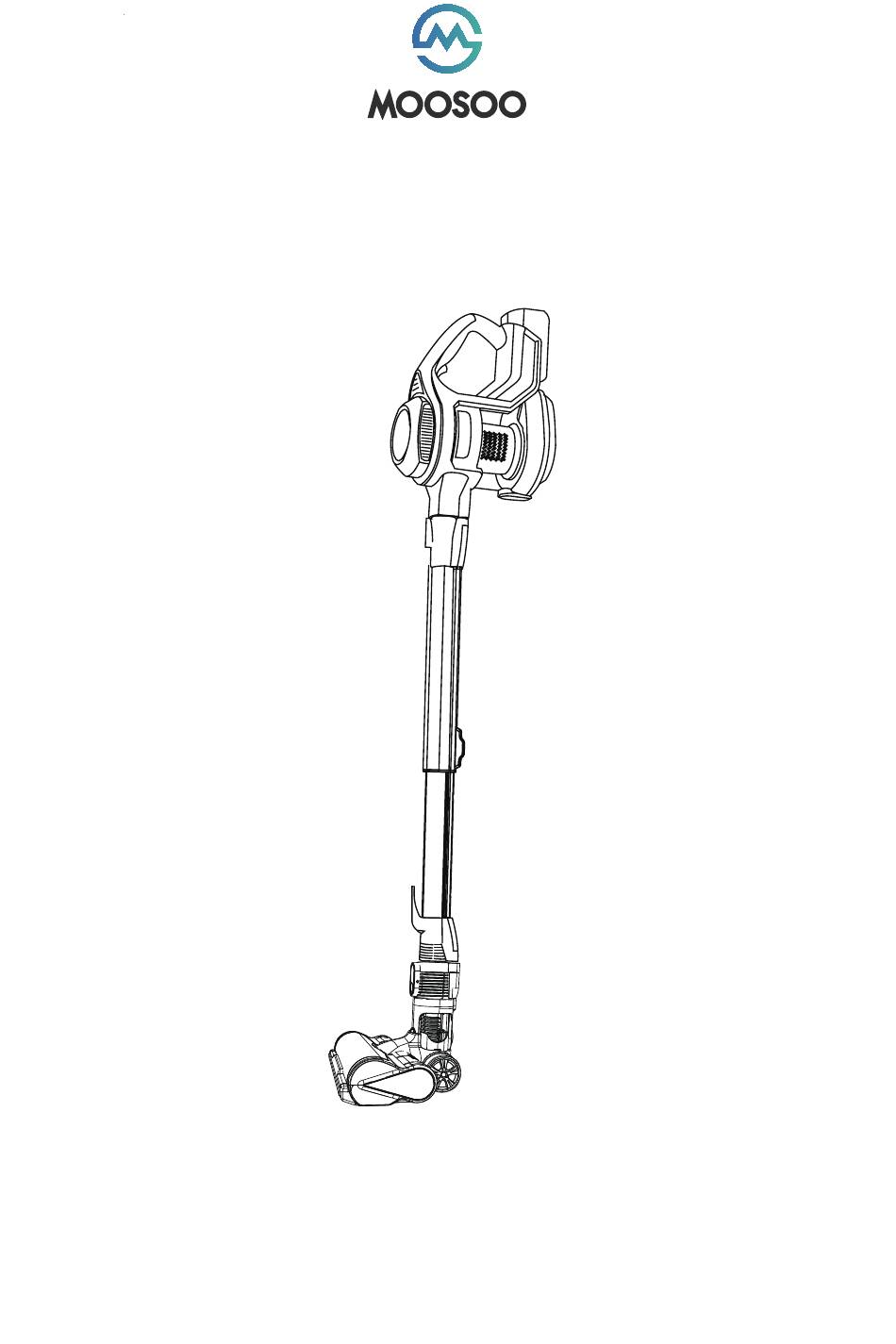

  • Page 1 Instruction Manual Cordless Hand Vacuum Model: X8 For any questions and malfunctions of the appliance during use, please contact our customer service email: usa@imoosoo.com...
  • Page 3: Table Of Contents

    CONTENT Important Safeguards What's in the Box Overview Assembly and Storage Specifications Assembly Instructions Operating Instructions Charging Cleaning and Maintenance Troubleshooting Warranty...
  • Page 5: Important Safeguards

    Important Safeguards When using electrical appliances, basic safety precautions should always be followed. 1.Check that the voltage indicated on the rating plate corresponds with that of the local network before connecting the appliance to the mains power supply. 2.This appliance cannot be used by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Page 6: What's In The Box

    What's in the Box Name Quantity Cordless Vacuum Telescopic Aluminum Tube Electric Floor Brush 2-in-1 Dusting Brush Adapter Instruction Manual Wall Bracket Cleaning Brush(Gift)
  • Page 7: Overview

    Overview LED Indicator Light 2-in-1 Dusting Brush Cleaning Brush(Gift) Charging Dock Telescopic Aluminum Tube...
  • Page 8 Air Outlet Suction Port Dust Dumping Button Hand Vacuum Hook Rotating Wheel Adapter...
  • Page 9: Assembly And Storage

    Assembly and Storage...
  • Page 10: Specifications

    Specifications Model Rated Voltage 29.6V Charging Time 4.5h Rated Power 250W Adapter Input Voltage 100-240V~50/60Hz Adapter Output Voltage DC 36V 500mA Vacuum Power 12kpa(Standard mode)/24kpa(Boost mode) Dust Cup Capacity 1.3L Battery Capacity 2200mAh Run Time 30min (Standard mode)/ 15min (Boost mode) Length of Telescopic Tube 18.9~27.2 inches...
  • Page 11: Assembly Instructions

    Assembly Instructions Telescopic Aluminum Tube 1. Push the telescopic aluminum tube end into the suction port of the hand vacuum in horizontal direction. A "Click" would be heard if it is fitted well. 2. To remove the tube, press the release button and pull it out. Electric Floor Brush 1.
  • Page 12: Operating Instructions

    Operating Instructions 1. Preparation Please make sure the appliance is charged fully before using. It's recommended to change for 6 hours before its first use. 2. Operating Choose the accessory according to actual cleaning requirements. The vacuum has two modes of speed to choose from.
  • Page 13: Cleaning And Maintenance

    2. Charge the battery pack alone. It's recommended that charge the battery on the appliance to know how much it has charged from LED indicator lights on the hand vacuum. Charging before the battery runs out completely would prolong the service life. LED Indicator Light during Use Battery fully charged: 3 steady blue bars Battery runs low: 2/1 blue bars...
  • Page 14 HEPA Filter Regular cleaning helps to ensure product performance. Just take out the HEPA and its cover out from the dust cup and wash under the faucet. Please put it back when it's air dried. Detachable Fluff Brush Regular cleaning helps to ensure product performance. Just take out the HEPA and its cover out from the dust cup and wash under the faucet.
  • Page 15: Troubleshooting

    Troubleshooting Problem Possible Reason Potential Solutions 1. Low battery 1. Charge the vacuum fully Vacuum won't work 2. The suction port is blocked 2. Check and clean the suction port 1. The dust cup is full/ the filter 1. Empty the dust cup and clean HEPA The vacuum power accessory is dirty filter regularly...
  • Page 16: Warranty

    WHAT IS NOT COVERED 1.Under your MOOSOO guarantee, MOOSOO shall not be liable for costs of repair or replacement of a product incurred as a result of: Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the MOOSOO appliance which is not in accordance with this MOOSOO Instruction Manual.
