Flycolor Raptor390 Tower-20A User Manual

Flycolor Raptor390 Tower-20A User Manual

Multi-rotor brushless esc

Advertisement

Thank you for purchasing our product . Any Improper operation may cause personal injury damage to the product and related equipments.
This high power system for RC model can be dangerous ,we strongly recommend reading the user manual carefully and completely. We will not
assume any responsibility for any losses caused by unauthorized modifications to our product. We have the right to change the design,
appearance, performance and usage requirements of the product without notice.
01

Main features

● Using C8051F390 MCU
,pipelined 8-bit C8051 core with 50 MHz maximum operating frequency.
Using dedicated 3in1 drivers, faster response, small size&lighter in weight.

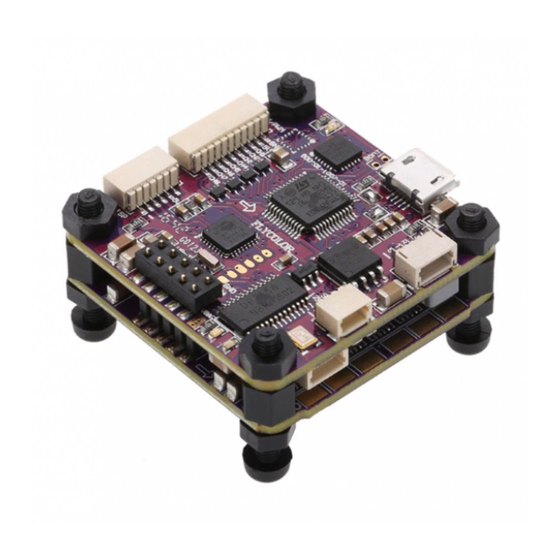

● Two layers tower structure between the 4in1 ESC and FC with quick pin connection. The interference caused by the signal transmission is reduced
to the maximum extent, and the flight is more stable, make the whole weight lighter, and the installation is faster and more convenient;
●Standard F3 flight controller, Supports PPM, PWM and SBUS remote control / receiving mode
●FC integrated OSD, also integrated 5V, 12V, and battery voltage (VBAT), Easy power supply to Image transmitter, camera, buzzer, LED and other
peripheral ; provided all kind of cables for connectors on FC , to give you an unprecedented experience of installation;
●Connect computer via USB on the flight controller, then can upgrade ESC software directly or adjusted the ESC settings directly ;
●Use BLHeli open-source firmware, can update the firmware or write setup via signal cable; Using "Damped light" mode , it improves the throttle respo-
nse, when reducing the throttle amount, the Motors slow down rapidly. It strengthens the stability and flexibility of multi-rotors, quite suitable for QAVs.
There are tuneable parameters that can make the code run well even in the most demanding situations, although default settings will work excellently
in normal operating environments.
Supports regular 1-2ms pulse width input, as well as Oneshot125 (125-250us), Oneshot42 (41.7-83.3us) and Multishot (5-25us). The input signal is
automatically detected by the ESC upon power up.
02
Specification
Model
Manufacture Model
Raptor390 Tower-20A
W4-FW020004-BX
Raptor390 Tower-30A
W4-FW030004-BX
03

Part list / Install Dimensions

Description
Item
Raptor390 4in1 ESC
1
Flight controller
2
Nylon spacer M3*5+6
3
Nylon Nut M3
4
Nylon screw M3*12
5
The flight controller additional provide:
One 10p cable (10-pin SH1.0 terminal) for PWM connector;
One 3p cable (10-pin SH1.0 terminal)for PPM connector;
One 3p cable (4-pin SH1.0 terminal)for SBUS connector;
One 4p cable (4-pin SH1.0 terminal)for Image transmitter;
One 3p cable (3-pin SH1.0 terminal)for Camera;
One 6p cable (6-pin SH1.0 terminal)for LED and Buzzer.
04

Wiring diagram of ESC and FC receiving mode

ESC
3
v+
Battery
v-
Battery
1
Bridged
"BOOT"
for recovering firmware
C H 7
Data
9
10
transmission CH8
ISP programming
connector
ESC maximum speed is limited to 400k eRPM.
Con. Current
20A
30A
Qty.
1
4
1
2
4
3
8
1
4
Frame
(For reference)
5
4
4#Motor
4#Motor
4#Motor
2#Motor
2#Motor
2#Motor
2
TOP
RX
4
GND
RX
5V
TX
5V
2
CH1
5V
CH2
GND
GND
1
CH3
CH4
CH5
CH6
CH7
CH8
S
S
12V
12V
GND
GND
Burst Current
BEC
LiPo cells
(10S)
30A
No
40A
No
*All pictures are for reference only
ATTENTION
All welding requires good welding technology, short circuit between the element
or the wire should be avoided at any time.
Please ensure all solder joints are insulated with heat shrink where necessary.
●Please double-check the polarity is correct before power up.
SBUS Mode
SBUS
Receiver
12V
VBAT-
Camera
VBAT+
transmitter
GND
S
User Manual
Multi-Rotor Brushless ESC
Weight
(
For reference
19.5g
2-4S
41.5x36x15.1mm
19.5g
41.5x36x15.1mm
2-4S
Install Dimensions(mm)
BOTTOM
Buzzer
5V
GND
LED
5V
GND
GND
VBAT
GND
S
Raptor390 Tower
RAPTOR
390 Tower
BLHeli
*All pictures are for reference only
Size
Typical Application
)
(
)
For reference
130-330 Multi
170-450Multi
41.5
30.5
36
6
Buzzer
5V
5
Buzzer
3
LED
5V
2
LED
GND
1
