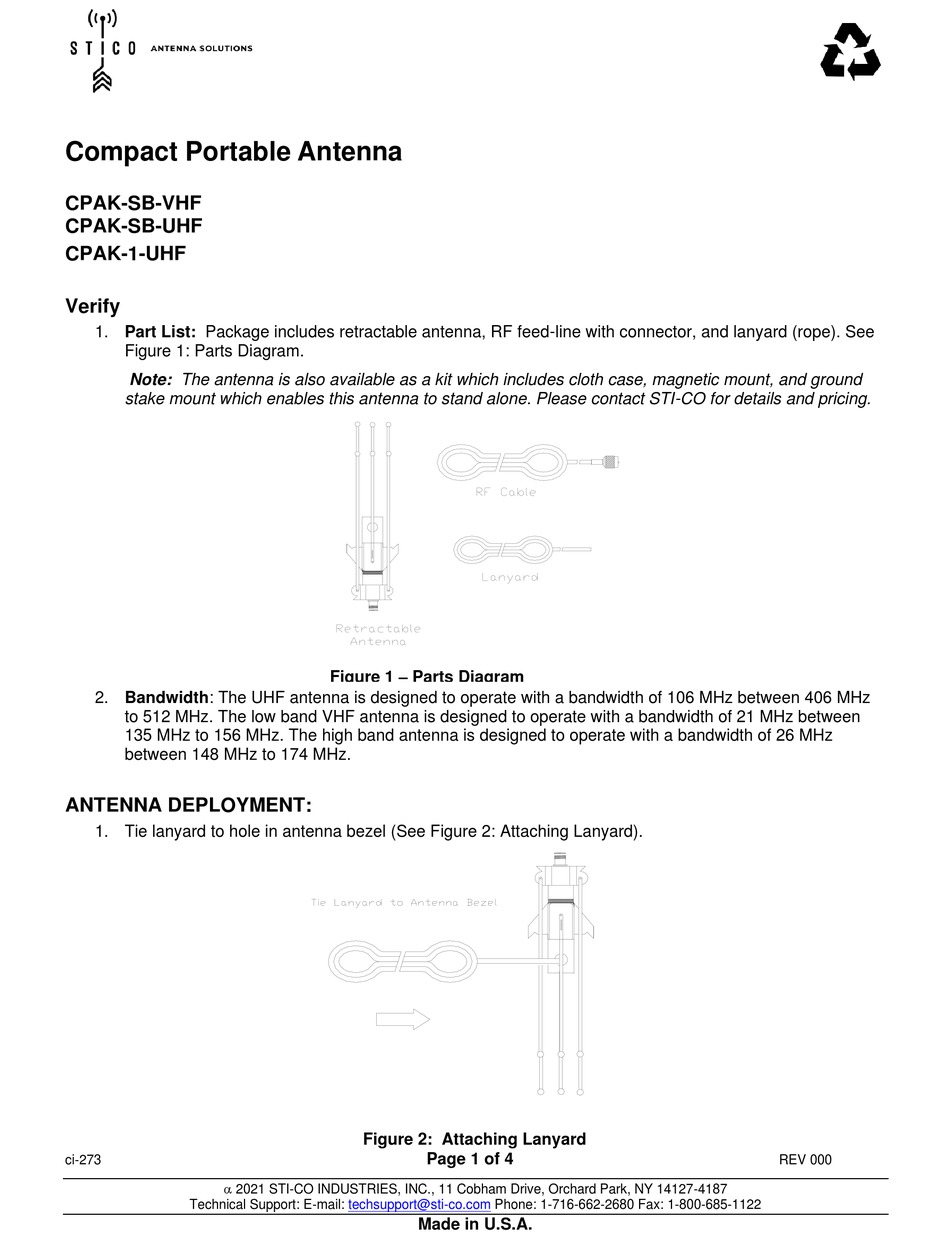

STI-CO CPAK-SB-VHF Quick Start Manual

Compact Portable Antenna
CPAK-SB-VHF
CPAK-SB-UHF
CPAK-1-UHF
Verify
1. Part List: Package includes retractable antenna, RF feed-line with connector, and lanyard (rope). See
Figure 1: Parts Diagram.
Note: The antenna is also available as a kit which includes cloth case, magnetic mount, and ground
stake mount which enables this antenna to stand alone. Please contact STI-CO for details and pricing.
2. Bandwidth: The UHF antenna is designed to operate with a bandwidth of 106 MHz between 406 MHz
to 512 MHz. The low band VHF antenna is designed to operate with a bandwidth of 21 MHz between
135 MHz to 156 MHz. The high band antenna is designed to operate with a bandwidth of 26 MHz
between 148 MHz to 174 MHz.

ANTENNA DEPLOYMENT:

1. Tie lanyard to hole in antenna bezel (See Figure 2: Attaching Lanyard).
ci-273
 2021 STI-CO INDUSTRIES, INC., 11 Cobham Drive, Orchard Park, NY 14127-4187
Technical Support: E-mail:
Figure 1 – Parts Diagram
Figure 2: Attaching Lanyard
Page 1 of 4
techsupport@sti-co.com Phone: 1-716-662-2680 Fax: 1-800-685-1122
Made in U.S.A.
REV 000
