Dualband, VHF/UHF Antenna
RDCA-DB-VHF/UHFL
VERIFY:
1. Part List: The system package includes magnetic base, spring assembly, tunable mast, fiberglass rod,
magnetic top bracket, connector tab, matching cable network, feedline, and connectors if applicable.
Use only components supplied with the antenna system (Refer to Figure 1-Parts List).
2. Bandwidth: VHF/UHFL Dualband antennas are 24 MHz wide in VHF (150-174 MHz) and 34 MHz wide
in UHF (406-440MHz) unless otherwise specified.
Fiberglass Rod
Magnetic Base
Spring Assembly
BASE INSTALLATION:
This antenna is designed with a universal mounting system HOWEVER due to the amount of
differences between vehicle platforms we can't anticipate all of the challenges an installer may face. A
certain amount of modification may be needed based on your particular installation.
The installation begins by locating a point on centerline of the back deck that is clear of any obstructions
such as rear brake lights or safety belt restraint latches. The antenna base should be at least 4 to 6
inches from the rear glass. See note A in figure 2 below.
A
1. Drill a 7/16" hole from the
ci-405
a 2002 STI-CO INDUSTRIES, INC., 11 Cobham Drive, Orchard Park, NY 14127-4187
Technical Support: E-mail: techsupport@sti-co.com Phone: 1-716-662-2680 Fax: 1-800-685-1122

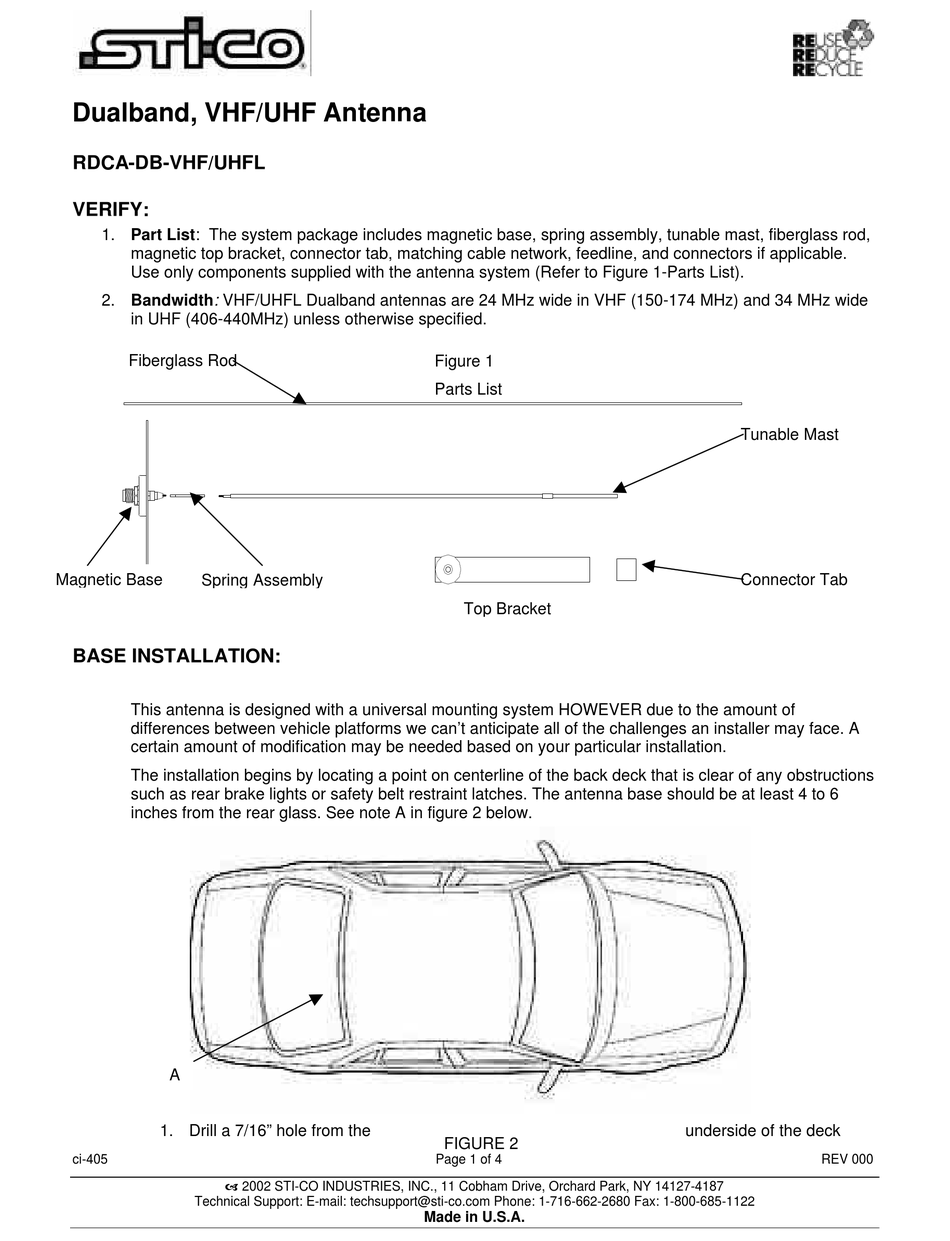

Figure 1
Parts List
Top Bracket
FIGURE 2
Page 1 of 4
Made in U.S.A.
Tunable Mast
Connector Tab
underside of the deck
REV 000
