Surveillance Van Antenna Network
SVAN
INSTALLATION INSTRUCTIONS
PARTS LIST:
Surveillance Van Antenna Network (SVAN) may have a multitude of antennas within the tube,
however the mounting instructions will be the same for all combinations.
Included in the kit are: 10-foot contractors tube, (2 ea.) ½" threaded "U" bolts, (2 ea.) flat washers,
and (2 ea.) ½" hex nuts (refer to Figure 1- Parts Diagram).
DETERMINE LOCATION:
Locate the exit hole where the RF cable(s) exit the tube. The cables can either run along the van
rack or within depending if the inside diameter of the rack will support the RF cables. Refer to
Figure 2 – RF Cable.
ci-278
a 2002 STI-CO INDUSTRIES, INC., 11 Cobham Drive, Orchard Park, NY 14127-4187
Technical Support: E-mail:

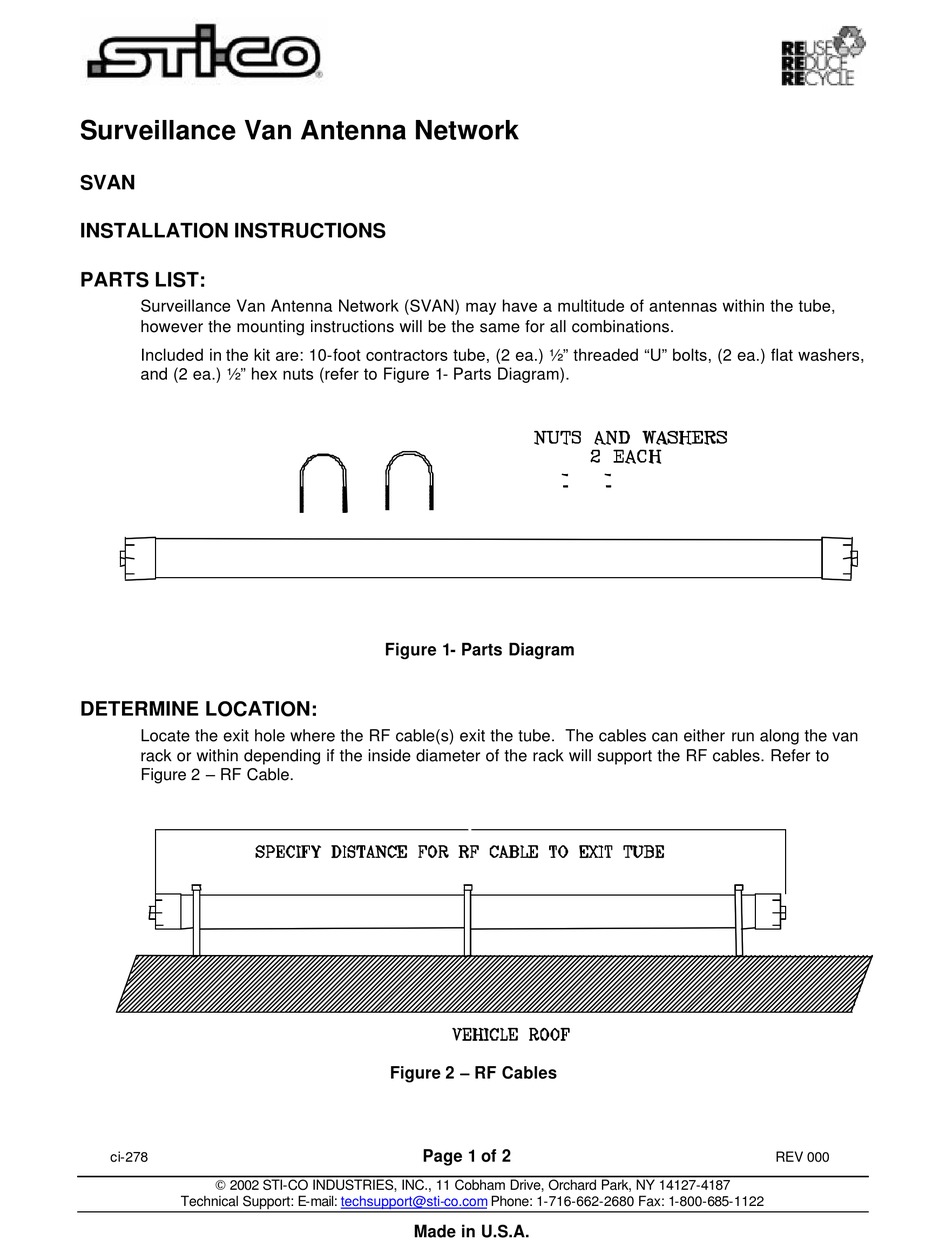

Figure 1- Parts Diagram
Figure 2 – RF Cables
Page 1 of 2
techsupport@sti-co.com
Phone: 1-716-662-2680 Fax: 1-800-685-1122
Made in U.S.A.
REV 000
Advertisement
Table of Contents
Related Manuals for STI-CO SVAN
Summary of Contents for STI-CO SVAN
- Page 1 INSTALLATION INSTRUCTIONS PARTS LIST: Surveillance Van Antenna Network (SVAN) may have a multitude of antennas within the tube, however the mounting instructions will be the same for all combinations. Included in the kit are: 10-foot contractors tube, (2 ea.) ½” threaded “U” bolts, (2 ea.) flat washers, and (2 ea.) ½”...
-
Page 2: Mounting Procedure
(supplied). See Figure 3. Figure 3 – Mounting Procedure Page 2 of 2 ci-278 REV 000 a 2002 STI-CO INDUSTRIES, INC., 11 Cobham Drive, Orchard Park, NY 14127-4187 Technical Support: E-mail: techsupport@sti-co.com Phone: 1-716-662-2680 Fax: 1-800-685-1122 Made in U.S.A.
