DMC / DMT / DMP

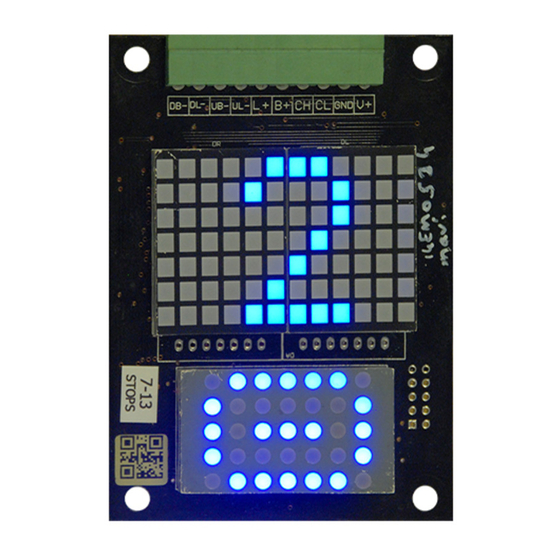

DOT MATRIX DISPLAY BOARD
AND
INSTALLATION
MANUAL
VERSION: 1.2
AYBEY ELEKTRONİK SAN. TİC. A.Ş.
Sanayi Mah. Hızır Reis Cad. No:26 34906 Pendik – İstanbul / Türkiye
Tel: (90) (216) 394 50 55 (pbx) Faks: (90) (216) 394 50 58
e-mail: destek@aybey.com
www.aybey.com
F/7.5.5.02.89 R:1
DMC/DMT / DMP
1
Advertisement
Table of Contents
Related Manuals for Aybey Elektronik DMC
Summary of Contents for Aybey Elektronik DMC
- Page 1 DMC / DMT / DMP DOT MATRIX DISPLAY BOARD PROGRAMMING INSTALLATION MANUAL VERSION: 1.2 AYBEY ELEKTRONİK SAN. TİC. A.Ş. Sanayi Mah. Hızır Reis Cad. No:26 34906 Pendik – İstanbul / Türkiye Tel: (90) (216) 394 50 55 (pbx) Faks: (90) (216) 394 50 58 e-mail: destek@aybey.com...
- Page 2 FLOOR DISPLAY SETTINGS (Only in DMP Board) IN DMC/DMT board, system gets all floor displays so there is no setting about display (Only in simulation Mode). On board, user can only set the arrow and Out of Service displays.
- Page 3 FLOOR SELECTOR DMP board can be driven by 7 Segment, Gray Code, Binary Code or Counter systems inputs; DMC/DMT board only can be driven by CANBUS. Additional to this, simulation mode can be set to simulate system work. RM letters on display shows Run Mode. Submenus of this mode are...
- Page 4 ID DEFINITION (Only in DMC/DMT Board) ID information (0 to 63) of DMC/DMT board must be set to identify address of it in CANBUS communication. ‘ID’ letters on display shows this menu. Set ID number with DEC (↓) and INC (↑) buttons.
