QRP Wattmeter/Dummy Load
INTRODUCTION
Thank you for purchasing the MFJ-9214 QRP Wattmeter/Dummy
Load. The MFJ-9214 is designed to work QRP on HF up to 5
Watts of power. Do not use the MFJ-9214 for more than 5 Watts.
The 50 Ohm load in the MFJ-9214 will handle 5 Watts for no more
than 15 seconds.

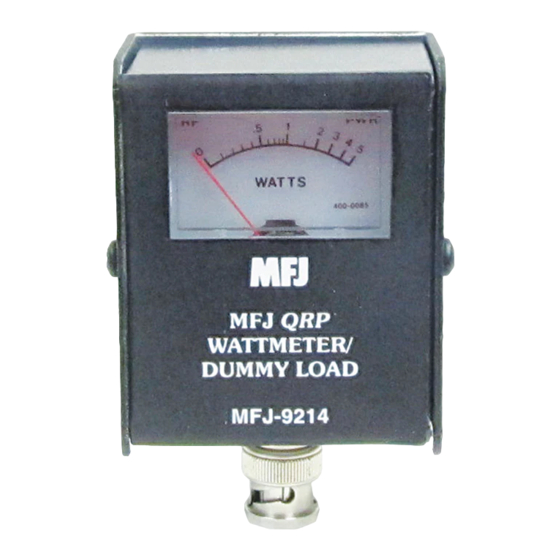

Figure 1: MFJ-9214 QRP Wattmeter/Dummy Load
INSTALLATION
Simply attach the MFJ-9214 to your QRP transceiver by
connecting to the BNC connector on the bottom of the unit.
MFJ-9214
