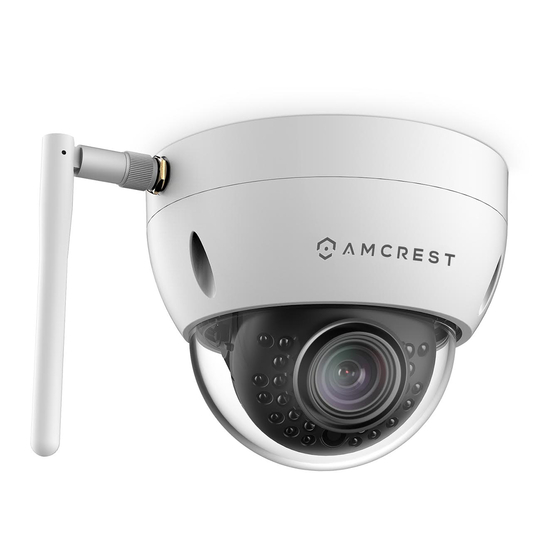

Amcrest IP3M-956W User Manual

3mp prohd wifi vandal dome camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

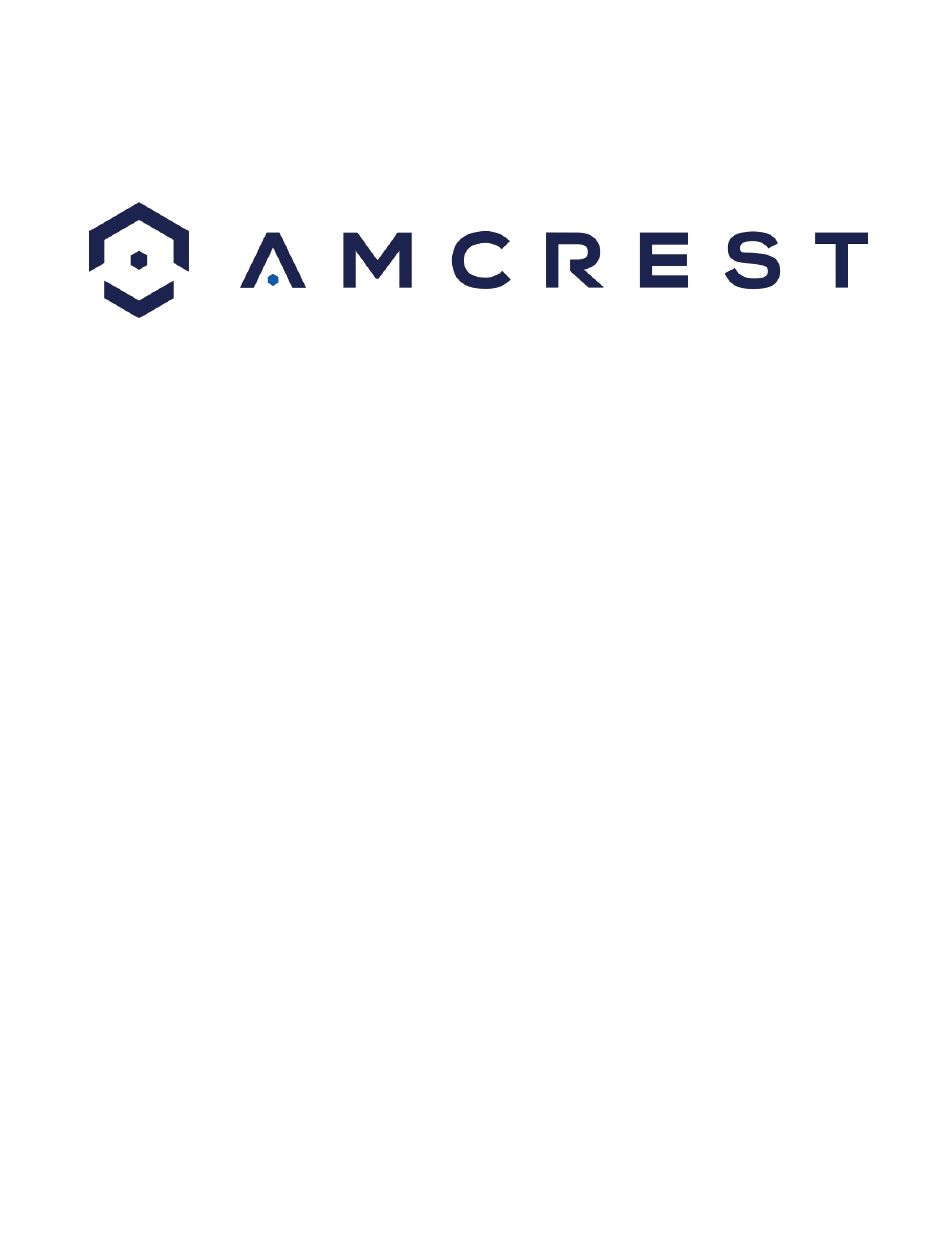

Amcrest IP3M-956W / IP3M-956B
3MP ProHD WiFi Vandal Dome Camera
User Manual
Version 1.0.4
th
Revised April 9
, 2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IP3M-956W and is the answer not in the manual?

Questions and answers

Related Manuals for Amcrest IP3M-956W

Summary of Contents for Amcrest IP3M-956W

  • Page 1 Amcrest IP3M-956W / IP3M-956B 3MP ProHD WiFi Vandal Dome Camera User Manual Version 1.0.4 Revised April 9 , 2019...

  • Page 2: Table Of Contents

    4.2 How to Setup the Camera ................................7 4.3. App Setup ....................................7 4.4 Desktop Access Setup ................................14 4.5 Amcrest Cloud Desktop Setup ..............................67 4.6 Web Access Setup (AmcrestView.com) ........................... 67 5 Operation and Interface ................................67 5.1. Live ......................................68 5.2 Playback ....................................

  • Page 3: Welcome

    • Email Amcrest Customer Support support@amcrest.com Important Security Warning To keep your Amcrest camera secure and prevent unauthorized access, please make sure to follow the steps below: • Always make sure that your camera has the latest firmware as listed www.amcrest.com/firmware-subscribe...

  • Page 4: Features And Specifications

    1.1 Overview Amcrest cameras are an excellent digital surveillance product that can be useful to a wide variety of users. This camera connects to any router and uses an internet connection to allow the user to access all of its functionality from many internet connected devices.

  • Page 5: Device Overview

    IMPORTANT: Due to specific hardware limitations within your camera it is important to note that these devices will not be able to automatically pan/tilt or pivot in either the app or via the web UI on a computer. For this reason, it is imperative to make sure to mount the cameras properly and position them as efficiently as you can to the areas you wish to monitor.

  • Page 6: Microsd Card Installation Guide

    Note: Due to specific hardware limitations within your camera it is important to note that these devices will not be able to automatically/remotely pan/tilt or pivot in either the app or via the web UI on a computer. For this reason, it is imperative to make sure to mount the cameras properly and position them as efficiently as you can to the areas you wish to monitor.

  • Page 7: Camera Access Setup

    If you are setting up your camera for the first time, or you are setting up your camera for mobile viewing, please follow the instructions as outlined on section 4.3. Using the Amcrest View app on your smartphone or tablet, you can view your camera live from anywhere, and access features such as taking snapshots, creating recordings, and more.
  • Page 8 For purposes of this guide, we will use iOS, though both apps. The App Interface may differ slightly from the screenshots below as updates are released. Below, you'll find instructions on how to set up your camera up on the Amcrest cloud app as well as the Amcrest View Pro app.
  • Page 9 Press Next to continue. 7. Set a new password for your camera. The password 8. If you are connecting a WiFi camera to the Amcrest must be between 8 to 32 characters long and contain Cloud and would like to enable WiFi via the Ethernet only letters and numbers.
  • Page 10 Make sure your camera is plugged into a power source and your Ethernet cable is connected from the camera to your router. • Make sure your camera and mobile device are on the same network during setup. • Download and open the Amcrest View Pro app from the App Store or Play Store.
  • Page 11 1. Open the app and tap on the + symbol in the middle 2. Tap on Add Device to add a new device to your app. of the screen to begin adding your WiFi device. 3. Tap on WiFi Camera Select your connection type, in this case, select the left tab Set Up A New Camera On WiFi or Connect New Device (on Android) to begin adding the device to the app.
  • Page 12 5. Ensure an Ethernet cable is connected from the 6. Ensure your smartphone or tablet is connected to router to the camera and the included power adapter the same WiFi network as your camera. Tap Next to is connected to the device. Allow the device to continue.
  • Page 13 For more information on alternative setup methods for your camera in the Amcrest View Pro app visit the following links: IP/Domain/DDNS App Setup: Used to establish a connection without using P2P. For more information on this setup method visit,...

  • Page 14: Desktop Access Setup

    NPAPI plugins have been recently depreciated by most mainstream web browsers such as Google Chrome, Outlook, and Firefox. Amcrest is pushing forward to create new and diverse ways for you to more easily access your devices from anywhere at any time.
  • Page 15 Click Next to continue. Please read the End-User License Agreement (“EULA”) carefully and click the Accept radio button when finished to agree. Once accepted, click the Next button to continue. Select the functions that you want to install with the software. You can choose to bundle the PC-NVR function with the software. PC-NVR turns your computer into an NVR and will utilize your hard drive (HDD) on your PC to store and access recorded video.
  • Page 16 Once the software has finished installing you will see a few options. You will have the options to view the release note and run the Amcrest Surveillance Pro software. To view the release notes after pressing Finish select the Release note checkbox. To begin running the software directly after pressing finish, select the Run Amcrest Surveillance Pro checkbox.
  • Page 17 Type the created password into the Password field on the next screen and click Login to log into the software. If you do not wish to have to retype your password every time you log into the system, click on the Remember Password checkbox. If you wish to exit the software, click Exit.
  • Page 18 Config software link for either PC/Windows or Mac OS. Launch the IP Config tool and locate the IP address for your device. The IP address will be listed in the IP field of the software. After locating the IP address in the Amcrest IP Config tool for the device, return to the Amcrest Surveillance Pro software and click on the Add button.
  • Page 19 For security purposes it is highly recommended to set the camera to a static IP address. Setting your device to a static IP will ensure the stability and the efficiency of your device while operating it in the Amcrest Surveillance Pro software. To set your...
  • Page 20 In the Organizations menu on the far left, click on the device you wish to modify. Then In the device configuration menu, under General click on the Network icon to access the network settings for your device. In the Network Settings menu, in the Mode section click on the Static radio button to set your device to a static IP. Click Save and Apply to apply the network settings to your device.
  • Page 21 Viewing an Added Device To begin viewing an added device, navigate to the Home Page of the software and click on the LIVEVIEW icon located in the Basic section. In the Organizations menu, on the far-right side of the live view screen, double-click the device you want to view to load the live feed into the viewer.
  • Page 22 For more details on the features listed in this menu, refer to the table provided below: Item Function Please refer to the following contents for detailed information. ⚫ : Enable/disable local record. ⚫ : Snapshot. ⚫ Bit stream : Enable/disable audio. information ⚫...
  • Page 23 ⚫ Sets the live view to 1- 64-window mode. Window split mode ⚫ : Select a window and then click this button to customize its setup. ⚫ : Adjust video scale. ⚫ : Full screen. ：Save current liveview as image. You can view under View. Intelligent ：Enable tour plan.
  • Page 24 In the command prompt menu, type in ipconfig to access the IPv4 Address for your computer. When the IPv4 address for your computer has been located, navigate back to the home page in the Amcrest Surveillance Pro software and click on the Devices icon located in the Settings menu.
  • Page 25 To enable PC-NVR, navigate to the Home Page and in the Settings menu, click on the PC-NVR icon. Once the PC-NVR tab opens, you will find your PC-NVR details, select Remote Device. Click on the Plus button to add a camera from the cameras you have connected to Amcrest Surveillance Pro.
  • Page 26 Access the PC-NVR menu and navigate to the Disk Manager tab in the far-left corner of the screen. Disk Manager will appear showing you a list of drives that could be used to allocate storage space for your cameras through Amcrest Surveillance Pro.
  • Page 27 Select a disk you would wish to use for recording purposes, you may allocate as much space as you have available on the drive within its minimum and maximum allowance. Once you’ve set a number between the possible storage sizes, click Allocate. A prompt window will appear to warn you the allocation may take several minutes, and the application will restart after completion.
  • Page 28 How to Setup Recording The Amcrest Surveillance Pro software allows you the opportunity to set your added device to record on motion or on continuous (general) recording. You can also set recording schedules for your device.
  • Page 29 All button. On the main record menu, click on Apply and Save to save the schedule to the software. How to View Playback To playback recorded material in the Amcrest Surveillance Pro software, navigate back to the Home Page and in the Basic menu, click on Playback.
  • Page 30 In the Organizations menu, click on the device you would like to view playback on. Ensure the checkbox next to the device name and group name are checked. In the Type dropdown box, select which type of recording you would like to view. To view all records, make sure All is selected from the drop downbox.
  • Page 31 Note: Make sure the camera and the PC are on the same network before proceeding. Use one of the following web browsers: Safari, Internet Explorer, or the Google Chrome app. To easily connect to the camera’s interface, install and run the Amcrest IP Config tool. You can download the IP Config software from www.amcrest.com...
  • Page 32 • 7200+ RPM drives and/or SSD drive To install the software on your computer, click on the Amcrest+Blue+Iris.exe file to launch the installation wizard. Click Next to begin the installation process and allow the software to download.
  • Page 33 Choose a file destination in which you would like the Amcrest Blue Iris software to download. If you would like to specify another path, besides the default path, click Change. It is recommended to leave the default download path when installing the software.
  • Page 34 To begin installing the software click on the Install button and allow the software to download to your computer. When the software has finished downloading, click on the Finish button to launch the software.
  • Page 35 To continue the free trial version of this software, click Next to continue. Amcrest offers two versions of the Blue Iris software; Full, and Lite. The full version ($59.95) allows you to use up to 64 cameras with all the added features of Blue Iris.
  • Page 36 How To Add a Device Into Blue Iris To add a device into the Blue Iris software, locate the IP address for your device using the Amcrest IP Config Tool. The Amcrest IP Config Tool can be downloaded at the following web page: amcerest.com/downloads...
  • Page 37 This is the IP address that will be used in the Amcrest Blue Iris Software. To add a device, navigate to the Blue Iris software and click on the button. In the New Camera menu, provide a name for your camera. This can be a full name and a short name. Select which type of...
  • Page 38 Next, enter the IP address of the device. This is the IP address discovered in the IP config tool. Enter the IP address in the Address field, then enter the user name and password for your device. If this is the first time using your camera, the password will be admin.
  • Page 39 The device will now be successfully connected to the Blue Iris software. To view an informative video on how to add an Amcrest device into the Amcrest Blue Iris software, please view this informative video: https://www.youtube.com/watch?v=RqcfLHANCd8 For more information on the features included in the Blue Iris software visit,...
  • Page 40 Note: Pale Moon users, please use the 32-bit version of the browser as the 64-bit version may be incompatible with our plugins. You can also use the Amcrest Cloud to access your device from your computer. Amcrest Cloud does not require the use of a plugin to function and is compatible on most modern browsers.
  • Page 41 Please review the license terms before installing SeaMonkey. Read the license agreement carefully, and then to accept the terms, click the checkbox next to the I accept the terms in the License Agreement checkbox. Click Next to continue. Choose the type of setup you prefer. There are two types of setup, Standard and Custom. In this case, it is recommended to run the standard setup since it is the most common.
  • Page 42 The wizard will then prompt you to install the software onto your computer. Click the Install button to install the browser. Allow the browser to install on your computer. When it has finished installing click on Finish to launch the browser.
  • Page 43 How To Access a Device Using SeaMonkey To access the web user interface, locate the IP address for your device using the Amcrest IP Config Tool. The Amcrest IP Config Tool can be downloaded at the following web page: amcerest.com/downloads In the All Downloads menu, click on IP Config Software to begin the free download.
  • Page 44 If this is the first-time logging into your device, you will be prompted to modify the password for your device. To modify the password, enter the new password you would like to use in the New Password field and confirm. The password used should be between 8 and 32 characters long with a combination of letters and numbers.
  • Page 45 User manuals can be found at amcrest.com/support or on the original listing of your device. Using Multiple Cameras in the Web UI Due to chipset limitations with certain model Amcrest cameras, different plugins may be required when accessing your camera on your computer.
  • Page 46 This section is specifically geared towards customers who have 3MP and below cameras and are experiencing issues when accessing a newer, 4MP and above camera, simultaneously with their old setup. Higher megapixel cameras will require the use of a different plugin when accessing them on a web browser. This is normal as most higher megapixel cameras require different internal hardware to function.
  • Page 47 The wizard will then prompt you to install the software onto your computer. Click the Install button to install the browser. Allow the browser to install on your computer. When it has finished installing click on Finish to launch the browser.
  • Page 48 How To Access a Device Using Pale Moon To access the web user interface, locate the IP address for your device using the Amcrest IP Config Tool. The Amcrest IP Config Tool can be downloaded at the following web page: amcerest.com/downloads...
  • Page 49 In the web user interface, enter the login credentials for your device. If this is the first time accessing the device, the username and password will both be admin. Click on Login. If this is the first-time logging into your device, you will be prompted to modify the password for your device. To modify the password, enter the new password you would like to use in the New Password field and confirm.
  • Page 50 Click on Save File to being downloading the plugin and save the file to your computer. The webplugin.exe will then be downloaded to the downloads folder and be shown in the Download Manager in the upper right-hand corner of the browser. To launch the plugin, click on the and click on the webplugin.exe file in the download manager.
  • Page 51 Web based access for Amcrest device can be utilized in Google Chrome using the Amcrest Web View Chrome App. This is an app designed by Amcrest specifically for the use of accessing your device in Chrome without the use of a plugin and is available in the Chrome web store.
  • Page 52 To access your device using the Google Chrome Extension please refer to the information provided below. Locate the IP address for your device using the Amcrest IP Config Tool. The Amcrest IP Config Tool can be downloaded at the following web page: amcerest.com/downloads...
  • Page 53 If this is the first-time logging into your device, you will be prompted to modify the password for your device. To modify the password, enter the new password you would like to use in the New Password field and confirm. The password used should be between 8 and 32 characters long with a combination of letters and numbers.
  • Page 54 For more information on the web user interface and the features it provides, please refer to the user manual for your device. User manuals can be found at amcrest.com/support or on the original listing of your device. How to Access a Device Using Firefox The latest update of Mozilla Firefox will be discontinuing the use of plugins which may cause issues with accessing the web user interface for your device while using Firefox.
  • Page 55 Choose the type of setup you prefer. There are two types of setup, Standard and Custom. In this case, it is recommended to run the standard setup since it is the most common. This is selected by default in the wizard. To continue, click the Next button. The wizard will then prompt you to install the software onto your computer.
  • Page 56 A shortcut icon will also be displayed on your desktop for quick access to the browser if necessary. Preventing Automatic Updates Once the browser has finished loading, it is recommended to make sure that no future automatic updates are applied to the browser.
  • Page 57 In the options menu, click on Advanced and then click on the Update tab. In the update tab, select the Never check for updates radio button. This will deactivate your browser from obtaining any future updates of the browser. How to Access the Web User Interface Using FireFox Before accessing your device using Mozilla Firefox, ensure you are using the correct version of Firefox.
  • Page 58 Accessing the Web User Interface To access the web user interface, locate the IP address for your device using the Amcrest IP Config Tool. The Amcrest IP Config Tool can be downloaded at the following web page: amcerest.com/downloads...
  • Page 59 Enter this IP address into the Firefox web browser to load the web user interface. In the web user interface, enter the login credentials for your device. If this is the first time accessing the device, the username and password will both be admin. Click on Login. If this is the first-time logging into your device, you will be prompted to modify the password for your device.
  • Page 60 To view your device on the browser you will need to download the plugin. To download the plugin, click on the Please click here to download and install the plugin prompt in the middle of the screen. Click on Save File to being downloading the plugin. The webplugin.exe file will save to your downloads folder.
  • Page 61 After the web plugin has been installed, close out of the browser completely and then reopen the browser. Type in the IP address for your device into the browser and log into the web user interface with your device’s login credentials. Click on the Activate MMX icon in the middle of the screen to activate the plugin.
  • Page 62 To access your device using the Google Chrome Extension please refer to the information provided below. Locate the IP address for your device using the Amcrest IP Config Tool. The Amcrest IP Config Tool can be downloaded at the following web page: amcerest.com/downloads...
  • Page 63 Enter this IP address into the Internet Explorer browser and press enter to load the web user interface. In the web user interface, enter the login credentials for your device. If this is the first time accessing the device, the username and password will both be admin.
  • Page 64 Click Run to download the plugin. The browser will then show the live feed of your connected device in the web user interface.
  • Page 65 Click the Connections menu item on the left-hand menu and ensure that the HTTP port has changed. Click the DDNS menu item on the left-hand menu, pick Amcrest DDNS from the drop down box, click the checkbox next to Server Type, and then click the Save button on the bottom right.
  • Page 66 Port Forwarding Remote Web Access Setup Port Forwarding is an alternative method to setting up remote access for Amcrest cameras. This method should only be used if the UPnP/DDNS Remote Access method did not work. Below is a step-by-step walkthrough that details how to setup the camera for Remote Web Access using Port Forwarding: Login to your camera, open the main menu then go to Setup ->...

  • Page 67: Amcrest Cloud Desktop Setup

    This section of the manual details the camera’s interface, as well as all the operations the camera can perform. As previously stated, to access the web user interface for your device, it is recommended to use the free Amcrest IP Config tool.

  • Page 68: Live

    (section 4.6). For additional assistance, please contact us at www.amcrest.com or give us a call at 1-888-212-7538. Step by step video tutorials available at http://www.amcrest.com/videos The main interface of the camera contains 6 major tabs on the top of the screen. By default, the interface opens on the Live tab.
  • Page 69 Section 1: This bar allows the user to select which stream type and which protocol they want to choose. Section 2: The functions bar allows the user to perform different camera functions while in live mode. See the table below for an explanation of the different functions available: Button Function Name...

  • Page 70: Playback

    Section 3: This bar allows the user to change video settings for the live playback screen. See the below table for an explanation of the video settings: Button Function Name Function Description Image Adjustment This button opens the image adjustment toolbar, which allows the user to adjust brightness, contrast, saturation, and hue for the live feed’s picture.
  • Page 71 This is the interface for the playback menu. There are 7 main sections: 1. Quick Actions: This panel allows the user to zoom in on playback footage, take a snapshot of the playback footage, or open the help menu. 2. File Menu: This panel allows the user to select a file type and data source. 3.

  • Page 72: Setup

    5.3. Cloud Storage The Cloud Storage tab allows the user quick access to the Amcrest Cloud website. At this website (amcrestcloud.com) users can register for new accounts as well as view or modify existing accounts. For more information on Amcrest Cloud visit: amcrest.com/support...
  • Page 73 There are 3 main sections to note in the Setup tab: Menu Bar: The menu bar is composed of menu sections, which when clicked display any menu items that fall under their category. Menu Items: These menu items each open a different menu that allows the user to change specific settings for the camera. Menu Tab: These tabs open menu options for certain menu items.
  • Page 74 Below is an explanation for each of the fields on the Configuration tab in the Configuration menu item: 5.4.1.1.1. Picture • Profile: This dropdown box allows the user to select which profile to modify. The 3 options are Day, Night, and Normal. •...
  • Page 75 • Profile: This dropdown box allows the user to select which profile to modify. The 3 options are Day, Night, and Normal. • Anti-Flicker: These radio buttons allow the user to select what type of anti-flicker technology should be used for the video feed. The three options are 50 Hz, 60 Hz, and Outdoor. The desired option should offset any flickering effect caused by the electrical current used in the specific area.
  • Page 76 • BLC: backlight compensation: Default will use the whole image to balance the lighting settings, and Customized will allow you to balance the lighting settings from the target area. • WDR: Wide Dynamic Range makes multiple scans of a scene to provide one balanced and unwashed image that is clear for the user.
  • Page 77 To reset to default settings, click the Reset Defaults button. To refresh the screen, click on Refresh. To save the settings, click the Save button. 5.4.1.5. Day & Night Used to determine when black and white mode is turned on in a dark environment. Below is a screenshot of this menu: •...
  • Page 78 • Profile: This dropdown box allows the user to select which profile to modify. The 3 options are Day, Night, and Normal. • Mode: This dropdown box allows the user to select whether to turn the indication light on or off. SmartIR can also be set to automatically set the camera’s IR lights to on and off positions based on Day &...
  • Page 79 5.4.1.8. Profile Management Below is a screenshot that shows the Profile Management tab in the Configuration menu item: Below is an explanation for each of the fields on the Profile Management tab in the Configuration menu item: • Profile Management: This set of radio buttons allow the user to set what basis the profile management settings run on.
  • Page 80 • Encode Mode: This dropdown box allows the user to select a compression protocol. The system supports H.264 and MJPEG video compression protocols. • Resolution: This dropdown box allows the user to set the resolution. The system supports various resolutions and they can be selected from this dropdown list. •...
  • Page 81 • Image Size: This dropdown box shows the image size. By default, the screenshot size is the same size as the video feed’s resolution. • Quality: This dropdown box allows the user to select image quality. Quality is adjusted on a scale of 1-6.
  • Page 82 To reset to default settings, click the Reset Defaults button. To refresh the page, click the Refresh button. To save the settings, click the Save button. 5.4.1.2.4 Path Below is a screenshot that shows the Path tab in the Video menu item: Below is an explanation for each of the fields on the Path tab in the Video menu item: •...
  • Page 83 Below is an explanation for each of the fields on the Audio menu: • Enable: This checkbox allows the user to enable audio recording. • Encode Mode: This dropdown box allows the user to select what audio format the audio should be recorded in.
  • Page 84 Internet at large. This screen allows for TCP/IP settings to be modified for the camera to establish a connection to the network. Below is a screenshot of the TCP/IP settings tab: Below is an explanation of the fields on the TCP/IP settings tab: •...
  • Page 85 The P2P settings screen is where users can use a QR code to connect their smartphone or tablet to the camera. This feature needs to be enabled for use with the Amcrest View app, Amcrest Cloud, or AmcrestView.com. Below is a screenshot of the P2P...
  • Page 86 Below is an explanation of the fields on the Connection settings tab: • Max Connections: This field allows the user to specify the maximum number of users that can be connected to the camera at the same time. The maximum number of users the camera can support at one time is 20. •...
  • Page 87 Quick DDNS, NO-IP DDNS, CN99 DDNS, and Dyndns DDNS. Based on which service is selected, different options may show on this screen. For purposes of this guide, AmcrestDDNS will be used. AmcrestDDNS is a free DDNS service provided by Amcrest, and it must be renewed every year.
  • Page 88 • Trusted Sites: This checkbox allows the user to enable the IP Filter feature for trusted sites. • Add IP/MAC: This button opens a popup that allows the user to add IP or MAC addresses to the trusted site list. Note: When accessing the camera externally, please add the MAC address of the router on the PC end.
  • Page 89 • Username: This field allows the user to enter the SMTP username. • Password: This field allows the user to enter the password associated with the SMTP username. • Sender: This field allows the user to enter the sender email address. This email address will be the one that sends out all emails pertaining to the alerts and alarm emails sent by the camera.
  • Page 90 • Port Mapping List: This table is used to show how the ports for each protocol listed below have been remapped by the UPnP protocol. The first column shows the checkboxes to enable the corresponding service on the table. The second column shows the name of the services. To edit this, double click on the service line item.
  • Page 91 To reset to default settings, click the Reset Defaults button. To refresh the page, click the Refresh button. To save the settings, click the Save button. 5.4.2.8. Bonjour Bonjour is Apple's implementation of Zero-configuration networking (Zeroconf), a group of technologies that includes service discovery, address assignment, and hostname resolution.
  • Page 92 5.4.2.10. WiFi The WiFi feature on this camera allows it to connect to a network wirelessly. Below is a screenshot of the WiFi tab on the WiFi menu: Below is an explanation of the fields on the WiFi tab of the WiFi menu: ●...
  • Page 93 The WiFi camera will now be connected to your WiFi network. You can now remove the Ethernet cable from the device. Please note, the IP address listed in the WiFi Network Information menu will be the IP address used to access your camera wirelessly. 5.4.2.11.
  • Page 94 • Command: This field allows the user to enter in a priority value for command packets. The range is between 0-63. To reset to default settings, click the Reset Defaults button. To refresh the page, click the Refresh button. To save the settings, click the Save button.
  • Page 95 Below is an explanation of the fields on the Motion Detect tab: • Enable: This checkbox enables motion detection for the camera. • Schedule: Clicking this button opens a weekly schedule that can be used to set times. Click and drag to set motion detection for certain days of the week. Also, periods of motion detection can be set for each day and enabled using the period settings on the bottom half of the screen.
  • Page 96 Anti-Dither: This field allows the user to set the anti-dither time. The values in this field can range from 5 to 600 seconds. This time value controls how long the alarm signal lasts. Based on motion detection, a buzzer can go off, a tour can begin, , a snapshot can be taken, or the camera can begin recording.
  • Page 97 • Alarm Delay: This field specifies in seconds how long the delay between alarm activation and Relay alarm activation should be. • Send Email: This checkbox allows the user to enable the camera to send an email when a motion detection alarm is triggered.
  • Page 98 o Click and drag to set video tampering for certain days of the week. Also, periods of video tampering can be set for each day and enabled using the period settings on the bottom half of the screen. There are a total of 6 periods that can be set.
  • Page 99 o Sensitivity: The higher the sensitivity, the more likely that audio will trigger an alarm. o Threshold: The lower the threshold, the more likely that audio will trigger an alarm. ● Schedule: Clicking this button opens a weekly schedule that can be used to set times. o Click and drag to set audio tampering for certain days of the week.
  • Page 100 5.4.3.3.1 SD Card This tab allows the user to set the camera’s response to an SD card related abnormality. Below is a screenshot of the SD card tab screen: Below is an explanation of the fields on the SD Card settings tab: •...
  • Page 101 Below is an explanation of the fields on the Network settings tab: • Event Type: This dropdown box allows the user to select which Network abnormality to set event triggers for. The 2 options are Disconnection and IP Conflict. • Enable: This checkbox enables the Network abnormality trigger for the camera.
  • Page 102 5.4.4.1 Schedule The schedule menu manages the recording schedule for the camera. This menu has 3 tabs: Record Schedule, Snapshot Schedule, and Holiday Schedule. 5.4.4.1.1 Record Schedule This tab is where video recording settings are configured. Below is a screenshot of the Record Schedule settings screen: Below is an explanation of the fields on the Record Schedule settings tab: Record Type: These checkboxes allow the user to select which recording type they want to configure on...
  • Page 103 Below is an explanation of the fields on the Snapshot Schedule settings tab: • Record Type: These checkboxes allow the user to select which snapshot type they want to configure on the schedule. There are 3 types of snapshots: General: General means that the camera will take snapshots during the specified time period.
  • Page 104 Below is an explanation of the fields on the Holiday Schedule settings tab: • Record Type: These checkboxes allow the user to select which recording type they want to configure on the schedule. There are 2 types of recordings: Record: This checkbox is referring to video recording. Snapshot: This checkbox is referring to snapshot recording.
  • Page 105 Below is an explanation of the fields on the Path settings tab: • Event Type: This column designates storage options available to the camera. The options are SD Card, FTP, and NAS. • Record Type: These columns designate which recording type should be recorded to which event type.
  • Page 106 5.4.4.2.3 FTP This tab is where the user can change FTP settings. Below is a screenshot of the FTP tab: Below is an explanation of the fields on the FTP settings tab: • Enable: This checkbox allows the user to enable FTP uploading for the camera’s recorded media. •...
  • Page 107 Save button. 5.4.4.4. Cloud Storage This menu redirects the user to the Amcrest Cloud web site. At this website (amcrestcloud.com) users can register for new accounts as well as view or modify existing accounts. For more information on Amcrest Cloud visit: amcrestcloud.com...
  • Page 108 5.4.5.1 General This menu controls where general settings are configured. There are 2 tabs in this menu: General and Date & Time. 5.4.5.1.1 General This tab is where the user can configure some basic camera settings. Below is a screenshot of the General tab: Below is an explanation of the fields on the General settings tab: •...
  • Page 109 Below is an explanation of the fields on the Date & Time settings tab: • Date Format: This dropdown box allows the user to change the date format used in the camera. • Time Format: This dropdown box allows the user to change the time format used in the camera. •...
  • Page 110 • User Name: This column shows the usernames of the different accounts on the camera. • Group Name: This column shows the group of the different accounts on the camera. • Description: This column shows a description of the account. •...
  • Page 111 Go to amcrest.com/firmware-subscribe • You will be taken to an Amcrest firmware downloads page. Search for the model number of your camera and download the latest firmware file. • Return to the web user interface for your camera and press the Browse button to locate and import the firmware file you just downloaded.
  • Page 112 5.4.6.1 Version This screen allows the user to see various information about the camera’s software versions, as well as other information. Below is a screenshot of the camera’s version screen: On this screen, software version, web interface version, and ONVIF version are displayed. Also, the S/N (Token ID) is displayed here.

  • Page 113: Alarm

    To use this menu, check the enable check box to enable remote log functionality. Enter the IP address, port number and device number of the device you would like to pull remote logs from. To save your settings, click Save. If you would like to refresh the screen to show applied settings, click Refresh. To set the screen back to its original default settings, click Reset Defaults.
  • Page 114 The table on the right shows the alarm log and all the alarm instances that have occurred. The checkboxes allow the user to narrow down which alarms they want to see in the alarm log. Clicking the checkbox next to Prompt will cause the system to pop up a dialog box anytime an alarm is triggered.

  • Page 115: Faqs/Troubleshooting

    6. FAQs/Troubleshooting 1. The camera does not boot up properly. Below are a few possible reasons why this may be occurring: • The power input is not correct voltage. • The power cable connection is not secured correctly. • The firmware was upgraded incorrectly. 2.
  • Page 116 • The client PC may have limited resources. • Multicast mode may be causing this issue. • A privacy mask or screensaver may be enabled. • The logged in user may not have enough rights to monitor real-time playback. • The camera’s local video output quality is not enough.

  • Page 117: Glossary Of Terms

    • S/N – S/N stands for serial number. The S/N is unique to each camera and can be used to connect to different Amcrest apps and services to provide different methods of access to the camera.

  • Page 118: Fcc Statement

    FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 119: Appendix A: Toxic Or Hazardous Materials Or Elements

    Appendix A: Toxic or Hazardous Materials or Elements Toxic or Hazardous Materials or Elements Component Name Cr VI PBDE Sheet ○ ○ ○ ○ ○ ○ Metal(Case) Plastic Parts ○ ○ ○ ○ ○ ○ （Panel） Circuit Board ○ ○ ○...
  • Page 120 All the designs and software here are subject to change without prior written notice. • All trademarks and registered trademarks mentioned are the properties of their respective owners. To contact Amcrest support, please do one of the following: • Visit http://amcrest.com/contacts...
