R0E420000CFG40
Converter Board for Connecting H8S/Tiny Series 64-pin 0.8mm pitch LQFP

1. Outline

The R0E420000CFG40 is a converter board for connecting the
flexible cable R0E001000FLX10 to a foot pattern for 64-pin
0.8mm pitch LQFP (PLQP0064GA-A).

2. Package Components

Check to see if the R0E420000CFG40 package has all the
following contents before using this product.
(1) R0E420000CFG40 converter board ............................ 1 pc.
(2) YQPACK064SA
(made by Tokyo Eletech Corporation)
(3) NQPACK064SA160
(made by Tokyo Eletech Corporation)
(4) YQ-GUIDE
(made by Tokyo Eletech Corporation)
(5) R0E420000CFG40 User's Manual (this manual)

3. Specifications

Table 1 Specifications
Applicable package
Insertion/removal
iterations of connector
4. Usage (See Figure 2)
The R0E420000CFG40 can be used for debugging and
on-board evaluation in
NQPACK064SA160 on the user system.
(1) For debugging
Mount the NQPACK064SA160 on the foot pattern of the
user system and attach the YQPACK064SA on it. In
addition, connect
YQPACK064SA, and then connect the flexible cable
R0E001000FLX10 of the emulator to the upper connector
of the R0E420000CFG40.
(2) For on-board evaluation
Mount an MCU with on-chip flash memory or one-time
PROM and the HQPACK064SA160 (not included) in
order on the NQPACK064SA160 on the user system.
Before using the R0E420000CFG40, be sure to read the
precautions on page 3.
* NQPACK, YQPACK, YQSOCKET, YQ-GUIDE, HQPACK, TQPACK, TQSOCKET, CSSOCKET, CSPLUG/W and
LSPACK are trademarks of Tokyo Eletech Corporation.
REJ10J1909-0200 Rev.2.00
Apr 16, 2010
(See Figure 1)
................ 1 pc.
........ 1 pc.
.....................4 pcs.
PLQP0064GA-A
(64-pin 0.8mm pitch LQFP)
50 times guaranteed
common by mounting
the R0E420000CFG40
R0E420000CFG40
converter board
YQ-GUIDE (×4)

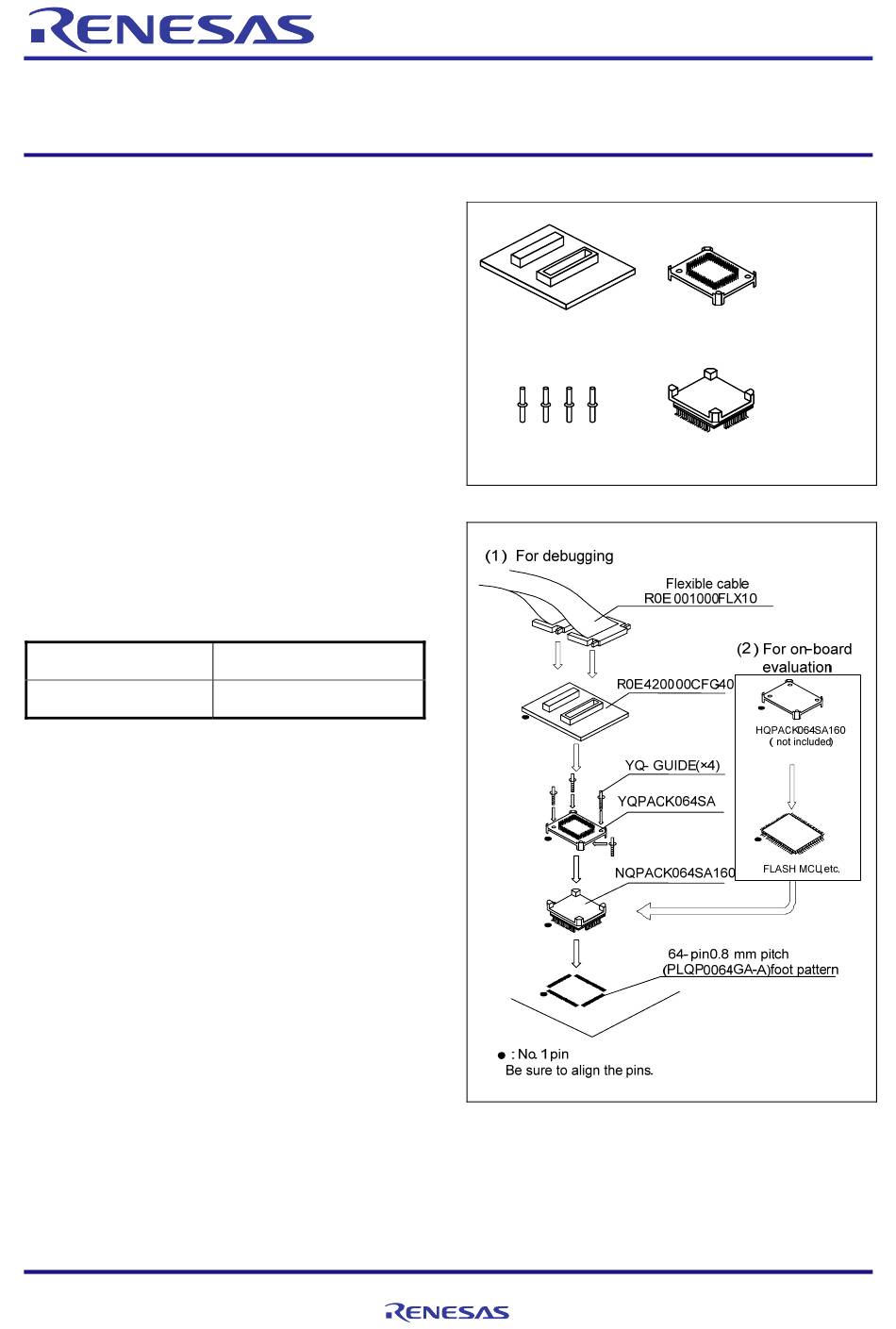

Figure 1 Package components of the R0E420000CFG40
the
to the
Figure 2 Usage of the R0E420000CFG40
User's Manual
REJ10J1909-0200
Rev.2.00
Apr 16, 2010
YQPACK 064 SA
NQPACK 064 SA160
