- Page 1 EF24-105mm F4L IS USM Instruction...

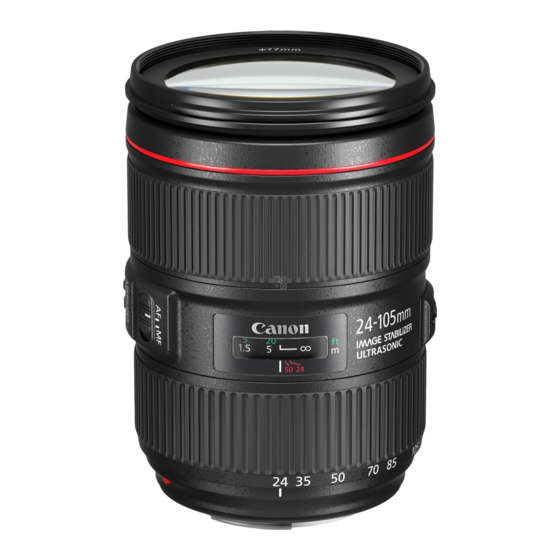

- Page 2 Thank you for purchasing a Canon USM lens. The Canon EF24-105mm f/4L IS USM lens is a high-performance standard zoom lens developed for EOS cameras. It is equipped with an Image Stabilizer, and covers a wide range of focal lengths from wide angle to mid-telephoto.
-
Page 3: Safety Precautions
a Safety Precautions a Safety Precautions 1. Do not look at the sun or a bright light source through the lens or camera. Doing so could result in loss of vision. Looking at the sun directly through the lens is especially hazardous. 2. -
Page 4: Table Of Contents
Nomenclature Focus mode switch (→ 5) Distance scale (→4, 8) Infrared index (→ 8) Hood mount (→ 9) Zoom ring (→ 5) Zoom position index Filter mounting thread (→ 10) Focusing ring (→ 5) Contacts (→ 4) Image stabilizer switch (→ 6) Lens mount index (→... -
Page 5: Contacts
If the rubber ring becomes worn, it is replaceable by a Canon Service Center at cost. 2. Close-up Photography (Macro Photography) The lens can focus as close as 0.45 m/1.5 ft for close-ups (macro photography). -
Page 6: Focus Mode Switch
3. Setting the Focus Mode To shoot in autofocus mode, set the focus mode switch to AF. To use only manual focusing, set the focus mode switch to MF, and focus by turning the focusing ring. The focusing ring always works, regardless of the focus mode. - Page 7 5. Image Stabilizer You can use the image stabilizer in AF or MF mode. Set the STABILIZER switch to ¡If you are not going to use the image stabilizer function, set the switch to ENG-6 When you press the shutter button halfway, the Image Stabilizer will start operating.
- Page 8 Image Stabilizer ¡The Image Stabilizer cannot compensate for a blurred shot caused by a subject that moved. ¡Set the STABILIZER switch to you are taking pictures using the Bulb setting (long exposures). If the STABILIZER switch is set to image stabilizer function may introduce errors.
-
Page 9: Distance Scale (→4
6. Infinity Distance Mark To compensate for shifting of the infinity focus point that results from changes in temperature. The infinity position at normal temperature is the point at which the vertical line of the L mark is aligned with the distance indicator on the distance scale. - Page 10 8. Hood The EW-83H hood can keep unwanted light out of the lens, and also protects the lens from rain, snow, and dust. To attach the hood, align the hood’s attachment position mark with the red dot on the front of the lens, then turn the hood clockwise until the lens’s red dot is aligned with the hood’s stop position mark.
-
Page 11: Filter Mounting Thread
You can attach filters to the filter mounting thread on the front of the lens. ¡Only one filter may be attached. ¡If you need a polarizing filter, use Canon’s PL-C 77mm ll polarizing filter. ¡To adjust the polarizing filter, first remove the lens hood. - Page 12 11. Extension Tubes (Sold separately) With Extension Tube EF 12 II or EF 25 II, the camera-to-subject distance and image magnification will be as follows: Camera-to-Subject Distance (mm) Near 24mm EF12 II 105mm 1022 24mm Incompatible EF25 II 105mm When an Extension Tube is attached, focus manually.
-
Page 13: Specifications
¡The size and weight listed are for the lens only, except as indicated. ¡Aperture settings are specified on the camera. ¡The EF1.4X II/EF2X II extenders cannot be used with this lens. ¡All data listed is measured according to Canon standards. ¡Product specifications and appearance are subject to change without notice. ENG-12 24 ×... - Page 14 2006.9.1 CT1-7561-003 © CANON INC. 2005...
