Eletech QuickWave EM38A User Manual

Available Models
EM38A: no internal relays.
EM38A-R: 8 relays for simple control.
EM38A-X: 8 relays for complex control.
Technical Specifications
Firmware Version
2.9
Operation Mode
playback only
Sound File Format
MP3 (ISO 11172-3 up to 44.1KHz)
Max. Number of Sound Files
Parallel / Direct Mode: 8
Parallel / Binary Mode: 128
Parallel / Extended Binary Mode: 255
Parallel / Sequential Mode: 8 x 99
Parallel / Round-Robin Mode: 8
Parallel / Script Mode: 999
Serial Port: 999
Memory Card Type/Capacity
SD/SDHC up to 2GB/32GB
Max. Recording Time
16.5 hours/GB @ 128 kbps
Supply Voltage
12 ~ 30 VDC
Typical Standby Current
60 mA
Audio Output
(30V supply, 8 Ohm load, 10% THD+N)
High efficiency class D
Stereo: 15W per channel
Mono: 55W bridge tied load (BTL)
Serial Interface
RS-232 / RS-485
Trigger Inputs
8 inputs, contact closure or 3.3V/5V logic
Relay Contact Rating (EM38A-R only)
15A @ 125 VAC
10A @ 250 VAC
6A @ 28 VDC
Physical Dimensions
EM38A: 5.3'' x 4'' x 1.35''
EM38A-R & EM38A-X: 5.3'' x 6.7'' x 1.35''
EM38A / EM38A-R / EM38A-X User's Manual
Inputs, Outputs & Controls
Power Light (PWR)
The power light is turned on when power is applied.
Trigger Inputs Terminals: T1 - T8, GD
These inputs are internally pulled up to 3.3Vdc and seen as logic "1" if actively driven by
a DC signal within the range of 3.3V to 5V (for units purchased before October 2015) or
3.3V to 40V (for units purchased in/after Octorber 2015), or simply left undriven. To be
seen as logic "0" these inputs must be actively driven to 0V (ground).
The GD terminal is ground, connected internally to the power ground.
Reset Input Terminal: RS
Pull this input down to the ground momentarily to reset the unit. Min. duration is 100 ms.
This input has the same pull-up characteristics as the trigger inputs.
Busy Output Terminal: BY
This open collector output from an internal transistor can be controlled with more flex-
ibility if the unit runs in the Script mode. In all other modes it is automatically turned on
while playing audio, with a maximum sink current of 200 mA. It can be used to synchro-
nously activate an external relay for switching on a device such as a lamp or a motor.
Power Input Terminals: V+, GD
Use a well regulated DC power supply to obtain the best sound quality. Connect the power
supply's positive output to terminal V+, and the negative output to terminal GD. Alterna-
tively, power can also be supplied via the 2.1mm center positive coaxial jack located on
the left side of the unit.
Line Output (LINE): 1/8" Stereo Phone Jack
This jack provides single ended line output.
Balance Knob (BAL)
This knob adjusts the output balance between the two channels. It should be set at the
middle (center detent) if the unit is configured for BTL (bridge tied load) mono out.
Volume Knob (VOL)
Turn this knob clockwise to increase the output volume. It affects both the speaker and
the line out. A special version allows volume adjustment via push buttons connected to
inputs T7 and T8 - please contact your dealer for details.
Speaker Output Terminals: LF (left channel), GD, RT (right channel)
See the Speaker Connections section.
Serial Port (DB9 Female)
The default setting is RS-232. To select RS-485, move the internal jumper JP1 to the
"485" setting. The serial port is disabled by default. To enable the serial port, you must
create a configuration file (MODE.TXT) on the flash card as described later. The trigger
inputs are disabled automatically when the serial port is enable.
DC Adaptor Jack
Instead of the power input terminals, power can also be supplied via this 2.1mm center
positive coaxial jack located on the left side of the unit.
Relay Output Terminals (EM38A-R & EM38A-X only)
Three terminals are provided for each relay: NC (Normally Closed), NO (Normally Open)
and Common. The contact is rated at 12A/120VAC or 10A/24VDC.

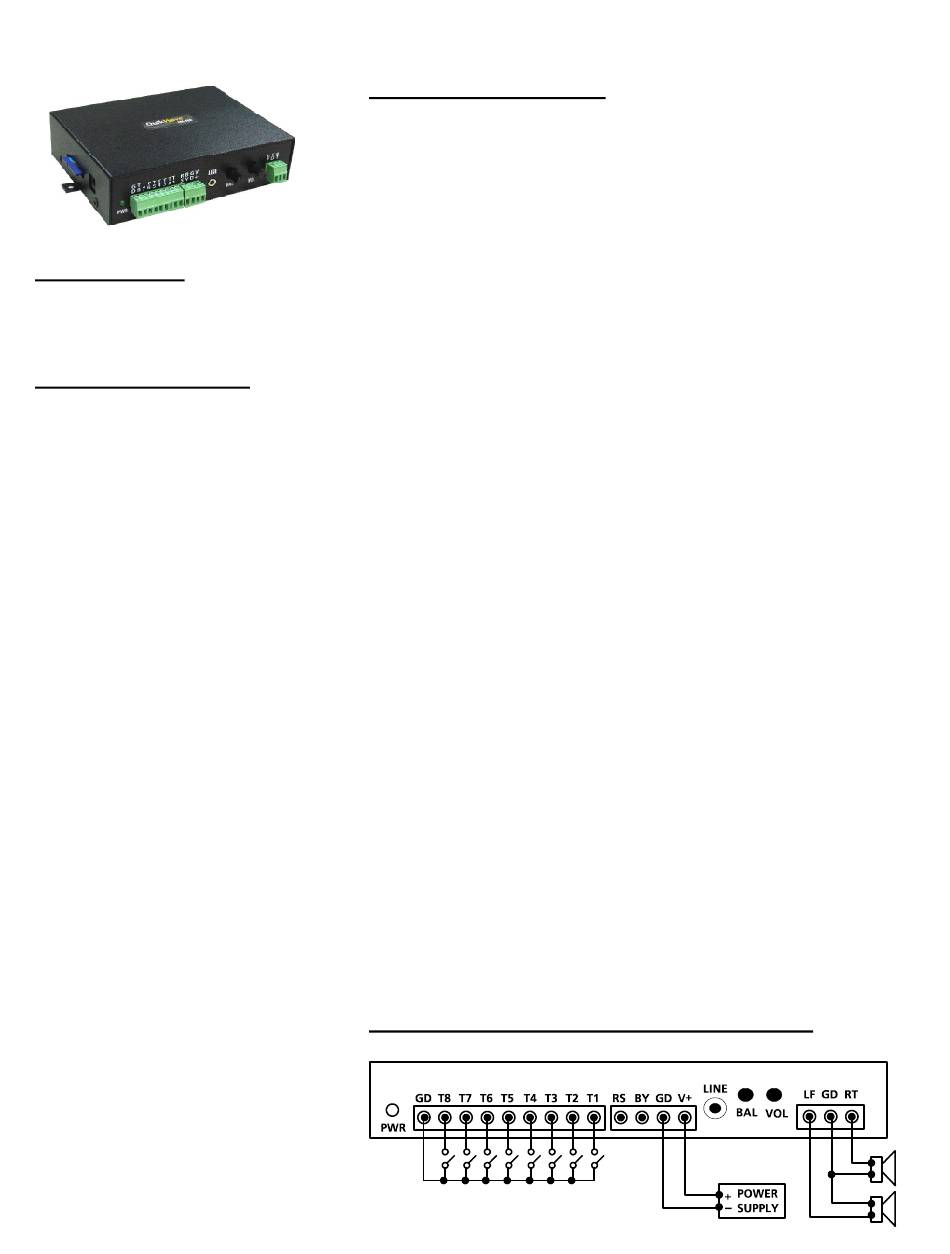

Typical Wiring Diagram for Push Button Activation
Page 1 of 8
