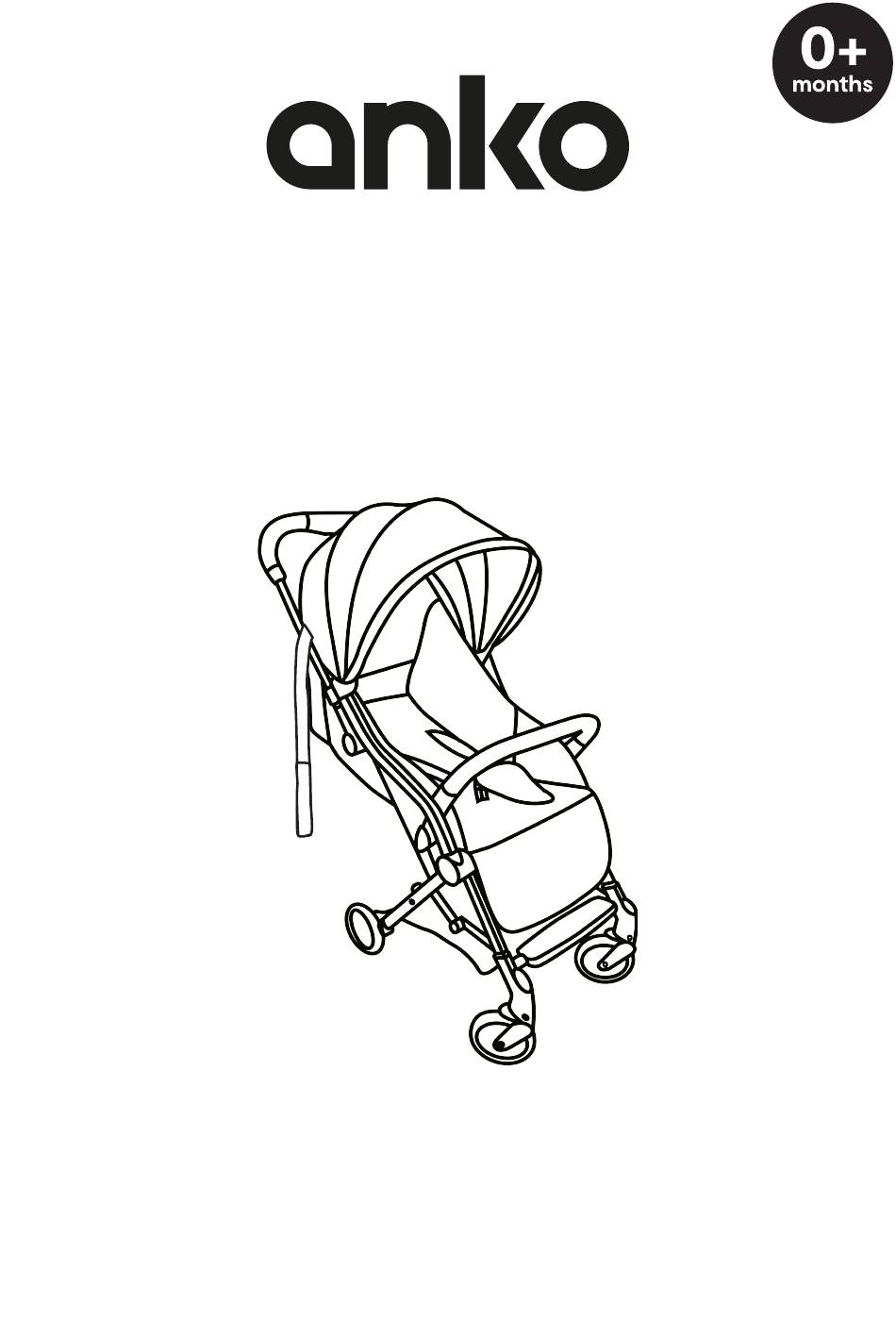

- Page 1 NEWBORN STROLLER INSTRUCTION MANUAL IMPORTANT: RETAIN FOR FUTURE REFERENCE READ CAREFULLY...
-
Page 2: Safety Notes
Safety Notes CAUTION: Read these instructions carefully before assembly and use and keep for future reference. The child may be hurt if you do not follow these instructions. WARNING: TO AVOID INJURY OR DEATH • FOLLOW THE MANUFACTURER'S INSTRUCTIONS AT ALL TIMES. •... - Page 3 Safety Notes • Do not leave your child exposed to the sun. The canopy or hood on this• • product will not give your child total protection from the harmful rays of • the sun. • Take care when unpacking and during assembly. •...
-
Page 4: Parts List
Parts List A x 1 B x 1 stroller bumper bar Page 4... - Page 5 Unfolding Unpack all contents and check that all parts are present before starting assembly. Please refer to the parts list. 1. Located on the stroller (A) handle, slide the folding button across. 2. At the same time, push up the safety lock. 3.
- Page 6 Bumper Bar Assembly 1. Insert the ends of the bumper bar (B) into the attachment points on the stroller frame. 2. Wait to hear them ‘click’ into position. Lift gently to ensure the bumper bar is locked into place. 3. Press buttons located either side of the bumper bar housing. 4.
-
Page 7: Backrest Adjustment
Backrest Adjustment 1. Locate the backrest adjustment mechanism at the rear of the seat. Squeeze the clip on the webbing strap. 2. Slide the clip up or down the webbing strap to gently pull up or lower the backrest. Release the clip at desired backrest recline. WARNING: •... - Page 8 Canopy 1. The canopy can be opened or closed by pulling forward or backward on the canopy rim. 2. Release the toggle to extend canopy with mesh air vent. Page 8...
- Page 9 Brakes To engage the brake, push down brake locking pedal. Lift up pedal to release brake. The brake will ‘click’ when locked into position. WARNING: • ALWAYS APPLY THE BRAKE WHENEVER THE STROLLER IS • STATIONARY. • ENSURE THE BRAKE IS ENGAGED DURING THE LOADING AND •...
- Page 10 Harness Operation 1. Insert all buckle clips into the buckle housing until they engage securely in place. Listen for the ‘click’. 2. Press the centre button to release child from harness. Page 10...
- Page 11 Harness Operation 3. Adjust slider to ensure a snug fit for your child. Repeat for all straps. After making adjustments to the seat always readjust the harness. 4. The stroller has 3 shoulder height positions. Undo the harness and remove the shoulder pads to adjust the shoulder height. Remove harness strap from webbing holders.
-
Page 12: Tether Strap
Tether Strap The stroller includes a tether strap for your child’s safety. Slide your hand through the tether strap loop whenever you use the stroller. Only remove your hand from the tether strap loop when brake has been applied to the stroller wheels. -
Page 13: Footrest Adjustment
10 Footrest Adjustment 1. Locate the adjustment levers either side of the footrest. Pull levers towards you. 2. Adjust to the required position. Page 13... - Page 14 11 Folding 1. Engage the brake. 2. Fold the canopy. 3. Slide the folding button across. 4. At the same time, push up the safety lock. 5. And push the stroller handle down until the lock engages with a ‘click’. Note: the bumper bar folds automatically when the stroller is folded.
- Page 15 12 Care Maintenance • Always store in a clean and dry place. • Occasionally clean and lubricate wheels and axles with light lubricating oil. • Inspect the product before assembly and periodically during use. Never use this • product if there are any loose or missing fasteners, joints or broken parts. Cleaning •...
- Page 16 Keycode: 42712923 MADE IN CHINA ©KMART AUSTRALIA LIMITED ANKO, KIDS&CO. AND BABY SOLUTIONS® ARE ALL TRADEMARKS OF KMART AUSTRALIA LIMITED. THEY ARE USED IN NEW ZEALAND BY KMART NZ HOLDINGS LIMITED TRADING AS KMART IN NEW ZEALAND. KMART AUSTRALIA - 690 SPRINGVALE RD, MULGRAVE, VIC 3170 AUSTRALIA.
