anko M003 Instruction Manual

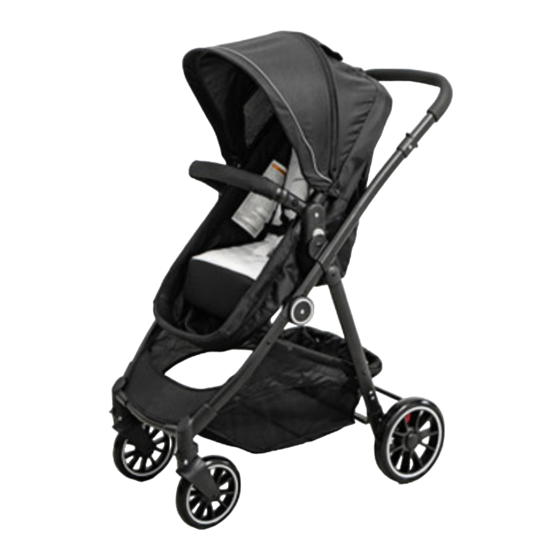

2-in-1 reversible stroller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

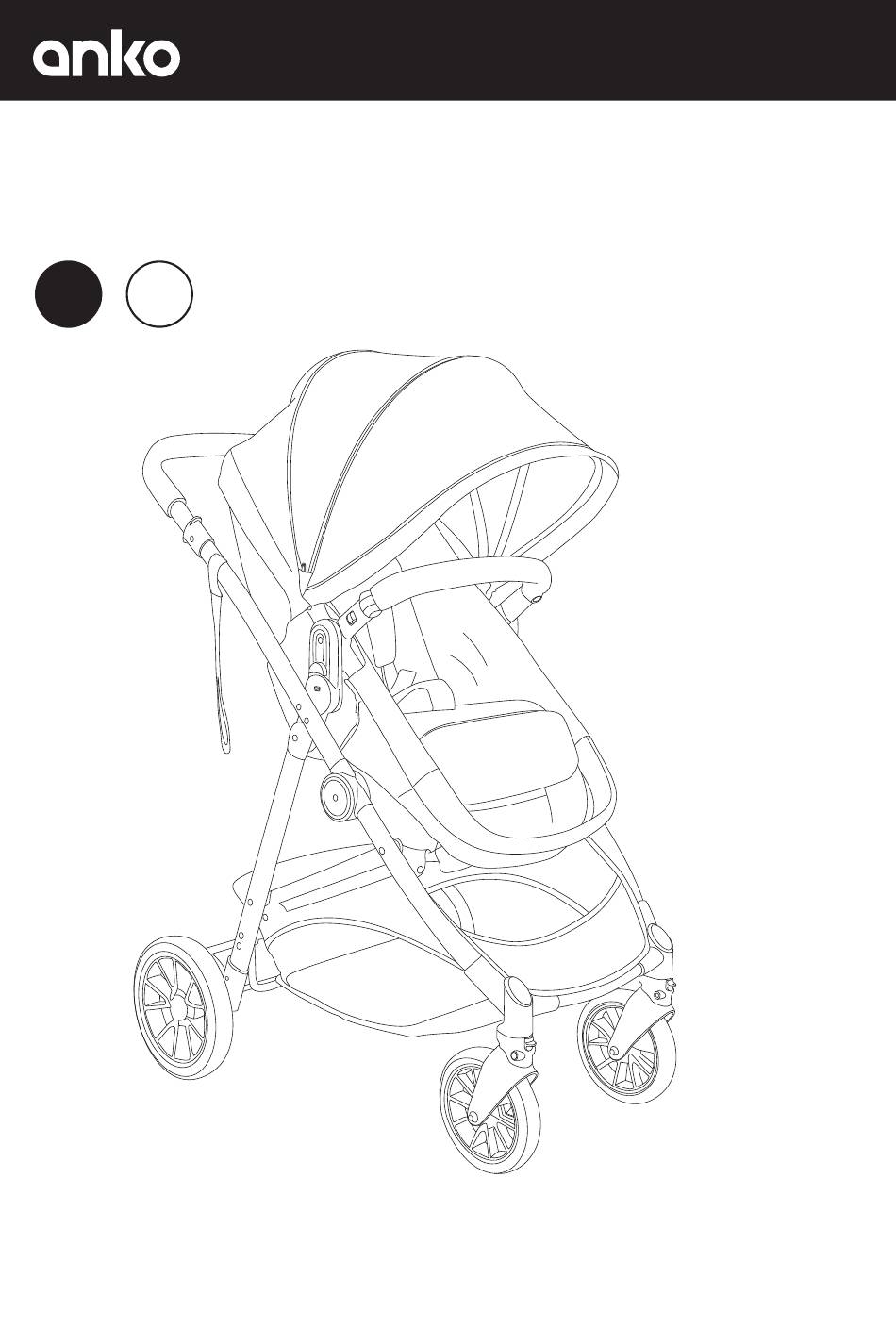

2-In-1 Reversible Stroller
Instruction Manual
15
0-36
months
kg
MAXIMUM
WEIGHT
THE ILLUSTRATIONS SHOWN IN THIS MANUAL ARE FOR REFERENCE ONLY. THE MANUFACTURER
RESERVES THE RIGHT TO CHANGE ANY SPECIFICATION OR FEATURE WITHOUT FURTHER NOTICE.
IMPORTANT! PLEASE READ CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M003 and is the answer not in the manual?

Questions and answers

Related Manuals for anko M003

Summary of Contents for anko M003

  • Page 1 2-In-1 Reversible Stroller Instruction Manual 0-36 months MAXIMUM WEIGHT THE ILLUSTRATIONS SHOWN IN THIS MANUAL ARE FOR REFERENCE ONLY. THE MANUFACTURER RESERVES THE RIGHT TO CHANGE ANY SPECIFICATION OR FEATURE WITHOUT FURTHER NOTICE. IMPORTANT! PLEASE READ CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE.
  • Page 2 CAUTION: TO AVOID INJURY OR DEATH Read these instructions carefully before use and keep for future reference. The child may be hurt if you do not follow these instructions. FOLLOW THE MANUFACTURER’S INSTRUCTIONS. ALWAYS APPLY THE BRAKES WHENEVER THE PRAM/STROLLER IS STATIONARY. DO NOT LEAVE THE CHILD UNATTENDED.
  • Page 3 Never leave the harness buckles when not fitted to a child in • the stroller because the harness can form loops which may pose a strangulation hazard. The maximum weight of the child for which this stroller is • intended is 15kg. The stroller will become unstable if the manufacturer’s •...
  • Page 4 PARTS FRAME SEAT AND BUMPER BAR CANOPY FRONT WHEELS REAR WHEELS...
  • Page 5 Assembly Instructions SET UP THE FRAME FORWARDS Remove the stroller frame from the box. Pull the handle bar in an upwards and forwards motion. It is fully extended when a click is heard. Note: It is necessary to check UPWARDS all parts before assembly to ensure there are no defects, loose screws, sharp edges, etc.

  • Page 6: Attaching The Seat

    ATTACHING THE SEAT To attach the seat unit to the frame, line up the seat connectors at either side of the seat unit with the frame housing and press down until you hear it click into place. To remove the seat unit press the release buttons as shown in the image and lift seat.

  • Page 7: Backrest Adjustment

    SEAT DIRECTION ADJUSTMENT The seat unit is reversible and can be used forward facing or rear facing. Press the release buttons on each side of the seat unit to remove and rotate the direction. Line up the seat connectors with the FORWARD REAR RELEASE...

  • Page 8: Brake Operation

    BRAKE OPERATION To engage brakes, apply downward pressure to the brake lever located on the rear axle. You may need to roll the stroller back and forth to engage the brakes. Check that the stroller will not move once the brakes are properly applied.

  • Page 9: To Fold The Stroller

    TO FOLD THE STROLLER Remove the seat from the frame. Fold the stroller by pulling both release triggers and press handle towards the floor. Note: Fold the stroller from upright position. Fold down so the handle is level with the rear wheels, secure with the locking latch on the side of the frame before lifting.
  • Page 10 Care and Maintenance General This stroller was designed and manufactured Always check your stroller. with quality materials and craftsmanship. Lubricate moving parts regularly, especially Always use the safety harness. the wheels, and the lower parts of chassis that tend to collect dirt. Inspect regularly for: Worn parts, torn materials or stitching.
