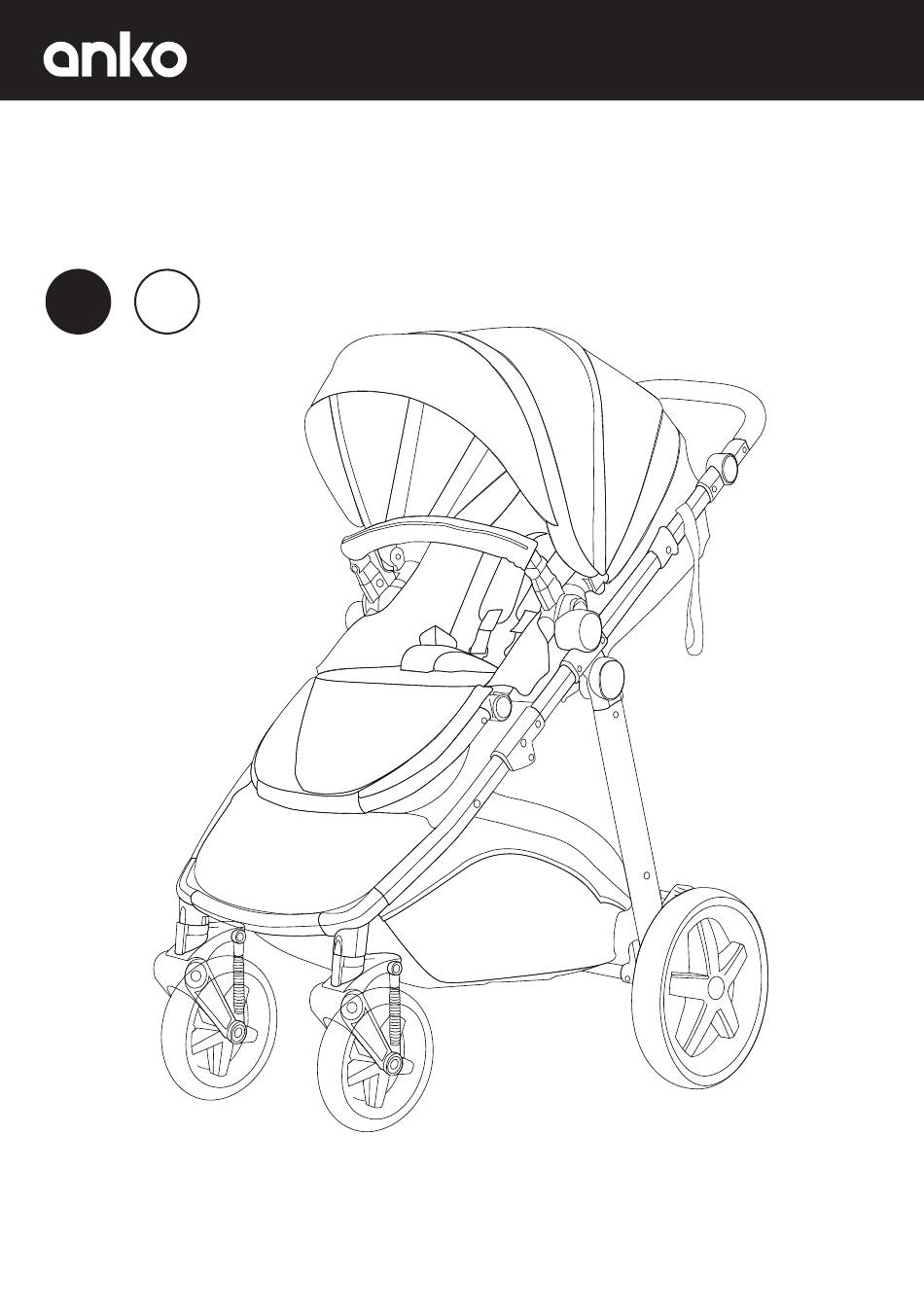

Reversible Stroller
Instruction Manual
15
0-36
months
kg
MAXIMUM
WEIGHT
THE ILLUSTRATIONS SHOWN IN THIS MANUAL ARE FOR REFERENCE ONLY. THE MANUFACTURER
RESERVES THE RIGHT TO CHANGE ANY SPECIFICATION OR FEATURE WITHOUT FURTHER NOTICE.
IMPORTANT! PLEASE READ CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for anko M6800
Summary of Contents for anko M6800
- Page 1 Reversible Stroller Instruction Manual 0-36 months MAXIMUM WEIGHT THE ILLUSTRATIONS SHOWN IN THIS MANUAL ARE FOR REFERENCE ONLY. THE MANUFACTURER RESERVES THE RIGHT TO CHANGE ANY SPECIFICATION OR FEATURE WITHOUT FURTHER NOTICE. IMPORTANT! PLEASE READ CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE.
- Page 2 CAUTION: TO AVOID INJURY OR DEATH Read these instructions carefully before use and keep for future reference. The child may be hurt if you do not follow these instructions. FOLLOW THE MANUFACTURER’S INSTRUCTIONS. ALWAYS APPLY THE BRAKES WHENEVER THE PRAM/STROLLER IS STATIONARY. DO NOT LEAVE THE CHILD UNATTENDED.
- Page 3 Never leave the harness buckles when not fitted to a child in • the stroller because the harness can form loops which may pose a strangulation hazard. The maximum weight of the child for which this stroller is • intended is 15kg. The stroller will become unstable if the manufacturer’s •...
-
Page 4: Front Wheels
Components Please check if you have all the parts listed below before starting assembly CHECK THAT YOU HAVE ALL THE PARTS FOR THIS MODEL BEFORE ASSEMBLING THE PRAM/STROLLER. FRAME SEAT CANOPY BUMPER BAR FRONT WHEELS REAR WHEELS... - Page 5 Name of parts Canopy Handle bar Adjustment button Bumper bar Close device Safety belt Footrest Brake lever Storage basket Rear wheel Front wheel...
-
Page 6: Front Wheel Installation
Assembly Instructions Step 1 SET UP THE FRAME FORWARDS Remove the stroller frame from the box. Pull the handle bar in an upwards and forwards motion. It is fully extended when a click is heard. UPWARDS Note: It is necessary to check all parts before assembly to ensure there are no defects, loose screws, sharp edges, etc. -
Page 7: Attaching The Seat
Assembly Instructions Step 4 ATTACHING THE SEAT Align the seat unit with the anchors on the side of the stroller frame and push them together until they click securely. INSERT SEAT UNIT Attach the bumper bar by aligning anchors with the slots on the seat. Push until it clicks into place. -
Page 8: Backrest Adjustment
Assembly Instructions Step 5 BACKREST ADJUSTMENT The seat unit can be adjusted into upright, half-reclined and reclined positions. Lift and rotate the recline lever on the rear of the seat unit to adjust the position of the backrest. PRESS DOWN Reclined position: Make sure both footrest and backrest are unlocked and extend the seat surround fully. -
Page 9: Front Wheel Lock
Assembly Instructions Step 7 FRONT WHEEL LOCK The front wheels are equipped with a swivel locking device. Push the button on each wheel down RELEASE to fix the locks and push upwards to disengage the locks. Step 8 BRAKE OPERATION To engage brakes, apply downward pressure to brake lever located on the rear axle. - Page 10 The shoulder straps of the 5-point harness have 2 attachment positions. Select the position that places the shoulder straps level with, or below the top of the child’s shoulders. To adjust harness height unhook the shoulder straps from the crotch buckle. Feed the shoulder straps through the harness spread slots.
- Page 11 Care and Maintenance General This stroller was designed and manufactured Always check your stroller. with quality materials and craftsmanship. Lubricate moving parts regularly, especially Always use the safety harness. the wheels, and the lower parts of the chassis that tend to collect dirt. Inspect regularly for: Worn parts, torn materials or stitching.
