Magnetic Lock; Wiring Connection - Anviz FaceDeep 5 Quick Manual

Access Control Power Supply
Exit Button

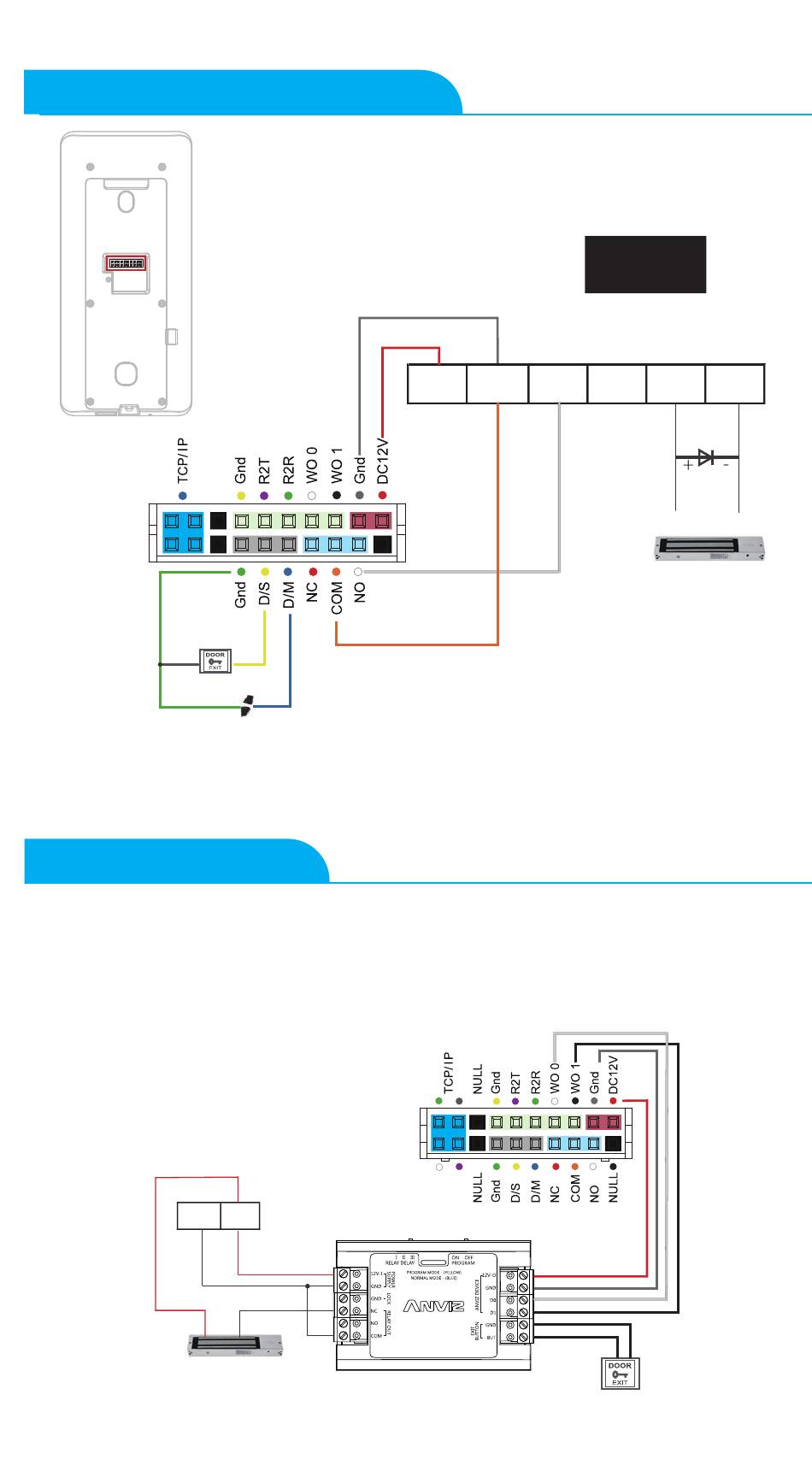

Wiring Connection

SC021 and the FaceDeep5 device are
authorized by Anviz wiegand to form a
distributed access control system.
Please contact sales@anviz.com for
more information.
GND 12V

Magnetic Lock

Door Sensor
+12 GND PUSH
SC021
FCARD MICROPOWER
POWER SUPPLY CONTROLLEF
M O D E L : F C - 9 0 1 / 9 0 3
I N P U T: A C 2 2 0 / 2 3 0 W 5 0 H Z
O U T P U T: D C 1 2 V, 3 A m p s +
NO GND NC
FR 107
Magnetic Lock
Exit Button
