Gill E73708 Customer Instructions

Pv/hj laser measuring stick

Download this manual

www.gillathletics.com

800-637-3090

No more guess work with manual

vertical measuring devices. No more

getting on the ground to use a laser.

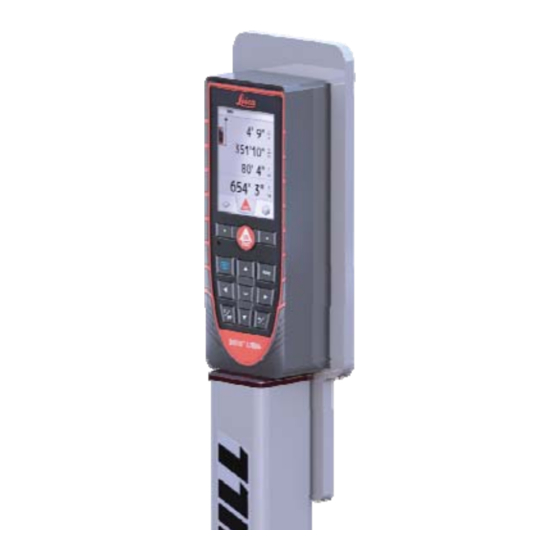

The 59" tall laser measuring stick brings the laser closer to eye level. Simply

use the viewfinder to line up the crossbar and press the button.

Measurements can be taken using Metric or English units. Minimum

measurement is 1.54m or 60.5". There is no maximum measurement.

Made out of light weight but strong aluminum.

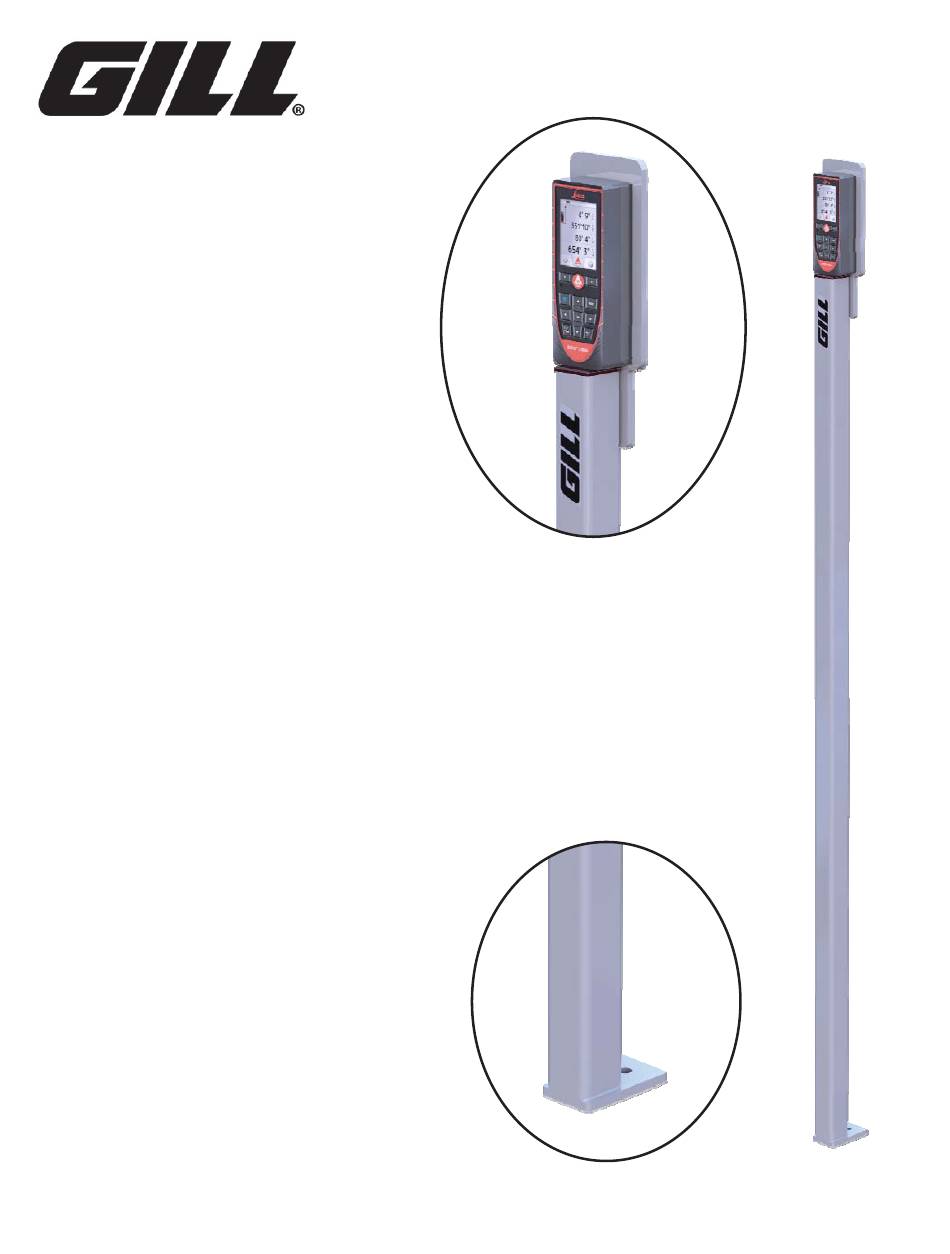

The tab at the bottom allows for

measuring the Pole Vault crossbar with

out moving the box collar.

E73708 - PV/HJ LASER MEASURING STICK

CUSTOMER INSTRUCTIONS

11-22-17

INSTE73708

Need help?

Do you have a question about the E73708 and is the answer not in the manual?

Page 1 E73708 - PV/HJ LASER MEASURING STICK CUSTOMER INSTRUCTIONS www.gillathletics.com 800-637-3090 No more guess work with manual vertical measuring devices. No more getting on the ground to use a laser. The 59" tall laser measuring stick brings the laser closer to eye level. Simply use the viewfinder to line up the crossbar and press the button.
Page 2 E73708 - PV/HJ LASER MEASURING STICK CUSTOMER INSTRUCTIONS How to Change the Units www.gillathletics.com (on the Disto E7500) 800-637-3090 3. Arrow up to Units. 1. Press the Func button. 2. Press the Gears button. Press the = button. 4. Arrow right twice.
Page 3 E73708 - PV/HJ LASER MEASURING STICK CUSTOMER INSTRUCTIONS How to Set the Offset www.gillathletics.com (on the Disto E7500) 800-637-3090 3. Write down the measurement 1. Flip open the kickstand 2. Use the laser to measure and add 0.029m for the crossbar so that it at 90 deg.
Page 4 E73708 - PV/HJ LASER MEASURING STICK CUSTOMER INSTRUCTIONS How to Set the Offset (continued) www.gillathletics.com (on the Disto E7500) 800-637-3090 7. Use the Left & Right arrows 8. Use the Up & Down 9. Press the Check Mark to select a decimal place.
