www.swisherinc.com
OWNER'S
MANUAL
STARTING SERIAL #:
L118-335001
MODEL NO.
FC14566CPKA
FC14566CPKA-CA
IMPORTANT
Read and follow all
Safety Precautions
and Instructions
before operating this
equipment.
1602 CORPORATE DRIVE, WARRENSBURG MISSOURI 64093
8/22/2019
20928 REV 18-335

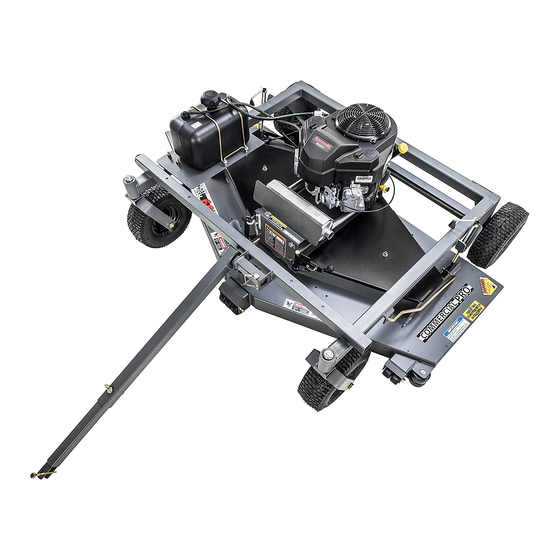

COMMERCIAL PRO
66" FAST FINISH
TRAIL MOWER
Assembly
Operation
Service and Adjustment
Repair Parts
SWISHER ACQUISITION INC.
PHONE 660-747-8183 FAX 660-747-8650
ade I The
USA
of US and Global Parts
Advertisement
Table of Contents
Related Manuals for Swisher FC14566CPKA
Summary of Contents for Swisher FC14566CPKA
- Page 1 Assembly Safety Precautions and Instructions Operation before operating this equipment. Service and Adjustment Repair Parts ade I The SWISHER ACQUISITION INC. 1602 CORPORATE DRIVE, WARRENSBURG MISSOURI 64093 PHONE 660-747-8183 FAX 660-747-8650 8/22/2019 of US and Global Parts 20928 REV 18-335...
-
Page 2: Limited Warranty
Should you have any questions concerning this warranty, please contact us toll-free at 1-800-222-8183. The model number, serial number, date of purchase, and the name of the authorized Swisher dealer from whom you purchased the mower will be needed before any warranty claim can be processed. -
Page 3: Safety Precautions
SAFETY PRECAUTIONS This Safety Alert Symbol indicates important messages in this manual. When you see this symbol, carefully read the message that follows and be alert to the possibility of personal injury. Read this manual completely. This machine can amputate hands, feet, and throw objects. -
Page 4: Safety Decals
SAFETY DECALS Replace decals immediately if damaged.Order by part number from Swisher OD11- No step Decal 䅐 ҧ OD45- Warning Decal OD55- Triangle Danger Decal OD33- Speed Decal OD43- Flying Debris Decal OD29- Danger Decal... -
Page 5: Rear Wheel Assembly
REQUIRED ASSEMBLY FRONT WHEEL CASTER ASSEMBLY 1. Remove single nut and washers from caster shaft. 2. Place one washer on the shaft of the caster/wheel sub-assembly. 3. Slide same shaft through the bearing/frame with wheel towards the ground. 4. Place the other washer on the shaft; it should be resting on the top bearing. 5. -
Page 6: Intended Use
STARTING THE ENGINE See engine manufacturer’s instructions for the type and amount of oil and fuel used. Trail Mowers with electric start engines will need a battery (sold separately). Swisher recommends using a standard “U1” lawn & garden battery. IMPORTANT: This engine is not equipped with a spark arrester muffler. It is a violation of California Public Resource Code Section 4442 to use or operate the engine on any forest-covered, brush-covered, or grass-covered land. -
Page 7: Starting To Mow
• Engine must be level to accurately check and fill oil. Do not overfill. • Make sure the tow vehicle parking brake is set, mower is level, and blades are disengaged. • Blades must be disengaged. • Check spark plug wire, oil, and fuel. •... - Page 8 ALTERNATIVE STOPPING METHOD • Bring vehicle to complete stop, shut off engine, and set parking brake. • Disengage blade engage lever. • Manually shut toggle and key switches to their “OFF” positions. • Always remember to remove keys to avoid irresponsible usage. TRANSPORTING MOWER •...
-
Page 9: Mower Maintenance
MOWER MAINTENANCE GENERAL RECOMMENDATIONS The warranty on this Trail Mower does not cover items that have been subjected to operator abuse or negligence. To receive full value from the warranty, operator must maintain unit as instructed in this manual. Some adjustments will need to be made periodically to maintain your unit properly. All adjustments in this manual should be checked at least once each season. - Page 10 FRAME DETAIL Item # Description Part # Items 19-22 are included in service part H7N 3/4 - 16 Nyloc Nut NB122 Washer NB195 Bearing Extension Hitch 12543* Caster Fork 665* 5/8 - 11 X 7 Bolt NB624 Safety Hitch Pin Solid Stock Hitch 661A* Bolt - Serr Flange, 5/16-18X2 1/4...
- Page 11 MOWER DECK DETAIL Item # Description Part # Grass Chute 9902* BELT IDLER DETAIL Torsion Spring 166X34 Flange Bolt, 5/16-18 X 3/4 NB596 晆 ̆ Chute Bracket 6030* Bolt - HCC 5/16-18 X 8 1/2 GR2 ZP NB136 Nut - Lock, 5/16-18 ZY 2 Way NB558 Nut - Serr Flange 5/16-18 ZY Case Hrd NB170...
- Page 12 MOTOR BASE DETAIL Slide plastic tube snug against toggle switch. IDLER DETAIL #10735 Item No. Description Part # Pivot - Handle Grip, Yellow 2077 Nut - Nyloc 5/16-18 NB181 幆 ˞ Pivot - Engage 4578* Clip - Nylon 1/2" NB683 Nut - Serr Flange, 1/4-20 NB524 Nut - Serr Flange 5/16-18...
-
Page 13: Engine Detail
ENGINE DETAIL Center Blade Outer Blade Driver Driver Configuration Configuration Item # Description Part # Nut - Serr Flange, 1/4-20 NB524 Bearing - Blade Pulley - Blade, 5" A 20651 Washer - Belleville .773ID X 1.50OD AS155 Washer - 3/4 ID X 1 1/4 OD NB179 Spacer - 3/4ID X 1 1/2 6065PM... -
Page 14: How To Order Repair Parts
FC14566CPKA-CA the blower fan housing. All mower parts listed herein may be ordered directly from Swisher or your nearest Swisher dealer. All engine parts may be ordered from the nearest dealer of the engine supplied with your mower Color cannot be guaranteed on service parts.
