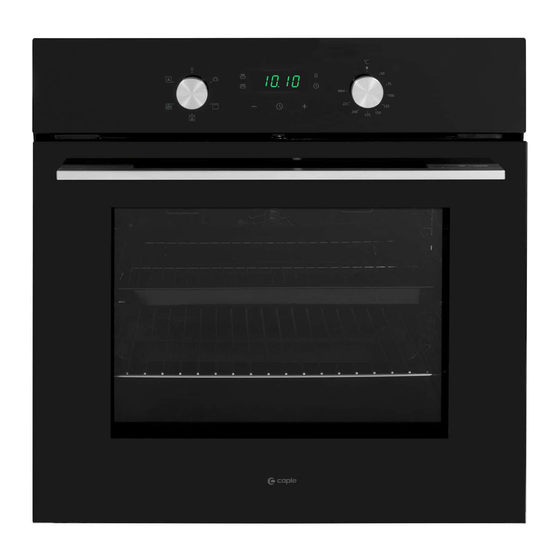

Summary of Contents for Caple C2234BK

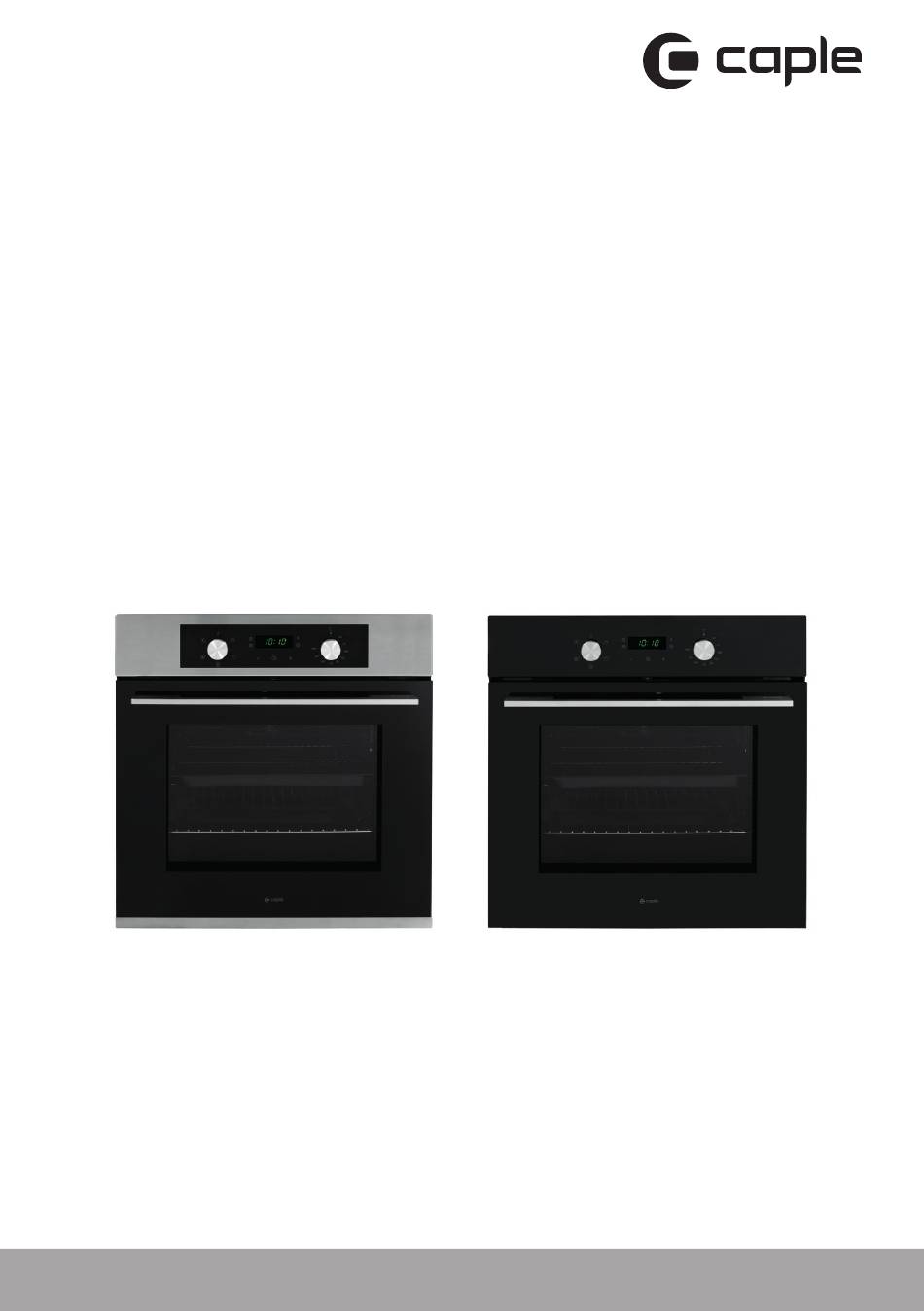

  • Page 1 Classic single oven Instruction manual C2234 / C2234BK Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk...
  • Page 2: Table Of Contents

    Telescopic runners (optional accessory) Side racks Care and maintenance Replacing the oven lamps Troubleshooting Removing the oven door Removing the glass panels Technical fiche Caple contact details Please keep this instruction manual for future reference Instruction manual C2234 / C2234BK...
  • Page 3: Safety Warnings

    - Cleaning and user maintenance should not be carried out by children without supervision. - The appliance is not intended to be operated by means of an external timer or separate remote control system. Please keep this instruction manual for future reference Instruction manual C2234 / C2234BK...
  • Page 4 - Do not use steam cleaners for cleaning the appliance. - Ensure the appliance is switched off before replacing the lamp to avoid the possibility of electric shock. Please keep this instruction manual for future reference Instruction manual C2234 / C2234BK...
  • Page 5 - Maintenance and repair work must be made only by authorised Caple service technicians. Installation and repair work that is carried out by unauthorised technicians may endanger you. - It is dangerous to alter or modify the specifications of the appliance in any way.
  • Page 6 - Ensure that the supply cord is not wedged or trapped during the installation. If the supply cord is damaged, it must be replaced by a Caple service technician or similarly qualified persons in order to prevent a hazard. - While the oven door is open, do not let children climb on the door or sit on it.
  • Page 7: Installation Warnings

    - Do not operate the appliance before it is fully installed. - The appliance must be installed by an authorised technician. - Caple is not responsible for any damage that may be caused by defective placement and installation by unauthorised persons.
  • Page 8 - The oven shelves and trays incline when pulled out. Be careful not to let hot liquid spill over. Please keep this instruction manual for future reference Instruction manual C2234 / C2234BK...
  • Page 9 - To maintain the efficiency and safety of your appliance, we recommend you always use original spare parts and to call only our authorised Caple Service agents in case of need. Please keep this instruction manual for future reference...
  • Page 10: Environmental Protection

    Registration can also be completed online by visiting www.caple.co.uk. Ensure you keep your warranty card safe, you may need to show it to Caple Service together with proof of purchase.
  • Page 11 This appliance has been designed, constructed and marketed in compliance with safety requirements in force. This appliance has been manufactured to the strictest standards and complies with all applicable legislation. Please keep this instruction manual for future reference Instruction manual C2234 / C2234BK...
  • Page 12: Installation

    (fig.4 & fig.5). 70mm Fig. 1 70mm Fig. 2 589mm 589mm 589mm 589mm 595mm 595 mm 595mm 595 mm 575mm 575mm 575mm 575mm 23mm 23mm 23mm 23mm Please keep this instruction manual for future reference Instruction manual C2234 / C2234BK...
  • Page 13: Oven Dimensions

    All parts which offer protection should be fixed in such a way that they cannot be removed without the use of a tool. OVEN DIMENSIONS 551mm 22mm 22mm 540mm 595mm 569mm Please keep this instruction manual for future reference Instruction manual C2234 / C2234BK...
  • Page 14: Electrical Connection

    The ovens are designed to operate with a mono-phase alternating current of 220-240V, 50Hz. Before the installation of the appliance, check the specifications on the rating label. Please keep this instruction manual for future reference Instruction manual C2234 / C2234BK...
  • Page 15: Using Your Oven

    The tray should be left in place only when using the grill, as its purpose is to catch falling droplets of fat. Food should be placed in oven dishes with raised edges and positioned centrally under the grill. Please keep this instruction manual for future reference Instruction manual C2234 / C2234BK...
  • Page 16: Oven Functions

    Instruction manual C3371 distribute the heat more evenly. C3371 - Instruction Manual.indd 17 07/12/2017 10:13 Please keep this instruction manual for future reference Instruction manual C2234 / C2234BK...
  • Page 17: Touch Control Electronic Timer

    To set when the oven is to switch off again. Time To set, change or check the time. Please keep this instruction manual for future reference Please keep this instruction manual for future reference Instruction manual C2234 / C2234BK Instruction manual C3371...
  • Page 18 - When the time has elapsed, the cook time indicator will flash, an acoustic signal will sound for 2 minutes and the oven will switch itself off. Press any button to switch the signal and the programme off. Please keep this instruction manual for future reference Instruction manual C2234 / C2234BK...
  • Page 19 - The oven will automatically switch itself on at the appropriate time as calculated. In this example, at 13:05 and will switch itself off when the cooking time set has elapsed. In this example, at 14:05. Please keep this instruction manual for future reference Instruction manual C2234 / C2234BK...
  • Page 20: Telescopic Runners (Optional Accessory)

    Caple website to view a 'How to video' on this. www.caple.co.uk To remove, unclip the side racks from the side of the oven.
  • Page 21: Care And Maintenance

    Check the condition of this seal on a regular basis. If necessary, clean it and avoid using abrasive products or objects to do so. Should it become damaged, please contact Caple service. We recommend you avoid using the oven until it has been repaired.
  • Page 22: Replacing The Oven Lamps

    - Remount the glass cover and reconnect the appliance to the power supply. WARNING: Ensure the appliacne is unplugged before replacing the lamp to avoid the possibility of an electric shock. Please keep this instruction manual for future reference Instruction manual C2234 / C2234BK...
  • Page 23: Troubleshooting

    The outside is too dry Too low temperature Increase the temperature and reduce even though it is the the cooking time. right color Please keep this instruction manual for future reference Instruction manual C2234 / C2234BK...
  • Page 24: Removing The Oven Door

    Please keep this instruction manual for future reference utton on left and right side of door, take out top rail. (Fig.1) tton on left and right side of door, take out top rail. (Fig.1) Instruction manual C2234 / C2234BK ner glass slowly (Fig.2) ner glass slowly (Fig.2)
  • Page 25: Removing The Glass Panels

    Wipe dry using a soft cloth and re-assemble following the above instructions in reverse. Fig.1 Fig.1 Fig.2 Fig.2 Please keep this instruction manual for future reference Instruction manual C2234 / C2234BK...
  • Page 26: Technical Fiche

    Technical Fiche Caple C2234 / C2234BK Model Type of Oven Electric Mass 35.3Kg Energy Efficiency Index‐Conventional Energy Efficiency Index‐Fan forced 86.8 Energy Class Energy Consumption (electricity)‐conventional Energy consumption (electricity)‐fan forced 0.72 Number of cavities Heat Source Electric Volume This Oven complies with EN 60350‐1:2013+A11 Please keep this instruction manual for future reference Instruction manual C2234 / C2234BK...
  • Page 27 NOTES Please keep this instruction manual for future reference Instruction manual C2234 / C2234BK...
  • Page 28: Caple Contact Details

    Caple Service Fourth Way Avonmouth Bristol BS11 8DW t: 0117 938 7420 e: service@caple.co.uk www.caple.co.uk Please keep this instruction manual for future reference Instruction manual C2234 / C2234BK...
