Caple C2238 Technical Information

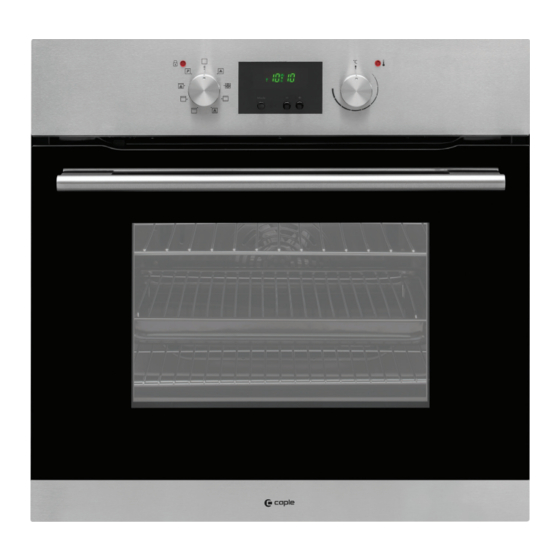

Caple pyrolytic single oven
Hide thumbs Also See for C2238:

Advertisement

Quick Links

Download this manual
C2238
Caple pyrolytic single oven
Technical information
Technical information

Advertisement

loading
Need help?

Need help?

Do you have a question about the C2238 and is the answer not in the manual?

Questions and answers

Related Manuals for Caple C2238

Summary of Contents for Caple C2238

  • Page 1 C2238 Caple pyrolytic single oven Technical information Technical information...
  • Page 4 C2238 - Caple single oven Diagram Item Part Code Description 32012966 OVEN LIGHT 230 37002148 SCREW (CIRCULAR-HEAD, 3.9*9.5, BLACK 37002004 SCREW (COUNTERSUNK-HEAD, 3.9*9.5 37019096 SCREW(CONEHEADED,3.9x9.5 37025149 SCREW (RYSB, 3.9x9.5) FORM (A,K,H 37020402 3,9x9,5 TAPERED SCREW,BLAC 20854869 REAR INSULATION COVER_BUILT_IN_65LT_3 32013533...
  • Page 5 C2238 - Caple single oven Diagram Item Part Code Description 20731616 TOP INSULATION COVER(NEW BUILT-IN) 37017753 COOLING FAN DUCT (NEW B-IN,PYROLYTIC OVN) 32024149 LIMIT THERMOSTAT NC 80°C,250V,16A /ELTH 20746973 TOP PANEL (NEW B-IN) 37012429 PYROLYTIC LOCK BRACKET 37006985 WIRE SHELF FIXING CLIP...
  • Page 6 C2238 - Caple single oven Diagram Item Part Code Description 42047036 PYROLYTIC OVEN DOOR INNER GLASS BUMPER 37018932 PYROLYTIC DOOR LOCK COUNTER PART...
  • Page 8 Electrical component problems Fan problems Fan not working Fan hitting its cover / working noisy IS THE WIRING OF FAN MOTOR REMOVE THE FAN COVER. CORRECT THE WIRING OF FAN MOTOR CORRECT ACCORDING TO THE PUSH BACK THE FAN WINGS AND W IRING DIAGRAM ? REPLACE THE COVER.
  • Page 9 Electrical component problems Turnspit problems CORRECT THE WIRING OF TURNSPIT MOTOR IS THE WIRING OF TURNSPIT MOTOR please see circuit diagram CORRECT ACCORDING TO THE W IRING DIAGRAM ? W HEN OVEN SWITCH TURNED ON, IF STILL GOT PROBLEM ; CAN YOU MEASURE THE VOLTAGE CHANGE OVEN SWITCH AT TURNSPIT MOTOR ?
  • Page 10 Electrical component problems Hot surface indicator light not working ( residual heat indicator ) CHECK THE WIRING CONNECTIONS IS THERE VOLTAGE AT TERMINALS OF pls see circuit diagram INDICATOR LIGHT? CHANGE THE HOT SURFACE INDICATOR ( FREESTANDING COOKERS ) REMOVE THE TERMINALS OF WIRING AND APPLY EXTERNAL VOLTAGE ;...
  • Page 11 Electrical component problems Signal lamp problems : Signal lamp not working BE SURE THAT THE SIGNAL LAMP TERMINAL CONTACTS ARE OK WITH OVEN SWITCH CHECK THE WIRING CONNECTION , IS IT IF SIGNAL LAMP CABLE IS HARMED; CHANGE THE SIGNAL LAMP IS THE SIGNAL LAMP LED HARMED? CHANGE THE SIGNAL LAMP Signal lamp blinking...
  • Page 12 Electrical component problems Digital timer buttons stucking REMOVE TIMER IS THE TIMER AND FRONT PANEL AND CORRECT THE POSITION OF HOLES COAXIAL? TIMER MANUALLY. CHANGE THE TIMER BUTTONS Digital timer not working CHECK THE WIRING CONNECTION IS THERE VOLTAGE AT TIMER pls see circuit diagram on user manual TERMINALS? IS TIMER DISPLAY VISIBLE ?
  • Page 13 Electrical component problems Oven light not working CHECK THE OVEN LIGHT WIRING CONNECTION CHECK THE ELECTRICITY OF OVEN LIGHT pls see circuit diagram NOT OK IS THE LAMP DEFECTIVE PLUG OFF THE OVEN, ( BURNT OR LOOSE )? CHANGE ONLY LAMP IF NOT OKEY ;...
  • Page 14 Mechanical component problems : Hinges & Knobs HINGE PROBLEMS Glass lid hinge noisy Metal lid angle less than 90° / more than Glass lid angle less than 90° / more 100° than 100° TIGHTEN THE METAL LID HINGE BOTTOM PART, IS THE LID HINGE COUNTERPART FIXED ? CHANGE GLASS LID HINGE DOES IT SOLVE?
  • Page 15 Cooking problems Oven doesnt work CHECK THAT THE PLUG IS ON/OFF? CHECK THE TERMINAL BOX HAS VOLTAGE ? CHECK THE WIRING CONNECTIONS ARE CORRECLTY DONE ? ( please see circuit diagrams ) ADJUST THE HEAT See user manual for detailed IS THE HEAT ADJUSTED WITH OVEN HEATER instructions CONTROL SWITCH?
  • Page 16 Cooking problems Oven cooking unhomogeniously / long cooking period FOR BEST COOKING PERFORMANICE ; CHECK SHELF LOCATIONS AND HEAT VALUES, REFER TO THE INSTRUCTIONS CHECK THE COOKING PERIOD INDICATED IN THE USER MANUAL PLEASE REFER TO IS THE FAN ( IF AVAILABLE ) "...
  • Page 17 Electrical component problems Oven Electrical Heating Element(s) not working ; ( Top / Bottom / Ring / Grill Heaters ) CHECK THE WIRING CONNECTION IS THE WIRING CONNECTION CORRECLTY DONE? see circuit diagram WHEN OVEN SWITCH IS TURNED ON , IS THERE CHANGE OVEN HEATING ELEMENT VOLTAGE AT TERMINALS OF HEATER? CHANGE OVEN SWITCH...
  • Page 18 Handle Problems : If handle is loose ; replace and tighten it. If not solving ; change with a new one HANDLE ASSEMBLY TYPES : 3D SOLID TYPE OVEN DOOR HANDLE ASSEMBLY OLD VERSION LAST VERSION ( For oven doors before production FEB. 2007 ) ( For oven doors AFTER production FEB.
  • Page 19 SOLID TYPE OVEN DOOR HANDLE ASSEMBLY OLD VERSION LAST VERSION ( For oven doors before production FEB. 2007 ) ( For oven doors AFTER production FEB. 2007 ) handle assembly handle assembly gradual washer stud ( old ) stud ( new ) screw screw For old version handles ;...
  • Page 20 Changing oven door : Unlock the oven door hinges first. door hinge locked door hinge unlocked Then manually take off the oven door.

  • Page 21: Removing Rear Panel

    Removing rear panel ( freestanding cookers ) ( built-in cookers ) Detach all screws on rear panel to remove Detach all screws on rear panel to remove If available, power cord terminals must be taken off from the rear panel...
  • Page 22 Changing oven light button / ignitor button Remove front panel ( see detailed ) oven light button Attention : Do not push back the front panel hardly and fast ; this may cause the button wirings get harmed. Please hold it until you take off the terminal contacts.
  • Page 23 Remove the plastic contacts of wiring terminals ( with a nippers ) Then push the hooks surrounding and push forward the button to remove.
  • Page 24 Insert a new button ; set it appropriate into the hole.
  • Page 25 Reassemble the wiring terminals to button ; and please pay attention the cables not to be destroyed while mounting the front panel. - All steps are similar for the ignitor button.
  • Page 26 Changing oven light : Before replacing the lamp, disconnect the appliance from the electricity supplies. Remove the glass protection cover by turning. Then pull back the lamp If the oven lamp has to be changed the new lamp must have the following rating: 25W - 230Vac - 50 Hz - E14 - resistant to high temperatures (300°C) glass cover of the lamp lamp...
  • Page 27 Press the hooks on the oven light (by a screwdriver) and then push into the cavity. Pay attention that : the oven light is replaced appropriate to its hole on cavity...
  • Page 28 Changing fan motor Remove fan cover first. Then pull back and remove fan : Remove rear panel. ( see detailed ) Unscrew the fan motor from the rear inner panel Remove the wiring harness of fan motor manually, then the fan motor will be free.
  • Page 29 Changing turnspit motor Remove rear panel. ( see detailed ) Unscrew the turnspit motor from the rear inner panel Take off the wiring connections and remove motor.
  • Page 30 Changing Oven Electrical Heating Elements 1.Ring ( circular ) Heating Element : Remove fan cover.( see detailed ) Unscrew the ring heating element from the rear of cavity. Pull out the wiring connections manually. The ring heater will be free then. 2.
  • Page 31 3. Bottom Heating Element : Remove rear panel. ( see detailed ) Pull off the terminals of bottom heating element. for built-in cookers : for freestanding cookers : Take up the wrapping insulation ( rockwool ) slightly , then unscrew the right and left connections of bottom heating element.
  • Page 32 Press down the bottom heating element cover, then pull slightly backwards. Hold up the heating element slightly and take out. Repeat this procedure backwards ; to replace the component.
  • Page 33 Changing Digital Timer Remove front panel ( see detailed ) Pull off the cable contacts from Digital timer Unscrew the Digital timer – from the front panel...
  • Page 34 Correct the position of timer and check if problem solved. If still not solved ; change the timer buttons. If problem can not be solved; change digital timer.
  • Page 35 Changing Mechanical Timer Remove front panel ( see detailed ) Unscrew the mechanical timer from the inner panel.
  • Page 36 Changing Function Selector Switch : Remove front panel ( see detailed ) Pull off the signal lamp manually - to remove from the panel Remove cooktop ( see detailed )
  • Page 37 On the left; 4 hotplate switches and on the right; function selector switch. Remove wiring contacts out of the switch ; by a nippers. ( While reassembling the wirings, please refer to circuit diagrams )
  • Page 38 Then unscrew the switch from the inner panel Please hold the switch from its surroundings - not from its top and bottom surfaces Do not compress the bottom plates of switch ! In this case, you may cause short circuit and switch may not work correctly.
  • Page 39 Changing thermostat : Remove front panel ( see detailed ) Pull off the signal lamp manually - to remove from the panel Remove cooktop ( see detailed ) Thermostat and oven switch is placed on the left side of the cooker oven switch thermostat...
  • Page 40 Remove wiring connections by a nippers Unscrew the thermostat from the inner panel The capillary tube of thermostat; ends on the thermostat bulb inside cavity thermostat bulb capillary tube...
  • Page 41 Manually remove thermostat bulb out of its brackets. Remove the oven rear panel( see detailed ) Now it is safe to pull back and remove thermostat bulb from the rear outlet. Thermostat becomes free then.
  • Page 42 Changing the signal lamp body : Remove front panel ( see detailed ) Pull off the signal lamp manually - to leave free from the panel Remove cooktop ( see detailed )
  • Page 43 Remove the signal lamp body manually.
  • Page 44 Removing front panel ( built-in cookers ) Remove knobs manually Remove the bottom screws of front panel Hold up slightly and remove panel.
  • Page 45 If available on your oven ; Pull off the wiring connections of ignitor/oven light button.

  • Page 46: Wire Shelves

    Wire shelves Old type ( screwed onto cavity ) old version : connection with a screw New type( Revision: March 2007 ) ( set wire shelf into clips - manually ) wire shelf fixing clips connection additional part To change telescopic rails , unscrew the connections on wire shelf.
  • Page 47 Changing side panels ( Built-in oven ) Remove rear panel. ( see detailed ) Remove the screws between side panel and top panel. Then slightly hold up and remove the top panel Remove back screws of side panel. Remove all scres on the side panel and then pull off side panel...
  • Page 48 When reassembling the side panel, repeat this procedure backwards. And please pay attention to set the side panel onto hooks at rear. hook 1 hook 2...
