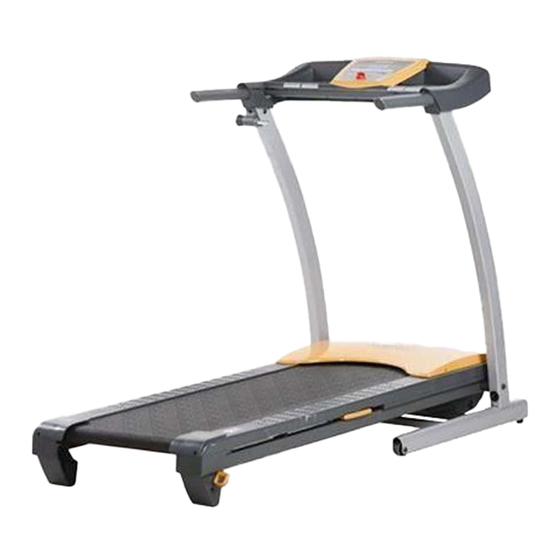

Model No. WETL30708.0
Serial No.
Write the serial number in the
space above for reference.
Serial
Number
Decal
QUESTIONS?
As a manufacturer, we are commit-
ted to providing complete customer
satisfaction. If you have questions,
or if there are missing parts,
please contact us at the numbers
or addresses listed below:
Call: 08457 089 009
Outside UK: 0 (44) 113 3877133
Fax: 0 (44) 113 3877125
E-mail: csuk@iconeurope.com
Write:
ICON Health & Fitness, Ltd.
Unit 4
Revie Road Industrial Estate
Revie Road, Beeston
Leeds, LS11 8JG
UK
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
All manuals and user guides at all-guides.com
USER'S MANUAL
Advertisement
Table of Contents
Related Manuals for Weslo compact SL
Summary of Contents for Weslo compact SL
- Page 1 All manuals and user guides at all-guides.com USER'S MANUAL Model No. WETL30708.0 Serial No. Write the serial number in the space above for reference. Serial Number Decal QUESTIONS? As a manufacturer, we are commit- ted to providing complete customer satisfaction. If you have questions, or if there are missing parts, please contact us at the numbers or addresses listed below:...
-
Page 2: Table Of Contents
Apply the decal in the location shown. Note: The decal(s) may not be shown at actual size. WESLO is a registered trademark of ICON IP, Inc. -
Page 3: Important Precautions
All manuals and user guides at all-guides.com IMPORTANT PRECAUTIONS WARNING: To reduce the risk of serious injury, read all important precautions and in- structions in this manual and all warnings on your treadmill before using your treadmill. ICON as- sumes no responsibility for personal injury or property damage sustained by or through the use of this product. - Page 4 All manuals and user guides at all-guides.com 20. Do not attempt to raise, lower, or move the 24. Never drop or insert any object into any treadmill until it is properly assembled. (See opening on the treadmill. DANGER: ASSEMBLY on page 6, and HOW TO FOLD AND MOVE THE TREADMILL on page 20.) Always unplug the power You must be able to safely lift 45 lbs.
-
Page 5: Before You Begin
® SL treadmill. The COMPACT SL treadmill offers a selec- ual. To help us assist you, please note the product tion of features designed to make your workouts at model number and serial number before contacting us. -
Page 6: Assembly
All manuals and user guides at all-guides.com ASSEMBLY Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials; do not dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is coated with high-performance lubricant. - Page 7 All manuals and user guides at all-guides.com 1. Make sure that the power cord is unplugged. Orient the Base (101) as shown. Attach four Base Feet (100) to the Base (101) in the locations shown with four M4.2 x 19mm Tek Screws (14).
- Page 8 All manuals and user guides at all-guides.com 3. Orient the Left Upright (96) and the Base (101) as shown. Attach the Left Upright to the Base with two M10 x 53mm Patch Bolts (18) and two M10 Flat Washers (16); do not fully tighten the Patch Bolts yet.
- Page 9 All manuals and user guides at all-guides.com 5. Have a second person raise the Frame (67) and hold it until step 6 is completed. Hold an Upright Spacer (54) between the Right Upright (98) and the Frame (67) as shown. Attach the Right Upright to the Frame with an M10 x 110mm Bolt (15), an M10 Washer (4), and an M10 Star Washer (8);...
- Page 10 All manuals and user guides at all-guides.com 7. Have a second person lift and hold the Frame (67) until step 8 is completed. Next, place the cylinder end of the Gas Spring (1) near the bracket on the Base (101). See the two small inset drawings.
- Page 11 All manuals and user guides at all-guides.com 9. Identify the Right Handrail Cover (95) and the Left Handrail Cover (93). Slide the end of the Right Handrail (94) through the hole in the Right Hole Handrail Cover, and slide the end of Left Handrail (92) through the hole in the Left Handrail Cover.
- Page 12 All manuals and user guides at all-guides.com 11. Attach the Right Handrail (94) to the Console (52) with an M5 x 16mm Screw (13), an M5 Star Washer (12), and two M4.2 x 19mm Screws (10). Make sure that no wires are pinched. Start all three Screws before tightening any of them.
- Page 13 All manuals and user guides at all-guides.com 13. Attach the Console (52) to the Uprights (96, 98) with six M8 x 16mm Bolts (17) and six 5/16" Star Washers (2). Start all six Bolts before tighten- ing any of them. 14.
- Page 14 All manuals and user guides at all-guides.com 15. Attach the Latch Housing (62) to the Left Upright (96) with two #10 x 1" Tek Screws (43). Make sure that the Latch Housing is oriented as shown. Do not overtighten the Screws. 16.
-
Page 15: Operation And Adjustment
All manuals and user guides at all-guides.com OPERATION AND ADJUSTMENT THE PRE-LUBRICATED WALKING BELT Your treadmill features a walking belt coated with high-performance lubricant. IMPORTANT: Never apply sili- cone spray or other substances to the walking belt or the walking platform. Such substances will deterio- rate the walking belt and cause excessive wear. - Page 16 All manuals and user guides at all-guides.com CONSOLE DIAGRAM Clip FEATURES OF THE CONSOLE To turn on the power, see page 17. To use the man- ual mode of the console, see page 17. To use a speed workout, see page 19. The treadmill console offers a selection of features designed to make your workouts more effective.
- Page 17 All manuals and user guides at all-guides.com HOW TO TURN ON THE POWER HOW TO USE THE MANUAL MODE IMPORTANT: If the treadmill has been exposed to 1. Insert the key into the console. cold temperatures, allow it to warm to room tem- perature before turning on the power.
- Page 18 All manuals and user guides at all-guides.com 4. Follow your progress with the displays. ment is selected, remove the key, insert the key into the console while holding down the Stop but- The lower left ton, and then release the Stop button. An “M” for display—As you exer- metric kilometers or an “E”...
- Page 19 All manuals and user guides at all-guides.com HOW TO USE A SPEED WORKOUT To stop the workout temporarily, press the Stop button. The time will begin to flash in the display. 1. Insert the key into the console. To restart the workout, press the Start button or the Digital Speed increase button.
-
Page 20: How To Fold And Move The Treadmill
All manuals and user guides at all-guides.com HOW TO FOLD AND MOVE THE TREADMILL HOW TO FOLD THE TREADMILL FOR STORAGE Remove the key and unplug the power cord. CAUTION: You must be able to safely lift 45 lbs. (20 kg) to raise, lower, or move the treadmill. - Page 21 All manuals and user guides at all-guides.com HOW TO LOWER THE TREADMILL FOR USE 1. Hold the treadmill with your right hand as shown. Pull the latch knob to the left and hold it. Pivot the frame down until it is past the latch pin. Slowly release the latch knob. Frame Latch Pin Latch Knob...
-
Page 22: Troubleshooting
All manuals and user guides at all-guides.com TROUBLESHOOTING Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, please see the front cover of this manual. PROBLEM: The power does not turn on SOLUTION: a. - Page 23 All manuals and user guides at all-guides.com Locate the Reed Switch (55) and the Magnet (49) on the left side of the Pulley (58). Turn the Pulley 1/8 in. until the Magnet is aligned with the Reed Switch. Make sure that the gap between the Magnet and the Reed Switch is about 1/8 in.
- Page 24 All manuals and user guides at all-guides.com PROBLEM: The walking belt is off-center or slips when walked on SOLUTION: a. If the walking belt is off-center, first remove the key and UNPLUG THE POWER CORD. If the walking belt has shifted to the left, use the hex key to turn the left idler roller bolt clockwise 1/2 of a turn;...
-
Page 25: Exercise Guidelines
All manuals and user guides at all-guides.com EXERCISE GUIDELINES WARNING: Burning Fat—To burn fat effectively, you must exer- cise at a low intensity level for a sustained period of Before beginning this time. During the first few minutes of exercise, your or any exercise program, consult your physi- body uses carbohydrate calories for energy. -
Page 26: Part List
All manuals and user guides at all-guides.com PART LIST—Model No. WETL30708.0 R0908A To locate the parts listed below, see the EXPLODED DRAWING near the end of this manual. Key No. Qty. Description Key No. Qty. Description Gas Spring Isolator 5/16" Star Washer Console M10 x 51mm Bolt Belt Guide... - Page 27 All manuals and user guides at all-guides.com Key No. Qty. Description Key No. Qty. Description Base – 6" Red Wire, M/F Wheel Spacer – 6" White Wire, 2F Wheel – 10" White Wire, 2F Key/Clip – 10" Blue Wire, 2F 8"...
-
Page 28: Exploded Drawing
All manuals and user guides at all-guides.com EXPLODED DRAWING A—Model No. WETL30708.0 R0908A... - Page 29 All manuals and user guides at all-guides.com EXPLODED DRAWING B—Model No. WETL30708.0 R0908A...
- Page 30 All manuals and user guides at all-guides.com EXPLODED DRAWING C—Model No. WETL30708.0 R0908A...
- Page 31 All manuals and user guides at all-guides.com EXPLODED DRAWING D—Model No. WETL30708.0 R0908A...
-
Page 32: Ordering Replacement Parts
All manuals and user guides at all-guides.com ORDERING REPLACEMENT PARTS To order replacement parts, see the front cover of this manual. To help us assist you, please be prepared to pro- vide the following information when contacting us: • the model number and the serial number of the product (see the front cover of this manual) •...
