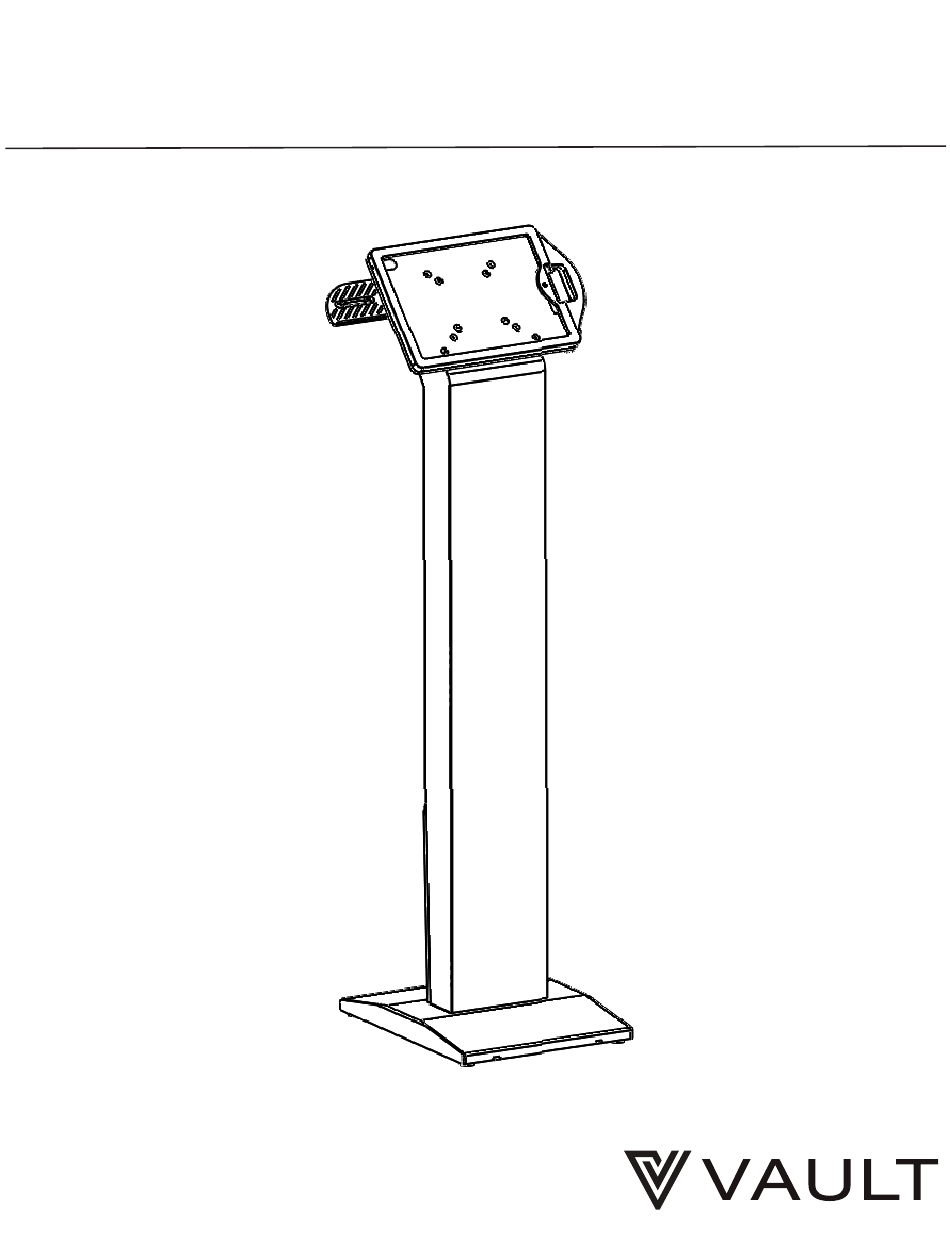

- Page 1 Stability Kiosk Assembly Instructions ECW-K50/K44-IP9/IP12 Rev 1.4...
- Page 2 Parts Included 10-32x3/8 10-32x3/8 Tower Bolt Lock Washer Pan Head Flat Head Tower Base Washer Duraco Adhesive Rubber Docuvue IMGPII Bracket Feet (Pre-installed) *iMag Pro II Card Reader and iPad Tablet not included in bundle...
- Page 3 Attach tower to base ➀ *Slide the lock washer then normal washer onto the bolt before installing into tower Route cables ➁ *Route your cable out the side of your kiosk to connect into the ID TECH iMag Pro II Card Reader or the iPad Pro tablet...
- Page 4 Install Backplate and Docuvue ➂ Install tablet and faceplate ➃...
- Page 5 Plug ID TECH iMag Pro II card ➄ reader into tablet Install the ID TECH iMaG Pro ➅ II bracket over top of the card reader...
- Page 6 14mm(.55 inches) of the 3 holes in the floor. Hand tighten the bolts back down until Insert plugs the base is tight. ➄ * VAULT does not take any liability for damage to your building by installing the anchors.
- Page 7 A receipt or other documentation showing date and location purchased will be required. Shipping to VAULT and return shipping to the end user are the responsibility of the end user. VAULT reserves the right to substitute a newer product or one of equal or higher value. If you should have any questions...
