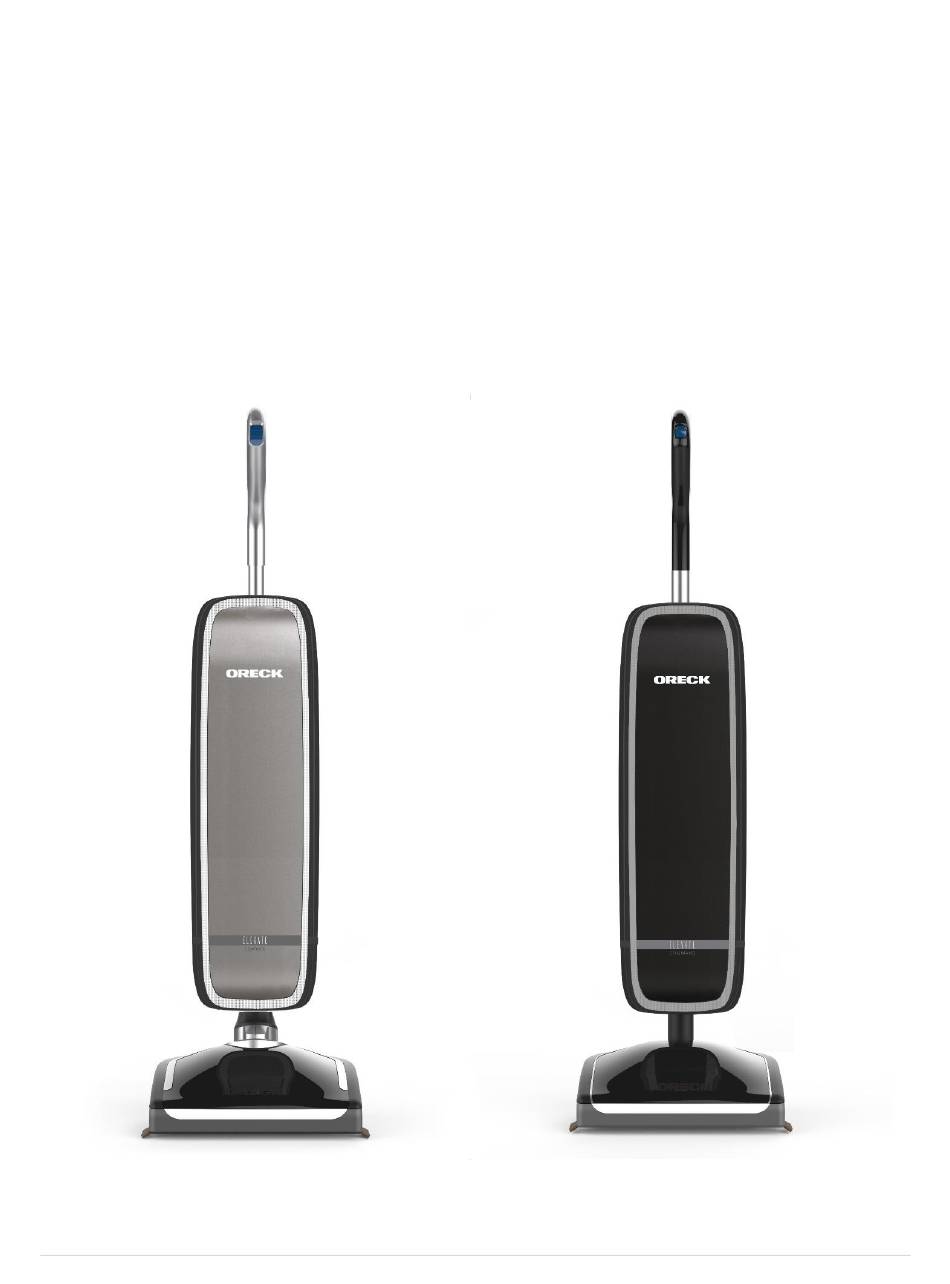

- Page 1 Service Instructions Oreck® ELEVATE Conquer™: UK30300PC, UK30300, UK30300COM Oreck® ELEVATE Command™: UK30200PC, UK30200, UK30200COM Technical Service – April 2016 P a g e...
- Page 2 Table of contents Base Assembly - Section 1 – Page 4 Belt / Brushroll - Section 2 – Page 4 Motor / PCB - Section 3 – Page 4 Motor Assembly / Intake Pivot Assembly / Joint Assembly - Section 4 – Page 5 Handle Detent - Section 5 –...
- Page 3 Exploded View P a g e...
- Page 4 1. Base Assembly Once the base assembly is removed the internal components can be accessed. a. Remove 7 screws and lift base assembly off of unit. This requires a T20 torx driver. 2. Belt / Brushroll a. Remove belt by sliding it off of the motor shaft and brushroll pulley.
- Page 5 4. Motor Assembly / Intake Pivot Assembly f. To separate motor and fan chamber /Joint Assembly. assembly locate and remove fan nut by securing the armature shaft and turning the a. Remove base assembly – section 1. nut clockwise – LH Thread. b.
- Page 6 Motor lead wire connections c. Remove handle detent – 1 screw. Black lead wire connects to motor terminal as shown – single terminal side of motor. 6. LED PCB White lead wire connects to motor terminal a. Remove base assembly – section 1. as shown –...
- Page 7 f. Remove LED PCB. d. Remove switch button – snap fit. e. Disconnect yellow and black lead at terminal connections in top of handle and slightly spread handle seat to remove Power PBC. 7. Power PCB a. Remove five screws shown in upper handle –...
- Page 8 Power Cord Note: A boss was added to the rear bag dock to prevent usage of unauthorized bags. A a. Remove lead wires at yellow, black, and notch was added to the bag assembly to white terminals and feed power cord out of allow the bag to be locked into position.
- Page 9 10. Carry Handle a. Remove screw in carry handle retainer. b. Spread handle retainer apart and slide it off of the connector assembly. c. Remove carry handle – trapped in position by the handle retainer. P a g e...
- Page 10 11. Wiring Diagram 10 | P a g e...
- Page 11 12. Electrical troubleshooting A. Motor will not turn on – Headlight LED’s flashing. Jump Start Protection feature – ensure switch is in the off position prior to plugging unit in. Reset switch by turning it off then on again. A hall sensor located in the LED PCB senses the magnet in the brushroll body while it’s rotating to act as a stall protection.
- Page 12 If continuity exists, go to step 4. If 1, 2, or 3 above show no continuity it indicates a failure of the power cord, the power line cord, or switch. a. Check power line cord by checking for continuity between the white connection terminal on the circuit board and the white lead at the terminal connection in the handle.
- Page 13 4. Check voltage output from the circuit board. a. Remove brushroll and belt. b. Disconnect motor terminal at circuit board. c. Connect voltage meter – set on AC Volts – as shown. d. Voltage should read 120VAC. When the switch is in the low and high speed settings the headlight LED will flash.
