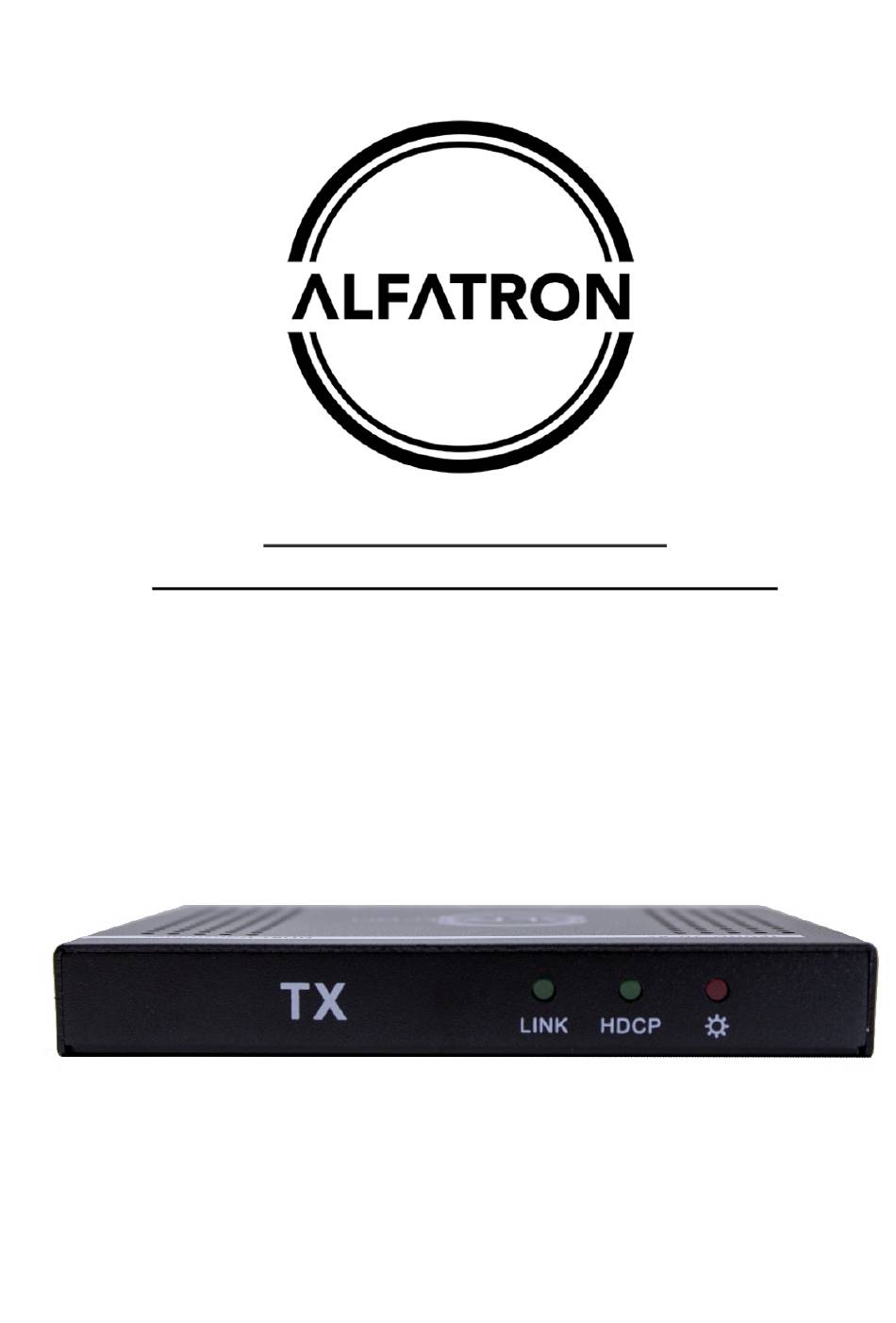

- Page 1 ALFATRON ELECTRONICS GmbH GERMANY ALF-TPUHD70-T 10.2G HDMI Transmitter All Rights Reserved Version: ALF-TPUHD70-T_2021V1.4...
- Page 2 ALF-TPUHD70-T FCC Statement This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. It has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 3 ALF-TPUHD70-T Safety Precaution Do not dismantle the housing or modify the module to avoid electrical shock or burn. Using supplies not meeting the products specifications may cause damage, deterioration, or malfunction. Do not expose the unit to rain, moisture or install this product near liquid.
-
Page 4: Table Of Contents
ALF-TPUHD70-T Table of Contents 1. Introduction ......................... 1 1.1 Product Introduction ..................1 1.2 Features ......................1 1.3 Package Contents ..................... 1 2. Panel Description ......................2 2.1 TPUHD70-T Transmitter ..................2 3. System Connection ..................... 3 3.1 Usage Precaution ....................3 3.2 System Diagram .................... -
Page 5: Introduction
1. Introduction 1.1 Product Introduction The ALF-TPUHD70-T is a compact HDBaseT transmitter. HDBaseT technology is used to transmit high-resolution 1080p / 4k signal from transmitter to the receiver via a CAT6 cable for distances up to 230 feet (70m) / 131 feet (40m). Moreover, the ALF-TPUHD70-T supports CEC, bi-directional RS232, IR control, and POH function. -
Page 6: Panel Description
ALF-TPUHD70-T 2. Panel Description 2.1 TPUHD70-T Transmitter Name Description HDBT Link status indicator: OFF: No Link LINK ① GREEN: Link Successful Blinking GREEN: Link abnormal HDCP compliant indicator OFF: No HDMI traffic (no picture) HDCP ②... -
Page 7: System Connection
ALF-TPUHD70-T 3. System Connection 3.1 Usage Precaution System should be installed in a clean environment and has adequate temperature and humidity. All of the power switches, plugs, sockets, and power cords should be insulated and safe. All devices should be connected before powering on. -
Page 8: Connection Procedure
ALF-TPUHD70-T 3.3 Connection Procedure Step 1. Connect HDMI source (e.g., Blue-ray DVD) to HDMI IN port of transmitter with an HDMI cable. Step 2. Connect HDBT OUT port of transmitter and HDBT IN port of receiver, via a single CAT6 cable. -
Page 9: Specification
ALF-TPUHD70-T 4. Specification ALF-TPUHD70-T Transmitter Input (1) HDMI; (1) IR; (1) RS232 (1) Female HDMI; (1) 3.5mm mini jack; Input Connector (1) 3p captive screw connector Digital audio, transmit through HDMI audio Audio Output (1) HDBaseT (1) IR; (1) RS232 (1) RJ-45;... -
Page 10: Panel Drawing
ALF-TPUHD70-T 5. Panel Drawing 5-1 Transmitter... -
Page 11: Troubleshooting & Maintenance
ALF-TPUHD70-T 6. Troubleshooting & Maintenance No image on display: Ensure that the display device has been set to the correct input. Ensure that the HDMI cables used for both the source and transmitter and the receiver and display are properly connected and are of high quality. Test the HDMI cables directly from a source to display and ensure their picture quality. -
Page 12: After Sales Service
Alfatron ALF-TPBHD70-R 7. After sales Service Should you experience problems using the ALF-TPUHD70-T, please note that any transport costs of the equipment to the distributor are borne by the user during the warranty. Product Limited Warranty: Alfatron warrants that its products will be free from defects in materials and workmanship for seven years, which starts from the first day of purchase. - Page 13 Alfatron ALF-TPBHD70-R Warranty Limited warranty in respect of Alfatron Products Only 1.1 This limited warranty covers defects in materials and workmanship in this product. 1.2 Should warranty service be required, proof of purchase must be presented to the Company. The serial number on the product must be clearly visible and not have been tampered with in any way whatsoever.
- Page 14 Alfatron ALF-TPBHD70-R correctly according to the Company’s instructions, and only with the use of the Company’s components. 1.10 The Company will, at its sole option, provide one of the following three remedies to whatever extent it shall deem necessary to satisfy a proper claim under this limited warranty: 1.10.1 Elect to repair or facilitate the repair of any defective parts within a reasonable...
- Page 15 Alfatron ALF-TPBHD70-R 1.16 If delivery is not refused, and the Customer does not notify the Company accordingly, the Customer may not reject the goods and the Company shall have no liability and the Customer shall pay the price as if the goods had been delivered in accordance with the Agreement.
