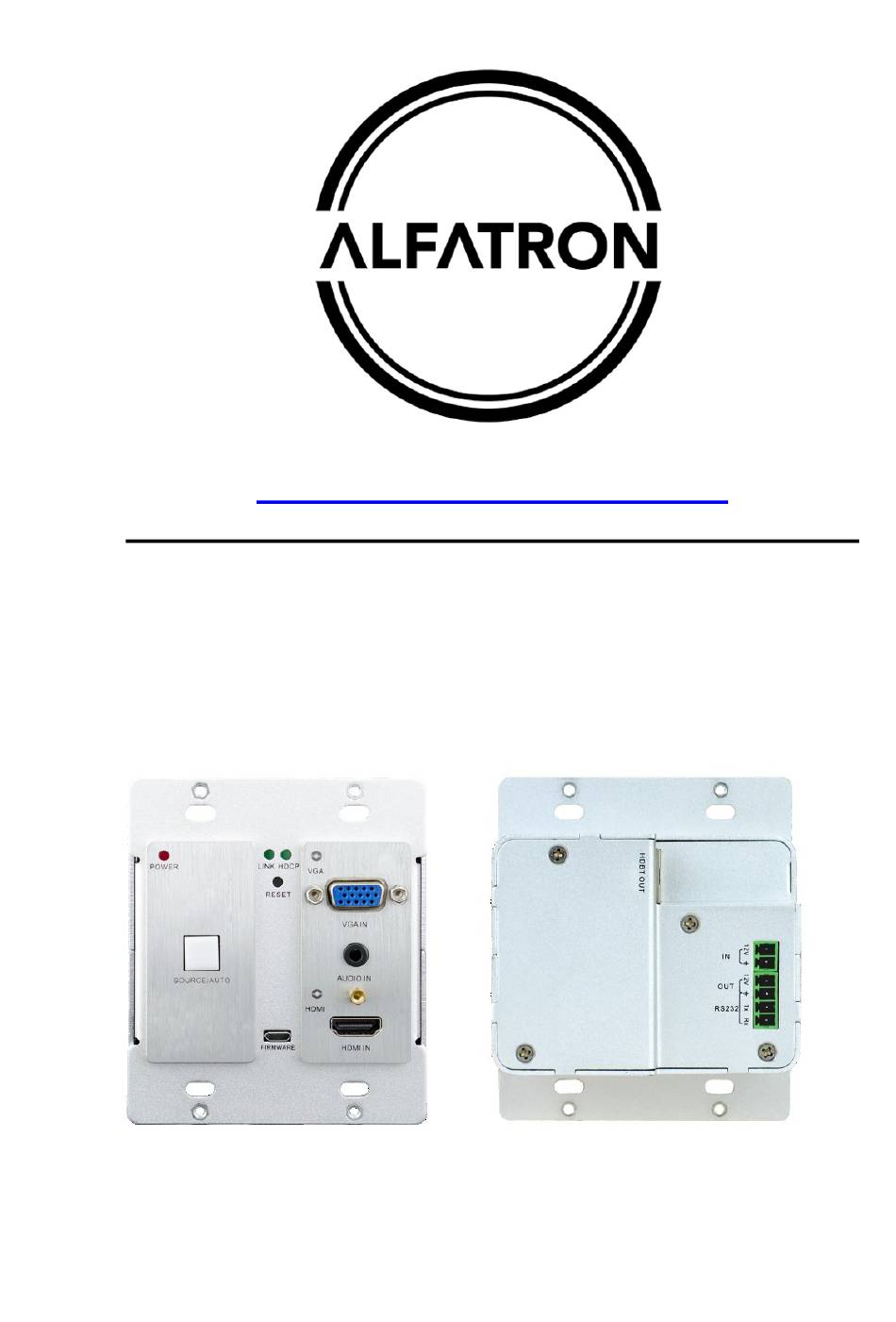

- Page 1 ALFATRON ELECTRONICS GmbH GERMANY ALF-TPUH405PT-WP 2x1 Auto 4K Wall plate with HDBaseT Transmitter...
- Page 2 Alfatron ALF-TPUH405PT-WP Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only, different model and specifications are subject to real product. This manual is only for operation instruction only, not for any maintenance usage. The functions described in this version are updated till February, 2020.
- Page 3 Alfatron ALF-TPUH405PT-WP SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material for ...
-
Page 4: Table Of Contents
Alfatron ALF-TPUH405PT-WP Table of Contents 1. Introduction .........................1 1.1 Product Introduction ................... 1 1.2 Features ......................1 1.3 Package List ...................... 1 2. Panel Description ......................2 2.1 Front Panel ......................2 2.2 Rear Panel ......................3 3. System Connection .....................4 4. -
Page 5: Introduction
Alfatron ALF-TPUH405PT-WP 1. Introduction 1.1 Product Introduction Connect, switch and extend HDMI and 1 VGA+ audio input to displays or projectors in conference rooms, classrooms and control centers. Inputs are automatically switched (or manually selected) to permit seamless transfer from one source to the next. Extend signal up to 70 meters (230ft) over a single Category cable. -
Page 6: Panel Description
Alfatron ALF-TPUH405PT-WP 2. Panel Description 2.1 Front Panel POWER LINK RESET VGA IN AUDIO IN SOURCE/AUTO HDMI HDMI IN FIRM WARE Name Description POWER LED indicator glows red when power is applied. ① LED indicator glows green when an HDBaseT link is LINK ②... -
Page 7: Rear Panel
Alfatron ALF-TPUH405PT-WP HDMI - LED indicator glows when HDMI input is active, amber when a source is available, and does HDMI & HDMI IN ⑧ not light when there is no source connected. HDMI IN – HDMI connector with locking feature. -
Page 8: System Connection
Alfatron ALF-TPUH405PT-WP 3. System Connection Usage Precautions System should be installed in a clean environment and has a prop temperature and humidity. All of the power switches, plugs, sockets and power cords should be insulated and safe. All devices should be connected before power on. -
Page 9: Button Control
Alfatron ALF-TPUH405PT-WP HDBaseT Transmitter location to the location that the Control Panel will be mounted. ④ All twisted pair cables should be terminated with jacks. This allows the permanent link between the two devices to be tested. ⑤ Use the appropriate category rated patch cable to connect the HDBaseT link to the HDBT OUT connector. -
Page 10: Rs232 Control
Alfatron ALF-TPUH405PT-WP 5. RS232 Control 5.1 RS232 Control Connection There are two RS232 control modes switching via sending 50779% or 50780%. ① Control this Wallplate HDBaseT Transmitter and far-end third-party device (such as Projector) device by local PC, and the connection diagram shown as below: ②... -
Page 11: Rs232 Control Software
Alfatron ALF-TPUH405PT-WP 5.2 RS232 Control Software Installation: Copy the control software file to the control PC. Uninstallation: Delete all the control software files in corresponding file path. Basic Settings: First, connect 4K Wallplate HDBaseT Transmitter with all input devices and output devices needed, then to connect it with a computer which is installed with RS232 control software. -
Page 12: Rs232 Commands
Alfatron ALF-TPUH405PT-WP 5.3 RS232 Commands Communication protocol: RS232 Communication Protocol Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none 5.3.1 Control Mode Switching Command Function Feedback Example Switch to RS232 mode 1（Default）, RS232 Mode 1: RS232 50779% control scaler switcher and the far-end Control Scaler &... -
Page 13: Hdcp Compliance
Alfatron ALF-TPUH405PT-WP Change the resolution to1920X1200 50620% Resolution: 1920x1200 WUXGA Change the resolution to1600X1200 50621% Resolution: 1600x1200 UXGA 5.3.4 HDCP Compliance Command Function Feedback Example Set the HDCP status of HDMI output 50790% HDCP Active socket to Active Set the HDCP status of HDMI output... - Page 14 Alfatron ALF-TPUH405PT-WP Color Temperature: xx (xx 50640% Check the color temperature can be medium, warm, user, or cool.) Color Temperature: xx (xx 50607% Adjust the color temperature can be medium, warm, user, or cool.) Aspect Ratio: xx (xx can be...
-
Page 15: Edid Configuration
Alfatron ALF-TPUH405PT-WP Pull left from right side (decrease image 50674% Output Width Adjust xx width) Stretch right from right side (increase 50675% Output Width Adjust xx image width) Stretch upwards from bottom side 50676% Output Height Adjust xx (decrease image height) -
Page 16: Specification
Alfatron ALF-TPUH405PT-WP 6. Specification Input & Output Input (1) HDMI, (1) VGA, (1) AUDIO, (1) 12V POWER (1) 19-pin Type A female HDMI, (1) HD-15 VGA, Input Connector (1) 3.5mm mini jack, (1) 2-pin Pluggable Terminal Block Output (1) HDBaseT, (1) 12V POWER... -
Page 17: Panel Drawing
Alfatron ALF-TPUH405PT-WP 7. Panel Drawing 32.0mm POWER LINK RESET VGA IN AUDIO IN SOURCE/AUTO RS232 HDMI HDMI IN FIRMWARE 89.0 mm... -
Page 18: Troubleshooting & Maintenance
Alfatron ALF-TPUH405PT-WP 8. Troubleshooting & Maintenance Problems Causes Solutions Color losing or no video signal output in HDMI display The connecting cables No HDMI signal output in Check whether the cables may not be connected the device while local are connected correctly... -
Page 19: Warranty
Alfatron ALF-TPUH405PT-WP 9. Warranty 1.1 This limited warranty covers defects in materials and workmanship in this product. 1.2 Should warranty service be required, proof of purchase must be presented to the Company. The serial number on the product must be clearly visible and not have been tampered with in any way whatsoever. - Page 20 Alfatron ALF-TPUH405PT-WP 1.10.1 Elect to repair or facilitate the repair of any defective parts within a reasonable period of time, free of any charge for the necessary parts and labor to complete the repair and restore this product to its proper operating condition.; or 1.10.2 Replace this product with a direct replacement or with a similar product deemed by...
