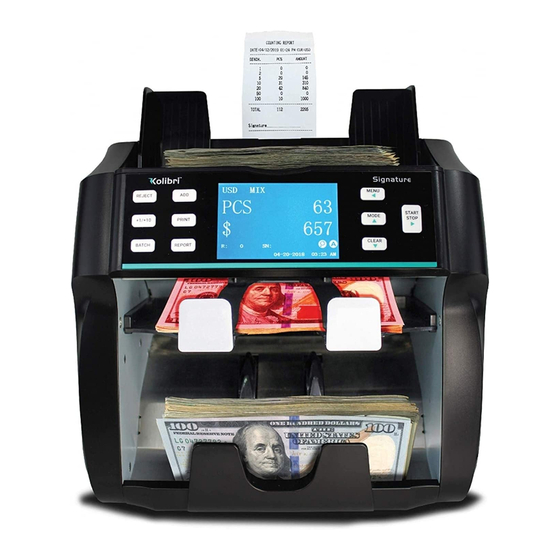

Kolibri Signature User Manual

Two-pocket currency discriminator
Hide thumbs Also See for Signature:
Table of Contents

Advertisement

Quick Links

Download this manual
Signature
USER MANUAL
Kolibri Signature Two-Pocket Currency Discriminator

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Signature and is the answer not in the manual?

Questions and answers

Related Manuals for Kolibri Signature

Summary of Contents for Kolibri Signature

  • Page 1 Signature USER MANUAL Kolibri Signature Two-Pocket Currency Discriminator...
  • Page 2 While every effort has been made to include all features into this user manual, specifications stated may not reflect all the features of the later software versions. If you have questions about your Kolibri Signature and its operation, please contact technical support at www.kolibriusa.com/contact/ DO NOT DISPOSE WARNING: HAZARDOUS CHOKING HAZARD.

  • Page 3: Table Of Contents

    1.1 About the Kolibri Signature ___________________________________________________________ 1 1.2 Important Safety Notes ______________________________________________________________ 1 1.3 Box Contents ________________________________________________________________________ 2 1.4 Specifications _______________________________________________________________________ 2 1.5 Views of the Kolibri Signature ________________________________________________________ 3 1.6 Control Panel ________________________________________________________________________ 4 1.7 Home Screen ________________________________________________________________________ 5 2. GETTING STARTED 2.1 Powering Up _________________________________________________________________________ 6...

  • Page 4: Introduction

    About the Kolibri Signature Thank you for choosing the Kolibri Signature 2-pocket currency discriminator. The Kolibri Signature is a professional, powerful, value counter and sorter, with a reject pocket meaning that the machine will never have to stop for a counterfeit, wrong denomination or incorrect face.

  • Page 5: Box Contents

    Box Contents Kolibri Signature 2 - Pocket Currency Discriminator Power Cord User Manual Cleaning Brush Calibration Card 1.4 Specifications 1.4.1 Product Counting speed: Adjustable 800, 1000 and 1200 bills/min Hopper capacity: 500 bills Stacker capacity: 200 bills Weight: 22 lbs (10 kg) Dimensions: 10.5’’...

  • Page 6: Views Of The Kolibri Signature

    Views of the Kolibri Signature Built-in Printer Feed Gap Adjuster Bill Guides Hopper Control Panel LCD Screen Reject Pocket Stacker Top Cover Back Drawer AC Power Fuse Power Switch USB Port SD Card Port TOP VIEW 12 13 BACK VIEW...

  • Page 7: Control Panel

    Control Panel Function 1. REJECT Button Shows the rejected bills and the reason 2. BATCH Button Activates/Deactivates Batch function and sets Batch amount 3. ADD Button Activates/Deactivates Add function 4. PRINT Button Starts printing receipt when Report screen displayed 5. REPORT Button Shows the detailed Report screen 6.

  • Page 8: Home Screen

    Home Screen Currency Selected Mode (MIX, SORT, DSORT, COUNT, FACE, ORIENT, VBATCH) ADD Function Active/Inactive BATCH Function Quantity Number of Bills Counted Total Value Counted Auto/Manual Start On/Off Date & Time Counterfeit Detection Active/Inactive Instruction Message Number of Rejected Bills Serial Number...

  • Page 9: Getting Started

    GETTING STARTED Powering Up Ensure the hopper and stacker are empty. Then, attach power cable to rear of the machine, plug into a three-prong outlet and turn the power switch, located on the rear of the machine, to the on position. The unit will load and conduct a self-checking.
  • Page 10 TIPS: To Reduce Rejects 1. MAKE A STACK 2. LOAD THE STACK Correct or remove bills that are severely wrinkled, damaged or folded. Square the bill stack. 3. FEED THE BILLS...

  • Page 11: Operating Modes

    REPORT button. To return to MIX mode from another mode, press the MODE button until ‘’MIX’’ is displayed on the home screen. Note that the Kolibri Signature will keep in memory the last mode used.

  • Page 12: Dsort Mode

    Kolibri Signature to go into the stacker. All other bills with different design will be sent to the reject pocket. The total number of bills and total value will be displayed on the home screen.

  • Page 13: Orientation Mode

    Signature face up or face down. The first bill in the hopper determines the sorting and counting orientation. If the first bill through the machine is faced up, all bills in the hopper that are faced up will end up in the stacker. All the other bills that are faced down, will be rejected into the reject pocket.

  • Page 15: Functions

    To return to VBatch mode from another mode, press the MODE button until “VBATCH” is displayed on the home screen. Note that Kolibri Signature will keep in memory the last mode used.

  • Page 16: Batch Function

    BATCH button will set the batch size to 100. The batch size can be adjusted by pressing the +1/+10 or the BATCH button. When the set batch amount is reached, the Signature will automatically stop and a ‘’BATCH COMPLETE’’ message will be display on the screen alongside the number of bills counted.

  • Page 17: Multi-Currency Function

    This function allows the user to count a stack with mixed currencies. The Kolibri Signature automatically detects up to 4 mixed currencies at a time. The total number of bills and total value of each currency will be displayed on a screen. When the operation is complete, the user can review a detailed report of each denomination by pressing the REPORT button and scrolling through each currency’s report screen by pressing the...

  • Page 18: After-Count Functions

    To exit the detailed report screen, press the MENU button. Print The Kolibri Signature has a built-in printer on the top of the machine. Make sure to properly load the thermal receipt paper before using this function. 1. Lift up the lid to open.
  • Page 19 5.3.1 Station ID Function The Station ID function allows the user to label each receipt title with a custom ID. To enable this function 1. Press the MENU button 2. Select 5. SERVICE and press START/STOP (arrow right). 3. While in SERVICE, select 5. STATION ID and press START/STOP (arrow right). 4.

  • Page 20: Reject

    This function is available by pressing the REJECT button and provides an on-screen report of the rejected bills and the reason of their rejection. To exit the reject screen, press the MENU button. Please note that the Signature, Reject Code Cause...

  • Page 21: Maintenance And Troubleshooting

    Most operational problems can be avoided by regular care and preventative maintenance. Taking regular care of the Signature will significantly increase its lifetime. To avoid problems, make sure there are no metal clips or rubber bands in the bills being counted.

  • Page 23: Adjusting Feed Gap

    Adjusting Feed Gap Sometimes, during the transportation or shipment of the unit, the adjustment of the feed mechanism may loosen. This can also happen during normal wear or tear and can lead to DOUBLE, CHAIN or HALF errors. The feed gap is the actual height of the bill feed path, and should be tuned to just about the thickness of a single bill.
  • Page 24 Important Note: The Kolibri Signature’s feed gap adjustment can be sensitive during adjustments. Do not overturn each adjustment or you may overshoot the optimum gap. We recommend testing with a stack of bills after each adjustment turn.

  • Page 26: Troubleshooting

    DD Error (Excessive) Clean or replace counting sensors. 4. Recalibrate unit (ref section 6.3 Calibration Procedure). If problem persists, refer to section DB Error (Excessive) 6.6 Contact Information to contact Kolibri’s ID Error (Excessive) technical service center for additional support.
  • Page 27 Unit Does Not Turn 1. Ensure power cord is plugged in. If problem persists, refer to section 6.6 Contact 2. Check fuse and replace if Information to contact Kolibri’s technical service damaged (under power outlet). center for additional support MOTOR/ROLLERS 1.

  • Page 28: Warranty

    Warranty The Kolibri Signature is warranted for a period of one year from the date of purchase. In most cases a unit malfunction can easily be corrected by performing a thorough cleaning. • Customer should allow the manufacturer the time and opportunity to test and diagnose the machine to determine warranty and non-warranty claims •...

  • Page 29: Contact Information

    Contact Information Technical Support Contact Information: http://KolibriUSA.com/contact/ When contacting Technical Support, please have the following available: • Product Model – Located on the back side of the machine. • Serial Number – Located on the bottom of the machine. • Nature of the problem – What happened, and when did it happen? Did the machine display an error message? •...
