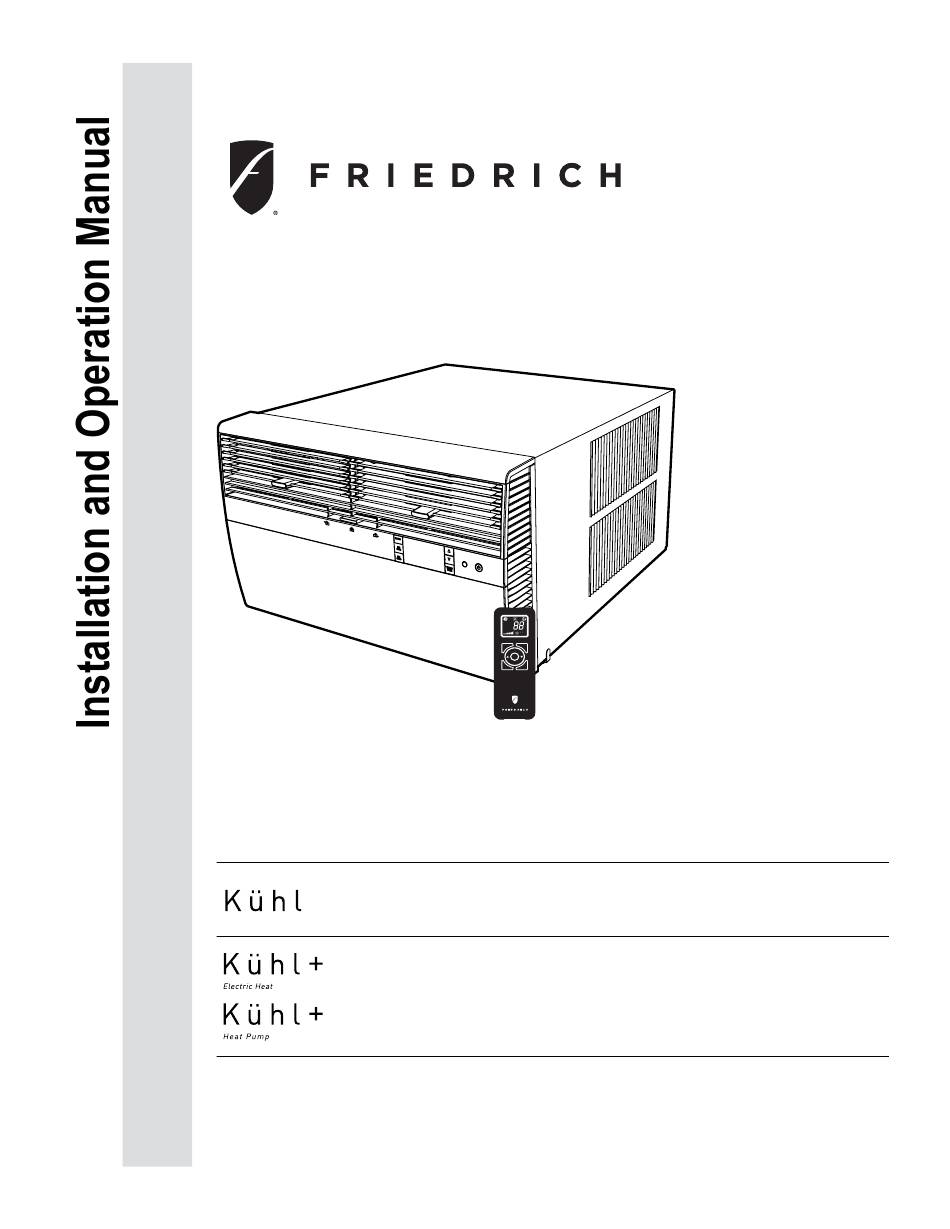

  • Page 1 Service Questions: Contact Friedrich at (800) 541-6645 Service Questions: Contact Friedrich at (800) 541-6645 Service Questions: Contact Friedrich at (800) 541-6645 Sales Inquiries: Contact Sylvane at (800) 934-9194 or visit sylvane.com Sales Inquiries: Contact Sylvane at (800) 934-9194 or visit sylvane.com Sales Inquiries: Contact Sylvane at (800) 934-9194 or visit sylvane.com...
  • Page 2 Model information can be found on the name plate behind the front cover. Please complete and mail the owner registration card furnished with this product, or register online at www.friedrich.com. For your future convenience, record the model information here. MODEL NUMBER...

  • Page 3: Table Of Contents

    Table of Contents Safety Precautions ........................................... 4 Unpacking Instructions..........................................5 WARNING: Before Operating Your Unit ....................................6 Standard Filter Cleaning / Installation Instructions .................................. 7 Premium Carbon Filter Installation Instructions ..................................8 Control Panel Operation ......................................... 9 Kühl Control Options ........................................10 Control Panel Operation Instructions ....................................

  • Page 4: Safety Precautions

    Service Questions: Contact Friedrich at (800) 541-6645 Sales Inquiries: Contact Sylvane at (800) 934-9194 or visit sylvane.com Safety Precautions Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

  • Page 5: Unpacking Instructions

    Unpacking Instructions STEP 5. Slide the foam front support forward STEP 1. Cut all 4 packing straps. STEP 6. Carefully lift decorative front box from foam front support STEP 2. Remove wooden shipping bar dividers. STEP 7. Remove decorative front and set safely aside STEP 3.

  • Page 6: Warning: Before Operating Your Unit

    Test the power cord Figure 1 All Friedrich room air conditioners are shipped from the factory with a Leakage Current Detection Interrupter (LCDI) equipped power cord. The LCDI device on the end of the cord meets the UL and NEC requirements for cord connected air conditioners.

  • Page 7: Standard Filter Cleaning / Installation Instructions

    Standard Filter Cleaning / Installation Instructions STEP 2. STEP 1. NOTE: Figure 2 Figure 4 FILTER FILTER GRIP FRR071 Figure 3 FRR047 STEP 3. Swing the front frame open. Clean the front frame by washing Figure 5 FILTER GRIP TOP TAB HANDLE FRONT FRR052...

  • Page 8: Premium Carbon Filter Installation Instructions

    Premium Carbon Filter Installation Instructions STEP 4. STEP 1. STEP 2. in Figure 4. NOTE: STEP 3. STEP 5. as shown in Figure 6. and slide the assembly into the unit as per the instructions on the door. NOTE: Make sure the frame with the mesh is facing towards you. NOTE: the tab in the frame stops the handle from sliding in, slide the handle from the other direction.

  • Page 9: Control Panel Operation

    Control Panel Operation Let’s check out how to control your air conditioner. On the control panel, just above the POWER , is a liquid crystal display (LCD). All of the control panel function buttons and mode icons can be viewed in Figure 8. Power On –...

  • Page 10: New Kühl Control Options

    07:00 and 18:00. This option will cause your air conditioner to raise temperatures FriedrichLink™ Adapter accessory available through Friedrich authorized to 84°F after typical working hours and on weekends when commercial spaces retailers or www.friedrich.com. See FriedrichLink™ Adapter section on are typically unoccupied. www.friedrich.com for complete details.

  • Page 11: Control Panel Operation Instructions

    FAN ONLY MODE Control Panel Operation Instructions SYSTEM - The button allows you to sequentially select up to four SYSTEM modes of operation: - AUTO - AUTO Not available on some models COOL Not available on some models HEAT FAN ONLY AUTO MODE FRR105 When in the...
  • Page 12 CONTINUOUS CONTINUOUS SET POINT AUTO FAN SET POINT FRR113 In the CONTINUOUS fan mode, the fan operates all the time. The system FRR123 and DOWN - arrows - Pressing either button changes the system's set point (desired room temperature). These buttons are also icon illuminates.
  • Page 13 To switch from degrees Fahrenheit (F) to Celsius (C), press buttons for three seconds. FRR129 Use the buttons to adjust the minutes. The clock is now set FRR133 for 11:25 AM. Press TIMER SET (Refer to Figure 10) button to display the unit's day setting.
  • Page 14 AUTO FAN SET POINT FRR120 FRR193 This means there is a compressor demand but the system is not ready The 2 indicates a DIM setting of 20%. Press the TIMER SET button within for the compressor to operate. For example a short power outage, the 15 seconds to save the setting.
  • Page 15 External Control Status 3. Commercial Schedule - When selected the unit follows a pre- programmed set of operational parameters that covers 7 days of icon illuminates to indicate that the system is being controlled $MART the week with 2 time windows during each day. Each time window remotely.
  • Page 16 AUTO FAN SET POINT FRR139 FRR143 The display returns to normal once the settings are saved. 1RZ WKH QH[W WLPH WKH button is pressed the system operates in the mode (1, 2 or 3) you programmed. Timer Stop Time Modify the TIMER Function Timer Start Time AUTO FAN SET POINT...
  • Page 17 AUTO FAN AUTO FAN SET POINT SET POINT SCHEDULE FRR147 FRR151 The display returns to normal once the settings are saved. The Timer LFRQ VWRSV EOLQNLQJ DIWHU  VHFRQGV <RX PXVW WXUQ WKH DFWLYH 7LPHU RU 6FKHGXOH PRGH 2)) EHIRUH PDNLQJ FKDQJHV 2QFH WKH FKDQJHV Timer - Scheduler Control Block are made, press the button to re-activate Timer or Schedule mode.
  • Page 18 AUTO FAN AUTO FAN SET POINT SET POINT SCHEDULE FRR159 FRR155 ,I WKH 6FKHGXOH IXQFWLRQ LV WXUQHG 21 GXULQJ D 6NLS SHULRG WKH ,I WKH 7LPHU IXQFWLRQ LV WXUQHG 21 GXULQJ WKH 21 WLPH WKH 7LPHU icon SCHEDULE and Timer icons illuminates.
  • Page 19 AUTO FAN AUTO FAN SET POINT SET POINT FRR163 FRR167 ,I WKH 7LPHU IXQFWLRQ LV WXUQHG 2)) GXULQJ DQ LQDFWLYH 2)) SHULRG WKH ,I WKH 6FKHGXOH IXQFWLRQ LV WXUQHG 2)) GXULQJ DQ LQDFWLYH 2)) SHULRG Timer icon turns off. The display shows a normal system. the Timer icons turn off.

  • Page 20: Remote Control Operation

    Service Questions: Contact Friedrich at (800) 541-6645 Sales Inquiries: Contact Sylvane at (800) 934-9194 or visit sylvane.com Remote Control Operation FAN SPEED Button - Used to sequentially select new fan speed, plus AUTO operation. When the FA N button is pressed, the fan speed icon SPEED (triangle) changes to indicate the new speed level.
  • Page 21 Figure 12 DISPLAY AUTO AUTO FAN CONTINUOUS AUTO SYSTEM FAN MODE SYSTEM FAN MODE POWER TEMPERATURE POWER TEMPERATURE DOWN FAN SPEED SCHEDULE SCHEDULE FAN SPEED FRR081 Figure 13 COOL FAN ONLY HEAT ICON ICON ICON SYSTEM MODE AUTO AUTO FAN CONTINUOUS MODE AUTO...

  • Page 22: Remote Thermostat

    BEST PERFORMANCE – Move the lever to the Re-Circulate Position Remote Thermostat Remote Thermostat - An external thermostat may be added to the air conditioner to provide remote temperature sensing and control. For details and installation instructions, please visit www.Friedrich.com or contact Friedrich Service at 1-800-541-6645.

  • Page 23: Installation Instructions

    The following instructions are for standard chassis model groups Installation Instructions sizes listed in Table 3. READ THIS FIRST! Electrical Requirements Table 3 WARNING MODEL DESIGNATION CABINET SIZE (H x W x D) SMALL CHASSIS - SS, » " x 25 »...
  • Page 24 INSTALLATION HARDWARE AND ACCESSORY DETAIL ITEM 2 ITEM 3 ITEM 1 ITEM 5 ITEM 6 ITEM 4 ITEM 7 ITEM 8 ITEM 9 ITEM 12 ITEM 13 ITEM 10 ITEM 11 ITEMS NOT TO SCALE FRR009 ITEM DESCRIPTION QTY. ITEM DESCRIPTION QTY.

  • Page 25: Standard Window Installation

    Standard Window Installation Figure 16 NOTE: Hardware and accessories used during installation are shown on page 23. Each part will be referred as Item No. STEP 1. Remove the chassis Entrygard retainer by removing the far right screw (See Figure 15), save this screw to reattach the chassis retainer after installation (Step 12).
  • Page 26 NOTE: DO NOT LEVEL the cabinet from front to back. Make sure there CAUTION is approximately 3/8” to 1/2” slope (1/8 to 1/4 bubble on level) toward the outside of the house. Remove Shipping Blocks Adjust the support brackets to provide an inside-to-outside slope for excess condensation drainage (Refer to Standard Window Installation, Figures 20 Prior to operating the unit remove through 24).
  • Page 27 Figure 1 #8 x 3/8” LONG SCREW (ITEM 7) 2 REQUIRED TOP ANGLE (ITEM 5) CABINET DETAIL B-2 SIDE ANGLE (ITEM 6) 2 REQUIRED LOOP SILL PLATE DETAIL B-1 FRR013 Figure 1 TOP ANGLE CENTER (ITEM 5) CABINET IN WINDOW SIDE TO SIDE PULL WINDOW SASH DOWN...
  • Page 28 Figure  3/8” SLOPE DOWN #10-24 x 1” HEX HD. SCREW (ITEM 2) SUPPORT BRACKET (ITEM 1) #12 x 2” SCREW SUPPORT (ITEM 4) BRACKET (ITEM 1) SPACER SHOULD BE USED BETWEEN WALL AND BRACKET WHEN INSTALLED ON ALUMINUM OR VINYL SIDING. 10-24 x FLAT WELD NUT (ITEM 3) FRR015...
  • Page 29 Figure 2 3/8” SLOPE DOWN CONDENSER AIR INLETS #10-24 SCREW #10-24 FLAT WELD NUT #12 x 2” SHEET METAL SCREW (ITEM 4) STONE LEDGE SPACER FRR017 Figure 2 3/8” SLOPE DOWN #10-24 SCREW STRAIGHTEN TAB TO LAY FLAT ALONG THE BOTTOM RAIL OF THE SHELL #10-24 FLAT WELD NUT SECURE THE LONGEST SIDE OF...
  • Page 30 Figure 2 3/8” SLOPE DOWN #10-24 SCREW DIMENSION “A” CUT TO FIT DIMENSION “A” AND BEND DOWN TO FORM HERE A VERTICAL LEG. #10-24 FLAT WELD NUT STONE LEDGE OUTSIDE WALL DISCARD SHADED AREA FRR019 Figure 2 MEASURE DISTANCE “B” TO INSIDE OF THE CHANNEL ON EACH SIDE.
  • Page 31 STEP 10. INSTALL THE WINDOW SEALING GASKETS – Measure CAUTION and cut the dark foam window seal gasket (Item 12) and install it between the upper glass panel and the top part of the window sash (Figure 28). Cut/Sever Although great care has been taken to minimize sharp edges in the construction of your unit, use gloves or other hand...
  • Page 32 Figure 27 Figure 28 TOP OF CABINET INSERT FOAM WINDOW PLACE WINGBOARD PANEL IN WINDOW JAM SEAL GASKET (ITEM 12) TO COMPRESS THE SPRINGS INSIDE THE RUNNERS, AND SWING THE WINGBOARD PANELS INTO PLACE AS INDICATED BY THE DASHED LINES. WINDOW JAM CLIP (ITEM 10) SECTION A-A...
  • Page 33 OPTIONAL: e t i xits the left Use Tool Provided side of the unit at the bottom. At the consumer’s discretion, the supply cord can be routed to exit the right side of the unit. Please use the provided tool to attach the decorative front to the chassis. To do this, route the supply cord to the right side.

  • Page 34: Cord Routing Change

    Cord Routing Change STEP 16. Carefully pull out electrical control panel 1", but not all the way. Unplug unit. Figure 33 WARNING 1 INCH Electrical Shock Hazard Make sure your electrical receptacle has the same configuration as your air conditioner’s plug.
  • Page 35 STEP 19. Carefully push electrical control panel back into chassis. STEP 21. If running power cord to the right of the unit install the cord into the cord retainer clips along the bottom front of the unit. Figure 36 Figure 38 ELECTRICAL CONTROL PANEL CORD RETAINER...

  • Page 36: Through-The-Wall Installation

    Through-the-Wall Installation The following instructions apply to wood, masonry, brick, concrete or cinder block wall construction. STEP 1. Follow steps 1, 2, 3, and 4 of the "STANDARD WINDOW INSTALLATION" instructions beginning on page 25. STEP 2. CABINET PREPARATION – Remove the sill plate from the cabinet by removing two (4) nuts and screws (Figure 39).
  • Page 37 Figure 39 CABINET CABINET SCREW (4 REQUIRED) NOTE: HOLES IN SILL SILL PLATE PLATE MOVED TO (4 REQUIRED) BACK SIDE DETAIL A TURN SILL PLATE END TO END DETAIL C (4 REQUIRED) DETAIL B SCREW (4 REQUIRED) NOTE: SCREW AND NUT BEND TABS DOWN ORIENTATION NOW REVERSED.
  • Page 38 Figure 42 Figure 41 CAULK ALL SIDES INSIDE AND OUTSIDE CAULK ALL SIDES CABINET INSIDE AND OUTSIDE CABINET SHIM TO FILL IN VOID AT THE SHIM TO FILL IN VOID AT THE TOP AND SIDES WITH WOOD TOP AND SIDES WITH WOOD AS REQUIRED.
  • Page 39 STEP 6. Slide the cabinet into the hole far enough to allow the NOTE: DO NOT LEVEL the cabinet from front to back. Make sure there guide-channel of the sill plate to contact the inside wall surface is approximately 3/8” to 1/2” slope (1/8 to 1/4 bubble on the level) (Figure 21).

  • Page 40: Final Inspection & Start-Up Checklist

    Figure 46 Noises All air conditioners make some noise. Friedrich units are designed to operate as quietly as possible. An air conditioner mounted in a wall is quieter than one mounted in a window. It is important to ensure that the chassis seal gasket (Item 13) is properly installed (refer to installation instructions).

  • Page 41: Routine Maintenance

    Window Installation Kits (Standard in Kühl Models without Heat) KWIKS – For all ES and YS models. KWIKM – For all EM and YM models. KWIKL – For all EL and YL models. See www.friedrich.com for additional accessories for your unit.

  • Page 42: Troubleshooting Tips

    Troubleshooting Tips &203/$,17 &$86( 62/87,21 The unit is turned to the off position, Turn the unit to the on position and raise or lower RU WKH WKHUPRVWDW LV VDWLV¿HG temperature setting (as appropriate) to call for operation. 7KH /&', SRZHU FRUG LV XQSOXJJHG Plug into a properly grounded 3 prong receptacle.
  • Page 43 &203/$,17 &$86( 62/87,21 The outside temperature is below 'R QRW WU\ WR RSHUDWH \RXU DLU FRQGLWLRQHU LQ WKH ƒ) ƒ &  cooling mode when the outside temperature is EHORZ ƒ) ƒ &  7KH XQLW ZLOO QRW FRRO SURSHUO\ and the unit may be damaged. The digital control is set to fan Since the fan does not circulate the room air cycling mode.

  • Page 44: Addendum 1

    Addendum 1 Schedule Table with Energy Saving Values Residen al Schedule Period Tues Thur Start Time 600 Start Time 600 Start Time 600 Start Time 600 Start Time 600 Start Time 600 Start Time System Mode Cool System Mode Cool System Mode Cool System Mode Cool System Mode Cool System Mode...

  • Page 45: Warranty

    Friedrich Air Conditioning Company 10001 Reunion Place, Suite 500 San Antonio, TX 78216 1-800-541-6645 www.friedrich.com ROOM AIR CONDITIONERS LIMITED WARRANTY FIRST YEAR ANY PART: ,I DQ\ SDUW VXSSOLHG E\ )5,('5,&+ IDLOV EHFDXVH RI D GHIHFW LQ ZRUNPDQVKLS RU PDWHULDO ZLWKLQ WZHOYH PRQWKV IURP GDWH RI RULJLQDO SXUFKDVH )5,('5,&+ ZLOO UHSDLU WKH SURGXFW DW QR FKDUJH SURYLGHG URRP DLU FRQGLWLRQHU LV UHDVRQDEO\ DFFHVVLEOH IRU VHUYLFH $Q\ DGGLWLRQDO ODERU...
  • Page 46 Service Questions: Contact Friedrich at (800) 541-6645 Sales Inquiries: Contact Sylvane at (800) 934-9194 or visit sylvane.com Friedrich Air Conditioning Co. 10001 Reunion Place, Suite 50 ‡ San Antonio, Texas 78216 1-800-541-66450 www.friedrich.com Printed in the U.S.A. 93001000_00...
