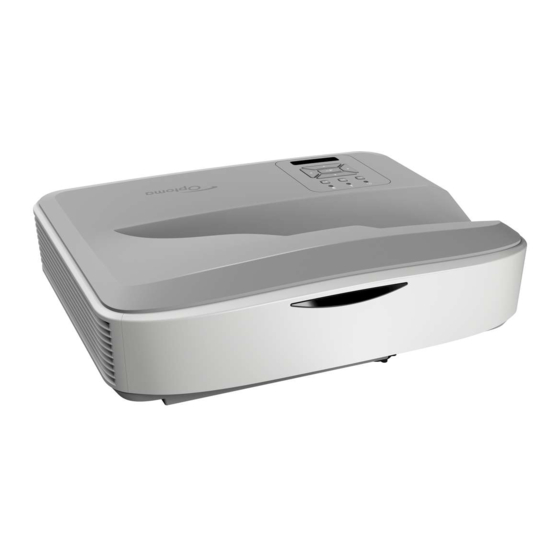

Optoma ZU500USTe User Manual

Hide thumbs Also See for ZU500USTe:
Table of Contents

Advertisement

Quick Links

DLP® Projector
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZU500USTe and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Optoma ZU500USTe

Summary of Contents for Optoma ZU500USTe

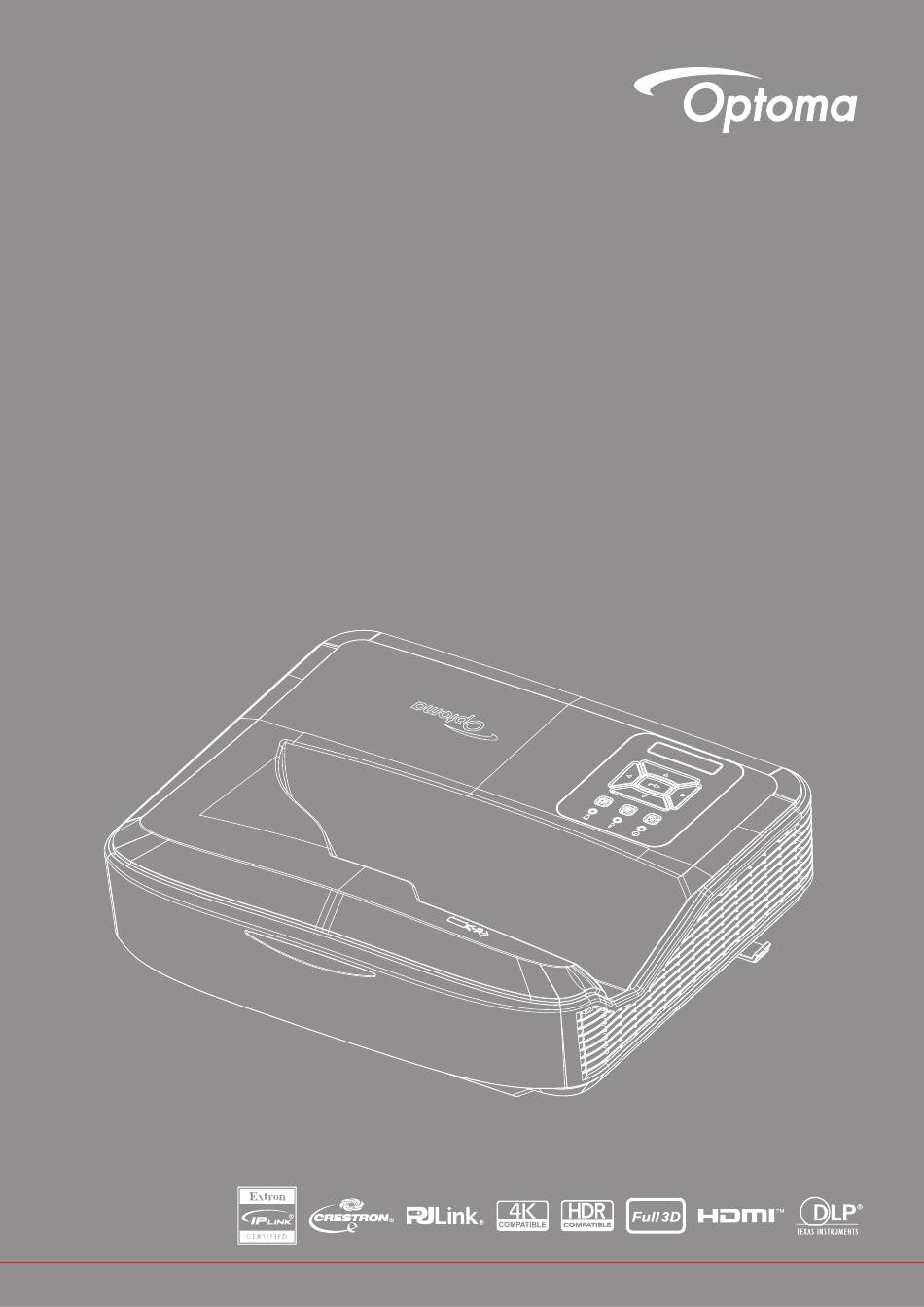

  • Page 1 DLP® Projector User’s Manual...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS SAFETY ....................4 Important Safety Instructions ......................4 Cleaning the Lens.........................5 Laser Radiation Safety Information ....................6 Copyright ............................7 Disclaimer .............................7 Trademark Recognition ........................7 FCC ..............................7 Declaration of Conformity for EU countries ..................8 WEEE ............................8 INTRODUCTION ..................9 Product Overview ........................10 Connections..........................
  • Page 3 Audio audio settings menu ......................41 Audio mute menu ........................41 Audio mic menu ..........................41 Audio volume menu ........................41 Audio mic volume menu ......................41 Setup projection menu........................42 Setup screen type menu......................42 Setup filter settings menu ......................42 Setup power settings menu ......................43 Setup security menu ........................43 Setup HDMI link settings menu ....................44 Setup test pattern menu ......................44 Setup remote settings menu.......................44...

  • Page 4: Safety

    SAFETY SAFETY The lightning flash with arrow head within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient agnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the pres- ence of important operating and maintenance (servicing) instructions in the literature accom- panying the appliance.

  • Page 5: Cleaning The Lens

    SAFETY • Do not block the light coming out of the projector lens when in operation. The light will heat the object and cause it to melt, burn or start a fire. • Please do not open or disassemble the projector as this may cause electric shock. •...

  • Page 6: Laser Radiation Safety Information

    SAFETY Laser Radiation Safety Information • This product is classified as CLASS 1 LASER PRODUCT - RISK GROUP 2 of IEC60825-1 : 2014 and also complies with 21 CFR 1040.10 and 1040.11 as a Risk Group 2, LIP (Laser Illuminated Projector) as defined in IEC 62471:5:Ed.

  • Page 7: Copyright

    SAFETY Copyright This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author. © Copyright 2021 Disclaimer The information in this document is subject to change without notice.

  • Page 8: Declaration Of Conformity For Eu Countries

    SAFETY This Equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

  • Page 9: Introduction

    The remote control is shipped with the battery. • *For European warranty Information, please visit www.optoma.com. Please scan the OPAM warranty QR code or visit the following URL: https://www.optoma.com/us/support/warranty-and-return-policy/ Please scan the Asia-Pacific QR code or visit the following URL: https://www.optoma.com/support/ download English...

  • Page 10: Product Overview

    INTRODUCTION Product Overview Note: • Do not block projector intake and exhaust vents. • When operating the projector in an enclosed space, allow at least 30 cm clearance around the intake and exhaust vents. Item Item 1. Control Panel 6. Speaker 2.

  • Page 11: Connections

    INTRODUCTION Connections Item Item 1. VGA In / YPbPr Connector 7. Power Socket 2. HDMI 2 Connector 8. Kensington Lock Port 3. HDMI 1 Connector 9. MIC In Connector 4. USB Type B Connector 10. Audio In Connector 5. RJ45 Connector 11.
  • Page 12 INTRODUCTION Control Panel Item Item 1. Power LED 6. Input 2. Enter 7. Four Directional Select Keys 3. Temp LED 8. Power/Standby Button 4. Lamp LED 9. IR Receiver 5. Menu English...

  • Page 13: Remote Control

    INTRODUCTION Remote Control Geometric Correction PIP/PBP Mode AV Mute ENTER Info. Source Re-Sync Volume D Zoom Menu Format Freeze Remote S-Video HDMI1 HDMI2 HDBaseT Video HDMI3 YPbPr DisplayPort Item Item 1. Power on 18. YPbPr (not supported) 2. Geometric Correction 19.

  • Page 14: Setup And Installation

    SETUP AND INSTALLATION Installing the projector Your projector is designed to be installed in one of four possible positions. Your room layout or personal preference will dictate which installation location you select. Take into consideration the size and position of your screen, the location of a suitable power outlet, as well as the location and distance between the projector and the rest of your equipment.
  • Page 15 SETUP AND INSTALLATION Projector installation notice Minimum 100mm Minimum 300mm Minimum 300mm (3.94 inches) (11.81 inches) (11.81 inches) Minimum 100mm (3.94 inches) Minimum 100mm Minimum 100mm (3.94 inches) (3.94 inches) • Ensure that the intake vents do not recycle hot air from the exhaust vent. •...

  • Page 16: Connecting Sources To The Projector

    SETUP AND INSTALLATION Connecting sources to the projector Item Item 1. VGA Cable 7. Microphone Cable 2. HDMI Dongle 8. Audio In Cable 3. USB A to B Cable 9. Audio Out Cable 4. RJ45 Cable 10. RS232 Cable 5. USB A to A Cable 11.

  • Page 17: Adjusting The Projector Image

    SETUP AND INSTALLATION Adjusting the projector image Image height The projector is equipped with elevator feet for adjusting the image height. Locate the adjustable foot you wish to adjust on the underside of the projector. Rotate the adjustable foot clockwise or counterclockwise to raise or lower the projector. Tilt-Adjustment Feet Tilt-Adjustment Ring English...

  • Page 18: Adjusting The Projector Focus

    SETUP AND INSTALLATION Adjusting the projector focus To focus the image, slide the focus switch to left/right until the image is clear. • The projector will focus at distances (Lens to wall) from 1.499 to 1.913 feet (0.457 to 0.583 meters). Focus Switch English...

  • Page 19: Remote Setup

    SETUP AND INSTALLATION Remote setup Installing / replacing the batteries Two AAA size batteries are supplied for the remote control. Remove the battery cover on the back of the remote control. Insert AAA batteries in the battery compartment as illustrated. Replace back cover on remote control.
  • Page 20 SETUP AND INSTALLATION Effective range Infra-Red (IR) remote control sensor is located on the top side of the projector. Ensure to hold the remote control at an angle within 60 degrees perpendicular to the projector’s IR remote control sensor to function correctly. The distance between the remote control and the sensor should not be longer than 12 meters (39.4 feet).

  • Page 21: Using The Projector

    USING THE PROJECTOR Powering on / off the projector Geometric Correction PIP/PBP Mode AV Mute ENTER Info. Source Re-Sync Volume D Zoom Menu Format Freeze Remote S-Video HDMI1 HDMI2 HDBaseT Video HDMI3 Powering on Securely connect the power lead and signal/source cable. When connected, the Power LED will turn red. Turn on the projector by pressing the button on the projector keypad or remote control.

  • Page 22: Selecting An Input Source

    USING THE PROJECTOR Selecting an input source Turn on the connected source that you want to display on the screen, such as computer, notebook, video player, etc. The projector will automatically detect the source. If multiple sources are connected, press the button on the projector keypad or the Source button on the remote control to select the desired input.

  • Page 23: Menu Navigation And Features

    USING THE PROJECTOR Menu navigation and features The projector has multilingual on-screen display menus that allow you to make image adjustments and change a variety of settings. The projector will automatically detect the source. button on the projector keypad or the Menu button on the remote To open the OSD menu, press the control.

  • Page 24: Osd Menu Tree

    USING THE PROJECTOR OSD Menu tree Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu Presentation Bright Cinema Display Mode sRGB DICOM SIM. Blending User Off [Default] Blackboard Light Yellow Wall Color Light Green Light Blue Pink Display Image Settings...
  • Page 25 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu Film Video Graphics Standard(2.2) Gamma BrilliantColor 1 ~ 10 Warm Standard Color Temperature Cool Cold R [Default] Color Display Image Settings Color Matching -50 ~ 50 [Default: 0] Saturation -50 ~ 50 [Default: 0]...
  • Page 26 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu Auto [Default] RGB(0~255) Color Space Color Settings [HDMI Input] RGB(16~235) Automatic On [Default] -50 ~ 50 (depends on signal) Frequency [Default: 0] 0~31 (depends on signal) Signal Phase [Default: 0]...
  • Page 27 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu Edge Mask 0 ~ 10 [Default: 0] Zoom -5 ~ 25 [Default: 0] Digital Lens -30 ~ 30 [Default: 0] Shift -100 ~ 100 [Default: 0] Image Shift -100 ~ 100 [Default: 0] Display...
  • Page 28 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu Off [Default] Signal Power Auto Power 0 ~ 180 (1 min increments) Off (min.) [Default: 20] 0 ~ 990 (30 min increments) Power Settings [Default: 0] Sleep Timer (min.)
  • Page 29 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu Test Pattern Brightness Contrast Sleep Timer Color Matching Color Temp Gamma Projection Digital Lens Shift [Default] Test Pattern Brightness [Default] Contrast Sleep Timer Remote Settings Color Matching...
  • Page 30 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu English [Default] Deutsch Français Italiano Español Português Polski Nederlands Svenska Norsk/Dansk Suomi ελληνικά 繁體中文 Language 簡体中文 日本語 한국어 Русский Magyar Čeština Setup Options ไทย...
  • Page 31 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu HDMI1 Input Source HDMI2 Default [Default] HDMI1 Custom Default [Default] Input Name HDMI2 Custom Default [Default] Custom Off [Default] High Altitude Off [Default] Display Mode Lock Off [Default]...
  • Page 32 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu Network (read only) Status MAC Address (read only) Off [Default] DHCP IP Address 192.168.0.100 [Default] Subnet Mask 255.255.255.0 [Default] Gateway 192.168.0.254 [Default] 192.168.0.51 [Default] Reset Crestron On [Default]...
  • Page 33 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu Regulatory Serial Number Source Resolution 00x00 Refresh Rate 0.00Hz Display Mode Power Mode (Standby) Light Source Hours Remote Code 00~99 Info Remote 00~99 Code(Active) Network Status IP Address...

  • Page 34: Display Image Settings Menu

    USING THE PROJECTOR Display menu Display image settings menu Display Mode There are many factory presets optimized for various types of images. • Presentation: This mode is suitable for showing in front of public in connection to the PC. • Bright: Maximum brightness from PC input.
  • Page 35 USING THE PROJECTOR Contrast The contrast controls the degree of difference between the lightest and darkest parts of the picture. Sharpness Adjust the sharpness of the image. Color Adjust a video image from black and white to fully saturated color. Tint Adjust the color balance of red and green.

  • Page 36: Display Enhanced Gaming Menu

    USING THE PROJECTOR Signal Adjust the signal options. • Automatic: Configure automatically the signal (the frequency and phase items are grayed out). If automatic is disabled, the frequency and phase items will appear for tuning and saving the settings. • Frequency: Change the display data frequency to match the frequency of your computer’s graphic card.

  • Page 37: Display 3D Menu

    USING THE PROJECTOR Display 3D menu Note: • This projector is a 3D ready projector with DLP-Link 3D solution. • Please make sure your 3D glasses are use for DLP-Link 3D before enjoy your video. • This projector supports frame sequential (page-flip) 3D via HDMI1/HDMI2/VGA ports. •...

  • Page 38: Display Aspect Ratio Menu

    USING THE PROJECTOR Display aspect ratio menu Aspect Ratio Select the aspect ratio of the displayed image between the following options: • 4:3: This format is for 4:3 input sources. • 16:9: This format is for 16:9 input sources, like HDTV and DVD enhanced for Wide screen TV. •...
  • Page 39 USING THE PROJECTOR WUXGA auto mapping rule (screen type 16:10): Input resolution Auto/Scale Auto H-resolution V-resolution 1920 1200 1600 1200 1600 1200 1024 1600 1200 1280 1024 1600 1200 1400 1050 1600 1200 1600 1200 1600 1200 1280 1920 1080 Wide Laptop 1280 1920...

  • Page 40: Display Edge Mask Menu

    USING THE PROJECTOR 1280 1920 1080 HDTV 1920 1080 1920 1080 Display edge mask menu Edge Mask Use this function to remove the video encoding noise on the edge of video source. Display zoom menu Zoom Use to reduce or magnify an image on the projection screen. Display digital lens shift menu Digital Lens Shift Digital lens shift is only available under screen type 16:9.

  • Page 41: Audio Audio Settings Menu

    USING THE PROJECTOR Audio menu Audio audio settings menu Audio Settings Select the audio output device. Auto: When the external speaker is properly connected, the sound will come out from the speaker. Other- • wise, the sound will come out from the internal speaker. •...

  • Page 42: Setup Projection Menu

    USING THE PROJECTOR Setup menu Setup projection menu Projection Select the preferred projection between front, rear, ceiling-top, and rear-top. Setup screen type menu Screen Type Choose the screen type from 16:9 and 16:10. Setup filter settings menu Filter Usage Hours Display the filter time.

  • Page 43: Setup Power Settings Menu

    USING THE PROJECTOR Setup power settings menu Direct Power On Choose “On” to activate Direct Power mode. The projector will automatically power on when AC power is supplied, without pressing the “Power” key on the projector keypad or on the remote control. Signal Power On Choose “On”...

  • Page 44: Setup Hdmi Link Settings Menu

    USING THE PROJECTOR Setup HDMI link settings menu Note: • When you connect HDMI CEC-compatible devices to the projector with HDMI cables, you can control them on the same power on or power off status using the HDMI Link control feature in the projector’s OSD. This lets one device or multiple devices in a group power on or power off via HDMI Link Feature in a typical con- figuration, your DVD player may be connected to the projector through an amplifier or home theater system.

  • Page 45: Setup Projector Id Menu

    USING THE PROJECTOR F1/F2/F3 Assign the default function for F1, F2, or F3 between Test Pattern, Brightness, Contrast, Sleep Timer, Color Matching, Color Temp, Gamma, Projection, or Digital Lens Shift. Setup projector ID menu Projector ID ID definition can be set up by menu (range 0-99), and allow user control an individual projector by using RS232 command.
  • Page 46 Click the “Browse” button and select logo file (only support “PNG” file format). The recommended resolution of logo should not exceed the default logo resolution (For example ZU500USTe, maximum resolution is 1920x1200). The purpose is that keeping the quality of the image. If not, the logo may be blurred.

  • Page 47: Setup Reset Osd Menu

    USING THE PROJECTOR Setup reset OSD menu Reset OSD Return the factory default settings for OSD menu settings. Reset to Default Return the factory default settings for all settings. Network menu Network LAN menu Network Status Display the network connection status (read-only). MAC Address Display the MAC address (read-only).

  • Page 48: Network Control Menu

    USING THE PROJECTOR Making a direct connection from your computer to the projector* Turn “Off” the DHCP option on the projector. Configure the IP address, Subnet Mask, Gateway, and DNS on projector (“Network > LAN”). Open Network and Sharing Center page on your computer, and assign the identical network param- eters to your computer as set on projector.

  • Page 49: Setup Network Control Settings Menu

    USING THE PROJECTOR Setup network control settings menu LAN_RJ45 function For simplicity and ease of operation, the projector provides diverse networking and remote management features. The LAN / RJ45 function of the projector through a network, such as remotely manage: Power On / Off, brightness, and contrast settings.
  • Page 50 USING THE PROJECTOR LAN RJ45 Connect an RJ45 cable to RJ45 ports on the projector and the computer. On the computer, select Start > Settings > Network & Internet. Right-click on the Local Area Connection, and select Property. In the Properties window, select the General tab, and select Internet Protocol (TCP / IP). English...
  • Page 51 USING THE PROJECTOR Click “Properties”. Type in the IP address and Subnet mask, then press “OK”. Press the “Menu” button on the projector. Open on projector Network > LAN. Enter the following connection parameters: – DHCP: Off – IP Address: 192.168.0.100 –...
  • Page 52 USING THE PROJECTOR The projector is setup for remote management. The LAN / RJ45 function displays as follows: Because “Browsers” no longer support Adobe Flash player, please download and install the “Download the Flash Player projector” application from Adobe link: https://www.adobe.com/support/flashplayer/debug_down- loads.html.
  • Page 53 USING THE PROJECTOR Contact IT helpdesk RS232 by Telnet Function There is alternative RS232 command control way, in projector so called “RS232 by TELNET” for LAN / RJ45 interface. Quick Start-Guide for “RS232 by Telnet” • Check and get the IP address on OSD of the projector. •...

  • Page 54: Info Menu

    USING THE PROJECTOR – Limitation 2 for Telnet-Control: there is less than 26 bytes for one complete RS232 command for Telnet-Control. – Limitation 3 for Telnet-Control: Minimum delay for next RS232 command must be more than 200 (ms). Note: Please refer to RS232 command protocol list on page 70. Info menu Info menu View the projector information as listed below:...

  • Page 55: Additional Information

    ADDITIONAL INFORMATION Compatible resolutions Digital Digital (HDMI 1_2.0) B0 / Established B0 / Standard B0 / Detail Timing B1 / Video Mode B1 / Detail Timing Timing Timing 640 x 480 @ 60Hz 640 x 480 @ 120Hz WUXGA: 640 x 480p @ 60Hz 4:3 3840 x 2160 @ 60Hz 640 x 480 @ 67Hz 800 x 600 @ 120Hz...
  • Page 56 ADDITIONAL INFORMATION Digital (HDMI 2_2.0) B0 / Established B0 / Standard B0 / Detail Timing B1 / Video Mode B1 / Detail Timing Timing Timing 640 x 480 @ 60Hz 640 x 480 @ 120Hz 1080p: 1920x1080 640 x 480p @ 60Hz 4:3 3840 x 2160 @ 60Hz 640 x 480 @ 67Hz 800 x 600 @ 120Hz...
  • Page 57 ADDITIONAL INFORMATION Digital (HDMI 1_1.4) B0 / Established B0 / Standard B0 / Detail Timing B1 / Video Mode B1 / Detail Timing Timing Timing 640 x 480 @ 60Hz 640 x 480 @ 120Hz WUXGA: 640 x 480p @ 60Hz 4:3 1280 x 720 @ 60Hz 640 x 480 @ 67Hz 800 x 600 @ 120Hz...
  • Page 58 ADDITIONAL INFORMATION Digital (HDMI 2_1.4) B0 / Established B0 / Standard B0 / Detail Timing B1 / Video Mode B1 / Detail Timing Timing Timing 640 x 480 @ 60Hz 640 x 480 @ 120Hz 1080p: 1920x1080 640 x 480p @ 60Hz 4:3 1280 x 720 @ 60Hz 640 x 480 @ 67Hz 800 x 600 @ 120Hz...
  • Page 59 If 3D input is 1080p@24Hz, the DMD should replay with integral multiple with 3D mode. • Support NVIDIA 3DTV Play if there is no patent fee from Optoma. • 1080i@25Hz and 720p@50Hz will run in 100Hz; 1080p@24Hz will run in 144Hz; other 3D timing will run in 120Hz.

  • Page 60: Rs232 Port Setting And Signals Connection

    ADDITIONAL INFORMATION RS232 Port Setting and Signals Connection RS232 Port Setting Items Method Communication Method Asynchronous Communication Bits Per Seconds 9600 Data Bits 8 bits Parity None Stop Bits Flow Control None RS232 Signals Connection Computer COM Port Porjector COM Port (D-Sub 9-pin conner) (D-Sub 9-pin conner) Note:...

  • Page 61: Adjusting Projection Image Size (Diagonal)

    ADDITIONAL INFORMATION Adjusting Projection Image Size (Diagonal) • Projection Image Size from 132” to 155” (3.353 to 3.937 meters) Image center M4 screws holes Screen Floor WUXGA (16:10) Wall mount installation measurement chart Distance Distance Distance from Distance from from top surface of from top Diagonal...
  • Page 62 ADDITIONAL INFORMATION Screen Image center WUXGA (16:10) Table mount installation measurement chart Distance from Distance from surface of bottom of diagonal image diagonal image Image width Image height Trow distance whiteboard image to top size(S) in inch size(S) in mm (W) in mm (H) in mm in mm...

  • Page 63: Projector Dimensions And Ceiling Mount Installation

    Projector dimensions and ceiling mount installation To prevent damage to your projector, please use the Optoma ceiling mount. If you wish to use a third party ceiling mount kit, please ensure the screws used to attach a mount to the projector meet the following specifications: •...

  • Page 64: Ir Remote Codes

    ADDITIONAL INFORMATION IR remote codes Geometric Correction PIP/PBP Mode AV Mute ENTER Info. Source Re-Sync Volume D Zoom Menu Format Freeze Remote S-Video HDMI1 HDMI2 HDBaseT Video HDMI3 YPbPr DisplayPort Key code Printing-key BYTE1 BYTE2 BYTE3 BYTE4 Repeat definition customer 0 customer 1 data 0 data 1...
  • Page 65 ADDITIONAL INFORMATION Key code Printing-key BYTE1 BYTE2 BYTE3 BYTE4 Repeat definition customer 0 customer 1 data 0 data 1 Laser Laser Source Source #BYTE3 #BYTE3 Re-Sync Re-Sync #BYTE3 Volume + #BYTE3 Volume Volume - #BYTE3 D Zoom + #BYTE3 D Zoom D Zoom - #BYTE3 Menu...

  • Page 66: Troubleshooting

    ADDITIONAL INFORMATION Troubleshooting If you experience a problem with your projector, please refer to the following information. If a problem persists, please contact your local reseller or service center. Image problems No image appears on-screen • Ensure all the cables and power connections are correctly and securely connected as described in the “Installation”...
  • Page 67 ADDITIONAL INFORMATION Other problems The projector stops responding to all controls • If possible, turn off the projector, then unplug the power cord and wait at least 20 seconds before reconnect- ing power. Remote control problems If the remote control does not work •...

  • Page 68: Warning Indicators

    ADDITIONAL INFORMATION Warning indicators When the warning indicators (see below) light up or flash, the projector will automatically shutdown: • “Lamp” LED indicator is lit red and if “Power” indicator flashes red. • “Temp” LED indicator is lit red and if “Power” indicator flashes red. This indicates the projector has over- heated.

  • Page 69: Specifications

    ADDITIONAL INFORMATION Specifications Description Optical Maximum resolution WUXGA Throw ratio 0.253 Zoom / focus adjustment Fixed zoom and manual focus Image size (diagonal) 133.5” ~ 154.1” Projection distance 457mm ~ 583mm Electrical Description • HDMI 2.0 (x2) • VGA In Inputs •...

  • Page 70: Rs232 Protocol Function List

    ADDITIONAL INFORMATION RS232 protocol function list Baud Rate 9600 Data Bits 8 Parity None Stop Bits 1 Flow Control None UART16550 FIFO Disable Note: There is a <CR> after all ASCII commands. 0D is the HEX code for <CR> in ASCII code. English...
  • Page 71 ADDITIONAL INFORMATION Write Command Read Command Command Command Main Menu Level 1 Level 2 Level 3 Level 4 Level 5 n value space space CMD Value Pass Para. [None] ~XX123 Presentation ~XX20 ~XX123 Bright ~XX20 ~XX123 Cinema ~XX20 ~XX123 ~XX20 ~XX123 Display Mode ~XX20...
  • Page 72 ADDITIONAL INFORMATION Write Command Read Command Command Command Main Menu Level 1 Level 2 Level 3 Level 4 Level 5 n value space space CMD Value Pass Para. ~XX230 3D Mode ~XX230 ~XX230 3D Tech DLP-Link ~XX230 ~XX400 3D-2D ~XX400 ~XX400 Auto ~XX405...
  • Page 73 ADDITIONAL INFORMATION Write Command Read Command Command Command Main Menu Level 1 Level 2 Level 3 Level 4 Level 5 n value space space CMD Value Pass Para. Projector ID 00~99 ~XX79 00~99 English ~XX70 Deutsch ~XX70 Francais ~XX70 Italiano ~XX70 Espanol ~XX70...
  • Page 74 Freeze Freeze ~XX04 Standby Mode Warming up System Auto Send Cooling Down Out of Range Over Temperature Model Name Optoma WUXGA ~XX151 nnnnnnn (Software Software Version ~XX122 Version) LAN FW version ~XX357 nnnnnnn (LAN FW version) Fan 1 Speed 0000~9999...
  • Page 75 ADDITIONAL INFORMATION Note: Some commands are not supported, it depends on models. English...
  • Page 76 ADDITIONAL INFORMATION Optoma global offices For service or support, please contact your local office. Scandinavia Optoma Technology, Inc. Lerpeveien 25 +47 32 98 89 90 47697 Westinghouse Drive. 888-289-6786 3040 Drammen +47 32 98 89 99 Fremont, Ca 94539 510-897-8601 Norway info@optoma.no...
  • Page 77 www.optoma.com...
