Questo manuale d'istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per
Optoma ZU1050
o
cerca il tuo prodotto tra le
migliori offerte di Videoproiezione
DLP
Projector
®
User manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZU1050 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Optoma ZU1050

Summary of Contents for Optoma ZU1050

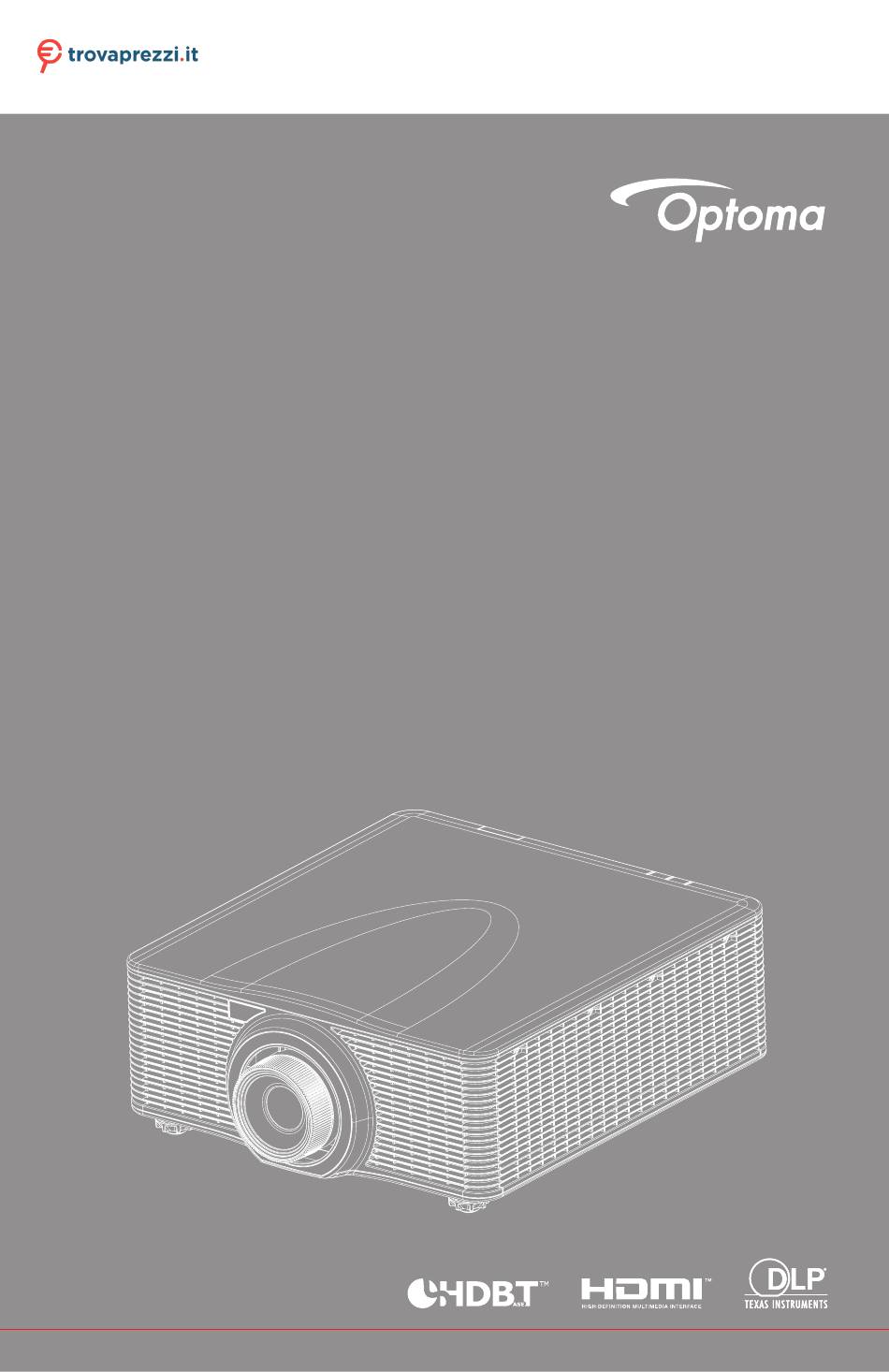

  • Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Optoma ZU1050 cerca il tuo prodotto tra le migliori offerte di Videoproiezione Projector ® User manual...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS SAFETY ....................4 Important Safety Instruction....................... 4 Laser Safety Cautions ....................... 5 Copyright ........................... 6 Disclaimer ..........................6 Trademark Recognition ......................6 FCC ............................6 Declaration of Conformity for EU countries ................7 WEEE ............................7 INTRODUCTION .................. 8 Package Overview........................
  • Page 3 ADDITIONAL INFORMATION ............53 Compatible resolutions ......................53 Image size and projection distance ..................58 IR remote codes ........................60 Troubleshooting ........................63 Warning indicators ........................64 Specifications ........................... 66 Optoma global offices ....................... 67 English...

  • Page 4: Safety

    ‡ Do not attempt to service the unit yourself. Opening or removing covers may expose you to dangerous voltages or other hazards. Please call Optoma before you send the unit for repair. ‡ See projector enclosure for safety related markings.

  • Page 5: Laser Safety Cautions

    ‡ Only use attachments/accessories specified by the manufacturer. ‡ Do not look into straight into the projector lens during operation. The bright light may harm your eyes. ‡ This projector will detect the life of the lamp itself. ‡ When switching the projector off, please ensure the cooling cycle has been completed before disconnecting power.

  • Page 6: Copyright

    Copyright This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author. © Copyright 2017 Disclaimer The information in this document is subject to change without notice.

  • Page 7: Declaration Of Conformity For Eu Countries

    Notice: Canadian users This Class A digital apparatus complies with Canadian ICES-003. Remarque à l’intention des utilisateurs canadiens Cet appareil numerique de la classe A est conforme a la norme NMB-003 du Canada. Declaration of Conformity for EU countries ‡ EMC Directive 2014/30/EU ‡...

  • Page 8: Introduction

    INTRODUCTION Package Overview Carefully unpack and verify that you have the items listed below under standard accessories. Some of the items under optional accessories may not be available depending on the model, specification and your region of purchase. Please check with your place of purchase. Some accessories may vary from region to region. The warranty card is only supplied in some specific regions.

  • Page 9: Product Overview

    INTRODUCTION Product Overview Note: Do not block projector inlet or outlet air vents. (*) optional accessory varies depending on model, specification, and region. Item Item Front IR Receiver Power Switch Lens Power Socket Top IR Receiver 10. Kensington Lock Port LED Status Indicators 11.

  • Page 10: Connections

    INTRODUCTION Connections Item Item 3D SYNC OUT Connector HDMI IN Connector 3G-SDI Connector 10. SERVICE Connector HDBaseT Connector 11. USB Connector (support 5V, 0.5A) for wireless dongle DVI-D Connector 12. 3D SYNC IN Connector LAN Connector 13. Wired Remote Connector VGA IN Connector 14.

  • Page 11: Keypad

    INTRODUCTION Keypad Item Item Power Enter Menu Zoom Exit Focus Input Lens Four Directional Select Keys English...

  • Page 12: Remote Control

    INTRODUCTION Remote control Mode Info Auto Input Enter Menu Exit Gamma Bright Cont. Lens H Focus Lens V Keystone H Zoom Keystone V Shutter Hot Key Pattern (AV Mute) Item Item Item Power On Bright Mode Number Keys 10. Lens H Input Info 11.

  • Page 13: Setup And Installation

    SETUP AND INSTALLATION Installing the projection lens Before setting up the projector, install the projection lens on the projector. IMPORTANTT! ‡ Make sure the projector is properly turned off before installing the lens. ‡ During lens installation, do not adjust the lens shift, zoom, or focus either using the remote control or the projector keypad.
  • Page 14 SETUP AND INSTALLATION Install the lens onto the projector. Rotate the lens clockwise to lock the lens in place. Firmly install the lens ring onto the lens. Note: ‡ The lens rings are compatible with the following lens modules: A01 (0.95-1.22), A06 (1.22-1.52), A03 (1.53-2.92), and A13 (2.90-5.50).

  • Page 15: Adjusting The Projector Position

    SETUP AND INSTALLATION Adjusting the projector position When you select a position for the projector, consider the size and shape of your screen, the location of your power outlets, and the distance between the projector and the rest of your equipment. Follow these general guidelines: ‡...

  • Page 16: Connecting Sources To The Projector

    SETUP AND INSTALLATION Connecting sources to the projector Item Item BNC Cable 10. HDMI Dongle DVI-D Cable 11. USB Power Cable VGA-In Cable 12. Wireless (Wi-Fi) Dongle RCA Component Cable 13. Power Cord VGA-Out Cable 14. 3D Sync In Cable HDMI Cable 15.

  • Page 17: Adjusting The Projector Image

    SETUP AND INSTALLATION Adjusting the projector image Image height The projector is equipped with elevator feet for adjusting the image height. Locate the adjustable foot you wish to adjust on the underside of the projector. Rotate the adjustable foot clockwise or counterclockwise to raise or lower the projector. Tilt-Adjustment Feet Tilt-Adjustment Ring Warning:...

  • Page 18: Remote Setup

    SETUP AND INSTALLATION Remote setup Installing / replacing the batteries Two AAA size batteries are supplied for the remote control. Remove the battery cover on the back of the remote control. Insert AAA batteries in the battery compartment as illustrated. Replace back cover on remote control.
  • Page 19 SETUP AND INSTALLATION Approx. ±30° Approx. ±30° English...

  • Page 20: Using The Projector

    USING THE PROJECTOR Powering on / off the projector Mode Info Auto Input Enter Menu Exit Powering on Gamma Bright Cont. Securely connect the power lead and signal/source cable. Set the Power switch to the “ON” position. Lens H Focus Turn on the projector by pressing “...

  • Page 21: Selecting An Input Source

    USING THE PROJECTOR Selecting an input source Turn on the connected source that you want to display on the screen, such as computer, notebook, video player, etc. The projector will automatically detect the source. If multiple sources are connected, press the Input button on the projector keypad or the remote control to select the desired input.

  • Page 22: Menu Navigation And Features

    USING THE PROJECTOR Menu navigation and features The projector has multilingual on-screen display menus that allow you to make image adjustments and change a variety of settings. The projector will automatically detect the source. To open the OSD menu, press "Menu" on the remote control or the projector keypad. When OSD is displayed, use pqtu to navigate within the menu and adjust a setting up or down.

  • Page 23: Osd Menu Tree

    USING THE PROJECTOR OSD Menu tree Main Menu Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Presentation Movie Bright REC709 DICOM SIM Display Mode By source set 2D High Speed Blending User Save to User Brightness 0 ~ 100 By source set Contrast...
  • Page 24 USING THE PROJECTOR Main Menu Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Green S. 0 – 254 Green G. 0 – 254 Blue H. 0 – 254 Blue S. 0 – 254 Blue G. 0 – 254 Cyan H.
  • Page 25 USING THE PROJECTOR Main Menu Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Extreme Black DISPLAY Advanced Dynamic Black Auto Aspect Ratio 16:9 Auto 16:10 Native Overscan Zoom By source set Crop H Digital Zoom 50% ~ 400% V Digital Zoom 50% ~ 400% H Digital Shift...
  • Page 26 USING THE PROJECTOR Main Menu Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Swap Small Size Medium Large Large PBP, Main Left PBP, Main Top OUTPUT PIP/PBP Settings PBP, Main Right PBP, Main Bottom Layout PBP, Main Left PIP-Bottom Right PIP-Bottom Left PIP-Top Left...
  • Page 27 USING THE PROJECTOR Main Menu Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Lens Calibration Apply Position Lens Settings Lens Memory Save Current Position Lens Lock Menu Transparency 0 ~ 9 Menu Settings Information Hide Keypad LED Settings Password Security...
  • Page 28 USING THE PROJECTOR Main Menu Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values RS232 Serial Port Path RS232 HDBaseT Projector ID 0 - 99 Front SETUP Communications IR Control HDBaseT Auto Source High Altitude Grid Green Blue Test Pattern Yellow...
  • Page 29 USING THE PROJECTOR Main Menu Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values 2 Hours Power Settings Sleep Timer 4 Hours 6 Hours Constant Power Constant Light Source Mode Constant Power Luminance Light Source Eco Mode Settings Constant Power 0 - 99...

  • Page 30: Display Menu

    USING THE PROJECTOR DISPLAY menu DISPLAY DISPLAY Display Mode Presentation Brightness Contrast OUTPUT Sharpness Color Tint SETUP Phase Frequency Horz Position OPTION Vert Position DISPLAY (1/2) DISPLAY DISPLAY Color Matching Advanced OUTPUT SETUP OPTION DISPLAY (2/2) Display Mode There are many factory presets optimized for various types of images. ‡...
  • Page 31 USING THE PROJECTOR User: Memorize user’s settings. Any adjustment in this mode will be automatically saved. ‡ ‡ Save to User: Save the current display mode settings in user profile. Brightness Adjust the brightness of the image. Contrast The contrast controls the degree of difference between the lightest and darkest parts of the picture. Sharpness Adjust the sharpness of the image.
  • Page 32 USING THE PROJECTOR 3D menu DISPLAY 3D Format Auto 3D Invert DLP Link OUTPUT 3D Sync Out To Emitter Frame Delay SETUP OPTION 3D Format Set 3D format. Supports Mandatory 3D formats and frame sequential 3D@120Hz. ‡ Auto: When a 3D identification signal is detected, the 3D format is selected automatically. ‡...
  • Page 33 USING THE PROJECTOR Color Matching menu Color Matching DISPLAY HSG Enable Color Enhancement 1 Auto Test Pattern Red H. OUTPUT Red S. Red G. Green H. SETUP Green S. Green G. Blue H. OPTION Blue S. HSG Enable The HSG adjustment function has 4 Color Enhancement settings: Off, Color Enhancement 1, Color Enhancement 2, and User.
  • Page 34 USING THE PROJECTOR Advanced menu Advanced DISPLAY White Peaking Gamma Graphic Color Temperature Cool OUTPUT Color Space Auto RGB Gain/Bias Color Wheel Speed SETUP Film Mode Extreme Black Dynamic Black OPTION White Peaking (Video source only) Increase the brightness of whites that are near 100%. Gamma This allows you to set up gamma curve type.

  • Page 35: Output Menu

    USING THE PROJECTOR Extreme Black Contrast can be increased when a blank (black) image is displayed. Select “On” and the projector will automatically improve contrast or select “Off” to disable this function. Dynamic Black Contrast can be dynamically increased when viewing gray or dark content. Select “On” to let the projector automatically improve contrast or select “Off”...
  • Page 36 USING THE PROJECTOR V Digital Zoom Change the size of projector’s display area vertically. If the display area has been resized by this setting, it can be moved by changing the V Digital Shift setting. H Digital Shift Shift the display area horizontally if its size has been changed by the H Digital Zoom setting. V Digital Shift Shift the display area vertically if its size has been changed by the V Digital Zoom setting.
  • Page 37 USING THE PROJECTOR V Keystone Adjust image distortion vertically and make a squarer image. Vertical keystone is used to correct a keystoned image shape in which the top and bottom are slanted to one of the sides. This is intended when for use with vertically on-axis applications.
  • Page 38 USING THE PROJECTOR PIP/PBP Settings menu PIP/PBP Settings DISPLAY PIP/PBP Function Main Source Sub Source HDMI OUTPUT Swap Size Large Layout PBP, Main Left SETUP OPTION PIP/PBP Function Toggle between displaying two sources at once (Main and PIP/PBP images) or one source only. Main Source From the list of active inputs, select one to be used as the main image.
  • Page 39 USING THE PROJECTOR PIP/PBP layout and size table as described below: PIP/PBP Size PIP/PBP Layout Small Medium Large PBP, Main Left PBP, Main Top PBP, Main Right PBP, Main Bottom PIP-Bottom Right PIP-Bottom Left PIP-Top Left PIP-Top Right English...

  • Page 40: Setup Menu

    USING THE PROJECTOR SETUP menu SETUP DISPLAY Language English Ceiling Mount Auto Rear Projection OUTPUT Lens Settings Menu Settings Keypad LED Settings SETUP Security Communications OPTION Language Choose the multilingual OSD menu. Ceiling Mount Turn the image upside down for ceiling-mounted projection. Rear Projection Reverse the image so you can project from behind a translucent screen.
  • Page 41 USING THE PROJECTOR Focus Adjust focus function on the projected image. Zoom Adjust zoom function on the projected image. Lens Shift Shift the projected image. Lens Calibration Perform calibration and return lens to the center position. Lens Memory Save the current lens position after doing lens shift. Apply lens position to the chosen set of lens memory. The lens memory can be set and saved up to maximum five.
  • Page 42 USING THE PROJECTOR Security menu Security DISPLAY Password Change Password OUTPUT SETUP OPTION Password The Security feature allows you to password protect your projector. Once you enable the Security feature, you must enter the password before you can project an image. Note: The password default value is “12345”.
  • Page 43 USING THE PROJECTOR WLAN Configure the wireless local area network (WLAN) settings. ‡ Enable: Enable/Disable WLAN. ‡ Start IP: Start of IP Address. ‡ End IP: End of IP Address. ‡ Subnet Mask: Assign Network Subnet Mask. ‡ Gateway: Assign Network Default Gateway. ‡...
  • Page 44 USING THE PROJECTOR How to use web browser to control your projector Turn “On” the DHCP option on projector to allow a DHCP server to automatically assign an IP address. Open the web browser in your PC and type in the projector’s IP address (“SETUP: Communications > LAN >...

  • Page 45: Setup Network Control Settings Menu

    USING THE PROJECTOR Setup network control settings menu LAN_RJ45 function For simplicity and ease of operation, the projector provides diverse networking and remote management features. The LAN / RJ45 function of the projector through a network, such as remotely manage: Power On / Off, Brightness and Contrast settings.
  • Page 46 USING THE PROJECTOR LAN RJ45 (For Windows XP) Connect an RJ45 cable to LAN connector on the projector and the PC (laptop). On the PC (Laptop), select Start > Control Panel > Network Connections. Right-click on the Local Area Connection, and select Property. In the Properties window, select the General tab, and select Internet Protocol (TCP / IP).
  • Page 47 USING THE PROJECTOR Click “Properties”. Type in the IP address and Subnet mask, then press “OK”. Press the “Menu” button on the projector. Select SETUP > Communications > LAN. Enter the following connection parameters: ± DHCP: Off ± IP Address: 10.10.10.10 ±...
  • Page 48 USING THE PROJECTOR Main page Information page Tool page Contact IT helpdesk English...
  • Page 49 USING THE PROJECTOR RS232 by Telnet Function There is alternative RS232 command control way, in projector so called “RS232 by TELNET” for LAN / RJ45 interface. Quick Start-Guide for “RS232 by Telnet” ‡ Check and get the IP address on OSD of the projector. ‡...

  • Page 50: Option Menu

    USING THE PROJECTOR OPTION menu OPTION DISPLAY Auto Source High Altitude Test Pattern OUTPUT Grid Pattern Background Color Logo Hot-Key settings Blank Screen SETUP Power Settings Light Source Settings Light Sensor OPTION Information OPTION (1/2) OPTION DISPLAY Factory Reset Service OUTPUT SETUP OPTION...
  • Page 51 USING THE PROJECTOR Power Settings Configure the power settings. Refer to page 51. Light Source Settings Configure the light source settings. Refer to “Light Source Settings menu” on page 52. Light Sensor Set the light sensor calibration option to “Default”, “Auto”, or “Manual”. ‡...
  • Page 52 USING THE PROJECTOR Light Source Settings menu Light Source Settings DISPLAY Light Source Mode Constant Power Constant Power Settings Total Projector Hours OUTPUT SETUP OPTION Light Source Mode Set the light source mode setting. ‡ Constant Power: Set the brightness of the projector by changing the value in Constant Power Settings.

  • Page 53: Additional Information

    ADDITIONAL INFORMATION Compatible resolutions Timing Table Frame rate Signal Type Resolution QD881 HDMI HDBaseT 3G-SDI (Hz) 640x480 DMT0660 — 640x480 DMT0672 — 640x480 DMT0675 — 640x480 DMT0685 — 640x480 66.6 APP0667 — — 720x400 IBM0770H — 800x600 DMT0860 — 800x600 DMT0872 —...
  • Page 54 ADDITIONAL INFORMATION Frame rate Signal Type Resolution QD881 HDMI HDBaseT 3G-SDI (Hz) 1280x1024 CVT1250G — — 1280x1024 DMT1260G — 1280x1024 DMT1275G — 1280x1024 DMT1285G — 1360x768 CVT1350H — — 1360x768 DMT1360H — — 1360x768 CVT1375H — — 1360x768 CVT1385H — —...
  • Page 55 ADDITIONAL INFORMATION Frame rate Signal Type Resolution QD881 HDMI HDBaseT 3G-SDI (Hz) Frame Packing — — — 1080p Frame Packing — — — 720p Frame Packing — — — 720p Side by Side — — — 1080i Mandatory Side by Side —...
  • Page 56 With 352M Payload ID — — — — Note: “RB” means “reduced blanking”. EDID Table OPTOMA WUXGA EDID Table Analog Established Timing: Standard Timing: Detail Timing: 720 x 400 @ 70 Hz 1440 x 900 @ 75 Hz 1920 x 1200 @ 60 Hz...
  • Page 57 ADDITIONAL INFORMATION OPTOMA WUXGA EDID Table Digital 3D Established Timing: Standard Timing: Detail Timing: 720 x 400 @ 70 Hz 1024 x 768 @ 120 Hz 1920 x 1200 @ 60 Hz 720 x 400 @ 88 Hz 1280 x 800 @ 75 Hz...

  • Page 58: Image Size And Projection Distance

    ADDITIONAL INFORMATION Image size and projection distance Platform WUXGA (16:10) 0.67” Ultra Projection Lens Ultra-Long Short Wide Zoom Standard Long Zoom Short Throw Zoom Throw 0.361 Throw Ratio 0.95-1.22 1.22-1.52 1.52-2.92 2.90-5.50 0.75-0.95 (120”) Zoom Ratio 1.28X 1.25X 1.9X 1.9X 1.26X 0.93~ Throw Distance...
  • Page 59 ADDITIONAL INFORMATION Projector dimensions and ceiling mount installation To prevent damage to your projector, please use the Optoma ceiling mount. If you wish to use a third party ceiling mount kit, please ensure the screws used to attach a mount to the projector meet the following specifications: ‡...

  • Page 60: Ir Remote Codes

    ADDITIONAL INFORMATION IR remote codes Mode Info Auto Input Enter Menu Exit Gamma Bright Cont. Lens H Focus Lens V Keystone H Zoom Keystone V Shutter Hot Key Pattern (AV Mute) Address Data Repeat Key Legend Description Position Format Byte 1 Byte 2 Byte 3 Byte 4 Press to turn on the projector.
  • Page 61 ADDITIONAL INFORMATION Address Data Repeat Key Legend Description Position Format Byte 1 Byte 2 Byte 3 Byte 4 Use as numeric keypad number “6”. Use as numeric keypad number “7”. Use as numeric keypad number “8”. Use as numeric keypad number “9”. Info Press to display source image information.
  • Page 62 ADDITIONAL INFORMATION Address Data Repeat Key Legend Description Position Format Byte 1 Byte 2 Byte 3 Byte 4 Press to adjust zoom to achieve a desired Zoom ▲ image size. Press to adjust the horizontal keystone. Keystone Keystone Press to adjust the horizontal keystone. Press to adjust zoom to achieve a desired Zoom ▼...

  • Page 63: Troubleshooting

    ADDITIONAL INFORMATION Troubleshooting If you experience a problem with your projector, please refer to the following information. If a problem persists, please contact your local reseller or service center. Image problems No image appears on-screen ‡ Ensure all the cables and power connections are correctly and securely connected as described in the "Installation"...

  • Page 64: Warning Indicators

    ADDITIONAL INFORMATION The projector stops responding to all controls ‡ If possible, turn off the projector, then unplug the power cord and wait at least 20 seconds before reconnecting power. Remote control problems If the remote control does not work ‡...
  • Page 65 ADDITIONAL INFORMATION ‡ Power off: Powering Off... Press OFF key to Confirm ‡ Light power impact due to high ambient temperature: The light power will be reduced due to the high ambient temperature. ‡ DMD life time impact due to high ambient temperature: Running the projector at high ambient temperature will impact DMD life time.

  • Page 66: Specifications

    ADDITIONAL INFORMATION Specifications Optical Description Resolution WUXGA (1920x1200) Lens Power Zoom/Focus Laser Diode 35W@3A (Normal Mode) Image size (diagonal) 50~300” Projection distance Please refer to “Image size and projection distance” table on page 58 Electrical Description 1 x HDMI (version1.4) (with locking screw) 1 x DVI-D (only support digital signal) 1 x VGA IN (D-Sub 15pin) (Computer In) Inputs...

  • Page 67: Optoma Global Offices

    ADDITIONAL INFORMATION Optoma global offices For service or support, please contact your local office. Japan 3178 Laurelview Ct. 888-289-6786 東京都足立区綾瀬3-25-18 Fremont, CA 94538, USA 510-897-8601 info@os-worldwide.com 株式会社オーエス www.optomausa.com services@optoma.com 0120-380-495 www.os-worldwide.com コンタクトセンター: Canada Taiwan 3178 Laurelview Ct. 888-289-6786 12F., No.213, Sec. 3, Beixin Rd.,...
  • Page 68 www.optoma.com...
