Team C T2 EVO Owner's Manual page 16

Shock Absorber
27
Bag
TU0250-8 Spring
TU0250-8 1mm Washer-Black
TU0250-8 1mm Washer-White
TU0250-8 2.5mm Washer-White
TU0250-8 2.8x1.9 O-ring
TU0250-8 9x1 O-ring
Shock Absorber
28
Bag
TU0250-1/TU0250-2 2.3 E-ring
TU0250-7 Front Piston-Black
TU0250-7 Rear Piston-White
TU0250-7 12x1 O-ring
T02031 5.8 Ball End
T02062 5.8x6 Ball stud
Assemble as many times as specified
x2
All manuals and user guides at all-guides.com

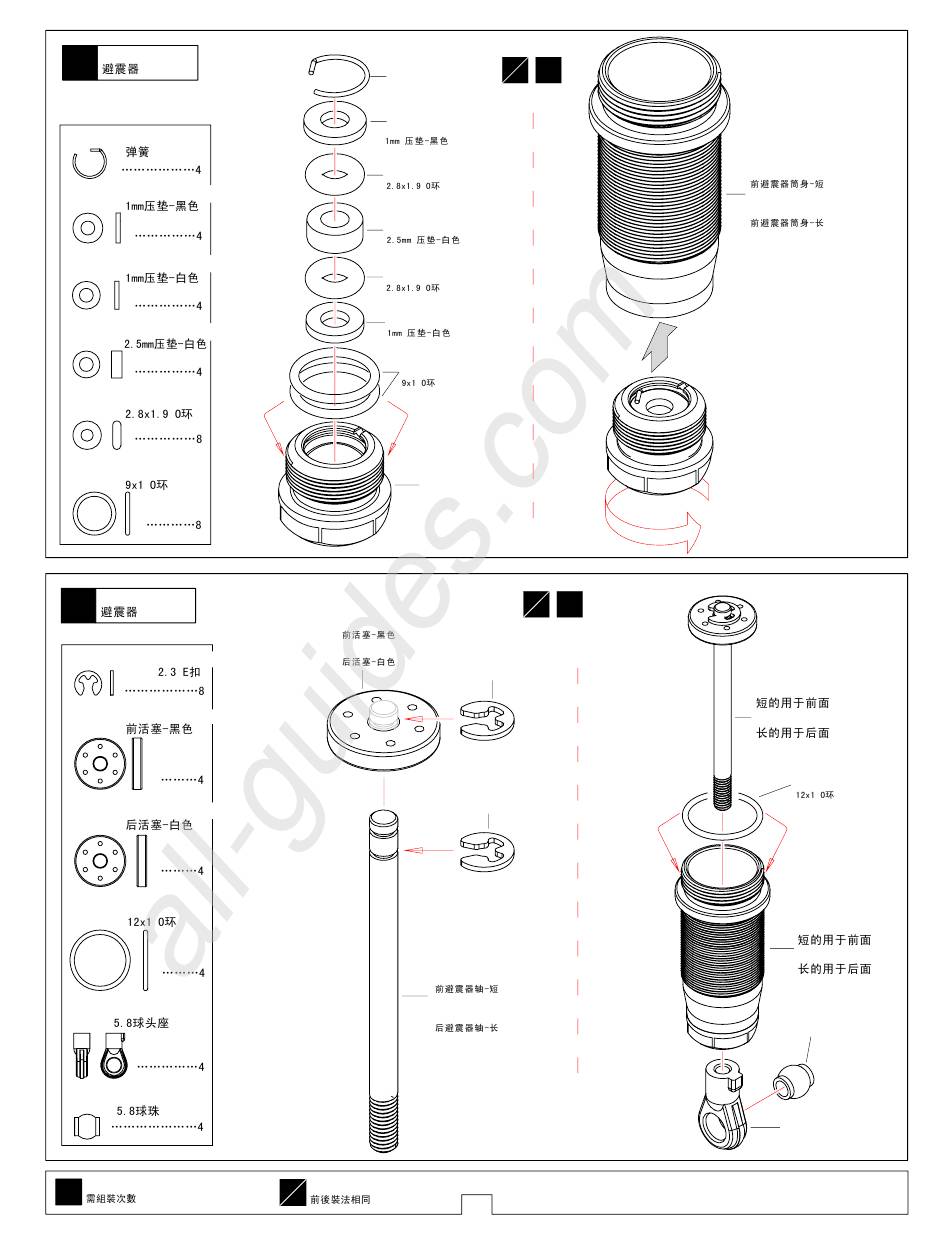

-F
TU0250-8
TU0250-8
1mm Washer-Black
TU0250-8
2.8x1.9 O-ring
TU0250-8
2.5mm Washer-White
TU0250-8
2.8x1.9 O-ring
TU0250-8
1mm Washer-White
TU0250-8
9x1 O-ring
-F
TU0250-7
Front Piston-Black
Rear Piston-White
Assemble front and rear sides the same way
F
R
F
x2
R
TU0250-3
TU0250-4
F
x2
R
TU0250-1
TU0250-2
TU0250-1
TU0250-2
TU0250-1
Front Shock Absorber Shaft-Short
TU0250-2
Rear Shock Absorber Shaft-Long
13
TU0250-3
Front Shock Absorber Body-Short
TU0250-4
Front Shock Absorber Body-Long
Front For Short
Rear For Long
TU0250-8
12x1 O-ring
Front For Short
Rear For Long
T02062
T02031
