WARNING!
The disassembled product
may contain small parts
which pose a choking hazard
to children under 3.
IMPORTANT:
This product may contain sharp points and small parts prior to assembly.
The owner's manual contains safety, assembly, use and maintenance instructions. This product must be assembled by an adult
who has read and understood these instructions. Keep the packaging away from children and dispose of all packaging before use.
For the installer and your children's safety, it is important to fully read and understand the instructions and safety hazards before
commencing the assembly of the product.

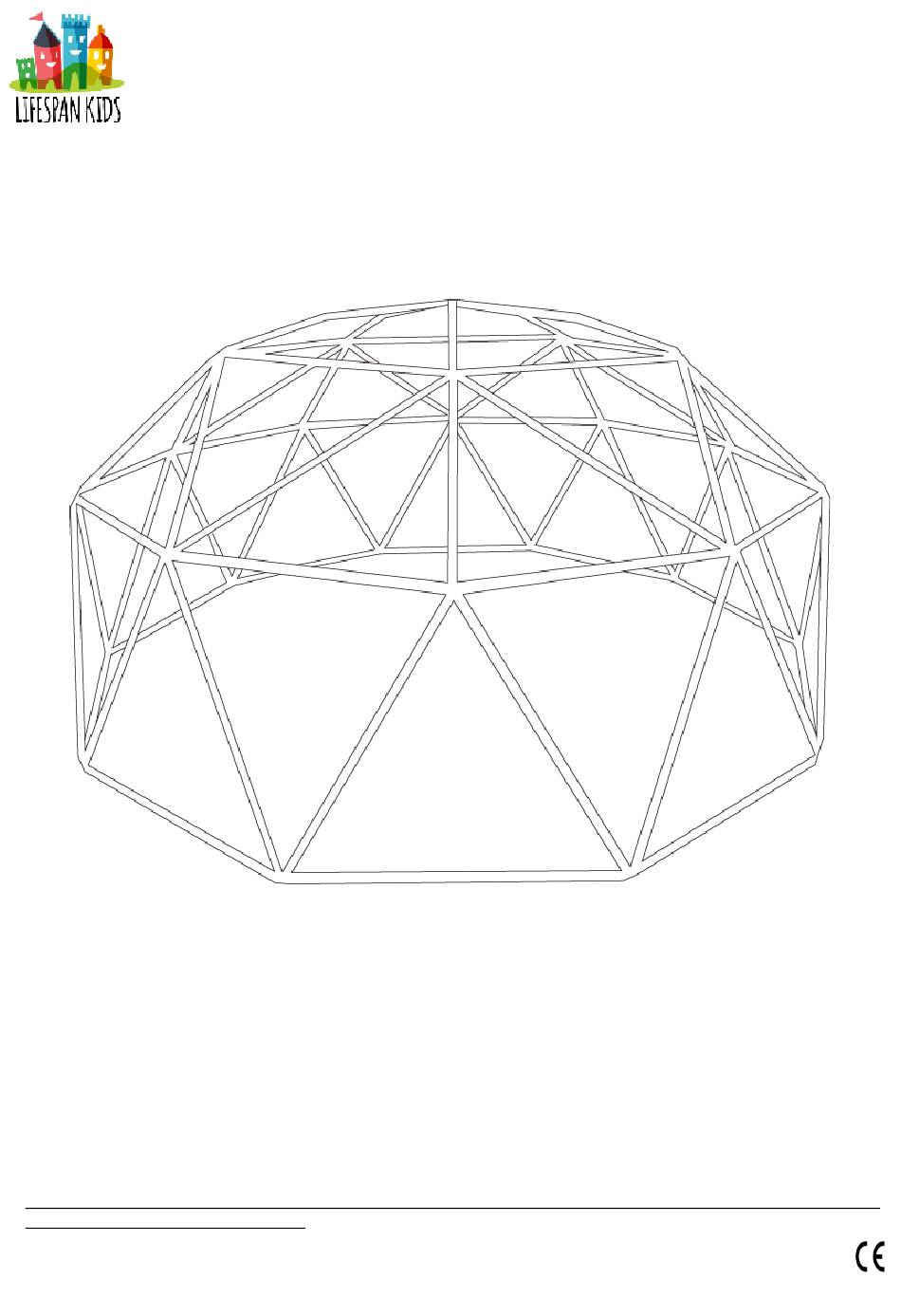

LK48 DOME CLIMBER
OWNER'S MANUAL
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LK48 and is the answer not in the manual?

Questions and answers

Related Manuals for LifeSpan Kids LK48

Summary of Contents for LifeSpan Kids LK48

  • Page 1 LK48 DOME CLIMBER OWNER'S MANUAL WARNING! The disassembled product may contain small parts which pose a choking hazard to children under 3. IMPORTANT: This product may contain sharp points and small parts prior to assembly. The owner’s manual contains safety, assembly, use and maintenance instructions. This product must be assembled by an adult who has read and understood these instructions.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS GENERAL SAFETY INSTRUCTIONS DANGER FOR CHILDREN RISK OF INJURIES PRODUCT DAMAGE ASSEMBLY ADVICE SAFETY INSTRUCTIONS ASSEMBLY INSTRUCTIONS MAINTENANCE CLEANING WARRANTY...

  • Page 3: General Safety Instructions

    1 GENERAL SAFETY Please keep for future reference. This product is intended for indoor and outdoor, domestic use only. 1.1 DANGER FOR CHILDREN WARNING! No eating while using the product • Children do not recognize potential dangers from this product. The product must be stored out of •...
  • Page 4 Before you start with the assembly, read the instructions carefully. • Remove all packaging materials and lay down all parts on an open space. This gives you an • overview and simplifies the assembly procedure. • Check with the parts list that all parts are available. Dispose of the packaging material when the assembly is completed.

  • Page 5: Safety Instructions

    2 SAFETY INSTRUCTIONS • The safety instructions of the product should always be considered and obeyed. • Using the product may result in permanent injury such as paralysis, or even death. Falling off the product may lead to injuries, particularly to the back, neck or head. No clothes with hooks or lose parts should be worn or carried during product usage in order to avoid •...
  • Page 6 Do not use the product under influence of alcohol or drugs (incl. medicines). • Do not use the product as a jumping platform for other articles. • Consumer Information Sheet for Playground Surfacing Materials The US Consumer Product Safety Commission (CPSC) estimates that about 100 000 playground equipment-related injuries resulting from falls to the ground surface are treated annually in US hospital emergency rooms.

  • Page 7: Assembly Instructions

    3 ASSEMBLY INSTRUCTIONS ATTENTION: DON’T tighten the bolts before complete assembly. 2 Adults required for assembly. Parts Requirement: Part No./Desc. QTY. 20pcs 10pcs 10pcs 5pcs 5pcs 10pcs Bolt M8x20mm 10pcs Bolt M8X25mm 5pcs Bolt M8X28mm 11pcs Plastic Cap 26pcs Anchor 5pcs STEP 1: 1.
  • Page 8 STEP 3: 1. Put each 2 sets together and add 2 of part A, use bolt (M8x20mm) to fasten it together. Repeat this action to connect other 4 places. STEP 4: 1. Start from 1 of edges, use the bolt (M8x28mm) to fasten 6 parts (2A +2B+2C) together as FIG-5.
  • Page 9 STEP 5: 1. Use the bolt (M8x25mm) to fasten 5 parts (2A +1E+2C) together as FIG-6. STEP 6: 1. Then repeat action of Step 4 & 5 to build rest of parts.
  • Page 10 STEP 7: 1. Use the bolt (M8x28mm) to fasten 6 parts (2B +1E+2D+1F) together as FIG-8. STEP 8: 1. Repeat action of Step 7 to build rest of parts as FIG-9.
  • Page 11 STEP 9: 1. Use the bolt (M8x25mm) to build top 5 parts together as FIG-10. STEP 10: 1. Double-check all of connection points and tighten all of bolts properly, then put on the protection nut caps on all nuts.

  • Page 12: Maintenance

    STEP 11: 1. Install the 4 anchor kits as shown in FIG-12. Secure safely into the ground to prevent tripping hazard. 4 MAINTENANCE We recommend regular maintenance to be conducted at the beginning of each season as well as at regular intervals during the usage session for your play equipment to ensure all main parts/fixings are tightly secured, well-oiled and intact to avoid failure, injury or hazards.

  • Page 13: Cleaning

    5 CLEANING Do not use any abrasive cleansers for the cleaning. Use a soft, damp cloth to eliminate dirt and dust. 6 WARRANTY AUSTRALIAN CONSUMER LAW Many of our products come with a guarantee or warranty from the manufacturer. In addition, they come with guarantees that cannot be excluded under the Australian Consumer law.
