symbol
yellow.
2. Connect the wire coloured blue to the
terminal either marked with the letter
"N" or coloured black.
3. Connect the wire coloured brown to
the terminal either marked with the
"L" or coloured red.
4. Check that no cut, or stray strands of
wire is present and the cord clamp
(E) is secure over the outer sheath.
Make sure the electricity supply
voltage is the same as that indicated
on the appliance rating plate.
5. Switch on the appliance.
The appliance is supplied with a 13 amp
fuse (B). In the event of having to
change the fuse in the plug supplied, a
13 amp ASTA approved (BS 1362) fuse
must be used.
WARNING!
A cut off plug inserted into a
13 amp socket is a serious
safety (shock) hazard.
Ensure that it is disposed of
safely.
3.4 Ventilation requirements
The airflow behind the appliance must be
sufficient.

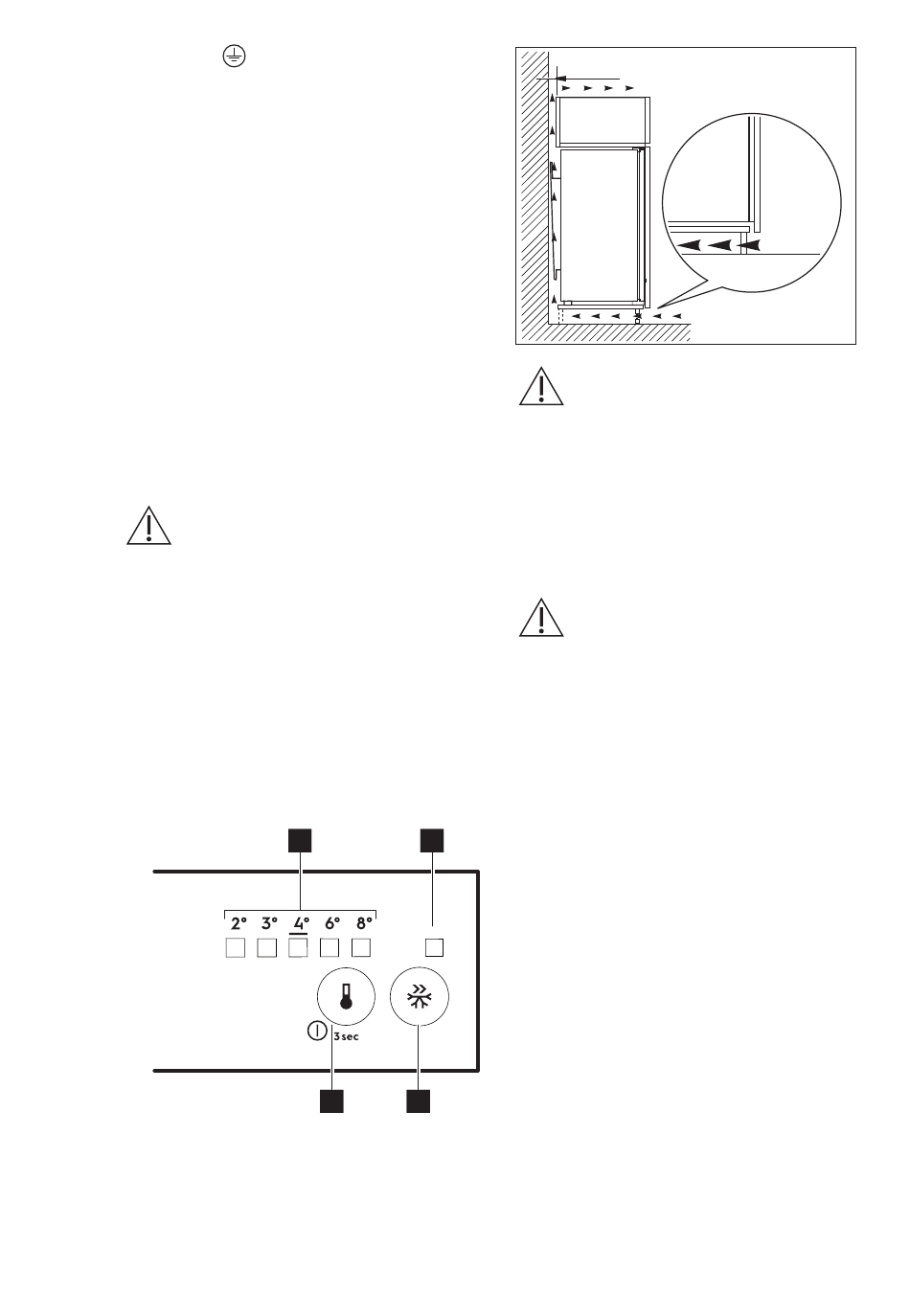

4. CONTROL PANEL

1. Temperature indicator LED
2. Frostmatic indicator
3. Frostmatic button
4. Temperature regulator
ON/OFF button
or coloured green and
1 1
4 4 3 3
5 cm
CAUTION!
Refer to the installation
instructions for the
installation.
3.5 Door reversibility
Please refer to the separate document
with instructions on installation and door
reversal.
CAUTION!
At every stage of reversing
the door protect the floor
from scratching with a
durable material.
4.1 Switching on
2 2
1. Insert the plug into the wall socket.
2. Touch the temperature regulator
button if all LED indicators are off.
4.2 Switching off
Keep touching the temperature regulator
button for 3 seconds.
All indicators light off.
4.3 Temperature regulation
To operate the appliance, touch the
temperature regulator until the LED
corresponding to the required
temperature lights up. Selection is
progressive, varying from 2°C to 8°C.
Recommended setting is 4°C.
1. Touch temperature regulator.
ENGLISH
min.
200 cm 2
min.
200 cm 2
