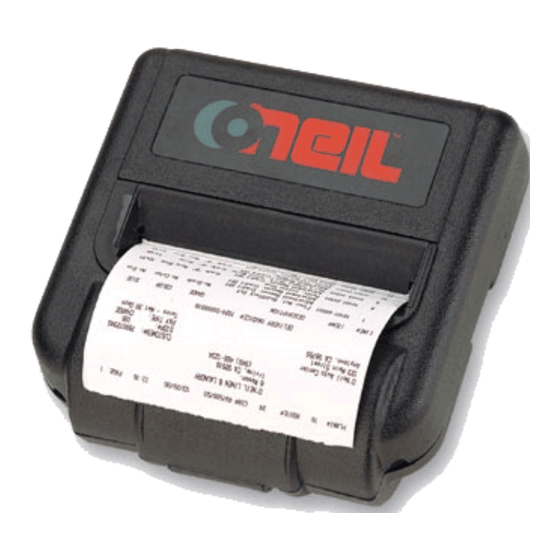

Datamax MICROFLASH 4t User Manual

Hide thumbs Also See for MICROFLASH 4t:
Table of Contents

Advertisement

Quick Links

Download this manual
QUESTIONS?
Ask the experts at POSMicro.com.
1.800.241.6264
Live Chat Now
support@POSMicro.com
Monday - Friday 6 AM to 5 PM Pacific Time
1.800.241.6264
Datamax-O´Neil
MicroFlash 4te Manual
More information available at
BULk DISCOUNTS
FREE SHIPPING*
*Free ground shipping to the continental USa on orders over $100.
For Help Call
POSMicro.com
SE HaBLa
ESpañOL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MICROFLASH 4t and is the answer not in the manual?

Questions and answers

Related Manuals for Datamax MICROFLASH 4t

Summary of Contents for Datamax MICROFLASH 4t

  • Page 1 For Help Call 1.800.241.6264 Datamax-O´Neil MicroFlash 4te Manual More information available at POSMicro.com QUESTIONS? BULk DISCOUNTS SE HaBLa Ask the experts at POSMicro.com. ESpañOL FREE SHIPPING* 1.800.241.6264 Live Chat Now support@POSMicro.com Monday - Friday 6 AM to 5 PM Pacific Time...
  • Page 2 110210-006 MICROFLASH 4TE User Guide...

  • Page 4: Table Of Contents

    TABLE OF CONTENTS microFlash 4Te Printer: Closed View ....1 microFlash 4Te Printer: Open View ....1 microFlash 4Te Printer: Side View..... 2 Using Batteries: General Guidelines ....3 Installing and/or Replacing Batteries ....3 Charging the Battery .......... 4 Determining Battery Condition ......

  • Page 5: Microflash 4Te Printer: Closed View

    MICROFLASH 4TE PRINTER USER'S GUIDE microFlash 4Te Printer: Closed View LEDs Radio LED Power LED Charge/Battery LED Figure 2 Figure 1 microFlash 4Te Printer: Open View Radio LED Charge LED Power LED Battery Retaining Clip Battery Media Function Retaining Clip Button Battery/ Print Head...

  • Page 6: Microflash 4Te Printer: Side View

    MICROFLASH 4TE PRINTER USER'S GUIDE microFlash 4Te Printer: Side View Power Port 2 Figure 4...

  • Page 7: Using Batteries: General Guidelines

    MICROFLASH 4TE PRINTER USER'S GUIDE Using Batteries: General Guidelines If your printer came with batteries already installed,  remove the red, battery isolator labels. If your printer did not come with batteries installed, see Installing and/or Replacing Batteries on this page If you are storing your printer for a long period of ...

  • Page 8: Charging The Battery

    Wait 30 seconds, then replug the power cord. If your printer is installed with external charge capabilities, you can also charge your printer using Datamax-O’Neil approved accessories. For more Using External Charging on page 15 information, see Determining Battery Condition To determine the battery’s condition, print a self-test.
  • Page 9 Caution: The operating temperature of this portable printer is 50° C. However, the operating temperature when used with a Datamax-O’Neil power supply for charging the portable printer is limited to 40° C. Please charge the printer in a suitable location that meets this temperature requirement.

  • Page 10: Installing Paper

    MICROFLASH 4TE PRINTER USER'S GUIDE Installing Paper 1. Insert a roll of paper with the end of the roll exiting from the bottom of the paper cavity (Figure 8). 2. Open the print head by raising the gray, print head release lever until it is fully open.
  • Page 11 MICROFLASH 4TE PRINTER USER'S GUIDE 5. Place the roll of paper in the paper cavity so it is sitting tightly. Remove any excess paper by grasping the top corner of the paper and pulling it away. 6. Lower the gray, print head release lever (Figure 12). 7.

  • Page 12: Printing A Self-Test

    Configuring the Printer The printer has many configurable settings. To configure or upgrade firmware, download the Windows configuration program at www.datamax-oneil.com. Using Printer Data Cables 1. Select the appropriate cable for use with the host and/or device you are using.

  • Page 13: Using 802.11B/Bluetooth

    MICROFLASH 4TE PRINTER USER'S GUIDE Using 802.11b/Bluetooth Note: The following information applies to printers with 802.11b/Bluetooth capabilities. Radio printers are configured with default factory settings. To determine your printer's radio configuration, print a self-test. (For more information, Printing a Self-Test on page 8 .) If you have multiple printers, configure them specifically for use in your environment.

  • Page 14: Audio Indicators And Leds

    MICROFLASH 4TE PRINTER USER'S GUIDE Audio Indicators and LEDs Audio Indicators Beep(s) Description Action Printer wakes up. None. Out of paper. Install paper. Low battery. Charge battery. 1 short RF power is on (when blue, None. RF power button is pressed and power was turned off).

  • Page 15: Radio Led

    MICROFLASH 4TE PRINTER USER'S GUIDE Radio LED Radio LED* Blue flash - slow* RF power is on and printer is asleep. Blue flash - fast* RF power is on and printer is awake. Blue flash to solid The printer is out of range of the access point and/or infrastructure and it is not correctly configured for the radio it recognizes.

  • Page 16: Charge Led

    MICROFLASH 4TE PRINTER USER'S GUIDE Charge LED Charge LED Description Action Red (solid): • If A/C power is not plugged • Charge the The battery in, the printer will soon turn battery. has less than off. 5% power. • If A/C power is plugged in, •...

  • Page 17: Power Led

    MICROFLASH 4TE PRINTER USER'S GUIDE Orange, red, or When the AC adapter is None. green flash - plugged into the printer's fast power port, the battery status LED flashes orange, red, or green (depending on the battery status LED color that is initially displayed) to indicate the AC adapter is plugged in.

  • Page 18: Using A Cardreader

    MICROFLASH 4TE PRINTER USER'S GUIDE Using a CardReader Note: he following information applies to printers installed with the CardReader option. CardReader CardReader Slot Figure 15 General Guidelines To wake up the CardReader, insert a card into the  CardReader slot. One short beep indicates the CardReader/printer is awake.

  • Page 19: Using External Charging

    MICROFLASH 4TE PRINTER USER'S GUIDE Using External Charging Note: he following information applies to printers installed with external charge capabilities. (2) Charging contact points Figure 16...

  • Page 20: Overview

    Warning: Use of any product not approved by Datamax-O’Neil for use with their printers could cause damage to the batteries and/or printer and will void the warranty. Failure to observe the instructions and/or warnings specified in the documentation may result in damage to your printer.
  • Page 21 MICROFLASH 4TE PRINTER USER'S GUIDE Agency Approvals FCC Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 22 Copyright This manual and any examples contained herein are provided “as is” and are subject to change without notice. Datamax-O’Neil makes no warranty of any kind with regard to this manual, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.

  • Page 23: Supplies

    Quality supplies are key to obtaining optimal image quality and print performance. Quality supplies are also the key to extending the life of the printer. Datamax- O’Neil strongly recommends using Datamax-O’Neil Certified Supplies only.
  • Page 25 COPYRIGHT © 2010, DATAMAX-O’NEIL...
