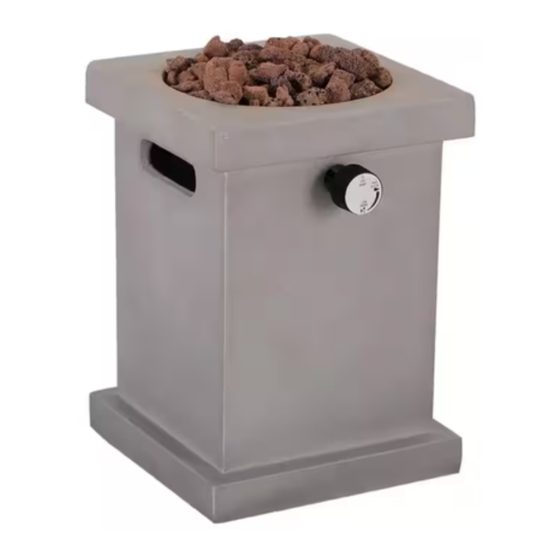

USE AND CARE GUIDE
E02GS037
MODEL#: F180056-A1
ANS Z21.97 CSA 2.41-2017
Outdoor Decorative Gas Appliances
Questions, problems, missing parts? Before returning to the store,
please contact our Customer Service
service@alphamarts.com
THANK YOU
We appreciate the trust and con dence you have placed in PHI VILLA through the purchase of our product. We strive to continually create quality
products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing PHI VILLA!
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for PHI VILLA E02GS037
Summary of Contents for PHI VILLA E02GS037
- Page 1 THANK YOU We appreciate the trust and con dence you have placed in PHI VILLA through the purchase of our product. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
-
Page 2: Table Of Contents
Table of Contents 8-10 Table of Contents Operation Instructions Warnings & Important Safety Information Care and Maintenance Package Contents Warranty Assembly instructions Maximum inlet supply pressure: 13 inch w.c. (3.24 kPa) Minimum inlet supply pressure: 8 inch w.c. (1.99 kPa) WARNING: For Outdoor Use Only. - Page 3 IMPORTANT SAFETY INFORMATION 1. This appliance is for outdoor use only, and should NOT be used in a building, garage or any other enclosed area. 2. DO NOT operate, light or use this appliance within ten feet (3.05 m) of walls, structures or buildings. 3.
- Page 4 IMPORTANT SAFETY INFORMATION j. A re causing serious injury or damage to property may occur if the above is not followed exactly. 16. Your outdoor repit has been checked at all factory connections for leaks. Recheck all connections as described in the “Operating Instructions”...
- Page 5 47. Use only the regulator assembly provided. Use only the replacement regulator assembly speci ed by Use only the burner provided. Use only the replacement burner speci ed by PHI VILLA. 48. Use only PHI VILLA factory-authorized parts. The use of any part that is not factory authorized can be dangerous and will void your warranty.
-
Page 6: Package Contents
PACKAGE CONTENTS PART DESCRIPTION QUANTITY Fire pit body Lava rock (1.1 lbs) 1 bag ASSEMBLY INSTRUCTIONS 1. Carefully unpack all parts from the box, compare parts with package content listed above, make sure all parts are present before beginning assembly of product. If any part is missing or damaged, do not attempt to assemble the product. Contact customer service for replacement parts. - Page 7 ASSEMBLY INSTRUCTIONS 4. Connecting propane cylinder (See Figure 3) Only cylinders marked “propane” may be used. NOTE: Some 1 lb cylinders may form frost when near empty. ( 1 ). Before connecting, be sure there is no debris caught in the head of the burner or burner or burner ports. ( 2 ).
- Page 8 ASSEMBLY INSTRUCTIONS 6. Place the lava rocks (B) into the re pit body (A). Approx 1.1 lbs of lava rocks are needed (See Figure 5) . NOTE: Leave the pilot box uncovered by lava rocks. CAUTION This re pit is equipped with natural lava rock that may crackle or pop the rst time it is used. Lava rock has been pre-heat treated.
-
Page 9: Operation Instructions
OPERATION INSTRUCTIONS WARNING Failure to inspect this connection or follow these instructions could cause a re or an explosion which can cause death, serious bodily injury or damage to property. Cylinder/Gas line connection 1. Make 2-3 oz. of leak detection solution by mixing one part liquid dishwashing soap with three parts water. 2. - Page 10 OPERATION INSTRUCTIONS 6. Push and turn control panel counterclockwise to “High” position (See Figures 8). 7. Use a match or a lighter to light the re bowl (See Figure 8). Continue to press the control knob for 15 seconds before it is released. 8.
-
Page 11: Care And Maintenance
CARE AND MAINTENANCE CAUTION 1. All cleaning and maintenance should be done when outdoor repit is cool and with the fuel supply disconnected. 2. DO NOT clean any outdoor repit part in a self-cleaning oven. The extreme heat will damage the nish. 3. -
Page 12: Warranty
WARRANTY Firepits Burner, steel re pit bowl, all mechanical parts and ttings to control panel and burner assembly, and all re pit tops that are not cast aluminum are warranted for a period of one (1) year from original date of purchase, against defects in material and or workmanship. Rust is not covered.
