Toto CWT4474047CMFGA MS Installation Manual

RP WASHLET

FEATURES

RP Bowl
• DYNAMAX TORNADO FLUSH
efficiency (1.28GPF/0.9GPF)
• CEFIONTECT ceramic glaze - prevents debris,
®
mold from sticking to ceramic surfaces
• Universal Height
WASHLET+ RX
• Concealed supply connection for seamless
installation
• Gentle aerated, warm water, dual action spray
with adjustable pressure and oscillating pulsating
features
• Adjustable variable temperature for spray, seat, and dryer
• Water PREMIST of bowl before each use
• Automatic air deodorizer
• Convenient slim wireless remote, with illuminated
touch pad
• Auto Flush
Duofit In-Wall Tank
• Dual flushing system, high-efficiency
(1.28 GPF/4.8 LPF & 0.9 GPF/3.4 LPF) Avg. flush 1.1 GPF
• Adjustable 15"-19" mounting height
• Saves up to 9" of floor space compared to standard
floor-mounted toilet
• Supports up to 880lbs
• Commercial 2" x 6" or optional residential
installation with 2" x 4" wall studs with waste
outlet kit

COMPONENTS

• CT447FGT60#01
RP Wall-Hung Toilet
• SW4047AT60#01
WASHLET+ RX
• WT173MA
In-Wall Tank System (1.28 GPF/0.9 GPF)
• YT930#MS
Matte Silver Basic Round Push Plate
Available Options
• YT920#WH - White Matte Basic Square Push Plate
• YT920#MS - Matte Silver Basic Square Push Plate
• YT930#WH - White Matte Basic Round Push Plate
• YT970#SS - Stainless Steel Wall Square Push Plate
• YT980#SS - Stainless Steel Wall Round Push Plate

COLORS/FINISHES

• Standard
#01 Cotton

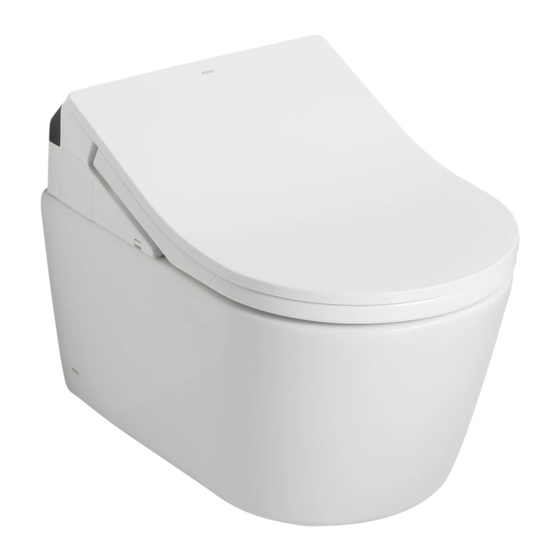

CWT4474047CMFGA#MS
+ RX Wall-Hung Toilet, 1.28GPF & 0.9GPF
®
system, high
®
DYNAMAX
TORNADO FLUSH
CEFIONTECT
Auto Flush

PRODUCT SPECIFICATION

The two-piece high efficiency DYNAMAX TORNADO
FLUSH system toilet shall be 1.0 GPF/3.8 LPF. Toilet shall
have high profile tank, elongated front bowl and chrome
trip lever. Toilet shall be universal height CST447CFG
model shall have CEFIONTECT ceramic glaze. Toilet
shall be TOTO Model CST447CFG______.

CODES/STANDARDS

• Meets and exceeds ASME A112.19.2/CSA B45.1
• Certifications: IAPMO (cUPC), EPA WaterSense, State
of Massachusetts, City of Los Angeles, and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Legislative Compliance: California AB715, California
Green Building Code, City of Los Angeles Water
Efficiency Ordinance
• ADA compliant
IAPMO R&T
Skirted Design
Universal Height
Certified by
