Summary of Contents for Apelson ICONFLEX60F

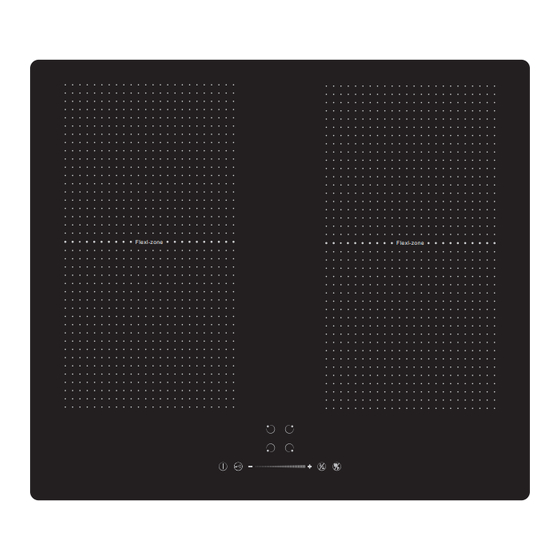

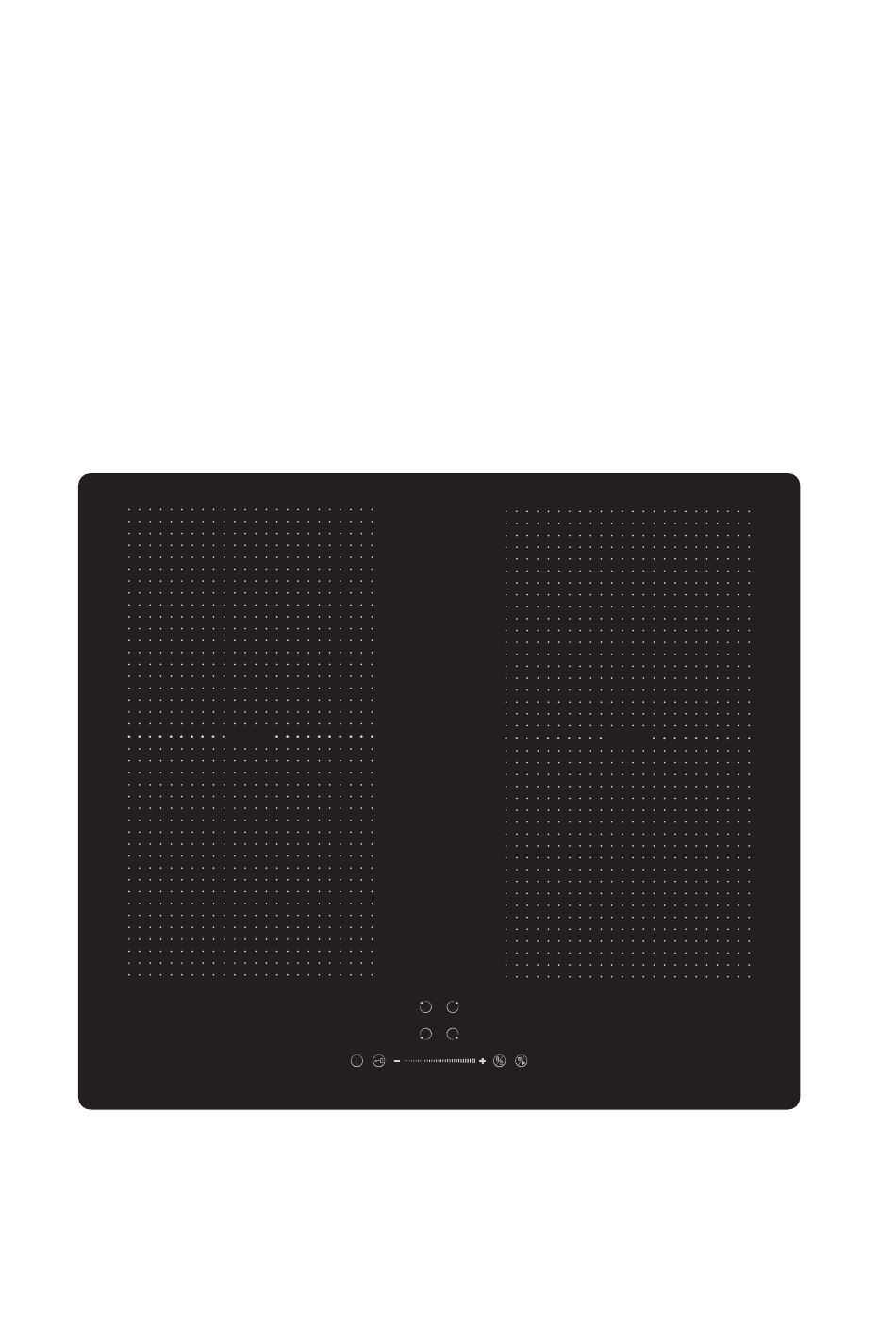

- Page 1 User Manual Instruction Manual Induction Hob MODEL: ICONFLEX60F Flexl-zone Flexl-zone...
-
Page 2: Safety Warnings
Safety Warnings This instructions are for your safety. Please read them thoroughly prior to installation and retain them for future reference. The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction. - Page 3 Danger of fire: Do not store items on the cooking surfaces. CAUTION:The cooking process has to be supervised. A short term cooking process has to be supervised continuously. WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in a fire.
- Page 4 WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g.
-
Page 5: Product Overview
Congratulations on the purchase of your new Induction Hob. We recommend that you spend some time to read this Instruction / Installation Manual in order to fully understand how to install correctly and operate it. For installation, please read the installation section. Read all the safety instructions carefully before use and keep this Instruction / Installation Manual for future reference. - Page 6 User interface Reference Description Zone select key Child lock key ON/OFF key D Power/Timer slider regulating key Boost control key/Keep warm Timer key/Pause key Heating zone Power Max.Power（220-240V~ 50/60Hz） Heating Zone 2000/2800W（Booster） 1500/2000W（Booster） 1500/2000W（Booster） 2000/2800W（Booster） Total Rating Power 7200W...
-
Page 7: A Word On Induction Cooking
A Word on Induction Cooking Induction cooking is a safe, advanced, efficient, and economical cooking technology. It works by electromagnetic vibrations generating heat directly in the pan, rather than indirectly through heating the glass surface. The glass becomes hot only because the pan eventually warms it up. iron pot magnetic circuit ceramic glass plate... -
Page 8: Choosing The Right Cookware
Choosing the right Cookware • Only use cookware with a base suitable for induction cooking. Look for the induction symbol on the packaging or on the bottom of the pan. • You can check whether your cookware is suitable by carrying out a magnet test. -
Page 9: To Start Cooking
Using your Induction To start cooking 1. Touch the ON/OFF key（A） for 3 seconds. After power on, the buzzer beeps once, all displays show “ – “, indicating that the induction hob has entered the state of standby mode. 2. Place a suitable pan on the cooking zone that you wish to use. -
Page 10: When You Have Finished Cooking
When you have finished cooking Touching the relevant zone select key(A) that you wish to switch off. Press the “-”key will decrease the power to “0” level, or press the "+" and "-"at the same time, the power level will decrease to 0 straight away. -
Page 11: Using The Pause Function
Using the Pause Function The hob hav e a handy restart function to pause an d restart the cookin g process if you’ re interrupted. 1.When the hob is on and working, press the pause key and hold for 3 seconds, all burner will stop working, and all LED indicator will show the symbol “=”. -
Page 12: Flexible Area
FLEXIBLE AREA • Thi s are a can b e use d as a singl e zone , accordingl y t o th e cookin g need s anytime. • Flexibl e are a i s mad e of tw o independen t inductors th at can b e controlle d separately . -
Page 13: Over Temperature Protection
1. To activate the flexible area as a single big zone, press the zone selected key at the same time for the left group or press the zone selected at the same time for the right group. 2. The flexible zone indicator &... -
Page 14: Auto Shutdown Protection
go on to standby in 1 minute. The fan will keep cooling down the induction hob for a further 1 minute. Auto Shutdown Protection Auto shut down is a safety protection function for your induction hob. It shut down automatically if ever you forget to turn off your cooking. The default working times for various power levels are shown in the below table: . -
Page 15: Setting The Timer To Turn One Or More Cooking Zones Off
10 minutes. Touching the “-“ and ”+” together, the timer is canceled, and the timer indicator will turn off. When the time is set, it will begin to count down immediately. The display will show the remaining time . 5. Buzzer will bips for 30 seconds and the timer indicator will turn off when the setting time finished. -
Page 16: Technical Specification
The above are the judgment and inspection of common failures. Please do not disassemble the unit by yourself to avoid any dangers and damages to the induction hob and please contact the service department. Technical Specification ICONFLEX60F Cooking Hob Cooking Zones 4 Zones... -
Page 17: Selection Of Installation Equipment
Installation Selection of installation equipment Cut out the work surface according to the sizes shown in the drawing. For the purpose of installation and use, a minimum of 5 cm space shall be preserved around the hole. Be sure the thickness of the work surface is at least 30 mm. Please select heat-resistant work surface material to avoid larger deformation caused by the heat radiation from the hotplate. -
Page 18: Before Locating The Fixing Brackets
A(mm) B(mm) C(mm) 50 mini 20 mini Air intake Air exit 5mm Before you install the hob, make sure that The work surface is square and level, and no structural members interfere with space requirements. The work surface is made of a heat-resistant material. ... - Page 19 packaging). Do not apply force onto the controls protruding from the hob. fig.1 Fig.2 Fig.3 Flexl-zone Flexl-zone...
-
Page 20: Connecting The Hob To The Mains Power Supply
Cautions The induction hotplate must be installed by qualified personnel or technicians. We have professionals at your service. Please never conduct the operation by yourself. The hob will not be installed directly above a dishwasher, fridge, freezer, washing machine or clothes dryer, as the humidity may damage the hob electronics. - Page 21 • If the cable is damaged or to be replaced, the operation must be carried out the by after-sale agent with dedicated tools to avoid any accidents. • If the appliance is being connected directly to the mains an omnipolar circuit-breaker must be installed with a minimum opening of 3mm between contacts.
-
Page 22: Customer Service
Customer Service If your product breaks down. To arrange an in guarantee service call, please contact customer services on the following numbers. UK and N.Ireland T: 0344 800 1128 E: uksupport@apelson.co.uk www.spareszone.co.uk Republic of Ireland (ROI) T: 014475261 E: uksupport@apelson.co.uk... - Page 23 Notes...
- Page 24 Apelson Appliances UK Ltd Unit 3 Normandy Landings Pope Street Castleford WF6 2AG United Kingdom ICONFLEX60F User Handbook V1b...
