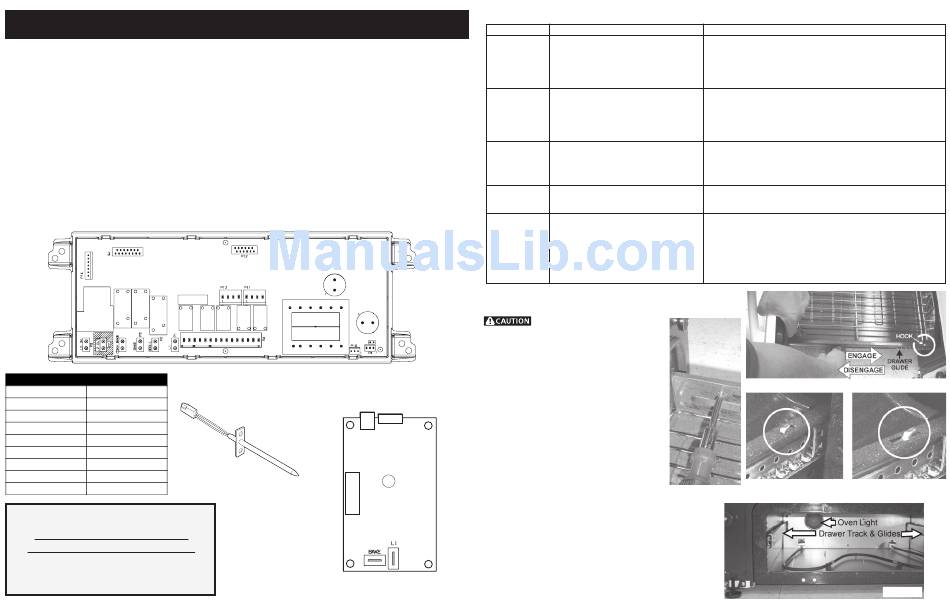

Frigidaire PLEFMZ99ECC Service Data Sheet

Electric ranges with es 510 electronic oven control
Hide thumbs

Advertisement

Quick Links

SERVICE DATA SHEET
Electric Ranges with ES 510 Electronic Oven Control
-
NOTICE
This service data sheet is intended for use by persons
having electrical and mechanical training and a level of knowledge
of these subjects generally considered acceptable in the appliance
repair trade.
The manufacturer cannot be responsible, nor
assume any liability for injury or damage of any kind arising from
the use of this data sheet.
SAFE SERVICING PRACTICES
To avoid the possibility of personal injury and/or property damage, it is
important that safe servicing practices be observed. The following are
examples, but without limitation, of such practices.
1.
Before servicing or moving an appliance remove power cord from
electrical outlet, trip circuit breaker to OFF, or remove fuse.
2.
Never interfere with the proper installation of any safety device.
3.
GROUNDING: The standard color coding for safety ground wires is
GREEN or GREEN WITH YELLOW STRIPES. Ground leads are not
to be used as current carrying conductors.
It is extremely
important that the service technician reestablish all safety
grounds prior to completion of service. Failure to do so will
create a potential safety hazard.
ELECTRONIC OVEN CONTROL (REAR VIEW)
RESISTANCE TEMPERATURE
RTD SCALE
DECTECTOR
Temperature (°F)
Resistance (ohms)
32 ± 1.9
1000 ± 4.0
75 ± 2.5
1091 ± 5.3
250 ± 4.4
1453 ± 8.9
350 ± 5.4
1654 ± 10.8
450 ± 6.9
1852 ± 13.5
550 ± 8.2
2047 ± 15.8
650 ± 9.6
2237 ± 18.5
900 ± 13.6
2697 ± 24.4
IMPORTANT
DO NOT REMOVE THIS BAG
OR DESTROY THE CONTENTS
WIRING DIAGRAMS AND SERVICE
INFORMATION ENCLOSED
REPLACE CONTENTS IN BAG
p/n 316417615 REV A (0410)
4.
Prior to returning the product to service, ensure that:
• All electric connections are correct and secure.
• All electrical leads are properly dressed and secured away from sharp edges,
high-temperature components, and moving parts.
• All uninsulated electrical terminals, connectors, heaters, etc. are adequately
spaced away from all metal parts and panels.
• All safety grounds (both internal and external) are correctly and securely
reassembled.
OVEN CALIBRATION
Set the electronic oven control for normal baking at 350°F. Obtain an average oven
temperature after a minimum of 5 cycles. Press STOP/CLEAR to end bake mode.
TEMPERATURE ADJUSTMENT
1.
Set EOC to bake at 550°F.
2.
Within 5 seconds of setting 550°F, press and hold the bake pad for approximately
15 seconds until a single beep is heard (longer may cause F11 shorted keypad
alarm).
3.
Calibration offset should appear in the display.
4.
Use the slew keys to adjust the oven temperature up or down 35°F in 5°F
increments.
5.
Once the desired (-35° to 35°) offset has been applied, press STOP/CLEAR.
Note: Changing calibration affects normal Bake mode. The adjustments made will not
change the Self-Cleaning cycle temperature.
BAKE-N-WARM™ DOUBLE OVEN
CONTROL BOARD
(REAR VIEW)
ELECTRONIC OVEN CONTROL FAULT CODE DESCRIPTIONS
Fault Code
Likely Failure Condition/Cause
F10
Runaway Temperature.
F11
Shorted Keypad.
F12
Bad Micro Identification.
F13
Bad EEPROM Identification/Checksum error.
F20
Communication failure between EOC & ESEC system
F26
Communication failure with Mini Oven Control Board.
F30
Shorted Probe connection.
F31
F40
Cooktop Lockout error.
F90
Maximum oven door unlock time exceeded.
F91
Maximum oven door unlock attempts exceeded.
F92
Maximum oven door open time exceeded.
F93
Maximum oven door lock time exceeded.
F94
Maximum oven door lock attempts exceeded.
REMOVING & REPLACING BAKE-N-WARM™ DOUBLE OVEN
DRAWER
Be sure the range is unplugged and all
parts are COOL before replacing oven light. Wear a
leather-faced glove for protection against possible
broken glass.
TO REMOVE THE BAKE-N-WARM™ DOUBLE OVEN
DRAWER:
1.
Before drawer removal, be sure to turn OFF the Bake-n-
Warm™ Double Oven and let the drawer area cool
completely.
2.
Pull the drawer away from the oven. Using a phillips-head
screwdriver remove the two drawer screws from the
insides of the oven drawer (See Fig. 1).
3.
With one hand hold the drawer front in place. Use your
other hand to pull the glide away from the oven (See Fig.
2) until the glide hook disengages (See Fig. 3).
4.
Repeat from step 3 above for the other side of the drawer.
5.
With BOTH glide hooks disengaged,
carefully lift the
drawer up and away from the oven. Push both drawer
glides into lower oven cavity.
TO REPLACE THE BAKE-N-WARM™ DOUBLE
OVEN DRAWER:
1.
Pull both drawer glides and fully extend outward from
lower oven cavity.
2.
Carefully rest the drawer on top of both glides.
3.
Adjust the drawer position on top of the rails until both of
the drawer side slots are correctly engaged with the glide
hooks (See Fig. 4).
4.
Pull the drawer forward to line up the drawer with both
screw holes in the glides. Using a phillips-head screwdriver
replace the two screws removed from the inner drawer
sides.
5.
Replace drawer rack if removed.
6.
Close lower oven drawer.
Suggested Corrective Action
1. (F10 only) Check RTD Sensor Probe & replace if necessary. If oven is overheating, disconnect
power. If oven continues to overheat when the power is reapplied, replace EOC. Severe
overheating may require the entire oven to be replaced should damage be extensive.
2. (F11, 12 & 13) Disconnect power, wait 30 seconds and reapply power.
3. (F11, 12 & 13) If fault returns upon power-up, replace EOC.
1. Test harness/connections P4 (EOC) & P11 (Surface Element Control Board)
2. If harness checks O.K. failure can be caused by faulty UIB, Surface Element Control Board
or EOC.
1. Check harness & connectors from the EOC to Mini Oven Control Board. Check for 15VDC
to Mini Oven Control Board (red & gray wires). If harness and voltage are good replace Mini Oven
Control Board. If fault returns replace the EOC.
1. (F30 or F31) Check resistance at room temperature & compare to RTD Sensor resistance chart.
If resistance does not match the RTD chart replace RTD Sensor Probe. Check Sensor wiring
harness between EOC & Sensor Probe connector.
2. (F30 or F31) Check resistance at room temperature, if less than 500 ohms, replace RTD Sensor
Probe. Check for shorted Sensor Probe harness between EOC & Probe connector.
1. (F40) Check the wiring.
2. (F40) Replace the Cooktop Lockout Control Board.
3. (F40) Replace EOC.
1. (F90, 91, 92, 93 & 94) Check the wiring between EOC & Lock Motor Micro Switch.
2. (F90, 91, 92, 93 & 94) Replace the Motor Door Latch assembly if necessary.
3. (F90, 91, 92, 93 & 94) Check for binding of the Latch Cam, Lock Motor Rod & Lock Motor Cam.
4. (F90, 91, 92, 93 & 94) Check to see if Lock Motor Coil is open. If open, repl;ace Lock Motor
Assembly.
5. (F90, 91, 92, 93 & 94) Lock Motor continuosly runs - if Micro Switch is open, replace Lock Motor
Assembly.
6. (F92, 93 & 94) Check oven door Light Switch - if open, replace Switch.
7. If all situations above do not solve probem, replace EOC.
Fig. 2
Glide Hook Engaged
Glide Hook Disengaged
Fig. 1
Fig. 3
Fig. 4
Fig. 5
