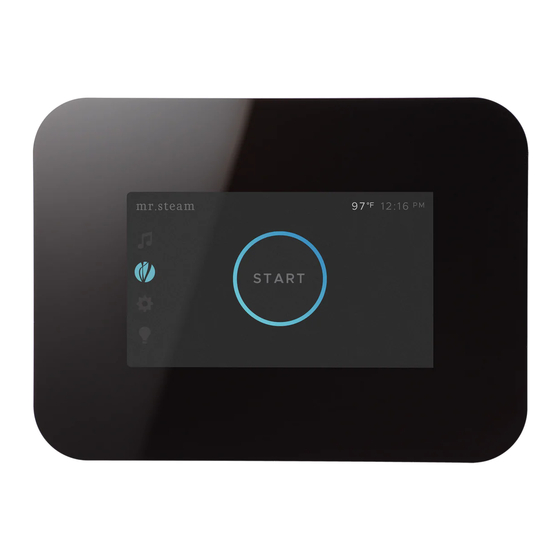

- Page 1 Installation, Operation & Maintenance Manual iSteam Controls ® steam ® Feel Good Inc.
-
Page 2: Table Of Contents
Table of Contents: General Information General Information........2 As you follow these instructions, you Box Content ..........2 will notice warning and caution symbols. Dimensional Information.......3 This blocked information is important for the safe and efficient installation and Before Installing ..........3 operation of this generator. These are Locating the Control ........4 types of potential hazards that may occur during installation and operation:... -
Page 3: Dimensional Information
Do not alter or modify any the shower could cause confusion or interfere with the Mr. Steam products including the steam generator or Mr.Steam control’s intended use and function. iSteam control. Doing so may result in an inoperative or hazardous installation and will void the warranty. -
Page 4: Locating The Control
steam ® Controls __________________________________________________________________ Locating the Control Determine the desired installation location of the control. The iSteam controls are designed to be installed inside or outside the steam room as a matter of personal preference. If the control is installed inside the steam room: •... -
Page 5: Installation Without Rough-In Box
steam ® Controls __________________________________________________________________ Installation with Optional Rough-In Box (cont.) IMPORTANT NOTE: Be careful not to strain, staple, pinch or otherwise damage the cables. Route cables as required to permit replacement. Do not route cables inside conduit together with power lines or close to hot water or steam piping. STEP 6 When used, route the AudioWizard ™... -
Page 6: Isteam ® Installation
steam ® Controls __________________________________________________________________ Installation Instructions for iSteam ® STEP 1 PLUG the 30' control cable into the iSteam See the AudioWizard Installation Operation and control pigtail (1a). The iSteam pigtail is the Maintenance Manual (PUR 100478) for complete longer cable with the ID Tag. AudioWizard Installation instructions. - Page 7 If the Peel-Off screen protector has been re- moved see the drawing in Step 2b for the proper ori- entation. NOTE: The silicone supplied by Mr. Steam can be ® used to meet a variety of sealing and gasketing. It...
-
Page 8: Operating Instructions
steam ® Controls __________________________________________________________________ Operating Instructions WARNING Set the steambathing duration and tem- perature according to personal preference, however it is highly recommended to begin steambathing at a low temperature setting to gauge comfort and safety levels. Set the duration at 10 minutes max. to gauge comfort and safety levels. -
Page 9: Set Temperature, User Preferences
steam ® Controls __________________________________________________________________ Set Temperature Screen 8:19 AM Press the TEMPERATURE button on the Dashboard to SET TEMPERATURE USER 1 access the SET TEMPERATURE screen. The control is preset and will display a temperature Temperature (swipe area) setting of 110 °... -
Page 10: Optional Accessories
steam ® Controls __________________________________________________________________ Optional Accessories Screen 8:19 AM Press the ACCESSORIES button on the START ACCESSORIES screen to access the optional ChromaSteam ® and AudioWizard ™ accessories when a steam- bath is not in session. ChromaSteam See page 9 for information on the AudioWizard ChromaSteam and AudioWizard operation. -
Page 11: Settings > Passcode
Probe. Failure to install according to instructions will result in an inoperative or hazardous installation. result in an inoperative control and overheating of the steam room. Warranty To view or download the Mr. Steam Control Warranty ® blog.mrsteam.com/wr and register your product go to:... - Page 12 ® steam Feel Good Inc. www.mrsteam.com Products, information and specifications are subject to change without notice. For more information call Sales & Support at 1.800.76.STEAM (East Coast) or 1.800.72.STEAM (West Coast) for more information. steam Sussman-Automatic Corporation ® I hello@mrsteam.com I www.mrsteam.com ®...
